3976998
Dipstick
Cummins®

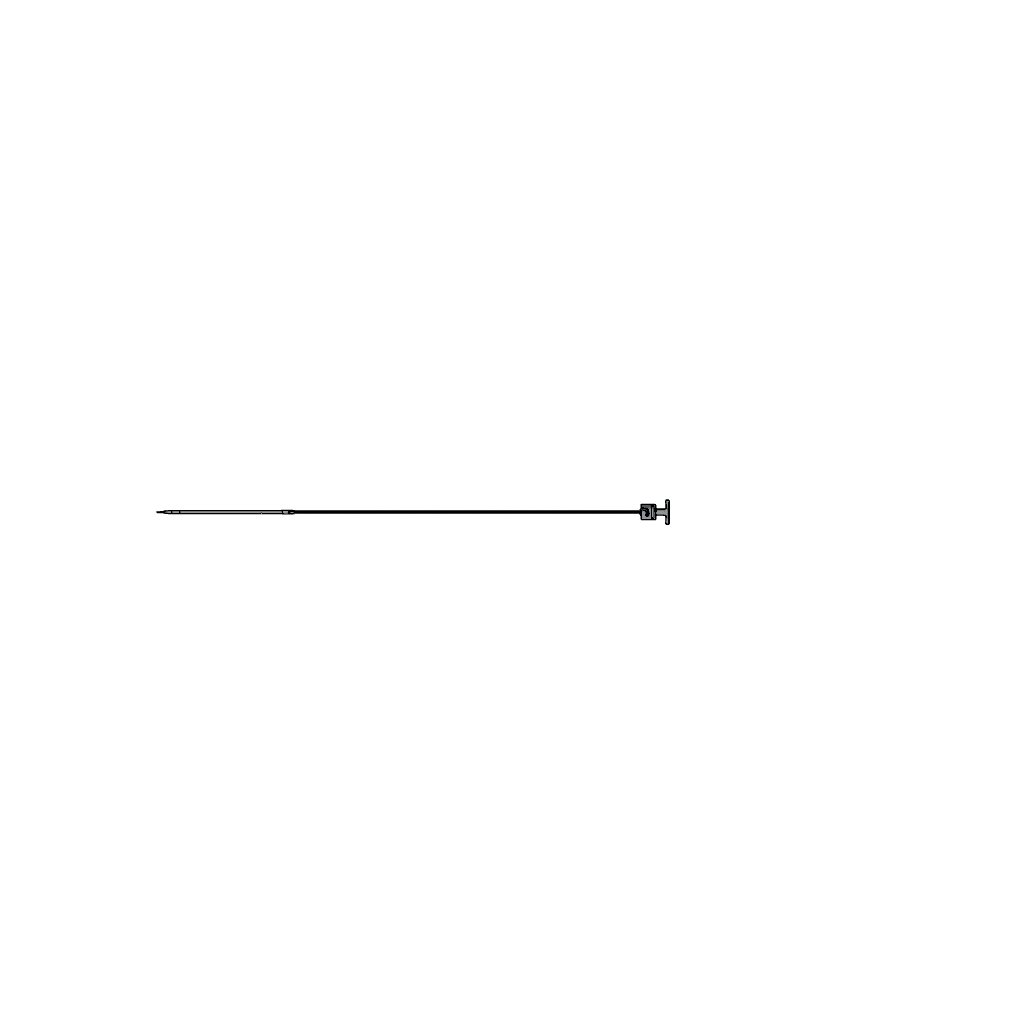

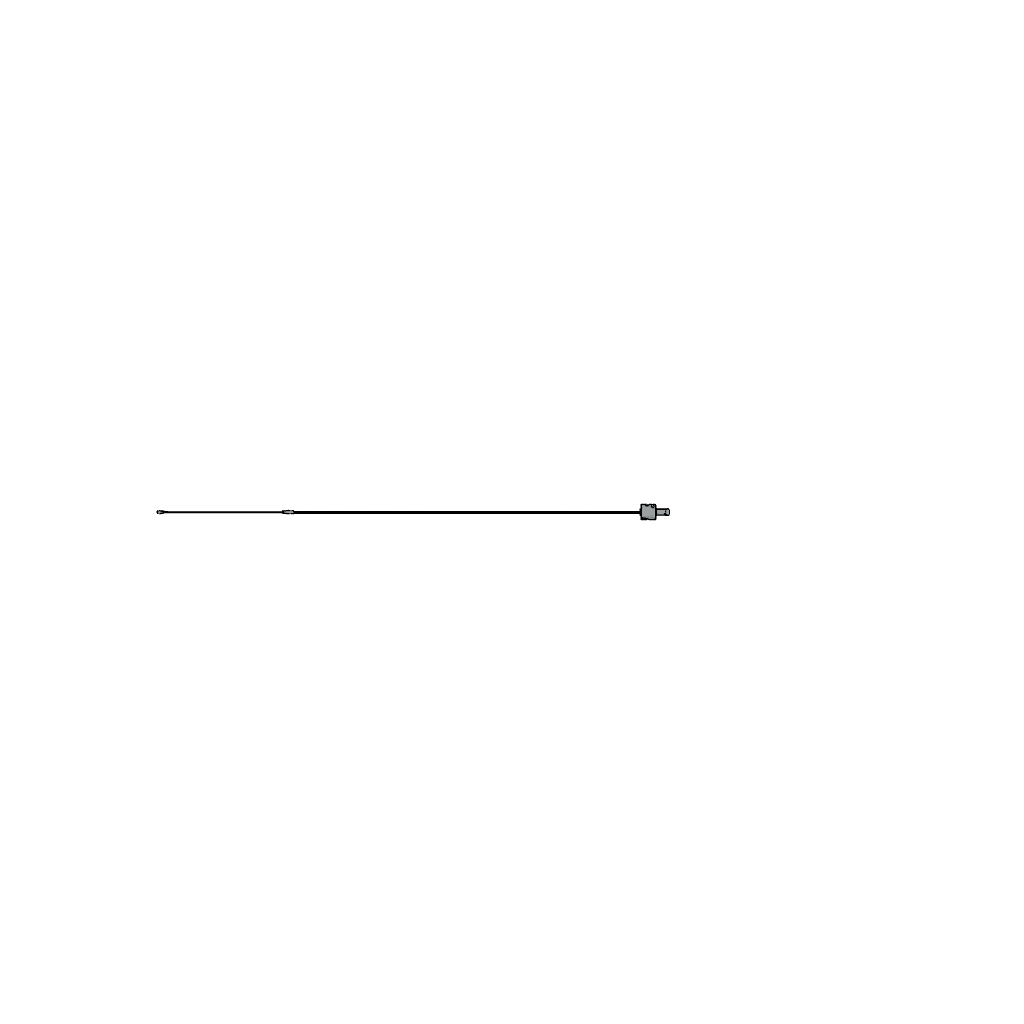

The Cummins 3976998 Dipstick is a component designed for use in heavy-duty trucks, specifically tailored to facilitate the monitoring of engine oil levels. Its role is significant in the context of vehicle maintenance, as it allows for the regular assessment of oil levels, which is vital for ensuring the engine operates within optimal parameters. Proper lubrication is fundamental to the longevity and efficiency of an engine, making the dipstick an indispensable tool for routine checks and maintenance procedures ¹.

Basic Concepts of a Dipstick

A dipstick is a simple yet essential tool used in internal combustion engines to measure the level of lubricant within the engine’s oil reservoir. It operates on a straightforward principle: the dipstick is inserted into the oil fill tube, which is connected to the oil pan. Once inserted and then withdrawn, the oil level can be read from the markings on the dipstick. These markings indicate whether the oil level is within the acceptable range, too low, or overfilled. The dipstick also often includes a temperature gauge to provide an indication of the oil’s temperature after the engine has been running ².

Purpose of the Cummins 3976998 Dipstick

The Cummins 3976998 Dipstick serves a specific function within the operation of a heavy-duty truck. It is designed to accurately measure the oil level within the engine, ensuring that there is sufficient lubrication for all moving parts. Proper lubrication is key to reducing friction, wear, and tear on engine components, thereby contributing to the overall efficiency and longevity of the engine. By providing a clear and accurate reading of the oil level, this dipstick plays a role in facilitating timely oil changes and maintaining the engine in optimal working condition ³.

Key Features

The Cummins 3976998 Dipstick is characterized by several specific features that enhance its performance and durability. It is constructed from high-quality materials to withstand the harsh conditions within a heavy-duty truck engine. The design includes precise markings for oil level measurement, ensuring accuracy. Additionally, the dipstick may feature a temperature gauge for assessing the oil’s temperature, providing further insight into the engine’s condition. Its robust construction and design are tailored to meet the demanding requirements of heavy-duty applications.

Benefits

Utilizing the Cummins 3976998 Dipstick offers several advantages. Its design ensures accurate measurement of oil levels, which is critical for maintaining proper engine lubrication. The durability of the dipstick means it can withstand the rigors of heavy-duty use, reducing the need for frequent replacements. Furthermore, its ease of use facilitates quick and efficient oil level checks, contributing to streamlined maintenance routines.

Installation Process

Installing the Cummins 3976998 Dipstick involves a straightforward process. First, ensure the engine is turned off and has cooled down to avoid burns from hot oil. Locate the oil fill tube on the engine and remove the old dipstick. Insert the new dipstick fully into the tube until it reaches the bottom, then withdraw it to check the oil level. Ensure it is securely in place to prevent oil leaks. No special tools are required for this process, but always follow safety precautions, such as wearing gloves and eye protection, to protect against potential oil spills or splashes.

Troubleshooting Common Issues

Common issues with dipsticks include inaccurate oil level readings and physical damage to the dipstick itself. Inaccurate readings can often be resolved by ensuring the dipstick is fully inserted and withdrawn correctly. If the dipstick is damaged, it should be replaced to ensure accurate measurements. Regular inspection of the dipstick for signs of wear or damage can help prevent issues from arising.

Maintenance Tips

To ensure the longevity and reliable performance of the Cummins 3976998 Dipstick, regular maintenance is recommended. This includes cleaning the dipstick after each use to remove any oil residue, which can affect the accuracy of readings. Inspecting the dipstick for signs of wear or damage and replacing it if necessary will help maintain accurate oil level measurements. Additionally, following the manufacturer’s guidelines for oil change intervals and using the recommended type of oil will contribute to the overall health of the engine and the dipstick.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins has established itself as a key player in the automotive industry, particularly in the production of diesel engines and related components. The company’s commitment to innovation, quality, and customer satisfaction has made it a trusted name in the industry, providing solutions that meet the demanding requirements of various applications, from heavy-duty trucks to industrial equipment.

Cummins Engine Dipstick Compatibility

The Cummins part number 3976998, which is a Dipstick, is designed to fit a variety of Cummins engines. This dipstick is essential for checking the oil level and ensuring the engine operates smoothly. Below is a detailed description of the compatibility of this dipstick with various Cummins engines:

ISB Series Engines

• ISB CM2150
• ISB/ISD6.7 CM2150 SN
• ISB6.7 CM2250
• ISB6.7 CM2350 B101
• ISB6.7 G CM2180 B118
• ISBE CM2150
• ISBE4 CM850

The ISB series engines, including the ISB CM2150, ISB/ISD6.7 CM2150 SN, ISB6.7 CM2250, ISB6.7 CM2350 B101, ISB6.7 G CM2180 B118, ISBE CM2150, and ISBE4 CM850, are compatible with the part number 3976998. This dipstick is engineered to fit seamlessly into the oil systems of these engines, ensuring accurate oil level readings and maintaining the engine’s performance.

QSB Series Engines

• QSB6.7 CM2250
• QSB6.7 CM2350 B105
• QSB6.7 CM850 (CM2850)
• QSB7 CM2880 B117

The QSB series engines, including the QSB6.7 CM2250, QSB6.7 CM2350 B105, QSB6.7 CM850 (CM2850), and QSB7 CM2880 B117, also support the use of the part number 3976998 dipstick. This compatibility ensures that the dipstick can be used across a range of QSB engines, providing a reliable method for oil level checks and contributing to the overall maintenance of these engines.

This detailed compatibility information ensures that users can confidently select the correct dipstick for their Cummins engines, facilitating proper maintenance and operational efficiency.

Role of Part 3976998 Dipstick in Engine Systems

The part 3976998 dipstick is an integral component in the maintenance and monitoring of engine systems. Its primary function is to provide a means for checking the oil level within the engine. This is achieved through a simple yet effective mechanism where the dipstick is inserted into the oil filler tube, which is connected to the oil pan. Once inserted and then withdrawn, the oil level can be observed on the dipstick, typically marked with minimum and maximum indicators.

In conjunction with the oil level gauge, the dipstick offers a visual and tactile method for assessing the quantity of oil present in the engine. The oil level gauge, often part of the vehicle’s dashboard instrumentation, may also interact with the dipstick indirectly by providing a secondary confirmation of oil levels through sensors that detect the oil’s presence in the pan.

The accurate measurement of oil level is essential for the lubrication system’s effectiveness. Insufficient oil can lead to increased friction and wear on moving parts, while excessive oil can cause foaming, which reduces the oil’s lubricating properties and can lead to engine damage.

Moreover, the dipstick’s role extends to temperature indication in some designs, where a thermometer is incorporated into the dipstick. This allows for the monitoring of oil temperature, which is a key factor in engine performance and longevity. High oil temperatures can indicate overheating or inefficient cooling, prompting necessary maintenance actions.

Conclusion

In summary, the Cummins 3976998 Dipstick is a fundamental tool in the routine maintenance of engine systems, ensuring that oil levels are maintained within the optimal range for engine health and performance. Its design, durability, and ease of use make it an essential component for heavy-duty truck maintenance, contributing to the longevity and efficiency of the engine.
