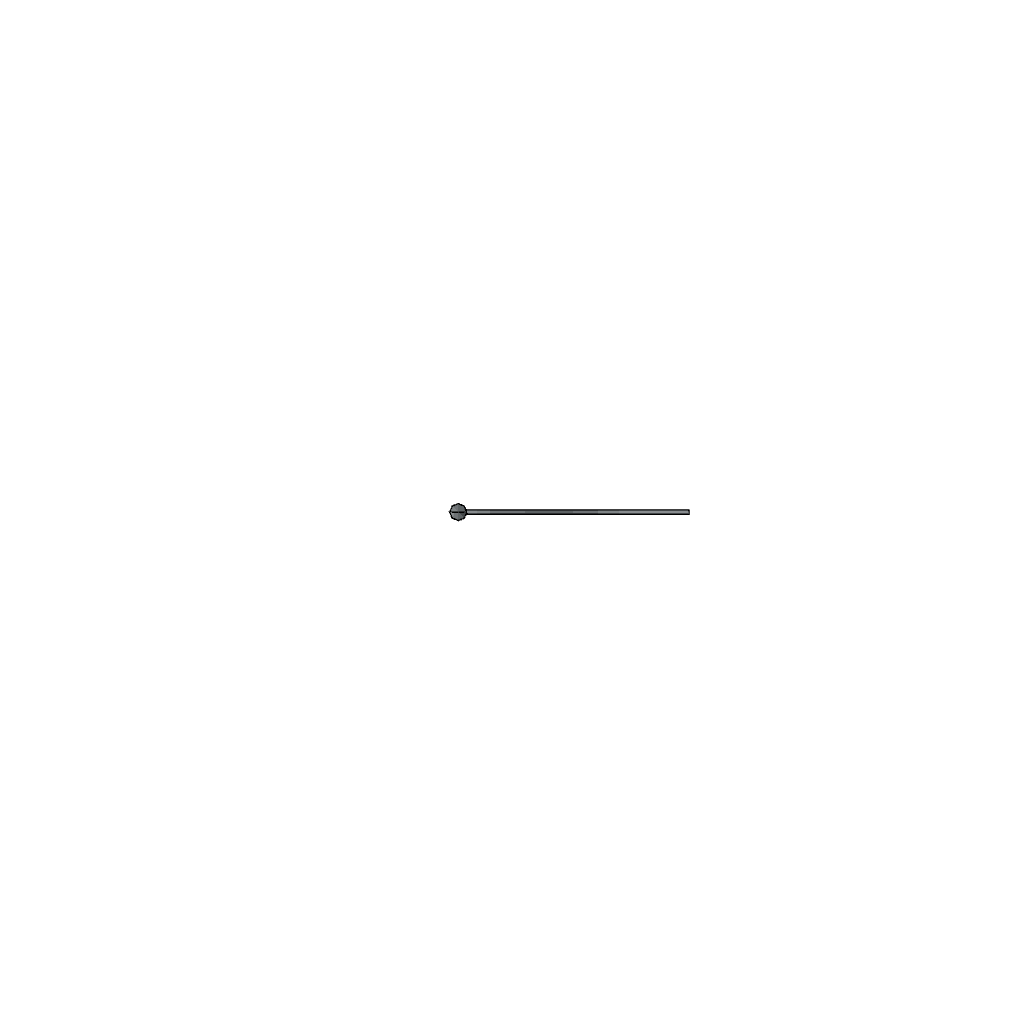

5289445
Dipstick
Cummins®

Introduction

The Cummins 5289445 Dipstick is a specialized component designed for use in heavy-duty trucks. Its primary function is to facilitate the measurement of oil levels within the engine, ensuring that the lubrication system operates within optimal parameters. This part is integral to the maintenance routine of heavy-duty trucks, contributing to the longevity and efficiency of the engine by allowing for precise oil level checks.

Basic Concepts of a Dipstick

A dipstick is a simple yet vital tool used in internal combustion engines to measure the level of lubricant, typically oil, within the crankcase. It consists of a long, slender metal or plastic rod with a handle at one end. The other end is inserted into the engine’s oil sump. The dipstick operates on the principle of direct measurement; when withdrawn, the oil level is indicated by the oil residue on the stick, which corresponds to marked measurements along its length ¹.

Purpose of the Cummins 5289445 Dipstick

The Cummins 5289445 Dipstick plays a role in the operation and maintenance of heavy-duty trucks by providing a means to accurately measure the oil level in the engine. Proper oil levels are crucial for the lubrication of moving parts, reducing friction and wear, and ensuring the engine operates efficiently and reliably. Regular checks with this part allow for timely top-ups or changes, maintaining the engine’s performance and longevity ².

Key Features

The Cummins 5289445 Dipstick is designed with specific features to enhance its performance and durability. It is constructed from high-quality materials resistant to heat and corrosion, ensuring longevity even in the demanding environment of a heavy-duty truck engine. The dipstick is also designed for ease of use, with a robust handle for secure grip and clear, durable markings for accurate oil level readings.

Benefits

Utilizing the Cummins 5289445 Dipstick offers several advantages. Its design ensures accuracy in oil level measurement, which is vital for maintaining engine health. The ease of use, combined with its durability, makes it a reliable component for regular maintenance checks. Additionally, the precise measurement capability helps in preventing both overfilling and underfilling of oil, which can lead to engine damage ³.

Installation Process

Installing the Cummins 5289445 Dipstick requires following a straightforward process to ensure optimal performance and safety. First, ensure the engine is off and has cooled down to avoid burns. Locate the dipstick tube, usually found near the engine’s top. Insert the dipstick fully into the tube until it reaches the bottom, then withdraw it to check the oil level. For installation, simply insert the new dipstick into the tube until it is fully seated.

Maintenance Tips

To prolong the lifespan of the Cummins 5289445 Dipstick and ensure consistent performance, regular maintenance is recommended. After each use, wipe the dipstick clean with a lint-free cloth before reinserting it into the tube. Periodically check the condition of the dipstick for signs of wear or corrosion, and replace it if necessary to maintain accuracy in oil level readings.

Troubleshooting Common Issues

Common issues with dipsticks include inaccurate readings due to a bent or damaged dipstick, or oil level discrepancies caused by a malfunctioning dipstick tube. To address these, inspect the dipstick for physical damage and ensure it is properly seated in the tube. If inaccuracies persist, the dipstick tube may require cleaning or, in rare cases, replacement.

Safety Considerations

When using and maintaining the Cummins 5289445 Dipstick, it is important to observe safety practices. Always ensure the engine is off and has sufficiently cooled before attempting to check the oil level to avoid burns. Use caution when handling the dipstick to prevent injury from sharp edges or hot surfaces. Additionally, wear appropriate personal protective equipment, such as gloves, to protect your hands during maintenance procedures.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes a wide range of power solutions, including engines, filtration, and related technologies. With a history spanning over a century, Cummins has established itself as a key player in the automotive industry, particularly in the production of components for heavy-duty trucks. The company’s commitment to innovation, quality, and customer satisfaction has made it a trusted name in the industry.

Cummins Engine Dipstick 5289445 Compatibility

The Cummins part number 5289445, a Dipstick, is designed to be compatible with a range of Cummins engines, ensuring ease of maintenance and accurate oil level checks. This dipstick is engineered to fit seamlessly with the following engines:

• QSB3.3 CM2250 EC

These engines are part of Cummins’ robust lineup, known for their reliability and performance in various applications. The dipstick’s design ensures it integrates smoothly with the engine’s oil system, providing an accurate reading of the oil level. This compatibility is crucial for maintaining engine health and ensuring optimal performance.

Role of Part 5289445 Dipstick in Engine Systems

The part 5289445 dipstick is an essential component in the oil level gauge system of an engine. It facilitates the accurate measurement of the oil level within the engine’s crankcase.

When the dipstick is inserted into the oil filler tube, it comes into direct contact with the oil. Upon removal, the oil level can be read from the markings on the dipstick, providing a quick and reliable method for assessing whether the oil level is within the acceptable range.

This part interacts with several other components to ensure the engine operates efficiently. The oil filler tube, where the dipstick is housed, allows for easy access to the crankcase for both oil level checks and oil top-ups. The dipstick also works in conjunction with the oil pan, which stores the engine oil, ensuring that the oil level remains consistent and does not drop below the minimum operating level.

Additionally, the dipstick plays a role in the overall maintenance routine of the engine. Regular checks using the dipstick help in identifying potential leaks or excessive oil consumption, which could indicate underlying issues such as worn piston rings or faulty valve seals.

In summary, the part 5289445 dipstick is a straightforward yet vital component that ensures the engine’s lubrication system functions correctly by providing a simple yet effective means of monitoring oil levels.

Conclusion

The Cummins 5289445 Dipstick is a critical component for maintaining the health and efficiency of heavy-duty truck engines. Its design ensures accurate oil level measurements, contributing to the longevity and performance of the engine. Regular maintenance and proper use of this part are essential for optimal engine operation.
