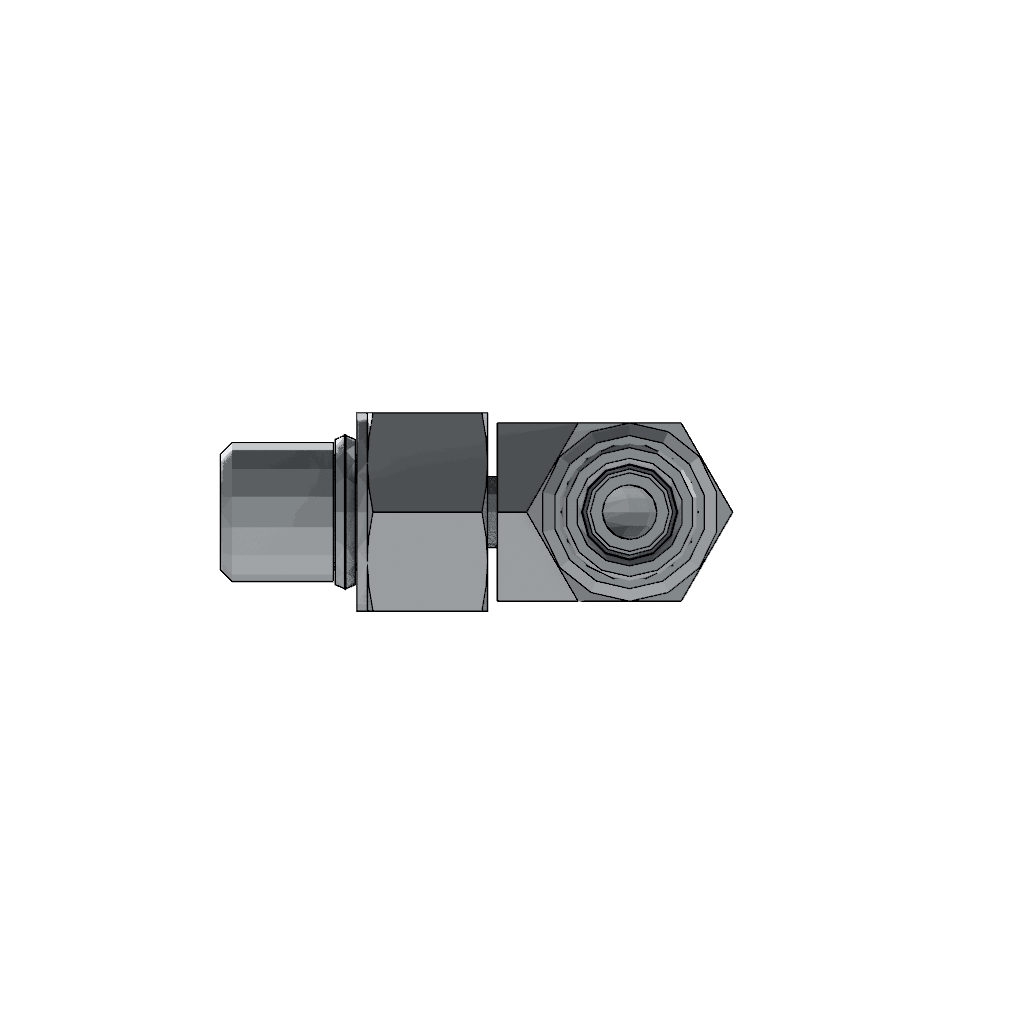

Male Union Elbow
Cummins®

Introduction

The 4916285 Male Union Elbow is a component manufactured by Cummins, a well-established name in the commercial truck industry. This part is designed for use in various fluid systems within commercial trucks, ensuring efficient operation and reliability.

Basic Concepts of Male Union Elbow

A Male Union Elbow is a fitting used in fluid systems to connect two pipes at an angle. It features a male threaded end that screws into a female fitting, allowing for secure and leak-proof connections. In a truck’s system, this fitting plays a role in directing the flow of fluids, such as fuel, hydraulic fluid, or coolant, by changing the direction of the pipework without compromising the integrity of the system ¹.

Purpose of the 4916285 Male Union Elbow

The 4916285 Male Union Elbow is specifically designed to facilitate the redirection of fluid flow within a truck’s system. Its role is to connect pipes at an angle, ensuring that the fluid can travel through the system without obstruction. This fitting is particularly useful in areas where space is limited or where the routing of pipes needs to be altered to accommodate other components.

Key Features

The 4916285 Male Union Elbow boasts several key features that enhance its functionality and durability. It is constructed from high-quality materials, ensuring resistance to corrosion and wear. The fitting includes a male threaded connection, which allows for easy and secure installation. Additionally, its design specifications are tailored to meet the demanding requirements of commercial truck applications, providing a reliable solution for fluid system connections.

Benefits

Utilizing the 4916285 Male Union Elbow offers several advantages. Its durable construction ensures long-term reliability, reducing the need for frequent replacements. The fitting’s design allows for straightforward installation, minimizing downtime during maintenance procedures. Furthermore, its precise engineering enhances the performance of the truck’s fluid systems, contributing to overall efficiency and reliability.

Installation Process

Installing the 4916285 Male Union Elbow requires careful attention to detail to ensure a secure and leak-proof connection. Begin by ensuring the pipes are clean and free from debris. Apply thread sealant to the male threads of the elbow to prevent leaks. Screw the elbow into the female fitting until snug, using a wrench to tighten if necessary. It is important to avoid over-tightening, which could damage the threads. Once installed, check for leaks by pressurizing the system and inspecting the connection.

Common Applications

The 4916285 Male Union Elbow is commonly used in various applications within a truck’s system. It is often found in fuel lines, where it helps direct fuel flow to the engine. In hydraulic systems, it plays a role in connecting components at angles, ensuring smooth operation. Additionally, it is used in cooling systems to route coolant efficiently, contributing to the engine’s thermal management.

Troubleshooting and Maintenance

To ensure the longevity of the 4916285 Male Union Elbow, regular maintenance is recommended. Inspect the fitting for signs of wear or corrosion during routine checks. If leaks are detected, tighten the connection or replace the fitting if necessary. Keeping the fitting clean and free from debris will also help maintain its performance. If the fitting shows significant signs of wear or damage, it may be time to consider replacement to prevent system failures ².

About Cummins

Cummins is a renowned manufacturer in the commercial truck industry, known for its high-quality engines and components. With a history of innovation and reliability, Cummins has established itself as a trusted name among truck operators and manufacturers. Their commitment to excellence is evident in the design and performance of their products, including the 4916285 Male Union Elbow.

Compatibility of Male Union Elbow Part 4916285 with Cummins Engines

The Male Union Elbow part number 4916285, manufactured by Cummins, is designed to fit seamlessly with a variety of Cummins engines. This part is integral in ensuring the proper connection and functionality of the engine’s cooling system. Below is a detailed description of its compatibility with the specified engines:

QSK19 CM850 MCRS and QSK60 CM850 MCRS

The Male Union Elbow part 4916285 is compatible with the QSK19 CM850 MCRS and QSK60 CM850 MCRS engines. These engines are part of the Cummins QSK series, which are known for their robust performance and reliability in various applications. The part ensures a secure and leak-proof connection in the engine’s cooling system, maintaining optimal performance and longevity.

QSK38 CM2150 MCRS and QSK50 CM2150 MCRS

For the QSK38 CM2150 MCRS and QSK50 CM2150 MCRS engines, the Male Union Elbow part 4916285 is also a perfect fit. These engines are part of the Cummins QSK series, designed for heavy-duty applications. The part’s precision engineering guarantees a tight seal, preventing any coolant leaks and ensuring the engine operates efficiently.

QSK50 CM2150 K107

The Male Union Elbow part 4916285 is compatible with the QSK50 CM2150 K107 engine. This engine is part of the Cummins QSK series, known for its durability and efficiency. The part ensures that the cooling system connections are secure, contributing to the engine’s overall performance and reliability.

QSK95 CM2350 K113

Lastly, the Male Union Elbow part 4916285 fits the QSK95 CM2350 K113 engine. This engine is part of the Cummins QSK series, designed for high-performance applications. The part’s compatibility with this engine ensures that the cooling system connections are robust and reliable, supporting the engine’s demanding operational requirements.

By ensuring compatibility with these engines, the Male Union Elbow part 4916285 plays a role in maintaining the integrity and efficiency of the engine’s cooling system.

Conclusion

The 4916285 Male Union Elbow is a fundamental component in various engine systems, facilitating the efficient transfer of fluids and ensuring the seamless operation of these systems. In the heat exchanger system, the Male Union Elbow connects different sections of the piping, allowing for the smooth flow of coolant. This connection is vital for maintaining the optimal temperature of the engine, as it enables the heat exchanger to effectively dissipate excess heat generated during operation.

Within the engine cooling system, the Male Union Elbow plays a role in linking the radiator to the engine block. This connection ensures that coolant circulates efficiently, absorbing heat from the engine and transferring it to the radiator for dissipation. The reliable performance of this component is key to preventing engine overheating and ensuring consistent engine performance.

In the oil replenishing system, the Male Union Elbow is used to connect the oil tank to the engine’s lubrication system. This connection allows for the continuous supply of oil to the engine’s moving parts, reducing friction and wear. The Male Union Elbow’s secure fitting ensures that oil flow is uninterrupted, which is essential for the longevity and efficiency of the engine.

Overall, the 4916285 Male Union Elbow is a fundamental component in these systems, providing reliable connections that are essential for the efficient and effective operation of engine systems.
