4927285
Terminal Block
Cummins®

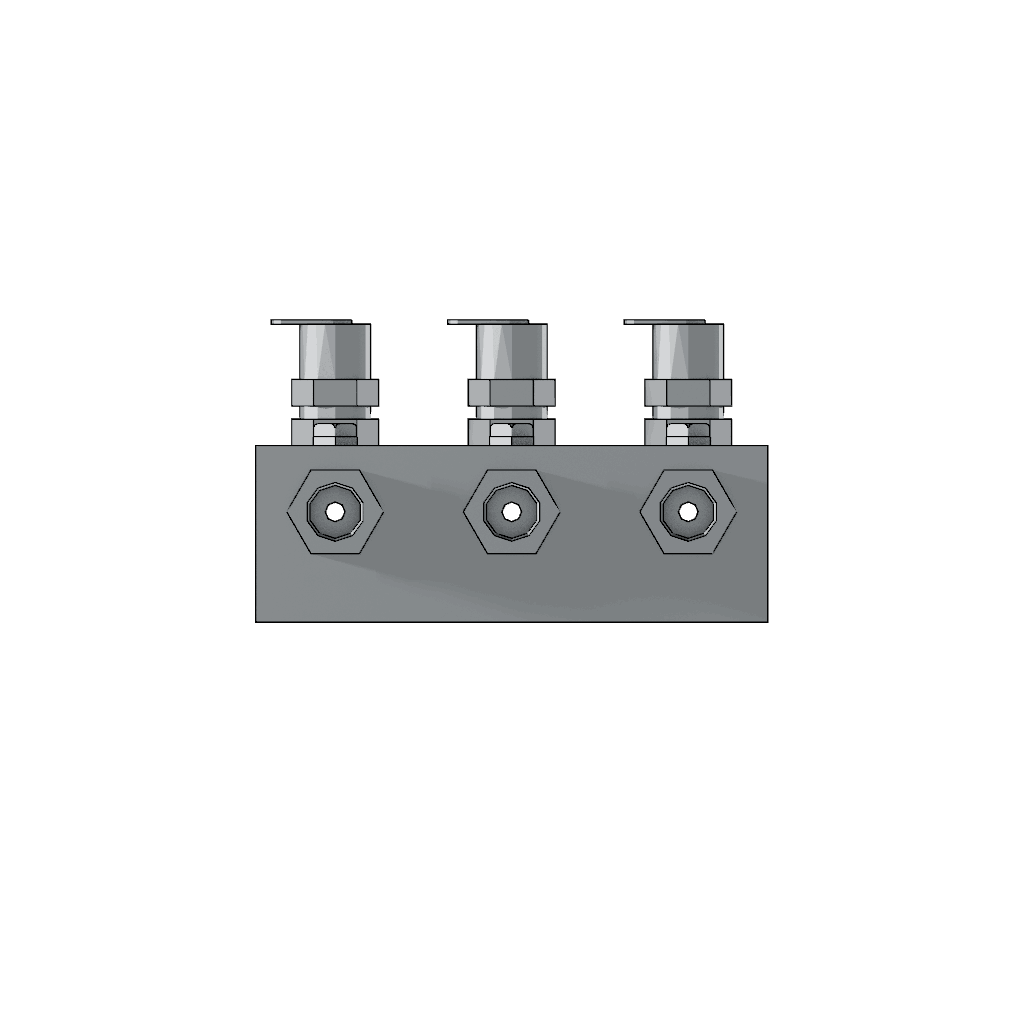

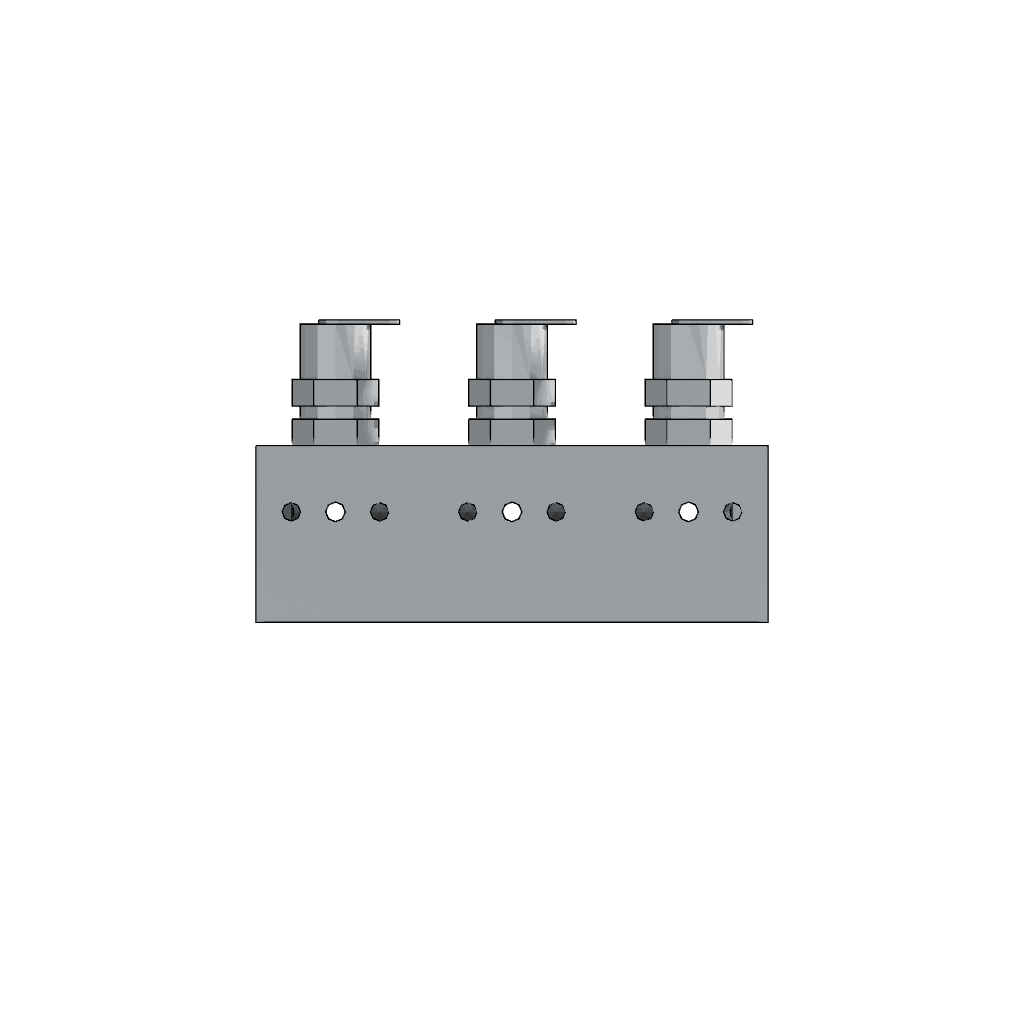

The 4927285 Terminal Block, manufactured by Cummins, is a component designed to facilitate efficient electrical connections in commercial trucks. Cummins, a well-established name in the commercial truck industry, produces this terminal block to enhance the reliability and performance of electrical systems in heavy-duty vehicles. The Terminal Block plays a significant role in ensuring that electrical connections are secure, organized, and efficient, contributing to the overall functionality and safety of commercial truck operations.

Basic Concepts of Terminal Blocks

Terminal blocks are devices used in electrical systems to connect wires and other electrical components. They provide a convenient and organized way to manage multiple electrical connections, reducing the complexity of wiring systems. Terminal blocks facilitate the distribution of electrical power and signals, ensuring that connections are secure and reliable. They are commonly used in various applications, including industrial machinery, automotive systems, and commercial trucks, to simplify wiring and enhance system performance ¹.

Purpose of the 4927285 Terminal Block

The 4927285 Terminal Block is specifically designed to manage and distribute electrical connections within the electrical system of a commercial truck. It plays a role in organizing and securing wires, ensuring that electrical power and signals are efficiently transmitted throughout the vehicle. By centralizing connections, the terminal block helps maintain a tidy and manageable wiring system, which is crucial for the reliable operation of the truck’s electrical components ².

Key Features

The 4927285 Terminal Block boasts several key features that enhance its performance and reliability. Its design includes multiple connection points, allowing for the secure attachment of various wires and electrical components. The terminal block is constructed from durable materials, ensuring it can withstand the harsh conditions often encountered in commercial truck environments. It features a variety of connection types, including screw terminals and quick-connect options, providing flexibility in wiring configurations. Additionally, the terminal block may include unique attributes such as corrosion-resistant coatings and enhanced insulation, further improving its durability and safety ³.

Benefits

The 4927285 Terminal Block offers several advantages over alternative solutions. Its robust design and high-quality materials contribute to improved safety by ensuring secure and reliable electrical connections. The organized layout of the terminal block enhances efficiency by simplifying the wiring process and reducing the risk of errors. Additionally, the ease of maintenance provided by the terminal block allows for quick and straightforward inspections and repairs, minimizing downtime and enhancing overall vehicle reliability.

Installation Process

Proper installation of the 4927285 Terminal Block is crucial for ensuring secure and effective electrical connections. The installation process involves several steps:

1. Prepare the installation area by ensuring all necessary tools and components are readily available.
2. Mount the terminal block in the designated location, ensuring it is securely fastened.
3. Strip the ends of the wires to be connected, removing any insulation to expose the conductive material.
4. Insert the stripped wire ends into the appropriate terminals on the block, ensuring a snug fit.
5. Tighten the terminal screws to secure the wires in place, using the recommended torque specifications.
6. Verify all connections are secure and properly aligned.
7. Conduct a final inspection to ensure there are no loose connections or exposed wires.

Troubleshooting Common Issues

Common issues that may arise with terminal blocks include loose connections, corrosion, and damaged terminals. To diagnose and resolve these problems:

1. Inspect the terminal block for any signs of loose connections. Tighten any screws that appear loose to secure the wires.
2. Check for corrosion on the terminals and wires. Clean any corroded areas using a wire brush or appropriate cleaning solution to restore conductivity.
3. Examine the terminals for any signs of damage. Replace any damaged terminals to ensure reliable connections.
4. Verify that all wires are properly aligned and secured within the terminal block.

Maintenance Tips

Regular maintenance of the 4927285 Terminal Block is essential for ensuring its longevity and reliable performance. Maintenance practices include:

1. Periodically inspect the terminal block for any signs of wear, corrosion, or loose connections.
2. Clean the terminal block and connections using a suitable cleaning solution to remove any dirt or debris that may accumulate.
3. Ensure all connections are tight and secure, tightening any screws as necessary.
4. Conduct regular checks to verify the integrity of the wiring and terminal block, addressing any issues promptly to prevent further complications.

Safety Considerations

When working with terminal blocks, it is important to observe safety protocols to prevent electrical hazards and ensure personal safety. Safety considerations include:

1. Ensure the electrical system is de-energized before beginning any work on the terminal block to prevent electrical shock.
2. Use appropriate personal protective equipment (PPE), such as insulated gloves and safety glasses, when handling electrical components.
3. Follow proper wiring practices to ensure connections are secure and reliable, reducing the risk of electrical faults.
4. Be aware of the potential for electrical arcing and take precautions to avoid contact with live electrical components.

Cummins: A Brief Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins has established a strong reputation for quality and innovation in the commercial truck industry. The company offers a wide range of products and services designed to meet the needs of customers in various sectors, including transportation, construction, and agriculture. Cummins is committed to delivering reliable, efficient, and sustainable power solutions, ensuring the success and safety of its customers’ operations.

Cummins Terminal Block 4927285 Compatibility with Engine Models

The Cummins Terminal Block 4927285 is a versatile component designed to integrate seamlessly with various Cummins engine models. This part is engineered to ensure reliable electrical connections and efficient power distribution, making it a critical component in the engine’s electrical system.

K19 and K38 Engines

The Terminal Block 4927285 is compatible with the K19 and K38 engines. These engines are known for their robust performance and reliability, often used in heavy-duty applications. The terminal block ensures that all electrical connections are secure and efficient, contributing to the overall performance and longevity of the engine.

K50 Engines

Similarly, the K50 engine benefits from the use of the Terminal Block 4927285. This engine model is designed for high-performance applications, and the terminal block plays a crucial role in maintaining the integrity of the electrical system. Its compatibility with the K50 ensures that the engine operates smoothly and efficiently.

QSK19 and CM850 Engines

The QSK19 and CM850 engines also integrate well with the Terminal Block 4927285. These engines are part of Cummins’ lineup of high-efficiency, low-emission power systems. The terminal block’s design allows for easy installation and maintenance, ensuring that the electrical connections remain robust and reliable under various operating conditions.

MCRS Engines

The MCRS engines are another series where the Terminal Block 4927285 proves its worth. These engines are engineered for demanding applications, and the terminal block’s compatibility ensures that the electrical system can handle the rigors of continuous operation. Its design facilitates efficient power distribution, enhancing the overall performance of the engine.

By ensuring compatibility with these diverse engine models, the Cummins Terminal Block 4927285 demonstrates its versatility and importance in maintaining the electrical integrity of Cummins engines.

Role of Part 4927285 Terminal Block in Engine Systems

The 4927285 Terminal Block is an essential component in the integration and operation of various engine systems. It serves as a central junction point for electrical connections, ensuring seamless communication and power distribution among different engine components.

Integration with the Panel

In the context of the panel, the Terminal Block facilitates the connection of multiple wires and circuits. This allows for the efficient distribution of electrical signals and power to various instruments and controls located on the panel. By centralizing these connections, the Terminal Block reduces the complexity of wiring and enhances the reliability of the electrical system.

Interaction with Engine Instruments

For engine instruments, the Terminal Block plays a significant role in transmitting data and power. It connects sensors and gauges to the central processing unit, enabling real-time monitoring of engine parameters such as temperature, pressure, and RPM. This ensures that the engine instruments receive accurate and timely information, which is vital for maintaining optimal engine performance and diagnosing potential issues.

Role in the Engine System

Within the engine system, the Terminal Block acts as a hub for electrical connections. It links various subsystems, including the fuel injection system, ignition system, and emission control system. This integration allows for coordinated operation and ensures that all components work harmoniously to achieve efficient engine performance.

Contribution to Engine Monitoring

In engine monitoring applications, the Terminal Block is instrumental in collecting and transmitting data from various sensors throughout the engine. It provides a structured pathway for signals related to engine health, performance metrics, and diagnostic information. This data is crucial for continuous monitoring and maintenance, allowing for proactive identification of issues and ensuring the longevity of the engine.

Conclusion

Overall, the 4927285 Terminal Block is a fundamental component that enhances the functionality and reliability of engine systems by providing a robust and organized framework for electrical connections. Its compatibility with various Cummins engine models underscores its versatility and importance in maintaining the electrical integrity of commercial trucks.
