5619091

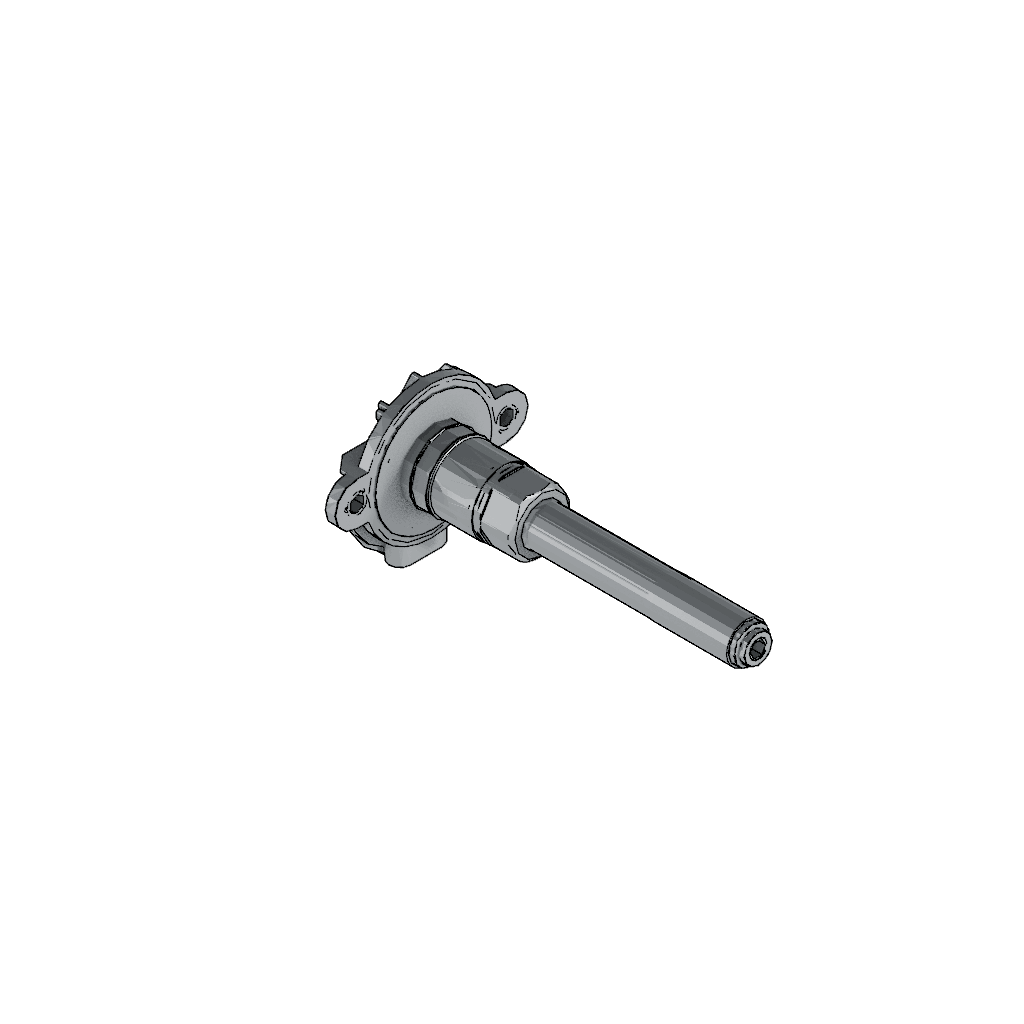

Ignition Coil
Cummins®

Introduction

The Cummins 5619091 Ignition Coil is a critical component for commercial trucks equipped with Cummins engines. It generates the high voltage needed to create a spark at the spark plugs, which is essential for igniting the air-fuel mixture within the engine’s cylinders. This ensures efficient and reliable engine performance.

Basic Concepts of Ignition Coils

An ignition coil is an inductive electrical transformer used in spark-ignition engines. It converts the battery’s low voltage into the high voltage required for spark plug ignition through electromagnetic induction. The primary winding receives current from the battery, and the secondary winding produces a high voltage output, enabling combustion and engine operation ¹.

Purpose of the 5619091 Ignition Coil

The Cummins 5619091 Ignition Coil is designed to generate the high voltage needed for spark plug ignition in commercial trucks. It ensures that the spark plugs receive the correct voltage for efficient ignition of the air-fuel mixture, contributing to engine performance and fuel efficiency ².

Key Features

This ignition coil features a robust design with high-quality materials, ensuring performance and durability. Its compact design allows for easy installation in tight engine compartments, and it is resistant to environmental factors such as heat and vibration, enhancing its reliability and longevity in commercial truck applications ³.

Benefits

The benefits of the 5619091 Ignition Coil include improved engine performance, reliability, and efficiency. It ensures a consistent and powerful spark at the spark plugs, optimizing combustion for smoother engine operation and potentially better fuel economy. Its durable construction also contributes to the overall reliability of the engine ⁴.

Installation and Compatibility

Proper installation of the 5619091 Ignition Coil is essential for optimal performance. It is compatible with various Cummins engine models, making it a versatile component for fleet managers and technicians ⁵.

Maintenance and Troubleshooting

Regular inspection of the 5619091 Ignition Coil is necessary to ensure it remains in good condition. This includes checking for wear, corrosion, or damage. Troubleshooting common issues such as misfires or failure to start may involve testing the coil’s output voltage and inspecting the spark plug connections ⁶.

Common Failure Modes

Ignition coils, including the 5619091 model, can fail due to electrical issues, physical damage, or wear over time. Symptoms of a failing ignition coil may include engine misfires, difficulty starting the engine, or decreased performance. Regular maintenance checks and addressing electrical issues can help prolong the coil’s lifespan ⁷.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes a wide range of power solutions, including engines, filtration, and related technologies. With a history spanning over a century, Cummins has established a reputation for quality, reliability, and innovation in the commercial truck industry ⁸.

Ignition Coil Part 5619091 Compatibility with Cummins Engines

The Ignition Coil part number 5619091 is designed to be compatible with several Cummins engine models. It ensures that the spark plugs generate the necessary spark to ignite the air-fuel mixture in the engine’s combustion chamber, contributing to efficient and reliable ignition.

ISB6.7 G CM2180 B118

The ISB6.7 G CM2180 B118 engine is one of the models that can utilize the Ignition Coil part 5619091. This engine is known for its robust performance and reliability, making it a popular choice in various applications, including heavy-duty trucks and industrial machinery.

Other Compatible Engines

The Ignition Coil part 5619091 is also compatible with other Cummins engine models due to the standardized design and function of ignition coils across many Cummins engines.

Role of Part 5619091 Ignition Coil in the Ignition System

The ignition coil, specifically part 5619091, is integral to the operation of the ignition system. It transforms the battery’s low voltage into the high voltage needed to create a spark in the spark plugs, igniting the air-fuel mixture in the engine’s cylinders.

In the ignition system, the ignition coil works in conjunction with other components. When the ignition switch is activated, it sends a low-voltage current to the ignition coil. The coil, consisting of primary and secondary windings, amplifies this voltage. The primary winding receives the low voltage, and through electromagnetic induction, the secondary winding produces a high voltage.

This high voltage is then routed to the distributor or directly to the spark plugs in distributorless ignition systems. The spark plugs, upon receiving the high voltage from the ignition coil, create a spark across their electrodes, igniting the compressed air-fuel mixture in the cylinder and leading to the power stroke of the engine’s operation.

The ignition coil’s operation is synchronized with the engine’s crankshaft position sensor and camshaft position sensor. These sensors provide data to the engine control unit (ECU), which determines the optimal timing for spark delivery, ensuring efficient combustion and optimal engine performance ⁹.

Conclusion

The Cummins 5619091 Ignition Coil plays a vital role in the ignition system of commercial trucks by generating the high voltage needed for spark plug ignition. Its robust design, compatibility with various Cummins engine models, and the benefits it provides in terms of engine performance, reliability, and efficiency make it an essential component for fleet managers and technicians. Regular maintenance and proper installation are key to ensuring the longevity and optimal performance of this ignition coil.
