3680915
Flywheel
Cummins®

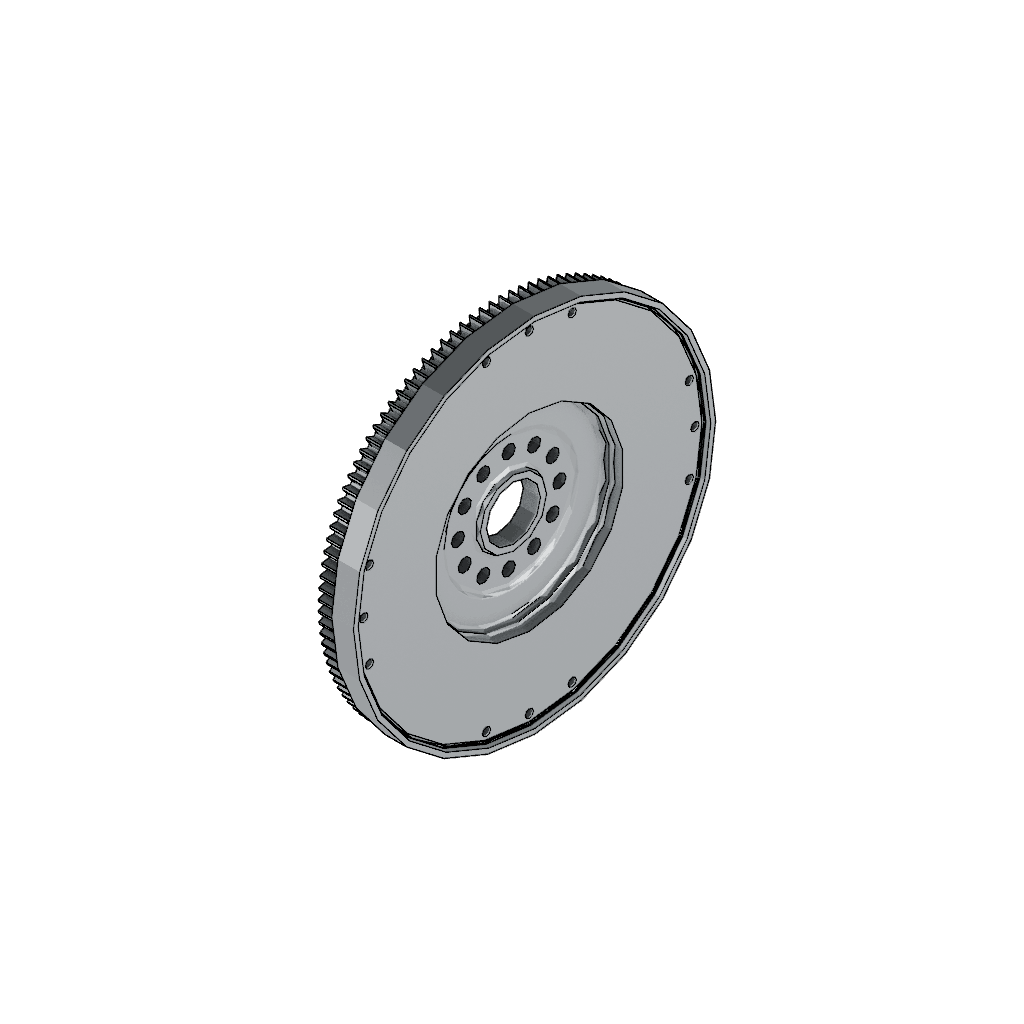

The Cummins 3680915 Flywheel is a component designed for use in heavy-duty trucks, playing a significant role in the operation of these vehicles. Its purpose is to store rotational energy and contribute to the smooth functioning of the engine. Understanding its function and significance is key to appreciating its role in heavy-duty truck performance ².

Basic Concepts of a Flywheel

A flywheel is a mechanical device specifically designed to efficiently store rotational energy. It consists of a mass with a significant moment of inertia, which allows it to resist changes in rotational speed. Within an engine system, the flywheel smooths out the power delivery by storing energy during the power stroke and releasing it during the other strokes of the engine cycle. This results in a more consistent and stable engine operation ¹.

Purpose of the 3680915 Flywheel

The Cummins 3680915 Flywheel is engineered to enhance the operation of heavy-duty trucks by storing and transferring energy during the combustion process. It plays a role in maintaining engine momentum between power strokes, which contributes to overall engine performance. By efficiently managing rotational energy, it helps in achieving a balance between power output and fuel efficiency ².

Key Features

The Cummins 3680915 Flywheel is characterized by its robust design and the use of high-quality materials, which contribute to its performance and durability. Its construction includes features that enhance energy storage capabilities and ensure reliable operation under demanding conditions. The flywheel’s design also incorporates elements that reduce vibration and noise, contributing to a smoother engine operation ².

Benefits

Utilizing the Cummins 3680915 Flywheel offers several advantages, including improved engine efficiency and enhanced durability. Its design allows for reliable performance under heavy-duty conditions, making it a valuable component for trucks that operate in challenging environments. The flywheel’s ability to store and transfer energy effectively contributes to smoother engine operation and potentially extends the lifespan of the engine components ².

Installation Considerations

Proper installation of the Cummins 3680915 Flywheel is crucial for ensuring its optimal performance. It is recommended to follow Cummins’ guidelines and requirements during the installation process. This includes ensuring the flywheel is correctly aligned and securely fastened to prevent any issues during operation. Attention to detail during installation can help maintain the flywheel’s efficiency and durability ².

Maintenance and Troubleshooting

To ensure the Cummins 3680915 Flywheel operates at its best, regular maintenance is recommended. This includes checking for any signs of wear or damage and ensuring all connections are secure. Common issues may include vibration or noise, which can often be traced back to improper installation or wear. Addressing these issues promptly can help maintain the flywheel’s performance and extend its service life ².

Compatibility and Applications

The Cummins 3680915 Flywheel is designed for specific types of trucks and engines, ensuring it meets the demands of heavy-duty applications. Its compatibility with certain models or series is a key consideration for ensuring optimal performance and reliability. Understanding the specific applications for which this flywheel is intended can help in selecting the right component for a given truck ².

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes a wide range of power solutions, including diesel engines and related components. With a history of innovation and a reputation for quality, Cummins has established itself as a trusted name in the industry. The company’s commitment to excellence is reflected in its products, including the Cummins 3680915 Flywheel ².

Cummins Flywheel 3680915 Compatibility

The Cummins flywheel part number 3680915 is designed to fit a variety of Cummins engine models. Here is an overview of its compatibility across different engine series:

ISX Series

• ISX CM570
• ISX CM870
• ISX CM871

The flywheel 3680915 is compatible with the ISX series engines, which are known for their robust performance and reliability in heavy-duty applications.

ISX15 Series

• ISX15 CM2250
• ISX15 CM2250 SN
• ISX15 CM2350 X101

This flywheel is also suitable for the ISX15 series, which includes models like the CM2250 and CM2350. These engines are often used in a variety of commercial and industrial applications, providing excellent power and efficiency.

X Series

• X12 CM2350 X119B
• X15 CM2350 X116B
• X15 CM2350 X123B
• X15 CM2450 X134B

The flywheel part number 3680915 fits the X series engines, including the X12 and X15 models. These engines are designed for versatility and are commonly used in both on-highway and off-highway applications. The X15 series, in particular, offers high torque and power, making it suitable for demanding tasks.

This compatibility ensures that the flywheel can be used across a range of Cummins engines, providing a reliable and efficient solution for maintaining engine performance ².

Role of Part 3680915 Flywheel in Engine Systems

The flywheel, specifically part 3680915, is an integral component in the operation of engine systems. It serves as a link between the engine and the transmission, ensuring smooth power delivery.

When the engine’s pistons move, they generate rotational force, which is transferred to the flywheel. This rotational energy is then stored in the flywheel due to its inertia. As a result, the flywheel helps to maintain a consistent rotational speed, even when the engine is not actively firing. This stability is essential for the smooth operation of the engine, particularly during gear changes.

The flywheel also plays a significant role in the starting process of the engine. When the starter motor engages, it spins the flywheel, which in turn rotates the crankshaft. This action initiates the combustion process within the cylinders.

Additionally, the flywheel is often paired with a dual-mass system in modern vehicles to reduce NVH (Noise, Vibration, and Harshness). This system helps to isolate the engine from the transmission, leading to a quieter and more comfortable driving experience.

In summary, part 3680915 Flywheel is a key component that ensures the efficient and smooth operation of engine systems by storing rotational energy, aiding in the starting process, and contributing to a reduction in NVH ².

Conclusion

The Cummins 3680915 Flywheel is a critical component in the operation of heavy-duty trucks, designed to store rotational energy and contribute to the smooth functioning of the engine. Its robust design, high-quality materials, and compatibility with various Cummins engine models make it a reliable and efficient solution for maintaining engine performance. Proper installation, regular maintenance, and understanding its role in engine systems are essential for maximizing the benefits of this part ².
