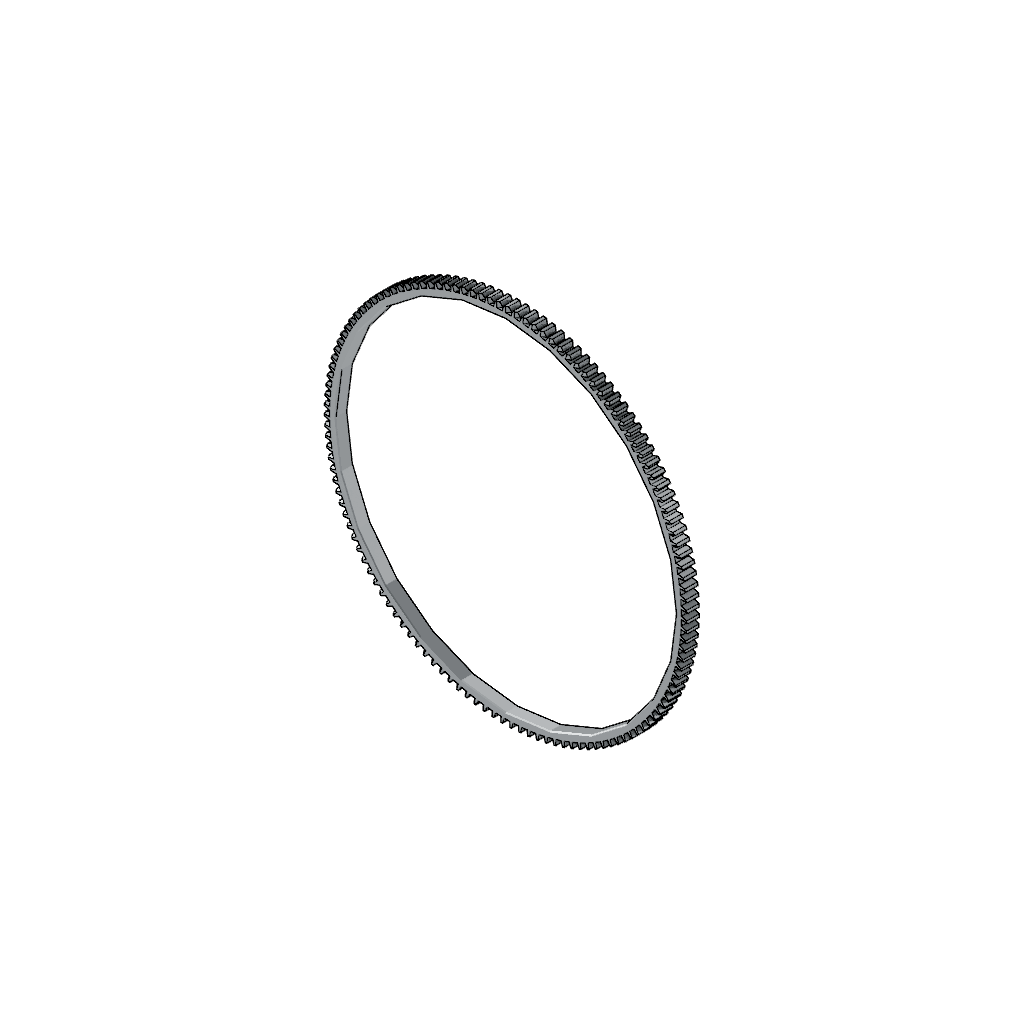

Flywheel Ring Gear
Cummins®

Introduction

The Flywheel Ring Gear 3921246 is a component manufactured by Cummins, a prominent name in the commercial truck industry. This gear is crucial for the operation of commercial trucks, particularly in the engine’s starting mechanism. Understanding its function and importance can contribute to better maintenance practices and overall truck performance.

Basic Concepts of Flywheel Ring Gear

A flywheel ring gear is a toothed component attached to the flywheel of an engine. It engages with the starter motor’s pinion gear during the starting process. The flywheel, a heavy rotating disc, stores rotational energy and smooths out the power delivery from the engine’s cylinders. The ring gear’s teeth provide the necessary grip for the starter motor to turn the flywheel and, consequently, the engine ¹.

Role of the Flywheel Ring Gear in Truck Operation

This Cummins part is integral to the starting process of a truck. When the ignition is turned on, the starter motor engages with the ring gear, turning the flywheel. This action cranks the engine, allowing the combustion process to begin. The ring gear must withstand significant stress during this process, making durability and precise engineering important ².

Key Features of the Flywheel Ring Gear 3921246

The Flywheel Ring Gear 3921246 is designed with specific characteristics to enhance performance and durability. It is constructed from high-strength materials to resist wear and tear. The gear teeth are precision-cut to ensure a secure engagement with the starter motor’s pinion. Additionally, the gear is coated to protect against corrosion, extending its service life in various operating conditions.

Benefits of Using the Flywheel Ring Gear 3921246

Utilizing this part offers several advantages. Its robust construction and precise engineering contribute to reliable engine starts, even in demanding conditions. The gear’s durability reduces the frequency of replacements, leading to lower maintenance costs over time. Moreover, its design helps in smooth power transmission from the starter motor to the flywheel, enhancing overall engine performance.

Installation and Integration

Proper installation of the Flywheel Ring Gear 3921246 is vital for its function and longevity. It should be securely attached to the flywheel, ensuring that it is aligned correctly with the starter motor’s pinion gear. During installation, it is important to follow manufacturer guidelines to avoid damage to the gear or other components. Torque specifications provided by Cummins should be adhered to for a secure fit ³.

Maintenance and Troubleshooting

Regular maintenance of the Flywheel Ring Gear 3921246 is recommended to ensure its optimal functioning. This includes inspecting the gear for signs of wear, ensuring proper alignment, and checking for any damage to the teeth. Lubrication of the gear and its surrounding components can also contribute to its longevity. If issues arise, such as difficulty in starting the engine, it may indicate a problem with the ring gear that requires attention.

Common Issues and Solutions

Common issues with flywheel ring gears include wear and damage to the teeth, misalignment, and corrosion. Wear can be addressed by replacing the gear, while misalignment may require adjustment or replacement of the flywheel. Corrosion can often be prevented with proper coating and regular inspection. Addressing these issues promptly can prevent more significant problems and ensure the reliable operation of the truck.

Compatibility of Flywheel Ring Gear Part 3921246 with Cummins Engines

This part is designed to fit a variety of Cummins engines. It is crucial for the proper functioning of the engine’s flywheel mechanism, ensuring that the engine’s rotational energy is efficiently transferred to the transmission.

Compatible Engines

• 4B3.9
• 6B5.9
• B4.5
• B4.5 RGT
• B5.9 G
• F3.8 CM2350 F128C
• F4.5 CM2620 F141C
• ISB/ISD4.5 CM2150 B119
• ISBE CM800
• ISBE4 CM850
• ISF3.8 CM2220 AN
• QSB3.3 CM2150
• QSB3.9 30 CM550
• QSB4.5 CM2250 EC
• QSB4.5 CM850(CM2850)
• QSB5.9 30 CM550
• QSB6.7 CM850(CM2850)
• QSB7 CM2880 B117
• QSF3.8 CM2350 F107
• QSF3.8 CM2880 F112

By ensuring compatibility with a wide range of Cummins engines, the Flywheel Ring Gear part 3921246 offers a versatile solution for maintaining and enhancing engine performance across various applications.

Understanding the Integration of Part 3921246 Flywheel Ring Gear with Engine Systems

This part is an essential component in the operation of both the flywheel and flexplate within an engine system.

Flywheel Systems

In engines equipped with a flywheel, the flywheel ring gear meshes with the starter motor’s pinion gear during engine start-up. This engagement allows the starter motor to turn the flywheel, which in turn rotates the crankshaft, initiating the engine’s combustion cycle. The flywheel ring gear’s teeth must be precisely machined to ensure a smooth and reliable engagement with the starter pinion. Additionally, the flywheel itself acts as an energy storage device, smoothing out the power delivery from the engine’s reciprocating components to the transmission. The flywheel ring gear is integral to this function, as it ensures that the rotational energy is efficiently transferred and managed.

Flexplate Systems

In automatic transmission systems, the flexplate replaces the traditional flywheel. The flexplate is a thinner, more flexible component that still requires a ring gear for starter engagement. The part 3921246 Flywheel Ring Gear fits onto the outer circumference of the flexplate, providing the necessary teeth for the starter motor to engage. The flexplate’s design allows it to flex slightly, accommodating the torque variations produced by the engine. This flexibility helps in reducing stress on the transmission and other drivetrain components. The flywheel ring gear’s role here is to ensure that despite the flexplate’s movement, the starter engagement remains consistent and reliable.

In both systems, the proper fit and function of the flywheel ring gear are vital for the starter system’s performance and the overall reliability of the engine’s starting mechanism.

Conclusion

The Flywheel Ring Gear 3921246 by Cummins is a critical component in the operation of commercial trucks, particularly in the engine’s starting mechanism. Its robust construction, precise engineering, and compatibility with a wide range of Cummins engines make it a reliable choice for maintaining and enhancing engine performance. Proper installation, regular maintenance, and prompt addressing of common issues are essential for ensuring the longevity and optimal functioning of this part.
