4933488
Flywheel
Cummins®

Introduction to Flywheels in Commercial Trucks

Flywheels: An Overview

A flywheel is a mechanical device designed to store rotational energy. It consists of a heavy wheel or disk that resists changes in rotational speed, thereby maintaining engine stability. The mass of the flywheel stores kinetic energy, which is released during engine cycles to ensure smooth operation, particularly in heavy-duty trucks where consistent power delivery is crucial ¹.

How Flywheels Work

The flywheel is connected to the engine crankshaft and rotates at the same speed. Its large mass allows it to store rotational energy. When the engine’s pistons push down, they transfer energy to the flywheel, which maintains the engine’s momentum through rotational inertia. This stored energy smooths out power delivery, ensuring consistent and steady engine operation ².

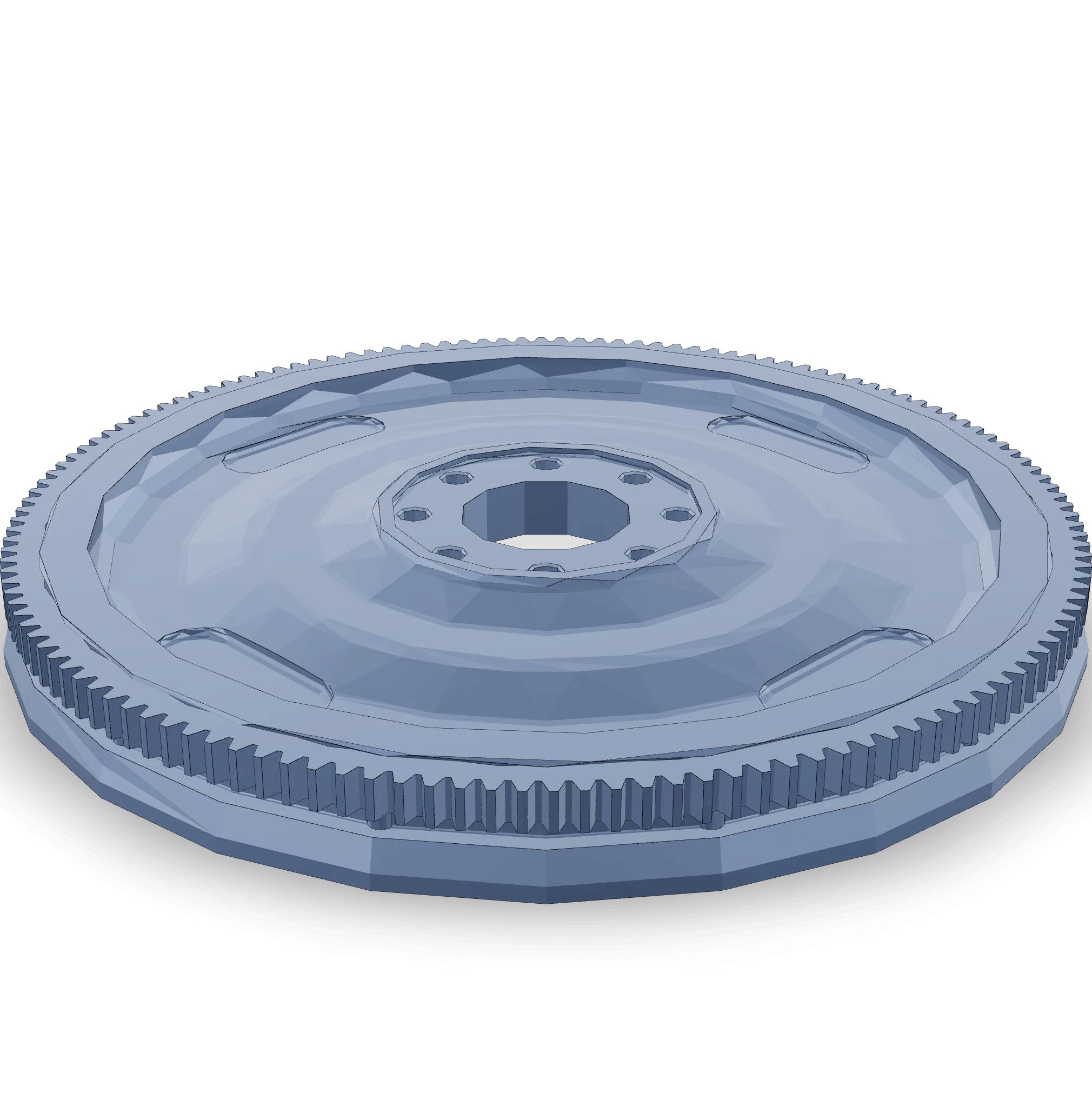

The Cummins Flywheel Part #4933488

Purpose and Role of the Cummins Flywheel

The Cummins flywheel part #4933488 is engineered to meet the demanding requirements of commercial truck engines. This flywheel plays a critical role in engine operation by:

• Maintaining Engine Balance: Counteracting the reciprocating motion of the pistons.
• Storing and Releasing Energy: Storing energy during the power stroke and releasing it during other strokes to ensure smooth power delivery.
• Connecting to the Clutch: Linking to the clutch assembly to transmit power from the engine to the drivetrain ³.

Cummins: A Leader in Engine Technology

Cummins is renowned for its reliable and high-performance engines and components. The Cummins flywheel part #4933488 is designed for durability, efficiency, and longevity, making it a preferred choice for commercial truck operators.

Troubleshooting and Maintenance

Common Issues and Troubleshooting

Regular maintenance and timely troubleshooting can prevent many common flywheel issues. Potential problems include:

• Excessive Wear: Vibrations and unusual noises may indicate excessive wear. Inspect the flywheel for cracks, warping, or uneven surfaces.
• Clutch Engagement Problems: A worn flywheel or clutch assembly can cause clutch engagement issues. Inspect both components for wear and damage.
• Oil Leaks: Oil leaks around the flywheel area may indicate a problem with the gasket or seals. Replace any damaged gaskets or seals to prevent further issues.

Maintenance Tips

To ensure the longevity and optimal performance of the Cummins flywheel part #4933488, consider the following maintenance practices:

• Regular Inspections: Conduct visual inspections for signs of wear, cracks, or damage.
• Proper Lubrication: Ensure the flywheel and associated components are properly lubricated to reduce friction and wear.
• Timely Replacement: Replace the flywheel if it shows significant signs of wear or damage to prevent potential engine issues.
• Professional Servicing: Engage professional technicians for major repairs or replacements to ensure the work is done correctly and safely.

Cummins Flywheel Part 4933488 Compatibility

The Cummins flywheel part number 4933488 is designed to work seamlessly with various Cummins engine models, ensuring smooth engine operation and efficient power transfer.

ISC Series Engines

• ISC CM2150
• ISC CM554
• ISC CM850
• ISC8.3 CM2250

ISL Series Engines

• ISL CM2150
• ISL CM554
• ISL9 CM2150 SN
• ISL9 CM2250

QSC and QSL Series Engines

• QSC8.3 CM554
• QSC8.3 CM850 (CM2850)
• QSC9 CM2250 / QSL9 CM2250
• QSL8.9 CM2150 L141
• QSL9 CM2250
• QSL9 CM554
• QSL9 CM850 (CM2850)

Role of Part 4933488 Flywheel in Engine Systems

The flywheel, specifically part 4933488, is integral to engine system operation, interfacing with several other parts to ensure smooth and efficient performance.

Interaction with the Crankshaft

The flywheel is bolted to the rear of the crankshaft, allowing it to rotate in sync with the crankshaft. It stores rotational energy during the power stroke and releases it during other strokes (intake, compression, and exhaust), maintaining engine momentum between power strokes and ensuring consistent rotational speed.

Engagement with the Clutch

In manual transmission vehicles, the flywheel works with the clutch. When the clutch pedal is depressed, the pressure plate disengages from the flywheel, allowing the driver to shift gears without interrupting engine rotation. Upon releasing the clutch pedal, the pressure plate re-engages with the flywheel, transferring engine power to the transmission.

Contribution to Starter Motor Function

During engine start-up, the flywheel engages with the starter motor’s pinion gear. The starter motor rotates the flywheel, which in turn rotates the crankshaft, initiating the engine’s combustion cycle. The flywheel’s inertia assists in cranking the engine smoothly.

Vibration Dampening

The flywheel also reduces vibrations within the engine system. Its mass helps absorb and smooth out the pulses of torque generated by the engine’s combustion events, leading to a more stable and comfortable operation.

Support for Ancillary Components

Flywheels often have mounting points for additional components such as the flexplate (in automatic transmissions), which connects to the torque converter. This setup allows for the transfer of engine power to the transmission in a fluid manner.

Conclusion

Understanding the function, importance, and maintenance of the Cummins flywheel part #4933488 is essential for engineers, mechanics, truck drivers, and fleet operators. Proper care and maintenance of this critical component will contribute to the overall reliability and performance of the engine.
