5312374

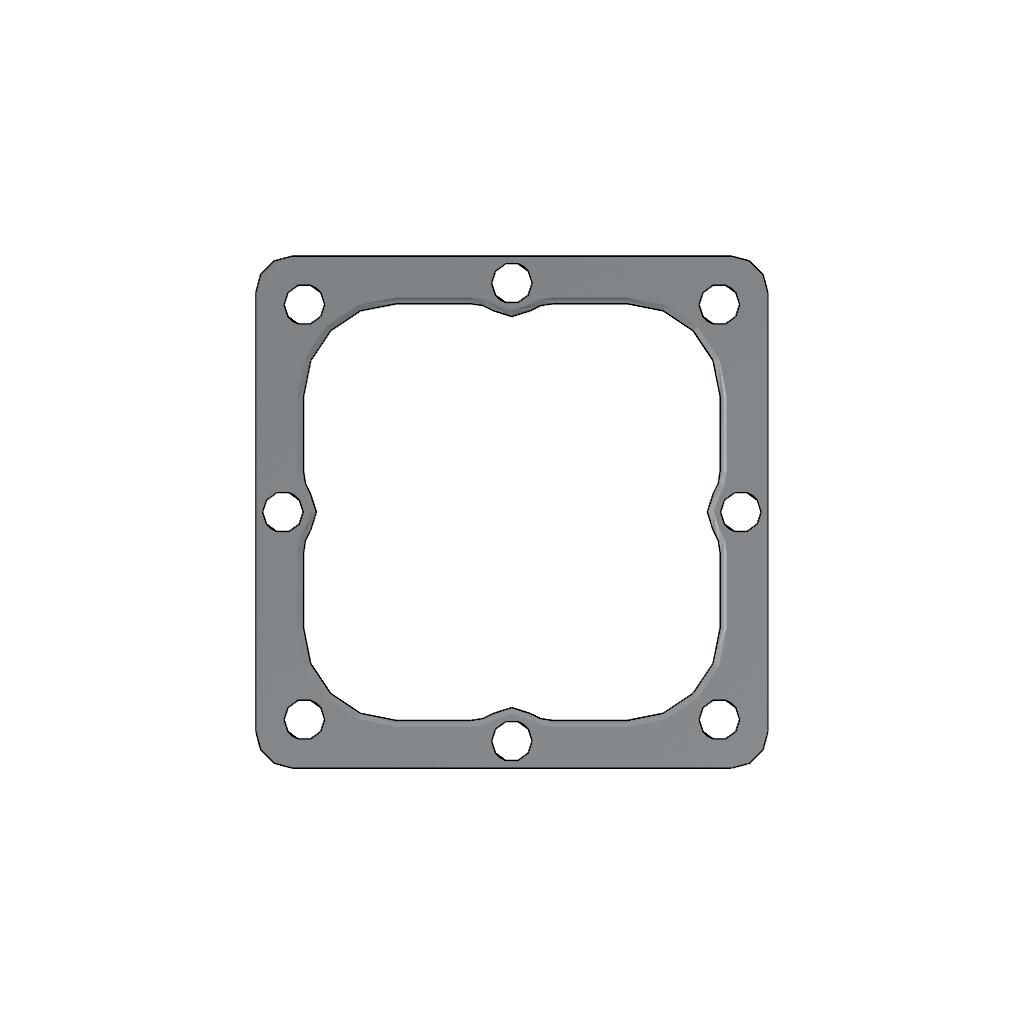

Cover Plate Gasket
Cummins®

The 5312374 Cover Plate Seal Gasket by Cummins is a component designed to ensure the integrity of seals within heavy-duty truck engines. Its role is significant in maintaining the operational efficiency and reliability of these vehicles. This gasket is specifically engineered to provide a secure seal, preventing leaks and ensuring that engine components function as intended.

Basic Concepts of Cover Plate Seal Gaskets

A Cover Plate Seal Gasket is a sealing component used in various applications to prevent the escape of fluids or gases. Within an engine system, it operates by creating a barrier between mating surfaces, ensuring that pressure and temperature differentials are maintained. This is achieved through the gasket’s ability to conform to irregularities on the surfaces it seals, providing a consistent and reliable seal ¹.

Purpose of the 5312374 Cover Plate Seal Gasket

The 5312374 Cover Plate Seal Gasket is positioned within the engine or transmission system of heavy-duty trucks. Its primary function is to seal the cover plate, which is a critical component in protecting internal engine parts. By doing so, it helps maintain the pressure and fluid levels necessary for optimal engine performance. The gasket’s location and function are vital for the overall efficiency and durability of the engine ².

Key Features

The 5312374 Cover Plate Seal Gasket boasts several key features that enhance its performance. It is composed of high-quality materials that offer resistance to extreme temperatures and pressures. The design attributes include precise dimensions to ensure a perfect fit and durable construction to withstand the rigors of heavy-duty applications. Additionally, the gasket may feature unique characteristics such as anti-rotation tabs or reinforced edges to further improve its sealing capabilities.

Benefits

The benefits of using the 5312374 Cover Plate Seal Gasket include improved sealing efficiency, which leads to better engine performance and reduced risk of leaks. Its durable construction contributes to the overall reliability of the engine or transmission system. By ensuring a secure seal, this gasket helps maintain the integrity of the engine’s internal environment, leading to longer component life and enhanced operational efficiency.

Installation Process

Proper installation of the 5312374 Cover Plate Seal Gasket involves several steps to ensure a secure fit. Begin by cleaning the mating surfaces to remove any debris or old gasket material. Inspect the gasket for any damage before installation. Place the gasket onto the cover plate, ensuring it is correctly aligned. Use the appropriate tools to tighten the cover plate bolts in a specified sequence to achieve even pressure distribution across the gasket. This process helps to avoid over-tightening in one area, which could lead to gasket failure.

Troubleshooting Common Issues

Common issues with Cover Plate Seal Gaskets include leaks or failures, which can be caused by improper installation, wear, or damage. To troubleshoot these problems, first, inspect the gasket for signs of wear or damage. Check the mating surfaces for cleanliness and proper alignment. Ensure that the cover plate bolts are tightened to the manufacturer’s specified torque settings. If leaks persist, the gasket may need to be replaced.

Maintenance Tips

Regular maintenance practices can prolong the lifespan of the 5312374 Cover Plate Seal Gasket. Inspect the gasket during routine engine maintenance checks for signs of wear or damage. Look for any leaks around the cover plate area, which may indicate a failing gasket. Replace the gasket if any signs of deterioration are present. Adhering to recommended inspection intervals will help ensure the gasket continues to perform effectively.

Cummins: A Brief Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes a wide range of power solutions, including engines, filtration, and emission solutions. With a history spanning over a century, Cummins is renowned for its commitment to quality, innovation, and customer satisfaction. The company’s product range includes engines for on-highway and off-highway applications, as well as power generation equipment. Cummins’ reputation in the automotive and heavy-duty truck industry is built on its dedication to producing reliable and high-performance components.

Cummins Engine Part 5312374: Cover Plate Seal Gasket

The Cummins part number 5312374, identified as a Cover Plate Seal Gasket, is a critical component in ensuring the integrity and efficiency of the engine’s sealing system. This gasket is designed to fit seamlessly with several Cummins engine models, providing a reliable barrier against leaks and ensuring optimal performance.

Compatibility with Cummins Engines

The Cover Plate Seal Gasket (part number 5312374) is compatible with the following Cummins engine models:

• QSK19 CM2350 K105
• QSK19 CM2350 K114
• QSK50 CM2350 K108
• QST30 CM2350 T101

Grouping by Engine Series

The engines listed above can be grouped into two main series based on their model numbers:

1. QSK19 CM2350 Series

   • QSK19 CM2350 K105
   • QSK19 CM2350 K114

2. QSK50 CM2350 Series

   • QSK50 CM2350 K108

3. QST30 CM2350 Series

   • QST30 CM2350 T101

Each of these engines is designed for specific applications, ranging from industrial to marine uses, and the gasket ensures that the cover plate is securely sealed, preventing any fluid or air leaks that could compromise engine performance.

Application and Importance

The Cover Plate Seal Gasket is essential in maintaining the engine’s operational efficiency by:

• Preventing Fluid Leaks: Ensuring that oil, coolant, and other fluids remain within the designated pathways.
• Maintaining Air Tightness: Preventing air from entering areas where it is not supposed to, which can affect combustion efficiency.
• Protecting Internal Components: Safeguarding the internal components from contaminants that could cause wear and damage over time.

By fitting precisely with the cover plate, the gasket ensures that the engine operates smoothly and reliably, extending its lifespan and maintaining its performance standards.

Role of Part 5312374 Cover Plate Seal Gasket in Engine Systems

The part 5312374 Cover Plate Seal Gasket is a component in ensuring the integrity and efficiency of various engine systems, particularly within the aftertreatment device. This gasket is designed to create a secure seal between the cover plate and the aftertreatment device, preventing leaks and maintaining the system’s performance.

In the context of the aftertreatment device, the Cover Plate Seal Gasket plays a significant role in sealing the connections between the cover plate and the device housing. This seal is vital for maintaining the pressure integrity within the aftertreatment system, which includes components such as the Diesel Particulate Filter (DPF), Selective Catalytic Reduction (SCR) system, and other emission control devices.

The gasket ensures that exhaust gases flow through the aftertreatment device without any unintended leaks, which could otherwise compromise the efficiency of the emission control processes. By maintaining a tight seal, the gasket helps in preserving the optimal operating conditions for the aftertreatment components, thereby enhancing the overall performance and longevity of the engine system.

Additionally, the Cover Plate Seal Gasket contributes to the durability of the aftertreatment device by protecting it from external contaminants and ensuring that the internal components remain unaffected by outside elements. This protection is essential for the consistent functioning of the aftertreatment system, which is responsible for reducing harmful emissions and complying with environmental regulations.

Conclusion

The 5312374 Cover Plate Seal Gasket is a fundamental component in the aftertreatment device, ensuring that the system operates efficiently and effectively by maintaining seals, preventing leaks, and protecting internal components from external contaminants. Proper installation, regular maintenance, and timely replacement of this gasket are crucial for the optimal performance and longevity of heavy-duty truck engines.
