Oil Suction Connection
Cummins®

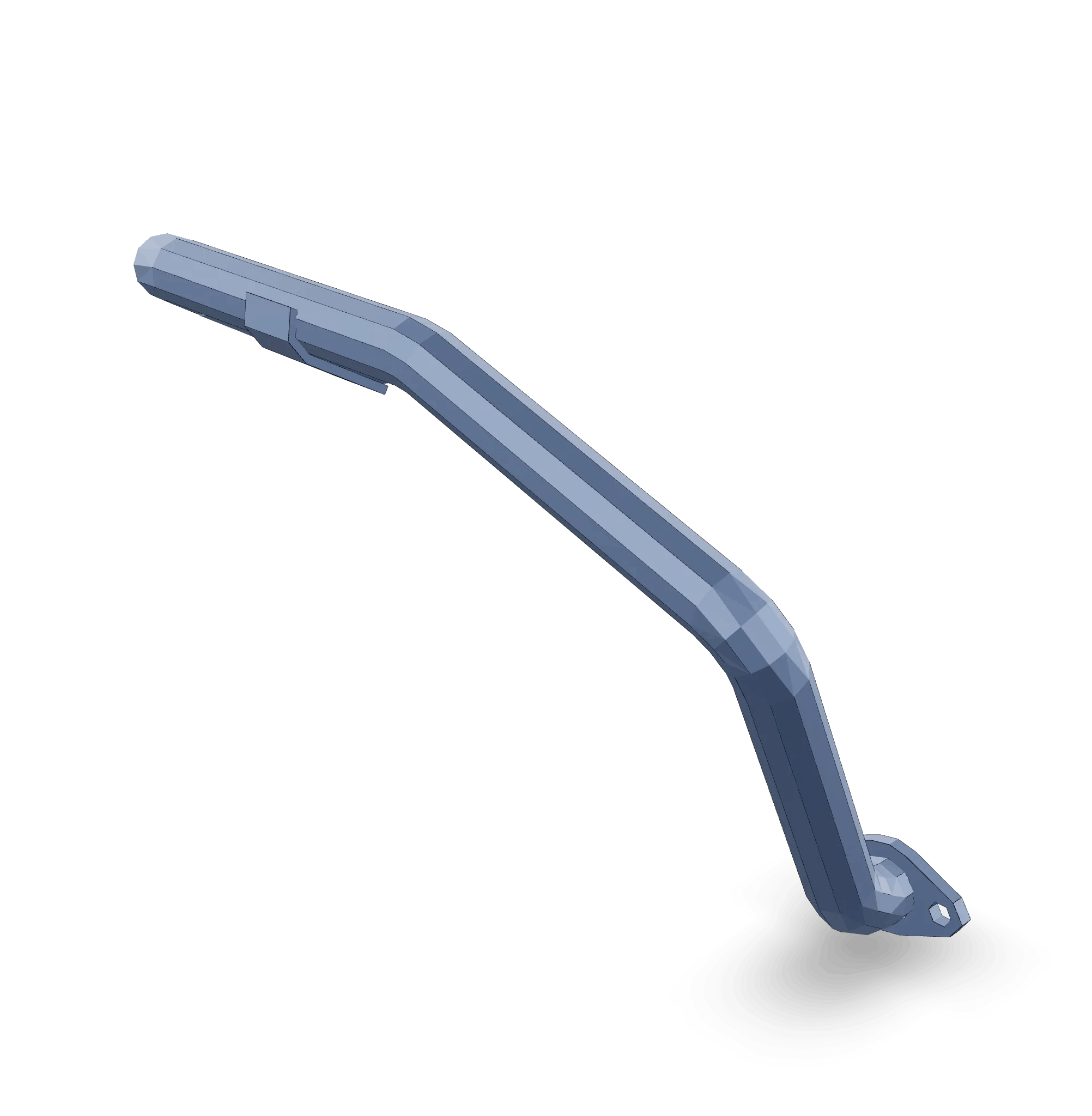

The Oil Suction Connection 3284209, manufactured by Cummins, is a component designed to facilitate the efficient operation of commercial trucks. This part is integral to the engine lubrication system, ensuring that oil is properly circulated to various engine components. Cummins, a well-respected name in the commercial truck industry, is known for producing reliable and high-quality parts that contribute to the overall performance and longevity of truck engines.

Basic Concepts of Oil Suction Connection

An oil suction connection is a component within the engine lubrication system that allows oil to be drawn from the oil pan and circulated through the engine. Its function is to maintain a consistent flow of oil to various engine parts, ensuring they are adequately lubricated. This process is vital for reducing friction, dissipating heat, and protecting engine components from wear and damage ¹.

Purpose of the 3284209 Oil Suction Connection

The 3284209 Oil Suction Connection plays a significant role in the operation of a truck by ensuring that the engine lubrication system functions correctly. It helps in maintaining the proper flow of oil to engine components, which is crucial for optimal engine performance. By facilitating efficient oil circulation, this part contributes to the overall reliability and durability of the engine ².

Key Features

The 3284209 Oil Suction Connection is designed with several key features that enhance its performance and durability. These include a robust material composition that resists corrosion and wear, precise design elements that ensure a secure fit, and unique attributes such as reinforced seals that prevent leaks. These features collectively contribute to the part’s ability to withstand the demanding conditions within a commercial truck engine ³.

Benefits

The 3284209 Oil Suction Connection offers several benefits that contribute to improved engine performance. These include enhanced oil lubrication, which reduces friction and wear on engine components. Additionally, the part’s durable construction helps in extending the engine’s lifespan by ensuring consistent and reliable oil flow. The improved lubrication also aids in heat dissipation, further protecting the engine from potential damage ⁴.

Installation Process

Installing the 3284209 Oil Suction Connection requires careful attention to detail to ensure a secure and effective fit. The process involves several steps: first, gather the necessary tools and ensure the engine is cool and the oil is drained. Next, remove the old connection if present, and clean the mounting area. Then, position the new 3284209 Oil Suction Connection and secure it in place using the appropriate fasteners. Finally, refill the engine with oil and check for any leaks to ensure a proper installation.

Troubleshooting Common Issues

Common issues associated with oil suction connections include leaks and blockages. To troubleshoot these problems, begin by inspecting the connection for any signs of damage or wear. If a leak is detected, check the seals and gaskets for proper seating and replace if necessary. For blockages, ensure that the oil passages are clear and free from debris. Regular inspections and maintenance can help prevent these issues from arising.

Maintenance Tips

To ensure the longevity and optimal performance of the 3284209 Oil Suction Connection, regular maintenance is recommended. This includes periodic inspections for signs of wear or damage, cleaning the connection to remove any buildup, and ensuring that all seals and gaskets are in good condition. Adhering to these maintenance practices will help maintain the efficiency of the engine lubrication system and contribute to the overall reliability of the truck.

About Cummins

Cummins Inc. is a global power leader that designs, manufactures, and distributes a wide range of power solutions, including engines, filtration, and related technologies. With a history spanning over a century, Cummins has established a reputation for quality, reliability, and innovation in the commercial truck industry. The company’s extensive product range and commitment to excellence make it a trusted name among truck manufacturers and operators.

Compatibility with Cummins Engines

• 6B5.9: The Oil Suction Connection part 3284209 is compatible with the 6B5.9 engine. This part ensures that the oil is efficiently drawn from the oil pan and directed to the oil pump, which then distributes it throughout the engine.

• QSB5.9 30: For the QSB5.9 30 engine, the part 3284209 plays a similar role in maintaining the integrity of the engine’s lubrication system. It is crucial for the proper functioning of the oil pump and the overall health of the engine.

• CM550: The CM550 engine also utilizes the Oil Suction Connection part 3284209. This part is essential in ensuring that the oil is adequately circulated to all critical engine components, thereby maintaining optimal performance and longevity.

Each of these engines relies on the Oil Suction Connection to ensure that the oil is properly managed and distributed, which is vital for the engine’s operational efficiency and durability.

Role of Part 3284209 Oil Suction Connection in Engine Systems

The 3284209 Oil Suction Connection is a component in the lubrication system of an engine, facilitating the efficient transfer of oil from the oil pan to the engine’s oil pump. This connection ensures a steady supply of oil, which is vital for maintaining engine performance and longevity.

Integration with the Oil Pan

The oil pan serves as the reservoir for the engine’s lubrication system, storing a sufficient amount of oil to meet the engine’s needs. The 3284209 Oil Suction Connection is strategically positioned to interface with the oil pan. It creates a secure and leak-proof pathway for oil to be drawn from the pan. This connection is typically located at the lowest point of the pan to ensure that even when oil levels are low, the pump can still access the necessary lubrication.

Interaction with the Oil Pump

Once the oil is suctioned from the pan via the 3284209 connection, it is directed towards the oil pump. The pump then pressurizes the oil and distributes it throughout the engine’s various moving parts. This pressurized oil lubricates critical components such as bearings, pistons, and camshafts, reducing friction and wear. The efficiency of this process is heavily reliant on the integrity and proper functioning of the Oil Suction Connection.

Ensuring System Reliability

The 3284209 Oil Suction Connection plays a significant role in maintaining the reliability of the engine’s lubrication system. By ensuring a consistent flow of oil from the pan to the pump, it helps prevent issues such as oil starvation, which can lead to severe engine damage. Additionally, this component aids in keeping the oil clean by preventing contaminants from entering the system, thus prolonging the life of the oil and the engine itself.

Conclusion

In summary, the 3284209 Oil Suction Connection is a fundamental element in the engine’s lubrication system, working in tandem with the oil pan and oil pump to ensure optimal engine performance and durability. Regular maintenance and proper installation are crucial to maximizing the benefits of this component.
