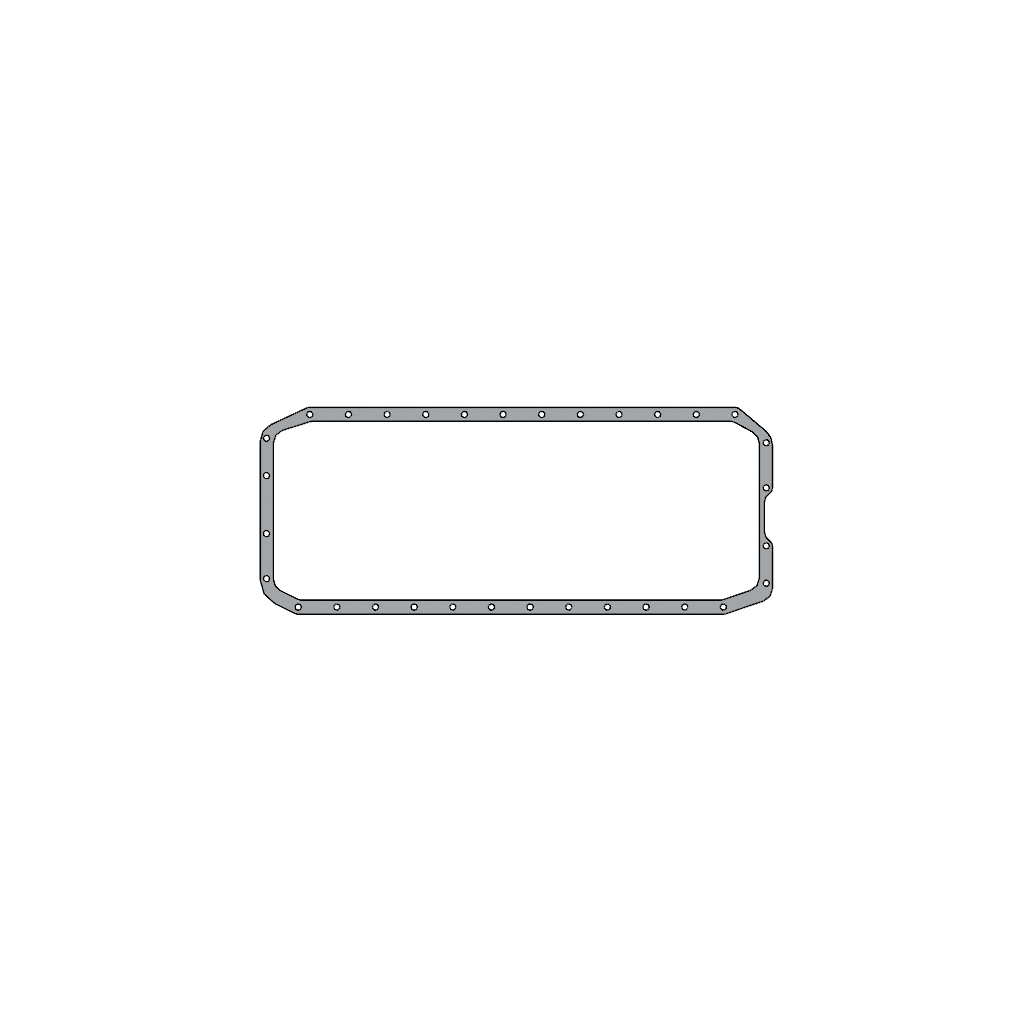

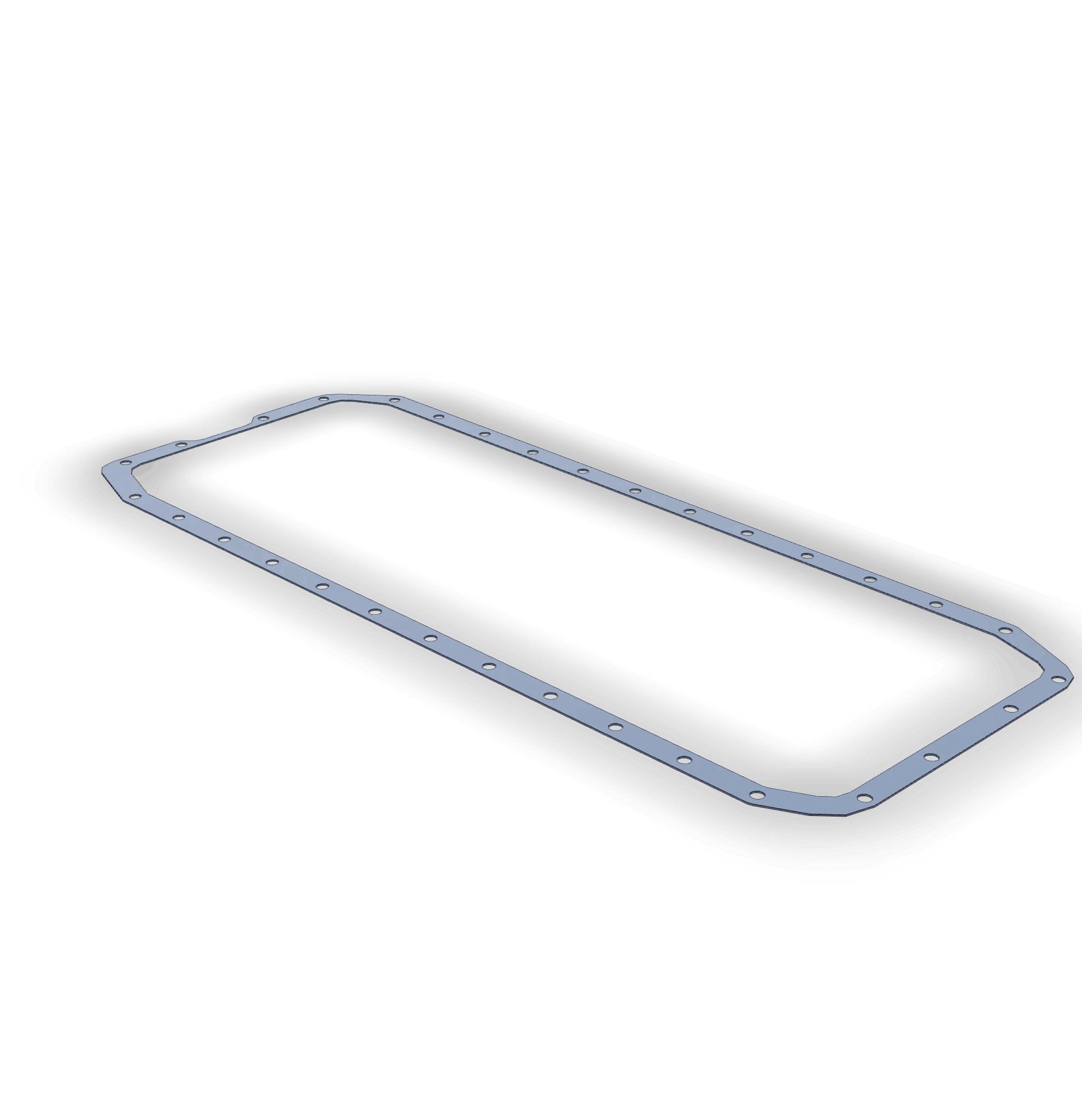

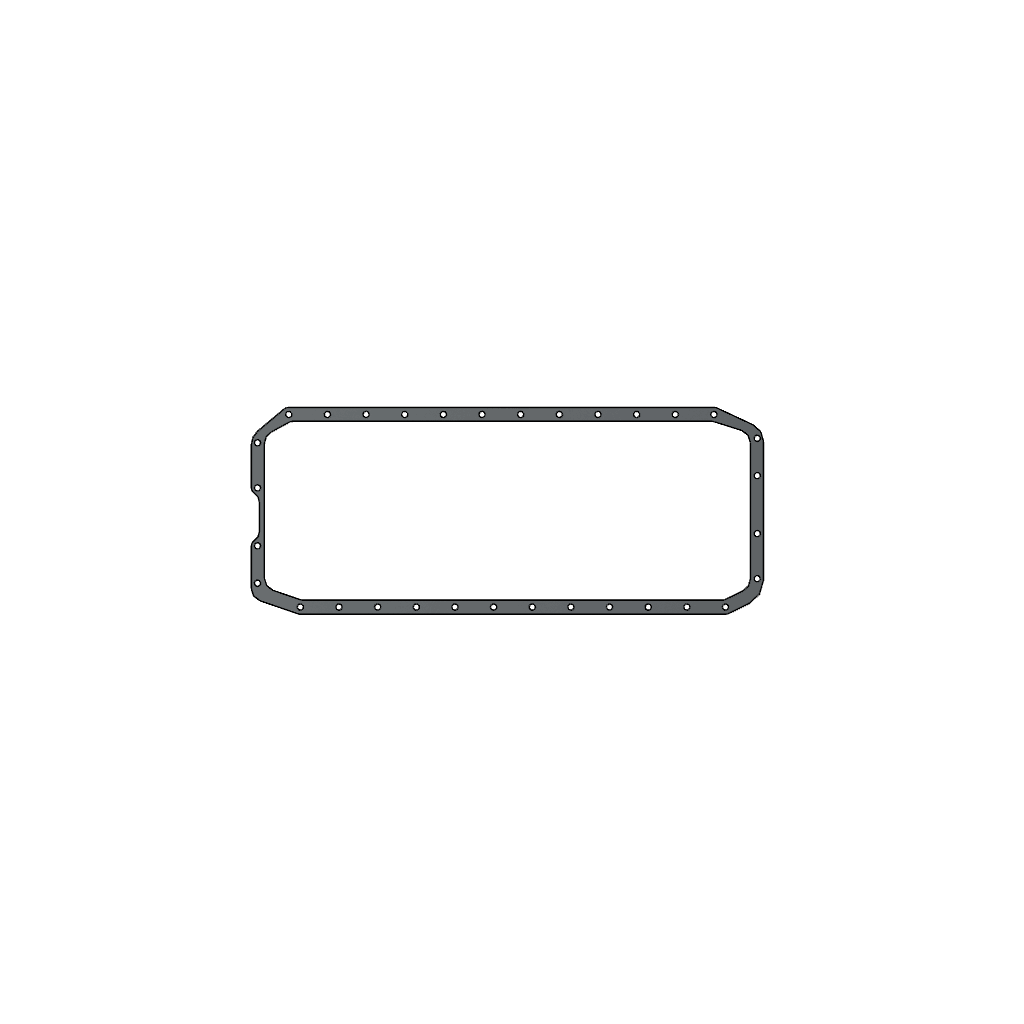

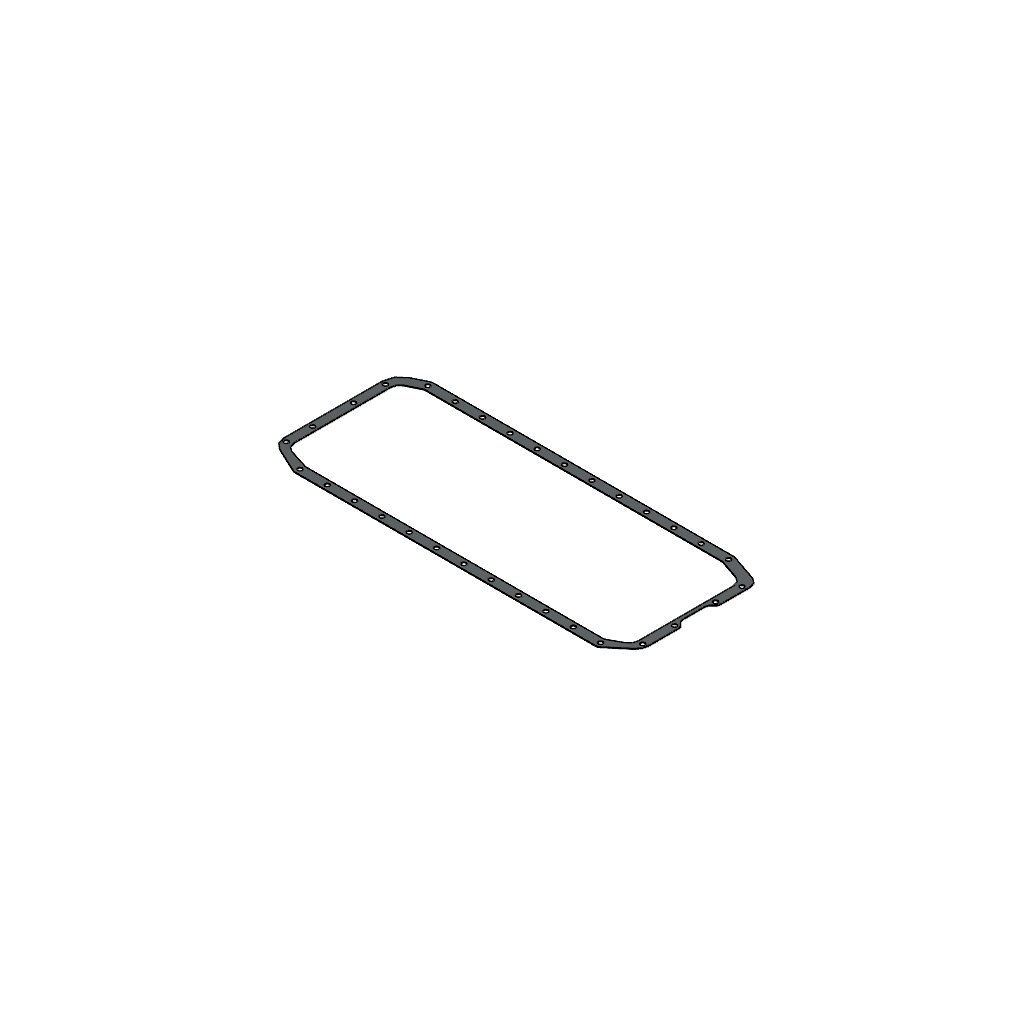

3958165
Oil Pan Gasket
Cummins®

Introduction to Oil Pan Gaskets

An oil pan gasket is a critical component in the engine of a commercial truck. Its primary function is to ensure that the oil pan is securely sealed, preventing oil leaks that could result in significant engine damage. These gaskets are typically constructed from materials capable of withstanding high temperatures and pressures, ensuring both durability and reliability ¹.

The Role of the Cummins 3958165 Oil Pan Gasket

The Cummins 3958165 oil pan gasket is specifically engineered for use in Cummins engines, which are celebrated for their exceptional performance and longevity in heavy-duty applications. This gasket is instrumental in maintaining the integrity of the oil system by creating a tight seal between the oil pan and the engine block. This seal is crucial for keeping oil contained within the system, which is essential for proper engine lubrication and cooling ².

How the Cummins 3958165 Oil Pan Gasket Works

When the oil pan is secured to the engine block, the 3958165 oil pan gasket is positioned between these two components. The gasket compresses slightly under the pressure of the bolts, forming a watertight and airtight seal. This seal is critical for preventing oil from leaking out of the oil pan, which could otherwise result in engine failure due to insufficient lubrication ³.

Importance of the Cummins 3958165 Oil Pan Gasket in Truck Operations

For commercial trucks, maintaining a properly sealed oil system is paramount. An oil leak can lead to substantial downtime, expensive repairs, and potential safety hazards. The Cummins 3958165 oil pan gasket ensures that the engine operates smoothly and efficiently, contributing to the overall reliability and performance of the vehicle.

Troubleshooting and Maintenance

Regular maintenance is essential to ensure the longevity and effectiveness of the 3958165 oil pan gasket. Here are some troubleshooting and maintenance tips:

1. Regular Inspections: Periodically inspect the oil pan and gasket for signs of wear, leaks, or damage. Look for oil residue around the oil pan and check the oil level to ensure it remains within the recommended range.

2. Cleaning: Keep the oil pan and gasket area clean to prevent contamination that could compromise the seal. Use appropriate cleaning agents and tools to remove any debris or old oil.

3. Proper Installation: When replacing the gasket, ensure it is correctly aligned and properly compressed. Use the correct torque specifications for the bolts to avoid over-tightening, which can damage the gasket.

4. Quality Replacement Parts: Always use genuine Cummins parts, such as the 3958165 oil pan gasket, to ensure compatibility and performance. Counterfeit or substandard gaskets can lead to leaks and other issues.

Compatibility of Cummins Oil Pan Gasket 3958165

The Cummins Oil Pan Gasket part number 3958165 is designed to fit several models of engines, ensuring a secure seal between the oil pan and the engine block. This gasket is essential for maintaining the integrity of the engine’s lubrication system by preventing oil leaks.

ISB (Chrysler) Engines

The ISB (Chrysler) engine series, including the ISB CM850, is a range of diesel engines developed by Cummins for various applications. The Oil Pan Gasket 3958165 is compatible with these engines, providing a reliable seal that helps maintain optimal engine performance.

QSB5.9 CM850 Engines

The QSB5.9 CM850 is another model within Cummins’ lineup, known for its robust performance and reliability. This engine also benefits from the use of the Cummins Oil Pan Gasket 3958165, ensuring that the oil pan is properly sealed against the engine block, preventing any potential oil leaks.

Grouping of Engines

The ISB CM850 and QSB5.9 CM850 engines share a common design philosophy and many components, including the oil pan gasket. The use of the same gasket part number across these models simplifies maintenance and ensures compatibility, making it easier for technicians and owners to source the correct replacement part.

By using the Cummins Oil Pan Gasket 3958165, owners of these engines can be confident that their oil systems are properly sealed, contributing to the longevity and efficiency of their engines.

Role of Part 3958165 Oil Pan Gasket in Engine Systems

When integrating the part 3958165 Oil Pan Gasket into engine systems, it is essential to understand its interaction with various components to ensure optimal performance and longevity of the engine.

Interaction with the Long Block

The long block, which includes the engine block, crankshaft, pistons, and other core components, relies on a sealed oil pan to maintain proper lubrication. The Oil Pan Gasket ensures that the oil within the pan remains contained, preventing leaks that could lead to insufficient lubrication and subsequent engine damage.

Integration with the Lower Engine Gasket Kit

In conjunction with the Lower Engine Gasket Kit, the Oil Pan Gasket plays a significant role in creating a comprehensive seal for the lower portion of the engine. This kit typically includes gaskets for the oil pan, front and rear main seals, and valve cover gaskets. The Oil Pan Gasket complements these components by sealing the oil pan, thus ensuring that the lower engine remains well-lubricated and free from contaminants.

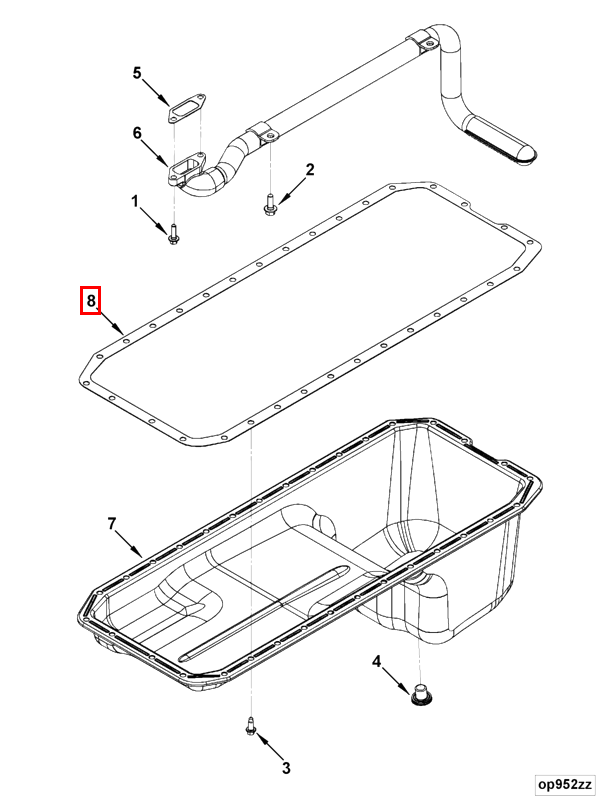

Relationship with the Oil Pan

The Oil Pan Gasket is specifically designed to fit between the oil pan and the engine block. Its primary function is to create a tight seal that prevents oil from leaking out while the engine is running. This seal is vital for maintaining the oil level within the pan, which is essential for the proper functioning of the lubrication system.

Contribution to the Oil System

Within the oil system, the Oil Pan Gasket ensures that the oil reservoir remains intact. This is important for the oil pump, which relies on a consistent supply of oil to circulate through the engine. A well-sealed oil pan, thanks to the gasket, ensures that the oil pump can effectively draw oil and distribute it to critical engine components, such as the crankshaft, camshaft, and valve train.

Role in the Service Kit

When included in a Service Kit, the Oil Pan Gasket is often paired with other gaskets and seals that are prone to wear and tear. This kit may include head gaskets, intake manifold gaskets, and various other seals. The Oil Pan Gasket, as part of this kit, ensures that during a major service or rebuild, all potential leak points are addressed, contributing to the overall reliability and efficiency of the engine.

Conclusion

Understanding the function and maintenance of the Cummins 3958165 oil pan gasket is essential for ensuring the reliability and performance of heavy-duty vehicles. Regular inspections, proper installation, and the use of genuine Cummins parts are critical to maintaining a secure seal and preventing oil leaks. By following these guidelines, engineers, mechanics, truck drivers, and fleet operators can ensure their engines operate efficiently and with minimal downtime.
