Oil Pan Gasket
Cummins®

Introduction

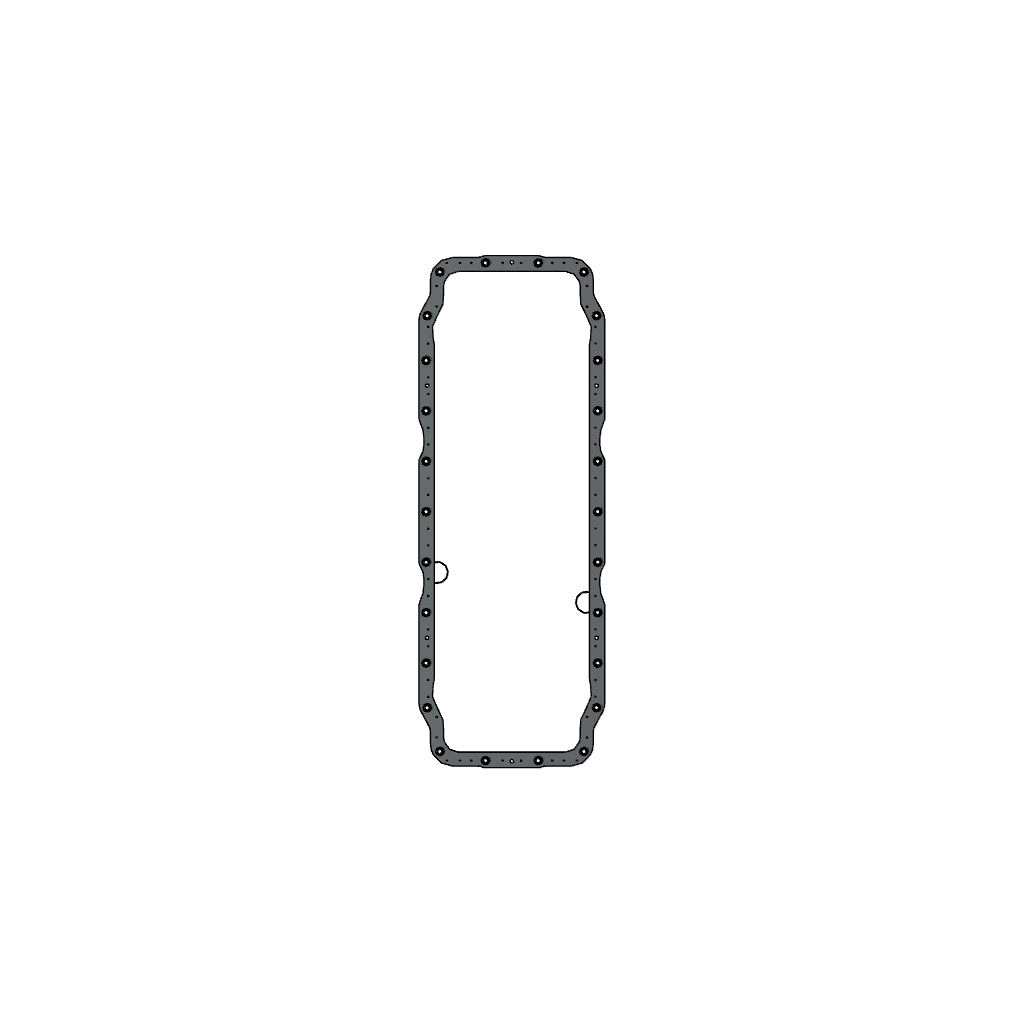

The Cummins 4975069 Oil Pan Gasket is a critical component for the efficient operation of commercial trucks. It creates a seal between the oil pan and the engine block, preventing oil leaks and maintaining the integrity of the lubrication system. This part is essential for truck maintenance and performance, contributing to the vehicle’s reliability and efficiency.

Basic Concepts of Oil Pan Gaskets

An oil pan gasket is a sealing component between the oil pan and the engine block, preventing engine oil from leaking out. Effective sealing is vital for maintaining proper oil levels, ensuring adequate lubrication of engine components, and preventing contamination of the engine bay ¹. The vehicle’s performance and reliability are directly influenced by the condition and effectiveness of the oil pan gasket.

Purpose of the 4975069 Oil Pan Gasket

The 4975069 Oil Pan Gasket seals the oil pan to the engine block, preventing oil leaks that can lead to oil loss, reduced lubrication efficiency, and potential engine damage. By maintaining a secure seal, the gasket ensures the engine remains properly lubricated, contributing to its longevity and performance ².

Key Features

This Cummins part is characterized by several key features that enhance its performance and durability. These include its material composition, designed to withstand high temperatures and pressures within the engine compartment, and its precise design, which ensures a tight and effective seal. Additionally, the gasket may possess unique attributes such as multi-layered construction or reinforced edges to further improve its sealing capabilities and resistance to wear.

Benefits

Utilizing the 4975069 Oil Pan Gasket offers several benefits. It provides improved engine protection by ensuring a reliable seal that prevents oil leaks. This contributes to enhanced sealing performance, maintaining optimal oil levels within the engine. Furthermore, the gasket’s durable construction and design contribute to increased longevity, reducing the frequency of replacements and associated maintenance costs.

Installation Process

Proper installation of the 4975069 Oil Pan Gasket is crucial for ensuring its effectiveness. The process involves cleaning the mating surfaces of the oil pan and engine block to remove any debris or old gasket material. The gasket should be positioned correctly, ensuring it aligns with the bolt holes and sealing surfaces. It is important to follow any specific instructions provided by Cummins for torque specifications and installation sequence to achieve a successful and secure installation.

Troubleshooting and Maintenance

Common issues related to oil pan gaskets include leaks or failures, which can often be traced to improper installation, gasket degradation, or engine vibrations. Troubleshooting may involve inspecting the gasket for signs of wear or damage, checking the tightness of the oil pan bolts, and ensuring the mating surfaces are clean and free of contaminants. Regular maintenance, such as monitoring oil levels and inspecting the gasket during routine oil changes, can help prolong the lifespan of the gasket and prevent unexpected failures.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes a wide range of power solutions, including engines, filtration, and related technologies. With a history spanning over a century, Cummins has established a reputation for quality, reliability, and innovation in the commercial truck industry. The company’s product offerings cater to various applications, from on-highway to off-highway and industrial uses, underscoring its commitment to meeting the diverse needs of its customers.

Cummins Oil Pan Gasket 4975069 Compatibility

The Cummins Oil Pan Gasket part number 4975069 is designed to fit a variety of Cummins engines, ensuring a secure seal between the oil pan and the engine block. This gasket is crucial for maintaining the integrity of the engine’s lubrication system. Below is a detailed breakdown of the engines with which this gasket is compatible:

ISX12 Series

• ISX12 CM2350 X102
• ISX12 G CM2180 EJ
• ISX12/ISX11.9 CM2250

ISZ13 Series

• ISZ13 CM2150 Z105

QSX11.9 Series

• QSX11.9 CM2250 ECF

QSZ13 Series

• QSZ13 CM2150 Z101
• QSZ13 CM2150 Z102

Z13 Series

• Z13 Z108G

This gasket is engineered to provide a reliable seal, preventing oil leaks and ensuring that the engine operates efficiently. It is essential to use the correct gasket for each specific engine model to maintain optimal performance and prevent potential engine damage.

Role of Part 4975069 Oil Pan Gasket in Engine Systems

The 4975069 Oil Pan Gasket is an essential component in various engine systems, ensuring the integrity and efficiency of the engine’s lubrication system.

Integration with Lower Engine Gasket Kit

When incorporated into a lower engine gasket kit, the 4975069 Oil Pan Gasket works alongside other gaskets to seal critical areas of the engine. This kit typically includes head gaskets, intake manifold gaskets, and valve cover gaskets. The oil pan gasket specifically ensures that the oil pan, which houses the engine’s lubricant, remains sealed. This prevents oil leaks, which can lead to insufficient lubrication and subsequent engine damage.

Function within an Overhaul Kit

In an overhaul kit, the 4975069 Oil Pan Gasket is a key component that facilitates a comprehensive engine rebuild. Overhaul kits usually contain a variety of gaskets, bearings, seals, and other small parts necessary for a full engine restoration. The oil pan gasket in this context ensures that the newly rebuilt engine maintains a secure oil reservoir, contributing to the overall reliability and performance of the engine post-overhaul.

Relationship with the Oil Pan

The 4975069 Oil Pan Gasket directly interfaces with the oil pan, which is the lowermost part of the engine that stores the engine oil. The gasket creates a tight seal between the oil pan and the engine block, preventing oil from escaping. This seal is vital for maintaining the correct oil level, which is necessary for lubricating moving parts, cooling the engine, and cleaning internal components.

Importance in the Oil System

The oil system of an engine relies heavily on the integrity of the oil pan gasket. The system includes the oil pump, oil filter, and various passages within the engine block and head. The 4975069 Oil Pan Gasket ensures that the oil remains contained within the system, allowing it to circulate effectively. This circulation is essential for reducing friction, dissipating heat, and carrying away contaminants, all of which contribute to the engine’s longevity and efficiency.

Conclusion

The Cummins 4975069 Oil Pan Gasket is a vital component in the maintenance and performance of commercial trucks. Its role in sealing the oil pan to the engine block ensures the integrity of the lubrication system, preventing oil leaks and maintaining optimal engine performance. Proper installation, regular maintenance, and understanding its compatibility with various Cummins engines are crucial for maximizing the benefits of this part.
