3969023

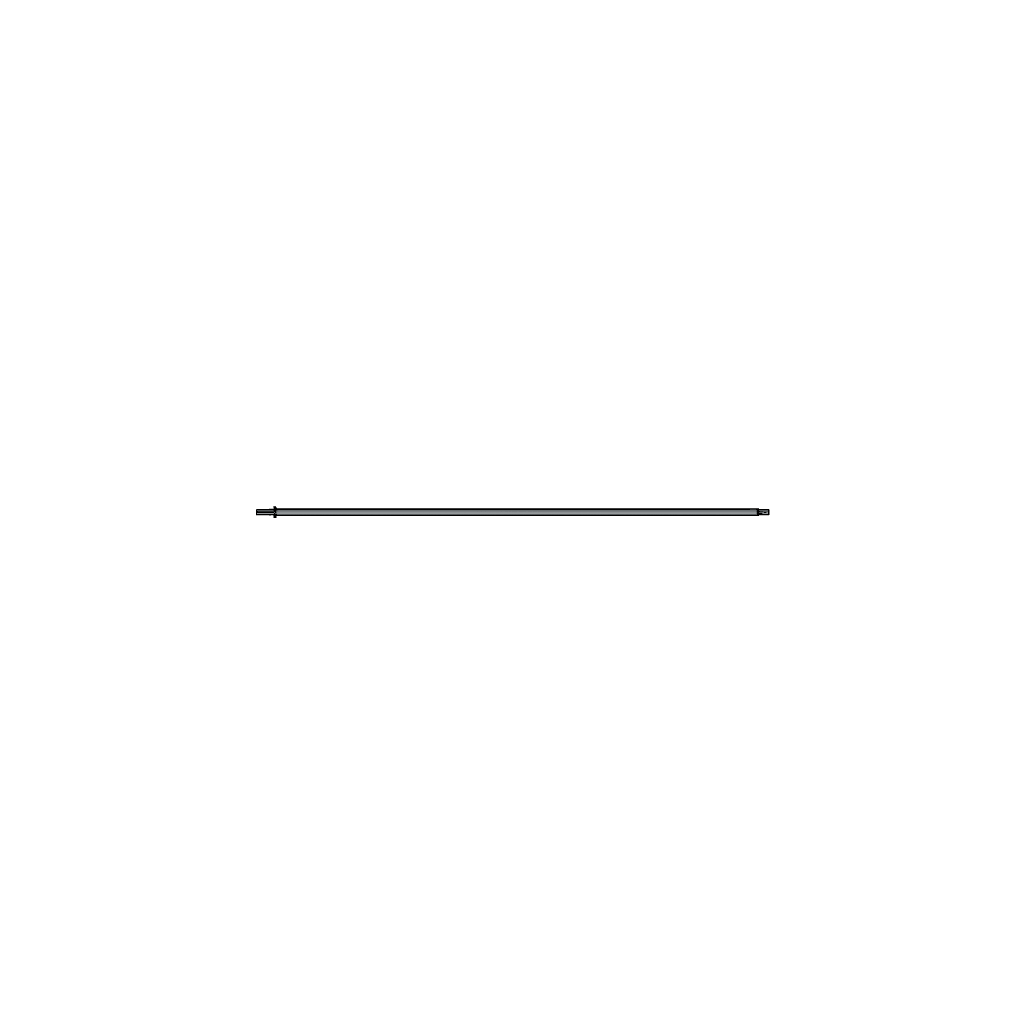

Oil Gauge Tube
Cummins®

The Oil Pressure Gauge Tube (Part #3969023) manufactured by Cummins is a component designed to monitor oil pressure within the engine’s lubrication system. This part is significant in the operation of heavy-duty trucks as it provides real-time data on oil pressure, which is vital for maintaining engine health and performance ¹.

Basic Concepts of Oil Pressure Gauge Tubes

Oil pressure gauge tubes operate by connecting to the engine’s oil system and transmitting pressure readings to the gauge on the dashboard. These tubes play a role in the engine’s lubrication system by allowing operators to monitor oil pressure, ensuring that the engine receives adequate lubrication under various operating conditions ². Proper oil pressure is indicative of a well-functioning lubrication system, which is essential for reducing friction and wear on engine components.

Role of the Oil Pressure Gauge Tube in Truck Operation

The Oil Pressure Gauge Tube (Part #3969023) contributes to the operation of heavy-duty trucks by providing continuous monitoring of oil pressure. This monitoring allows operators to detect potential issues with the lubrication system early, such as low oil pressure, which could indicate a failing oil pump or restricted oil passages. By addressing these issues promptly, the gauge tube helps maintain engine performance and safety, preventing catastrophic engine failure ³.

Key Features of the Cummins Oil Pressure Gauge Tube

The Cummins Oil Pressure Gauge Tube is characterized by its robust design and high-quality materials, which enhance its performance and durability. The tube is constructed from materials resistant to corrosion and high temperatures, ensuring reliable operation in the demanding environment of a heavy-duty truck engine. Its design allows for easy installation and compatibility with Cummins engines, facilitating straightforward maintenance and replacement procedures.

Benefits of Using the Cummins Oil Pressure Gauge Tube

Using the Cummins Oil Pressure Gauge Tube offers several benefits, including improved engine monitoring capabilities. The accurate and reliable oil pressure readings provided by this component enable operators to make informed decisions regarding engine maintenance and operation. Enhanced reliability of the lubrication system can lead to increased engine lifespan and potentially lower maintenance costs for fleet operators. Additionally, the durability of the Cummins gauge tube reduces the frequency of replacements, contributing to overall cost savings.

Troubleshooting Common Issues with Oil Pressure Gauge Tubes

Common issues with oil pressure gauge tubes may include inaccurate readings or complete failure of the gauge. Symptoms to watch for include fluctuating oil pressure readings, a gauge that remains at zero, or one that pegs at the maximum pressure without changing. Troubleshooting steps may involve checking the tube for blockages, ensuring proper installation, and verifying the integrity of the connection to the engine’s oil system. In some cases, replacing the gauge tube may be necessary to restore accurate oil pressure monitoring.

Maintenance Tips for Oil Pressure Gauge Tubes

To ensure optimal performance and longevity of oil pressure gauge tubes, regular maintenance is recommended. This includes periodic inspection for signs of wear, corrosion, or damage. Cleaning the tube and its connections can prevent blockages and ensure accurate readings. Additionally, following the manufacturer’s guidelines for replacement intervals can help maintain the reliability of the oil pressure monitoring system.

Cummins: A Brief Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes a wide range of power solutions, including engines, filtration, and emission solutions. With a history spanning over a century, Cummins has established a reputation for quality, reliability, and innovation in the automotive and heavy-duty truck industries. The company’s commitment to excellence is reflected in its product offerings, which are designed to meet the demanding requirements of commercial and industrial applications.

Cummins Oil Pressure Gauge Tube (Part 3969023) Compatibility

The Cummins Oil Pressure Gauge Tube, identified by part number 3969023, is a critical component in the engine’s oil system. This part is designed to provide accurate readings of the engine’s oil pressure, ensuring that the engine operates within safe parameters.

Engine Compatibility

The Oil Pressure Gauge Tube (3969023) is compatible with the following Cummins engine models:

• 6B5.9

This part is integral to the engine’s diagnostic and monitoring systems, ensuring that the oil pressure is consistently monitored and maintained at optimal levels. The compatibility of this part with the 6B5.9 engine underscores its importance in maintaining engine health and performance.

Role of Part 3969023 Oil Pressure Gauge Tube in Engine Systems

The part 3969023 Oil Pressure Gauge Tube is an integral component in the monitoring and maintenance of engine systems. It is specifically designed to facilitate the accurate measurement and display of oil pressure within the engine.

Integration with the Gauge

The Oil Pressure Gauge Tube connects to the oil pressure gauge, allowing for the transmission of oil pressure readings from the engine to the gauge. This connection ensures that the gauge provides real-time data, enabling engineers and mechanics to monitor the engine’s lubrication system effectively. The tube’s precise fit and secure connection are essential for maintaining the integrity of the pressure readings, ensuring that any fluctuations or anomalies in oil pressure are promptly detected.

Interaction with the Oil Level System

While the primary function of the Oil Pressure Gauge Tube is to convey oil pressure data, its integration within the broader oil management system is noteworthy. The tube works in conjunction with the oil level sensor and other components to provide a comprehensive overview of the engine’s lubrication status. By ensuring that oil pressure is within the optimal range, the tube indirectly supports the maintenance of appropriate oil levels. This interplay between pressure and level monitoring is vital for the overall health and performance of the engine.

Conclusion

In summary, the part 3969023 Oil Pressure Gauge Tube plays a significant role in the engine’s lubrication monitoring system. Its accurate and reliable transmission of oil pressure data to the gauge, and its interaction with the oil level system, underscores its importance in maintaining engine efficiency and longevity.
