Injector Cup Retainer
Cummins®

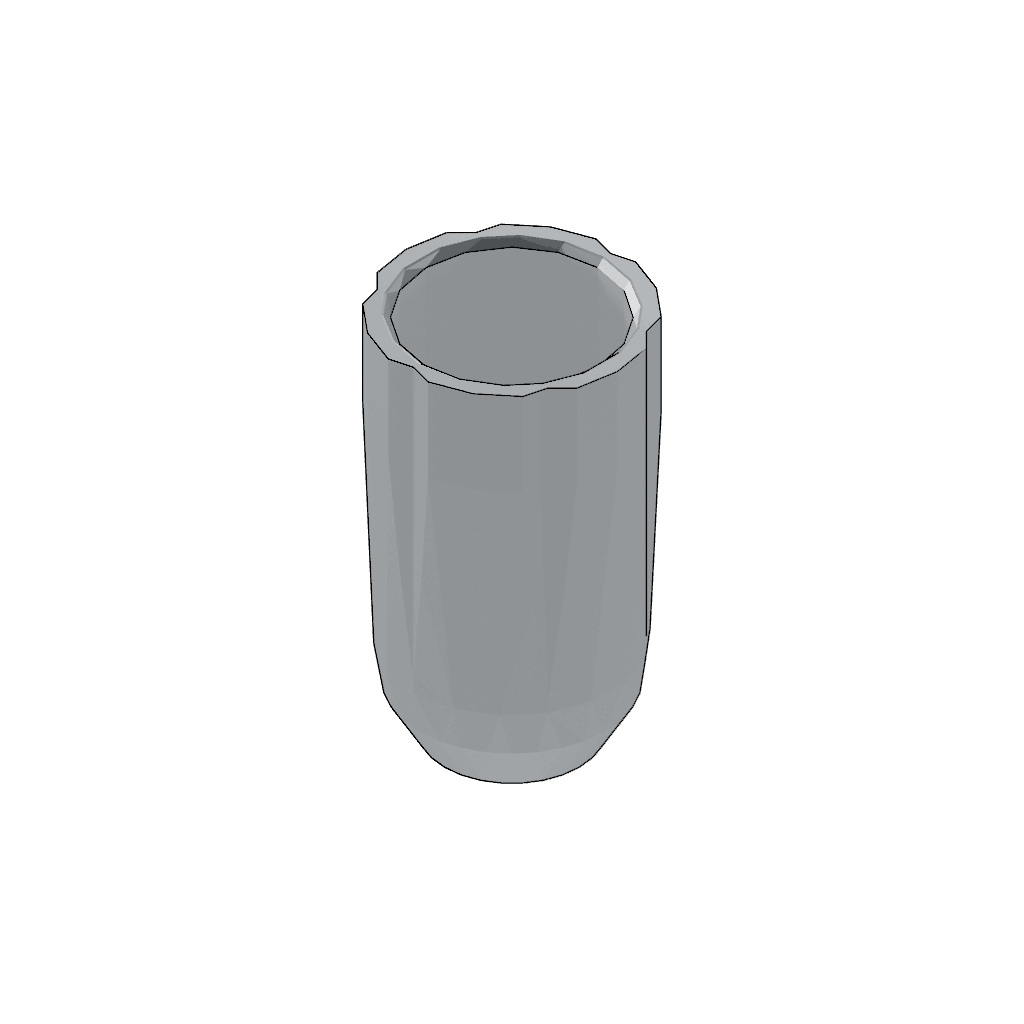

The Cummins Injector Cup Retainer, part number 185138, is a component designed to secure the injector cup within the cylinder head of heavy-duty diesel engines. Its purpose is to maintain the structural integrity of the fuel injection system, ensuring that the injector cup remains properly seated and sealed. This Cummins part plays a role in the overall operation of heavy-duty trucks by contributing to the efficient and reliable performance of the engine ³.

Function and Operation

The Injector Cup Retainer 185138 operates by securing the injector cup in place within the cylinder head. It interfaces directly with the injector cup and the cylinder head, providing a stable and sealed environment for the fuel injection process. The retainer helps to maintain the precise alignment and sealing necessary for optimal fuel delivery and combustion. Its design allows it to withstand the high pressures and temperatures present in the fuel injection system, ensuring consistent performance over time ¹.

Key Features

The Injector Cup Retainer 185138 is characterized by its robust design and high-quality materials. It is typically made from durable metals that can endure the extreme conditions within a diesel engine. The retainer features precise machining and tight tolerances to ensure a secure fit and effective sealing. These design and material characteristics contribute to its durability and performance, making it a reliable component in the fuel injection system ².

Role in Truck Operation

The Injector Cup Retainer 185138 plays a role in maintaining the integrity of the fuel injection system by securing the injector cup and ensuring a proper seal. This helps to prevent fuel leaks and maintain the precise fuel delivery required for efficient engine operation. By ensuring that the injector cup remains correctly positioned, the retainer contributes to consistent combustion, which is vital for engine performance and reliability ³.

Benefits

The use of the Injector Cup Retainer 185138 offers several advantages. It helps to improve fuel efficiency by ensuring that fuel is delivered accurately and consistently. This precise fuel delivery also contributes to reduced emissions, as the engine operates more cleanly and efficiently. Additionally, the retainer enhances engine reliability by maintaining the structural integrity of the fuel injection system, which is critical for long-term performance ¹.

Common Issues and Troubleshooting

Typical problems associated with Injector Cup Retainers include wear, corrosion, and improper seating. These issues can lead to fuel leaks, reduced engine performance, and increased emissions. To address these problems, regular inspections should be conducted to check for signs of wear or damage. Diagnostic procedures may involve pressure testing the fuel system to identify leaks and verifying the proper seating of the injector cup. Maintenance practices should include cleaning and, if necessary, replacing the retainer to ensure optimal performance ².

Maintenance Tips

To prolong the service life of the Injector Cup Retainer 185138 and optimize engine performance, regular inspection and maintenance are recommended. This includes checking for signs of wear or damage during routine engine servicing. Ensuring that the cylinder head and injector cup are clean and free of debris will also help maintain the integrity of the fuel injection system. Following the manufacturer’s guidelines for maintenance intervals and procedures will contribute to the longevity and reliability of the Injector Cup Retainer ³.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes diesel and natural gas engines, as well as related technologies. With a history spanning over a century, Cummins has established itself as a pioneer in the diesel engine industry. The company offers a wide range of products, including engines, filtration systems, and power generation equipment. Cummins is committed to innovation, sustainability, and customer satisfaction, continually advancing its technologies to meet the evolving needs of the market.

Cummins Injector Cup Retainer 185138 Compatibility

The Cummins Injector Cup Retainer part number 185138 is a component in the fuel injection system of various engines. This part is designed to securely hold the injector cup in place, ensuring proper sealing and functionality of the injector. Here is a breakdown of its compatibility with the listed engines:

K-Series Engines

• K19
• K38
• K50

The Injector Cup Retainer 185138 is compatible with the K-Series engines, including the K19, K38, and K50. These engines are known for their robust design and are often used in heavy-duty applications.

L10 MECHANICAL

The L10 MECHANICAL engine also fits the Injector Cup Retainer 185138. This engine is part of the L-Series, which is recognized for its reliability and efficiency in various industrial applications.

N-Series Engines

• N14 MECHANICAL

The N14 MECHANICAL engine is another compatible engine for the Injector Cup Retainer 185138. This engine is part of the N-Series, known for its durability and performance in demanding environments.

NH/NT 855

The NH/NT 855 engine is also compatible with the Injector Cup Retainer 185138. This engine is part of the NH/NT series, which is widely used in agricultural and construction machinery.

V-Series Engines

• V28
• V903

The V28 and V903 engines are part of the V-Series, and both are compatible with the Injector Cup Retainer 185138. These engines are known for their power and efficiency in various applications.

VTA903 CM2250 V105

The VTA903 CM2250 V105 engine is also compatible with the Injector Cup Retainer 185138. This engine is part of the VTA series, which is designed for high-performance and reliability in heavy-duty applications.

Role of Part 185138 Injector Cup Retainer in Engine Systems

The Injector Cup Retainer, identified as part 185138, is an integral component in the orchestration of various engine systems. It ensures the secure placement and operation of the injector within the engine’s architecture.

In conjunction with the Cam Follower Housing and Camshaft, the Injector Cup Retainer aids in maintaining the precise alignment and timing necessary for optimal engine performance. This is particularly important in high-performance engines where timing can significantly affect power output and efficiency.

When integrated with EBM: Injector systems, the Retainer plays a role in stabilizing the injector, allowing for consistent fuel delivery. This is essential for engines utilizing EBM: Performance Parts where fuel delivery precision can influence overall engine responsiveness and power.

In the context of an Emissions Rebuild Kit, the Injector Cup Retainer contributes to the efficient operation of injectors, ensuring that fuel is delivered in a manner that complies with emissions standards. This is vital for engines undergoing rebuilds to meet current environmental regulations.

Within an Engine Kit or Engine Spares Kit, the Retainer is a key component that facilitates the proper installation and function of injectors. It is also relevant in Injector Mounting scenarios, where secure and accurate placement of injectors is paramount.

The Retainer is also significant in Injector Plumbing systems, where it helps to maintain the integrity of fuel lines and connections, preventing leaks and ensuring consistent fuel pressure.

In engines equipped with TP-STP Less Link or TP-STPlesslink systems, the Injector Cup Retainer ensures that injectors are properly seated, which is essential for the accurate delivery of fuel in accordance with the engine’s timing profile.

For engines utilizing Injector-Pressure-Time Delivery systems, the Retainer is instrumental in maintaining the structural integrity of the injector setup, allowing for precise control over fuel injection timing and pressure.

In On Board Spares and Liner Kit applications, the Retainer is a component that can be readily replaced, ensuring that injectors remain operational even in the event of component failure.

When dealing with Performance Parts or Perf. Parts, the Injector Cup Retainer is a component that supports the enhanced performance characteristics of these parts by ensuring that injectors are securely held in place and operate efficiently.

Conclusion

In summary, the Injector Cup Retainer (part 185138) is a component that underpins the reliable and efficient operation of injectors across a variety of engine systems and performance configurations. Regular maintenance and inspection of this part are essential to ensure the continued performance and reliability of heavy-duty diesel engines.
