3014670
Lubricating Oil Drain Tube
Cummins®

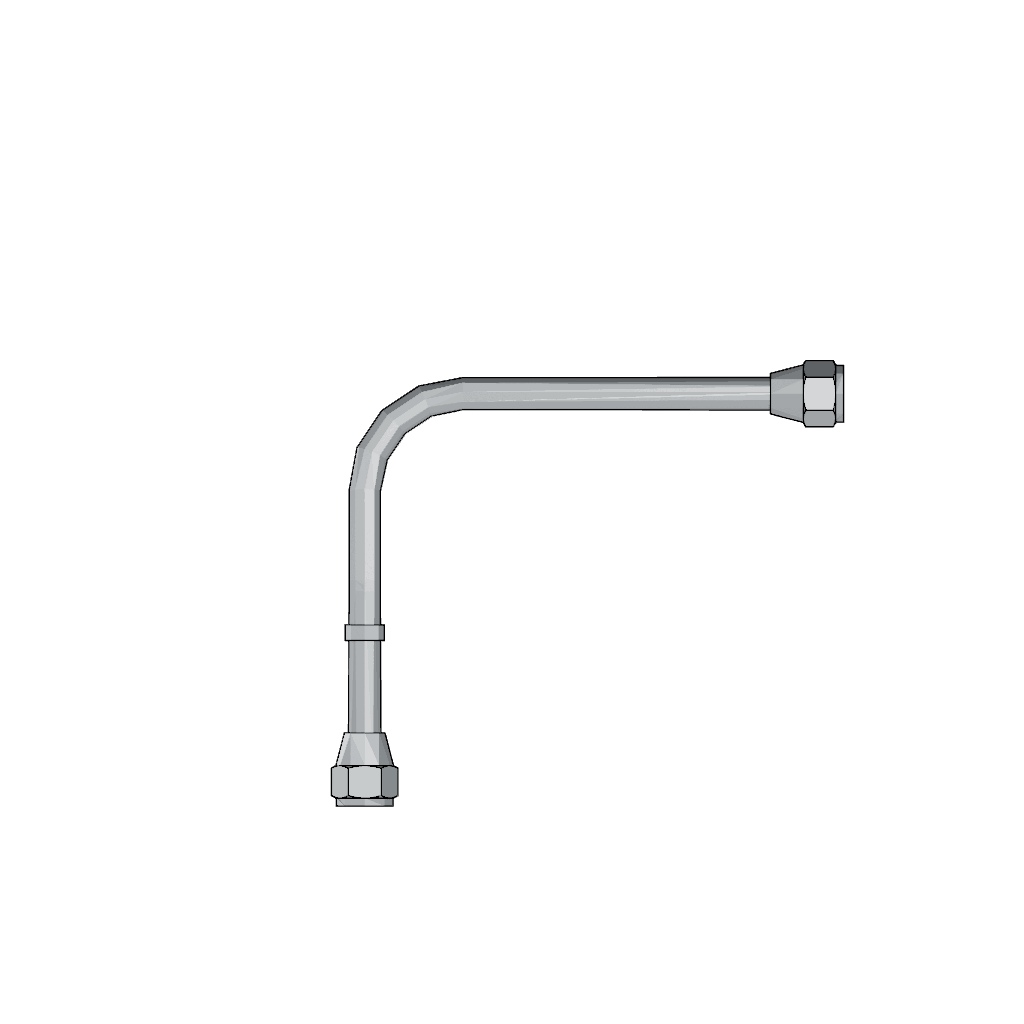

The Cummins Lubricating Oil Drain Tube (Part #3014670) is a component designed to facilitate the draining of used oil from heavy-duty truck engines during maintenance procedures. This part plays a role in ensuring that oil changes are conducted efficiently and effectively, contributing to the overall maintenance and longevity of the engine ¹.

Function and Operation

The Lubricating Oil Drain Tube provides a pathway for used oil to exit the engine during maintenance. When the drain plug is removed, the tube guides the flow of oil out of the engine sump and into a collection container. This process is integral to regular engine maintenance, allowing for the removal of contaminants and degraded oil that can impair engine performance over time ².

Key Features

The Lubricating Oil Drain Tube is engineered with specific design and material characteristics to enhance its functionality and durability. It is constructed from materials that offer corrosion resistance, ensuring longevity even in harsh operating environments. The tube is designed for ease of installation, featuring a straightforward design that aligns with standard maintenance procedures. Additionally, its robust construction ensures it can withstand the pressures and temperatures associated with heavy-duty truck engines ³.

Benefits of Using the Lubricating Oil Drain Tube

Incorporating the Lubricating Oil Drain Tube into truck maintenance routines offers several advantages. It improves the efficiency of oil changes by providing a direct and controlled pathway for oil drainage. This can reduce the time required for maintenance, allowing for quicker turnaround times for trucks in operation. Furthermore, by ensuring thorough and clean oil changes, the tube contributes to engine longevity, helping to maintain optimal engine performance and reliability ⁴.

Installation and Maintenance Guidelines

For the proper installation of the Lubricating Oil Drain Tube, follow these steps: First, ensure the engine is cool and the vehicle is parked on a level surface. Locate the oil drain plug and remove it carefully. Position the drain tube over the drain plug opening, ensuring a secure fit. To maintain the tube’s performance, regularly inspect it for signs of wear or damage, and replace it if necessary to ensure continued efficiency and safety during oil changes ⁵.

Troubleshooting Common Issues

Frequent problems associated with the Lubricating Oil Drain Tube may include leaks or blockages. To address leaks, ensure the tube is properly seated and not damaged. If blockages occur, check for debris within the tube and clean as necessary. Regular maintenance and inspection can prevent many issues, ensuring the tube functions correctly throughout its service life ⁶.

Safety Considerations

When working with the Lubricating Oil Drain Tube, it is important to follow safety protocols. This includes allowing the engine to cool before beginning maintenance to avoid burns from hot oil. Use appropriate personal protective equipment, such as gloves and safety glasses, to protect against spills. Ensure proper disposal of used oil in accordance with local regulations to protect the environment ⁷.

Cummins: A Brief Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins is committed to innovation and excellence in the automotive industry, particularly in the development of components for heavy-duty trucks. The company’s product range includes a variety of engine and powertrain solutions designed to meet the demanding requirements of commercial and industrial applications.

Cummins Lubricating Oil Drain Tube (Part 3014670) Compatibility

The Cummins Lubricating Oil Drain Tube, identified by the part number 3014670, is designed to facilitate the controlled drainage of used oil from the engine’s sump, ensuring that the engine remains clean and operates efficiently. This part is compatible with various Cummins engines, including the K19, QSK19, and CM500, among others. Its universal design allows it to be used in multiple engine models, providing a reliable solution for oil drainage across various applications ⁸.

Role of Part 3014670 Lubricating Oil Drain Tube in Engine Systems

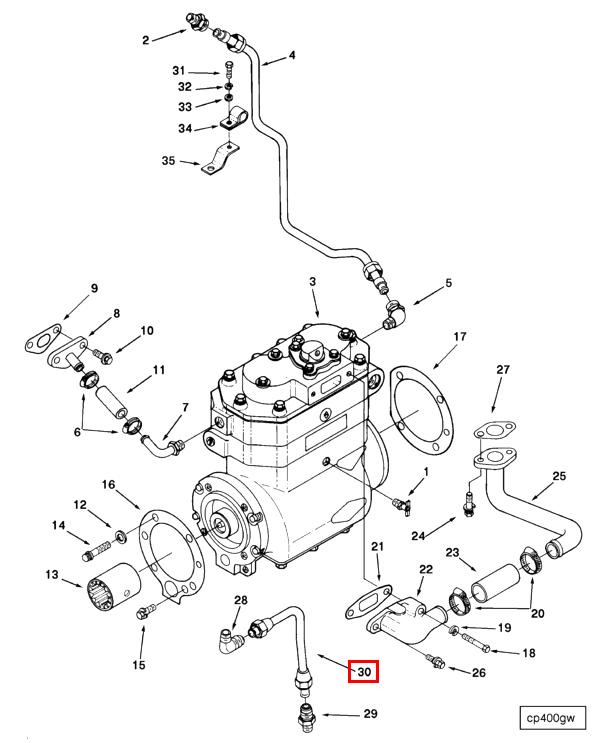

The Lubricating Oil Drain Tube (part 3014670) is integral to the maintenance and operation of various engine systems, including air compressors and compressor coolant systems. It ensures the proper drainage of used oil, maintaining the compressor’s efficiency and longevity. In more complex engine systems, the tube may be part of a larger oil management system, enhancing overall efficiency and environmental sustainability ⁹.

Conclusion

The Cummins Lubricating Oil Drain Tube (Part #3014670) is a vital component in the maintenance of heavy-duty truck engines. Its design and functionality contribute to efficient oil changes, engine longevity, and overall performance. Proper installation, maintenance, and adherence to safety protocols are essential for maximizing the benefits of this part.
