3351811
Sending Unit
Cummins®

Introduction

The Cummins 3351811 Sending Unit is a component designed for use in commercial trucks. Its primary role is to measure and transmit fluid levels within the vehicle to the instrumentation system. This allows drivers and maintenance personnel to monitor the status of critical fluids, ensuring that the truck operates efficiently and safely ¹.

Function and Operation

The Cummins 3351811 Sending Unit operates by utilizing a float mechanism that moves in response to the fluid level within the tank. As the fluid level changes, the float moves up or down, which in turn adjusts a variable resistor. This resistor changes the electrical signal sent to the vehicle’s gauges, providing a real-time indication of the fluid level. This system ensures that the driver is always aware of the current state of the truck’s fluids, facilitating timely maintenance and preventing potential issues related to low fluid levels ².

Key Features

The Cummins 3351811 Sending Unit is constructed with durable materials to withstand the harsh conditions often encountered in commercial trucking. Its design includes a robust housing that protects the internal components from damage. Additionally, the unit is engineered to provide accurate and consistent readings, enhancing the reliability of the fluid level monitoring system. The precision engineering and high-quality materials used in its construction contribute to its longevity and performance under demanding conditions ³.

Benefits

Using the Cummins 3351811 Sending Unit offers several advantages. It provides improved accuracy in fluid level readings, which is vital for maintaining the truck’s performance and preventing issues such as engine damage due to low oil levels. The enhanced reliability of the unit ensures that the fluid level data is consistently accurate, reducing the likelihood of misinterpretation. Additionally, by ensuring that fluid levels are maintained within the optimal range, the unit can contribute to overall vehicle efficiency, potentially leading to cost savings in maintenance and operation ⁴.

Installation and Compatibility

Proper installation of the Cummins 3351811 Sending Unit is crucial for its effective operation. It should be installed according to the manufacturer’s guidelines to ensure it functions correctly within the vehicle’s system. Specific requirements may include ensuring the unit is securely fastened and that all electrical connections are properly made. Compatibility information regarding specific truck models and engine types should be consulted to ensure the unit is suitable for the intended application.

Maintenance and Troubleshooting

To ensure the optimal performance of the Cummins 3351811 Sending Unit, regular maintenance is recommended. This includes checking the unit for any signs of wear or damage and ensuring that all connections are secure and free from corrosion. Common issues that may arise include inaccurate readings, which can often be traced back to loose connections or a faulty float mechanism. Troubleshooting steps may involve inspecting these components and making necessary adjustments or replacements.

Safety Considerations

When working with the Cummins 3351811 Sending Unit, it is important to follow safety guidelines to prevent injury and ensure the unit’s proper function. This includes wearing appropriate personal protective equipment, ensuring the vehicle is turned off and the engine is cool before beginning any work, and following all manufacturer-recommended procedures for installation and maintenance. Adhering to these safety practices helps protect both the technician and the equipment.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins has established a strong reputation in the commercial truck industry for producing reliable and high-performance components. The company’s extensive product range and commitment to innovation and quality make it a trusted name among fleet operators and maintenance professionals.

Role of Part 3351811 Sending Unit in Engine Systems

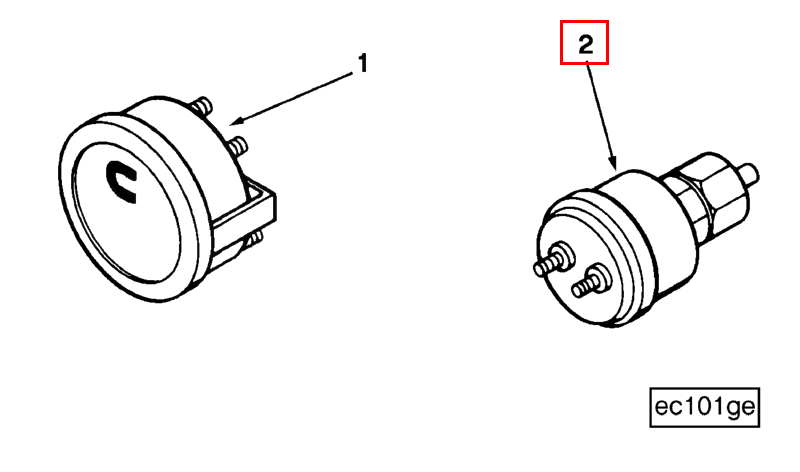

The Part 3351811 Sending Unit is an integral component within engine systems, specifically designed to work in conjunction with the Speed Switch. Its primary function is to monitor and transmit data regarding the engine’s operational parameters to the vehicle’s onboard computer system.

When integrated with the Speed Switch, the Sending Unit ensures accurate measurement and reporting of the engine’s rotational speed. This data is vital for the Engine Control Unit (ECU) to make real-time adjustments to fuel injection, ignition timing, and other critical engine functions.

The Sending Unit operates by converting mechanical motion into an electrical signal. As the Speed Switch detects changes in engine speed, the Sending Unit translates these variations into a format that the ECU can interpret. This seamless communication allows for optimized engine performance, enhanced fuel efficiency, and reduced emissions.

Furthermore, the Sending Unit plays a significant role in diagnostic processes. By providing continuous feedback on engine speed, it enables the ECU to identify potential issues early, facilitating timely maintenance and preventing more severe engine damage.

Conclusion

In summary, the Cummins 3351811 Sending Unit is a key element in ensuring the engine system operates efficiently and effectively, working hand-in-hand with the Speed Switch to deliver precise data for optimal engine management.
