3681114
Wiring Harness
Cummins®

The Cummins 3681114 Wiring Harness is a specialized component designed for use in commercial trucks. It serves as a part of the vehicle’s electrical system, facilitating the connection between various electrical components and the truck’s power source. This Cummins part ensures that electrical signals and power are efficiently distributed throughout the truck, contributing to the overall functionality and performance of the vehicle.

Basic Concepts of Wiring Harnesses

A wiring harness is an assembly of wires, connectors, and sometimes switches and relays that transmit electrical power and signals to various components within a vehicle. It is designed to organize and protect the wires, reducing the risk of damage and ensuring reliable electrical connections. Within a vehicle’s electrical system, the wiring harness plays a role by providing a structured pathway for electricity to flow from the power source to the components that require it, such as lights, sensors, and control units ¹.

Purpose of the 3681114 Wiring Harness

The Cummins 3681114 Wiring Harness is specifically engineered to integrate with the electrical system of commercial trucks. It connects various electrical components, ensuring that they receive the necessary power and signals to operate correctly. This harness is designed to work in conjunction with the truck’s engine, transmission, and other systems, playing a role in maintaining the electrical integrity of the vehicle.

Key Features

The Cummins 3681114 Wiring Harness is characterized by several key features that enhance its performance and durability. It is constructed using high-quality materials that are resistant to wear, corrosion, and environmental factors. The design of the harness includes organized wiring pathways and secure connections, which contribute to its reliability. Additionally, the harness may incorporate unique attributes such as protective coatings or specialized connectors to further improve its functionality in demanding commercial truck applications.

Benefits of Using the 3681114 Wiring Harness

Utilizing the Cummins 3681114 Wiring Harness in commercial trucks offers several advantages. It contributes to improved reliability by ensuring stable and consistent electrical connections. The efficient design of the harness helps to reduce electrical resistance, leading to better overall performance of the truck’s electrical systems. Moreover, the harness enhances safety by minimizing the risk of electrical faults or failures, which can be critical in commercial truck operations ².

Installation Considerations

When installing the Cummins 3681114 Wiring Harness, it is important to follow guidelines and best practices to ensure proper integration with the truck’s electrical system. Preparatory steps may include inspecting the existing wiring for any damage or wear and ensuring that all connections are clean and secure. The use of appropriate tools and following the manufacturer’s instructions can facilitate a smooth installation process, contributing to the harness’s effectiveness and longevity.

Maintenance and Troubleshooting

To ensure the longevity and performance of the Cummins 3681114 Wiring Harness, regular maintenance is recommended. This may involve inspecting the harness for signs of wear, corrosion, or damage, and addressing any issues promptly. Common problems that may arise include loose connections or frayed wires, which can be resolved by tightening connections or replacing damaged sections. Adhering to a maintenance schedule can help prevent more significant electrical issues down the line ³.

Safety Precautions

When working with the Cummins 3681114 Wiring Harness, it is crucial to observe important safety measures. Electrical safety practices should be followed, including disconnecting the battery before beginning any work on the harness to prevent the risk of electrical shock. Additionally, handling the harness with care and using appropriate tools can help avoid damage to the wires or connectors. Being mindful of these safety precautions ensures a safe working environment when dealing with the truck’s electrical system.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a rich history dating back to 1919, Cummins has established itself as a trusted name in the commercial truck industry. The company is committed to quality and innovation, continually striving to improve the performance, efficiency, and reliability of its products. Cummins’ dedication to excellence is evident in its wide range of components, including the 3681114 Wiring Harness, which is designed to meet the demanding requirements of commercial truck applications.

Role of Part 3681114 Wiring Harness in Engine Systems

The Part 3681114 Wiring Harness is a component that facilitates the electrical connections within engine systems. It ensures seamless communication and power distribution among various engine components, enhancing overall system efficiency and reliability.

Integration with Fuel Filter and Fuel Filter Head

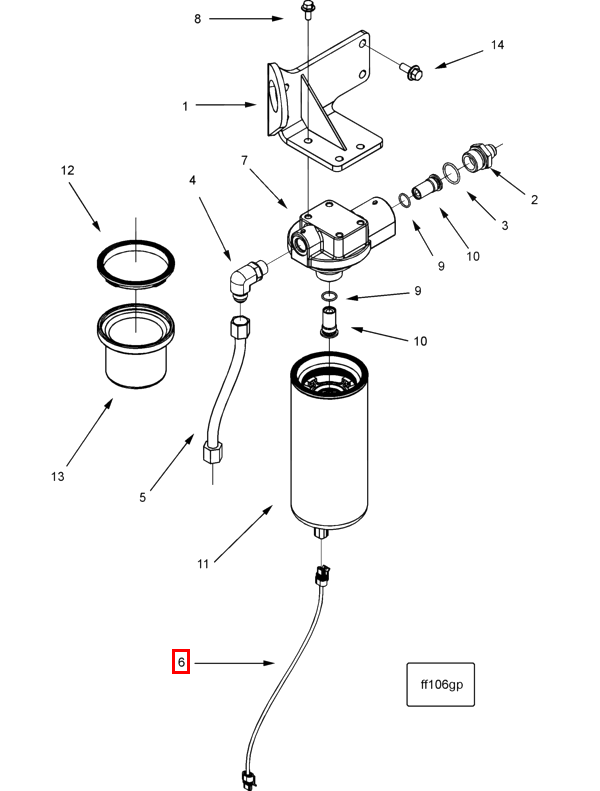

1. Fuel Filter: The wiring harness plays a significant role in connecting the fuel filter to the engine’s electrical system. It provides the necessary power and signal lines required for the fuel filter’s operation. This includes connections for sensors that monitor fuel quality and filter condition, ensuring that the engine receives clean fuel for optimal performance.

2. Fuel Filter Head: The wiring harness also interfaces with the fuel filter head, which is a critical junction in the fuel system. It supplies power to any integrated sensors or solenoids within the fuel filter head. These components help regulate fuel flow and pressure, contributing to efficient fuel delivery to the engine. The harness ensures that these elements receive consistent and reliable electrical signals, which are vital for their proper functioning.

By providing these essential electrical connections, the Part 3681114 Wiring Harness supports the smooth operation of the fuel filter and fuel filter head, ultimately contributing to the engine’s overall performance and durability.

Conclusion

The Cummins 3681114 Wiring Harness is a vital component in the electrical systems of commercial trucks, ensuring efficient and reliable electrical connections. Its design and construction reflect Cummins’ commitment to providing high-quality components that meet the rigorous demands of heavy-duty applications. Regular maintenance and adherence to safety precautions are essential to ensure the longevity and performance of this part.
