DESCRIPTION
The chain drive package from Cummins is designed to ensure precise timing and operation of engine components. It is engineered for durability and reliable performance, reducing wear and extending the service life of engine parts. This package is an essential component for maintaining the smooth operation and efficiency of Cummins engines.
SPECIFICATIONS
Notes
PURCHASE LOWER LEVEL PARTS FOR SERVICE
Package Dimensions
22.6 x 12.3 x 7.0 in
Weight
18.8 lbs

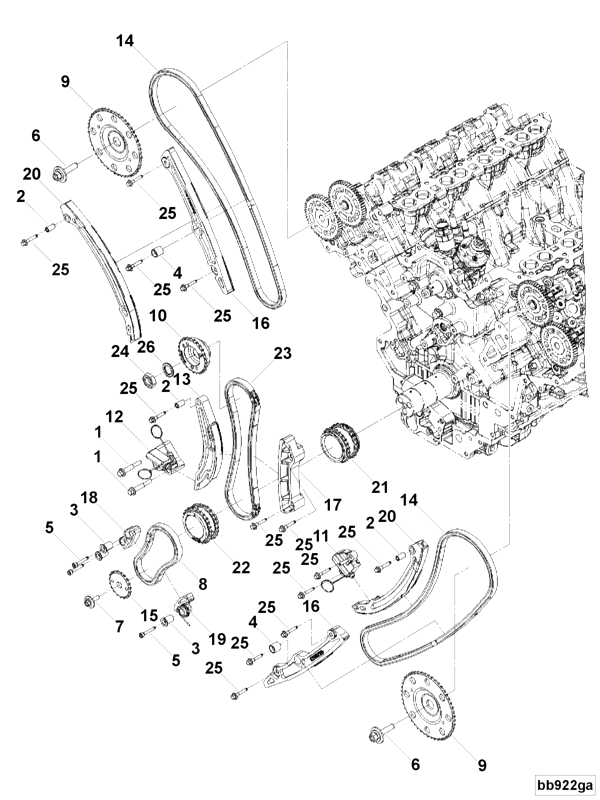

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| Chain | 1 | 2883750 |
| Camshaft Sprocket | 2 | 2883755 |
| Fuel Pump Sprocket | 1 | 2883782 |
| Chain Tensioner | 1 | 2884685 |
| Chain Tensioner | 1 | 4325517 |
| Chain Tensioner Lever | 1 | 4325539 |
| Chain | 2 | 4976317 |
| Lubricating Oil Pump Sprocket | 1 | 4976323 |
| Chain Guide | 2 | 4976963 |
| Chain Guide | 1 | 4976964 |
| Chain Guide | 1 | 4976967 |
| Chain Tensioner Lever | 1 | 4976972 |
| Chain Tensioner Lever | 2 | 4976973 |
| Drive Sprocket | 1 | 4977695 |
| Drive Sprocket | 1 | 4977696 |
| Chain | 1 | 4977756 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
* Variable geometry turbocharger and electronic actuator repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after October 1, 2018.
* Diesel Oxidation Catalyst (DOC), Diesel Particulate Filter (DPF), Selective Catalyst Reduction (SCR) catalyst, and Electronic Control Module (ECM) repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after January 1, 2020.
* These restrictions are only applicable to New parts and ReCon parts coverages for the components listed above sold to a customer in the US or Canada. All other coverages are excluded. All other regions are excluded.
* Variable geometry turbocharger and electronic actuator repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after October 1, 2018.
* Diesel Oxidation Catalyst (DOC), Diesel Particulate Filter (DPF), Selective Catalyst Reduction (SCR) catalyst, and Electronic Control Module (ECM) repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after January 1, 2020.
* These restrictions are only applicable to New parts and ReCon parts coverages for the components listed above sold to a customer in the US or Canada. All other coverages are excluded. All other regions are excluded.
