5274492
Starting Motor
Cummins®

Introduction

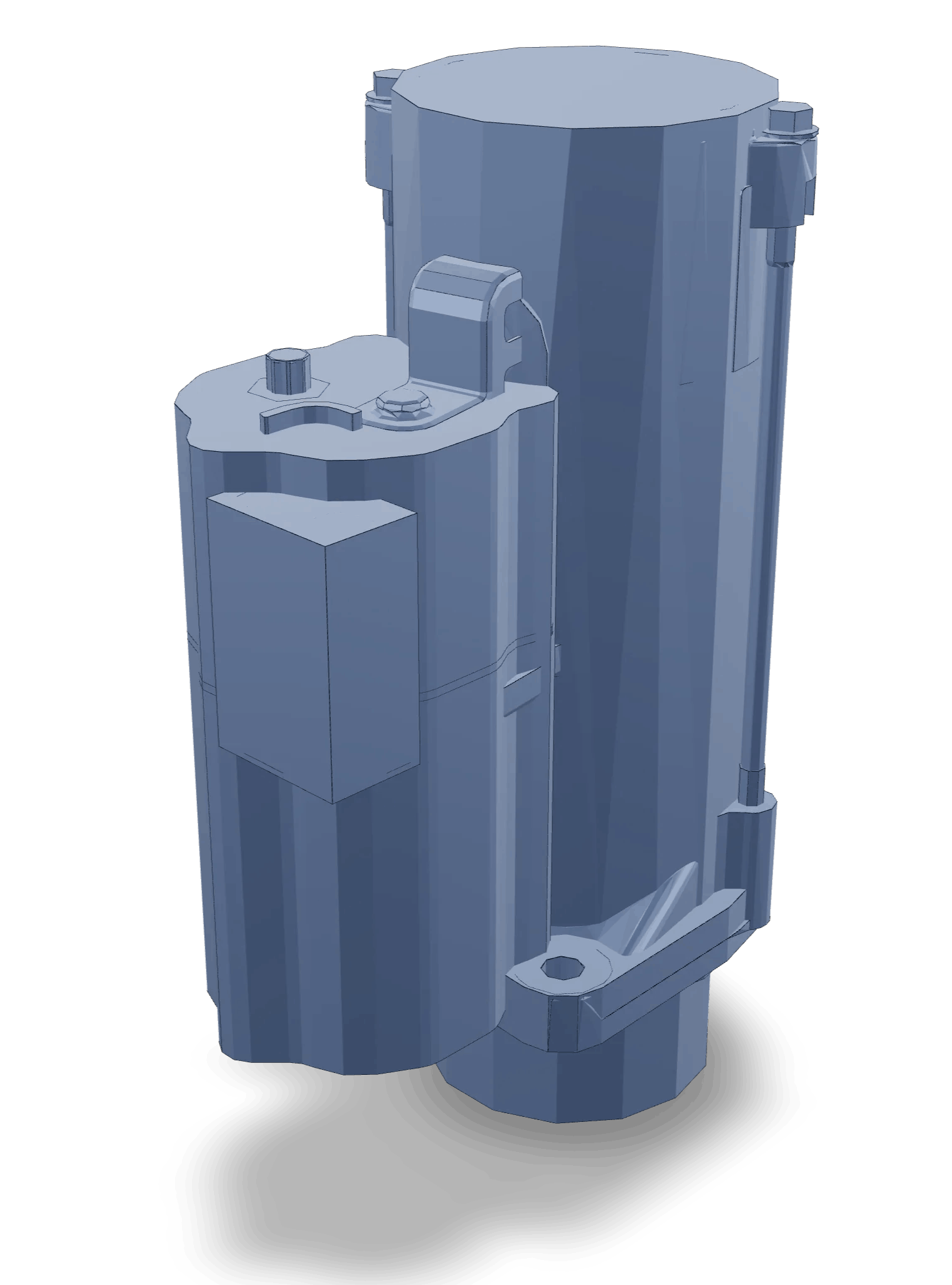

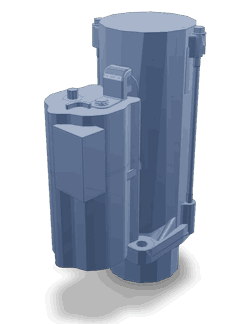

The Cummins 5274492 Starter Motor is a component designed for use in commercial trucks. It plays a role in the operation of these vehicles by initiating the engine start-up process. This starter motor is engineered to meet the demanding requirements of heavy-duty applications, ensuring reliable performance under various operating conditions.

Basic Concepts of Starter Motors

A starter motor is an electric motor that rotates the engine to start it. It functions by converting electrical energy from the battery into mechanical energy, which turns the engine’s crankshaft. This action compresses the air-fuel mixture in the cylinders, allowing the engine to ignite and begin running. The starter motor is a part of the ignition system, ensuring that the engine starts smoothly and efficiently ¹.

Purpose of the Cummins 5274492 Starter Motor

The Cummins 5274492 Starter Motor is specifically designed to facilitate the start-up of truck engines. It plays a role in the engine start-up process by engaging with the flywheel or flexplate and turning the engine over. This action allows the engine to reach the necessary speed for combustion to occur, thereby initiating the operation of the truck.

Key Features

The Cummins 5274492 Starter Motor boasts several key features that enhance its performance and durability. Its design incorporates high-quality materials, ensuring robustness and longevity. The motor is constructed with precision to provide efficient operation and reliable start-ups. Additionally, it features advanced technology that improves its efficiency and reduces wear and tear over time.

Benefits

The Cummins 5274492 Starter Motor offers several advantages. Its reliable performance ensures consistent start-ups, even in challenging conditions. The motor is designed for efficiency, minimizing energy consumption during operation. Furthermore, it is compatible with a range of truck models, making it a versatile choice for fleet operators.

Installation and Integration

Proper installation of the Cummins 5274492 Starter Motor is vital for optimal performance. It should be integrated into the truck’s engine system following manufacturer guidelines. This process involves ensuring that all connections are secure and that the motor is properly aligned with the flywheel or flexplate. Attention to these details helps prevent issues and ensures smooth operation.

Troubleshooting Common Issues

Common problems with starter motors can include slow cranking, failure to engage, or unusual noises during operation. These issues may arise from a variety of causes, such as a weak battery, corroded connections, or mechanical wear. Troubleshooting steps for the Cummins 5274492 model may involve checking the battery voltage, inspecting electrical connections, and examining the motor for signs of wear or damage.

Maintenance Tips

Routine maintenance is key to ensuring the longevity and optimal performance of the Cummins 5274492 Starter Motor. This includes regular inspection of electrical connections, cleaning any corrosion, and ensuring that the motor is free from debris. Additionally, following the manufacturer’s recommended service intervals for more comprehensive checks can help prevent unexpected failures.

Performance Enhancements

For those looking to improve the performance of the Cummins 5274492 Starter Motor, there are several options available. Upgrades may include high-performance batteries, improved electrical connections, or even modifications to the motor itself. These enhancements can provide faster cranking speeds and more reliable start-ups, especially in demanding applications.

Safety Considerations

When working with the Cummins 5274492 Starter Motor, it is important to observe safety protocols. This includes disconnecting the battery before beginning any work to prevent electrical shocks. Additionally, ensuring that the work area is well-ventilated and free from flammable materials can help prevent accidents. Following these precautions helps maintain a safe working environment.

Cummins Corporation

Cummins Inc. is a renowned manufacturer in the automotive industry, known for its commitment to quality and innovation. The company has a long history of producing reliable and high-performance components, including starter motors. Cummins’ reputation for excellence is built on its dedication to engineering excellence and customer satisfaction, making it a trusted name in the industry.

Compatibility of Cummins Starter Motor Part 5274492 with Various Engine Models

The Cummins Starter Motor part number 5274492 is designed to be compatible with a range of engine models, ensuring reliable performance across different applications. This starter motor is engineered to fit seamlessly with the following engines:

• 4B3.9
• 6B5.9
• B4.5
• B5.9 GAS PLUS CM556

Additionally, the part is also compatible with the following engines:

• QSB3.3 CM2150
• QSB3.3 CM2250 EC

These engines, while differing in specifications and applications, share a commonality in their requirement for a robust and dependable starter motor. The Cummins Starter Motor part 5274492 is meticulously crafted to meet these needs, providing consistent starting power and durability. This compatibility ensures that users can confidently rely on this starter motor across various engine models, enhancing operational efficiency and reliability.

Role of Part 5274492 Starter Motor in Engine Systems

The part 5274492 Starter Motor is an integral component in the engine’s ignition system, facilitating the initial rotation of the engine. When the ignition key is turned, electrical current flows from the battery to the starter motor. This current energizes the motor’s solenoid, which in turn engages the starter gear with the engine’s flywheel.

As the starter motor rotates, it turns the flywheel, which is connected to the crankshaft via the flexplate or timing belt/chain. This rotation initiates the engine’s combustion cycle, allowing the pistons to move within the cylinders. The starter motor must generate sufficient torque to overcome the engine’s static friction and begin the rotation process.

During this process, the starter motor interacts with several key components:

• Battery: Provides the necessary electrical power to energize the starter motor.
• Ignition Switch: Controls the flow of electricity from the battery to the starter motor when the key is turned.
• Solenoid: Acts as an electrical switch and mechanical linkage, engaging the starter gear with the flywheel.
• Flywheel/Flexplate: The rotating disc that the starter motor engages to turn the crankshaft.
• Crankshaft: The main rotating shaft within the engine, driven by the flywheel to initiate piston movement.
• Pistons: Move within the cylinders as the crankshaft rotates, beginning the combustion process.

The efficient operation of the starter motor is essential for reliable engine starting, ensuring that the engine components work in harmony to achieve smooth and consistent ignition ².

Conclusion

The Cummins 5274492 Starter Motor is a robust and reliable component designed for heavy-duty applications in commercial trucks. Its key features, benefits, and compatibility with various engine models make it a versatile choice for fleet operators. Proper installation, maintenance, and troubleshooting are essential for ensuring optimal performance and longevity. With Cummins’ reputation for quality and innovation, this starter motor is a trusted component in the automotive industry.
