5304504

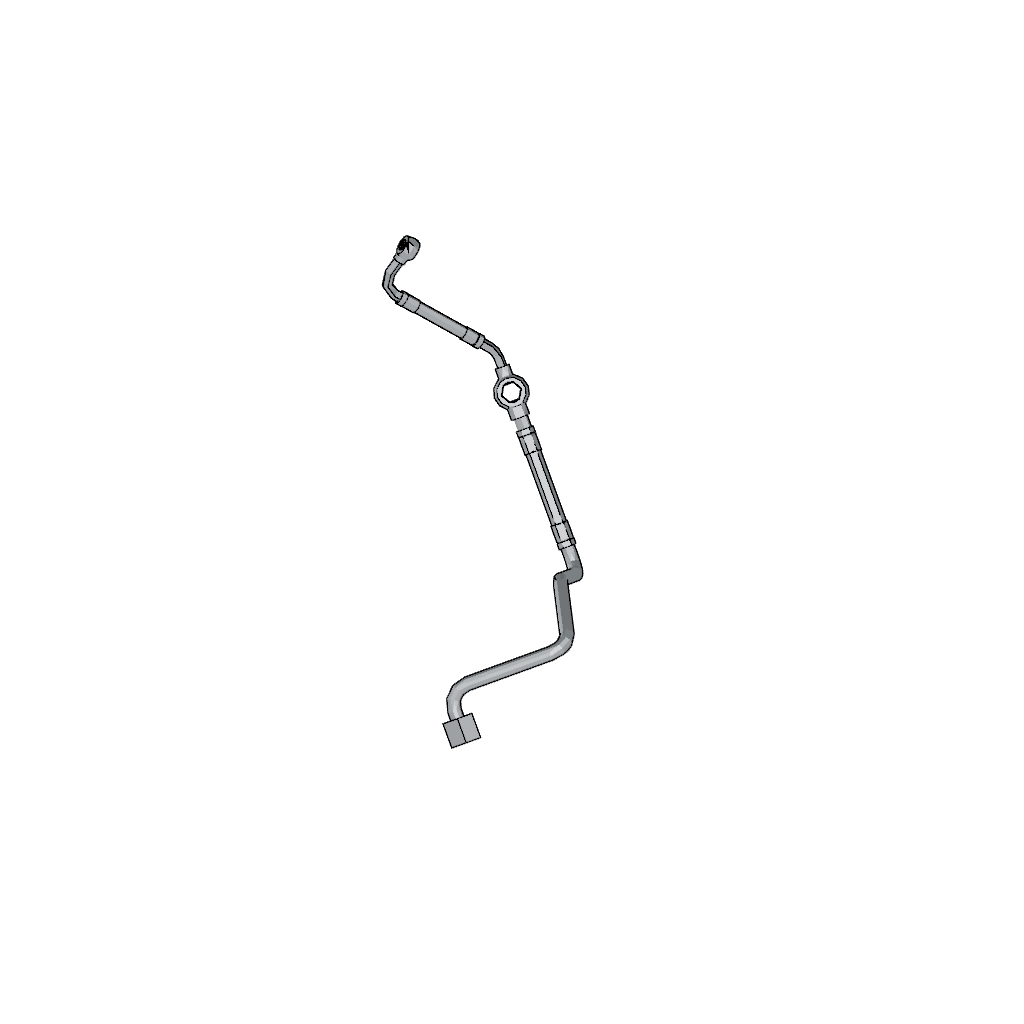

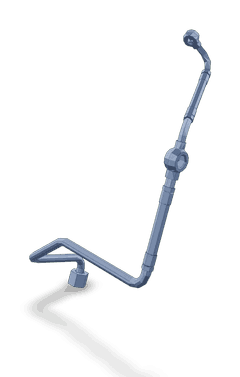

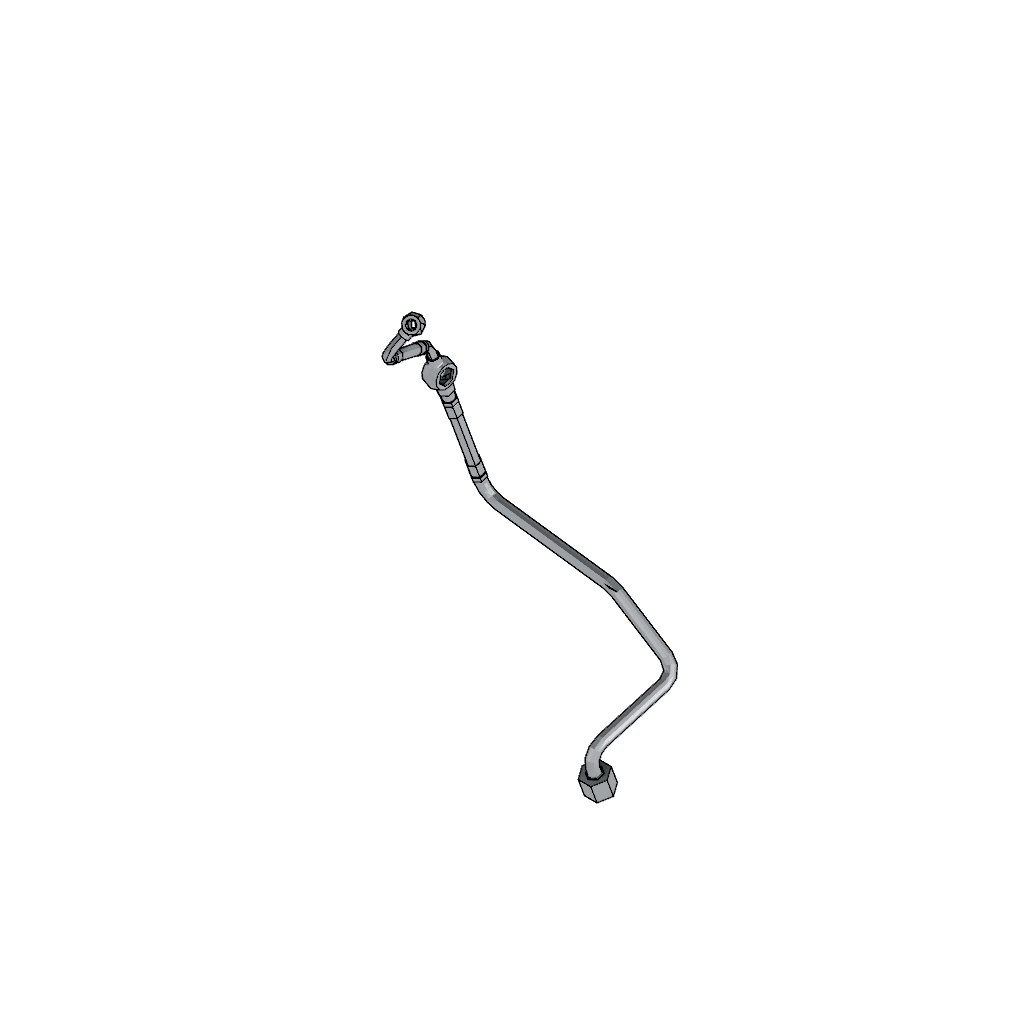

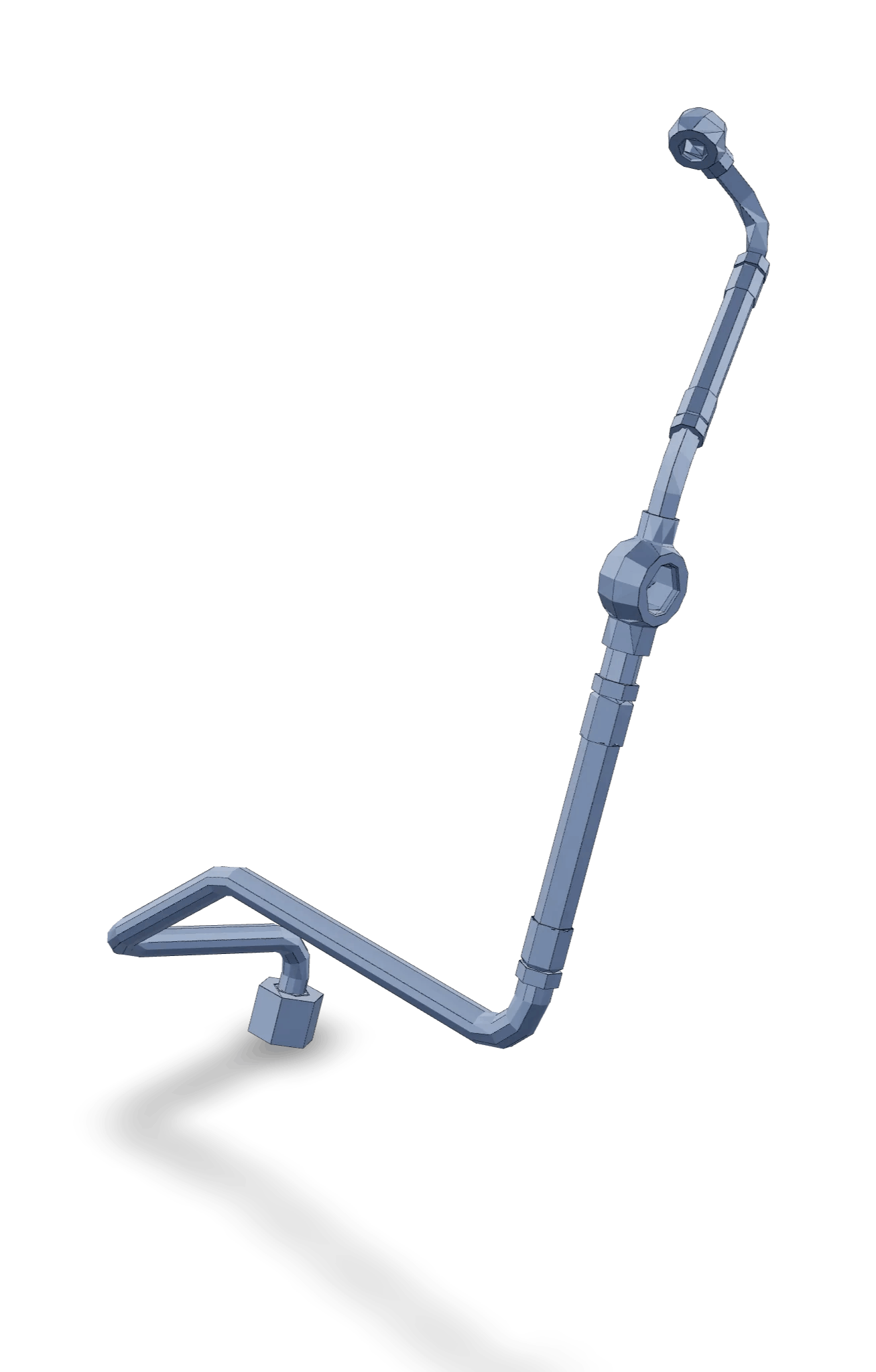

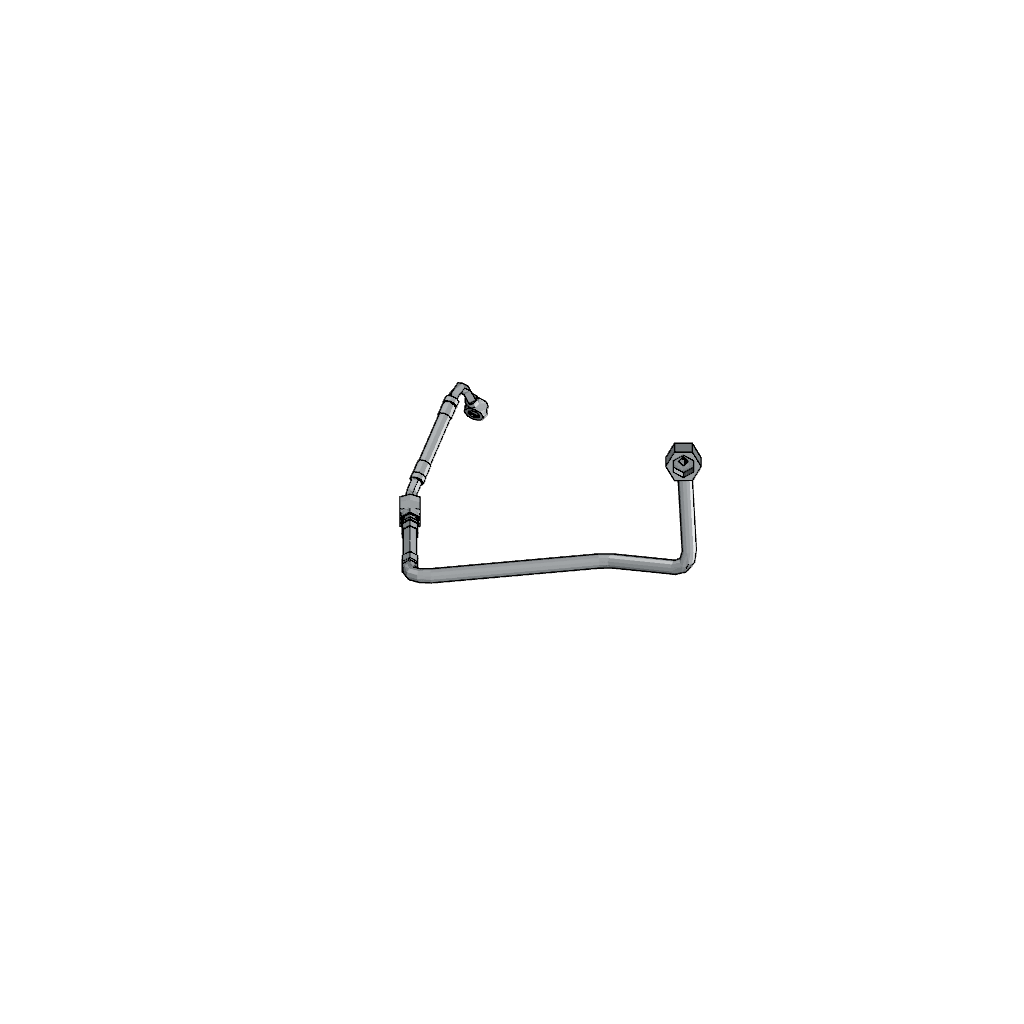

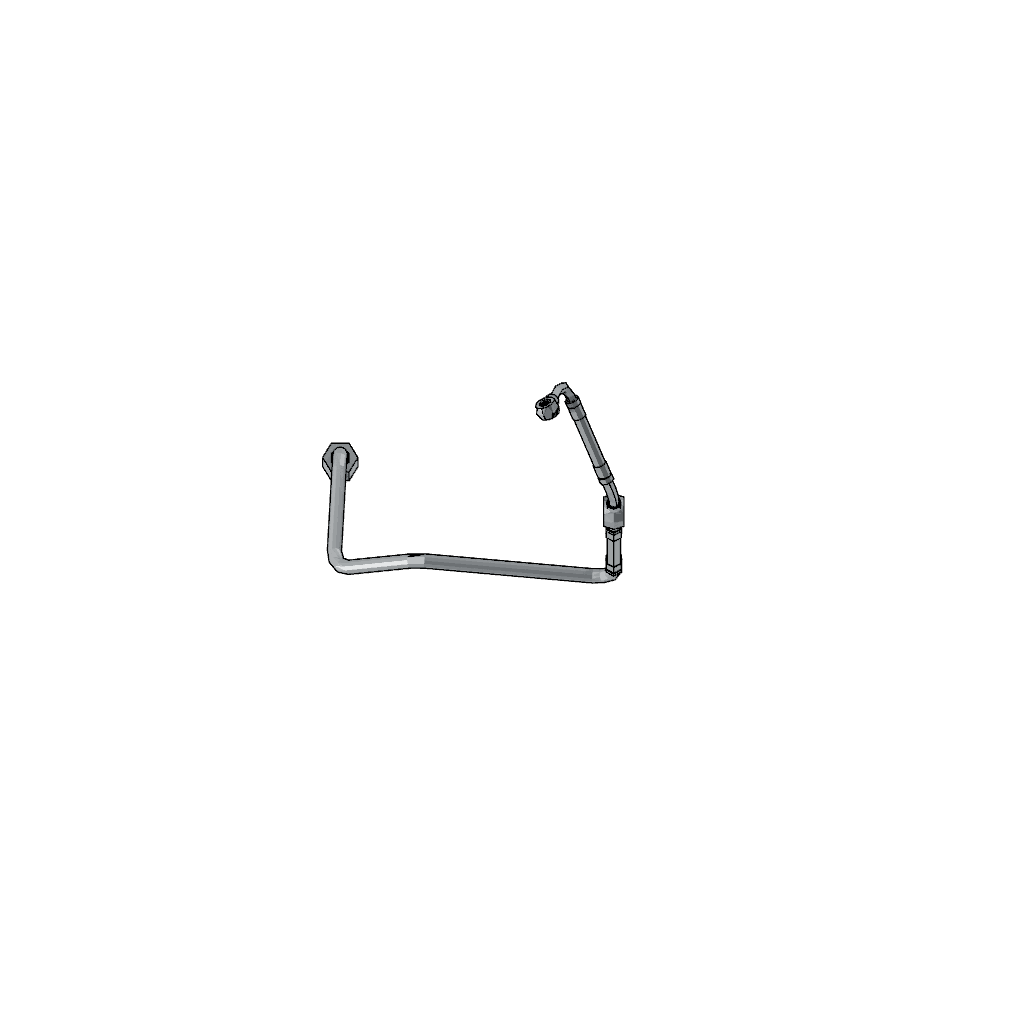

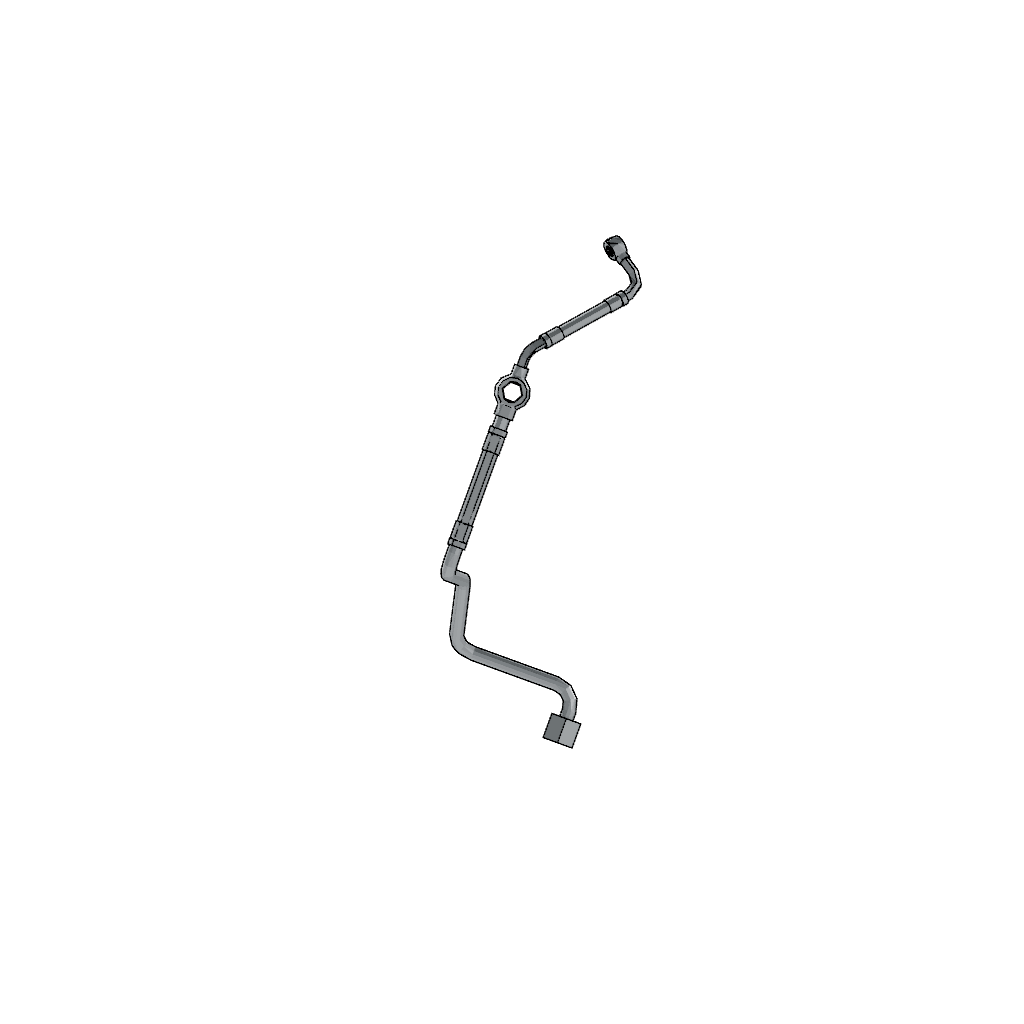

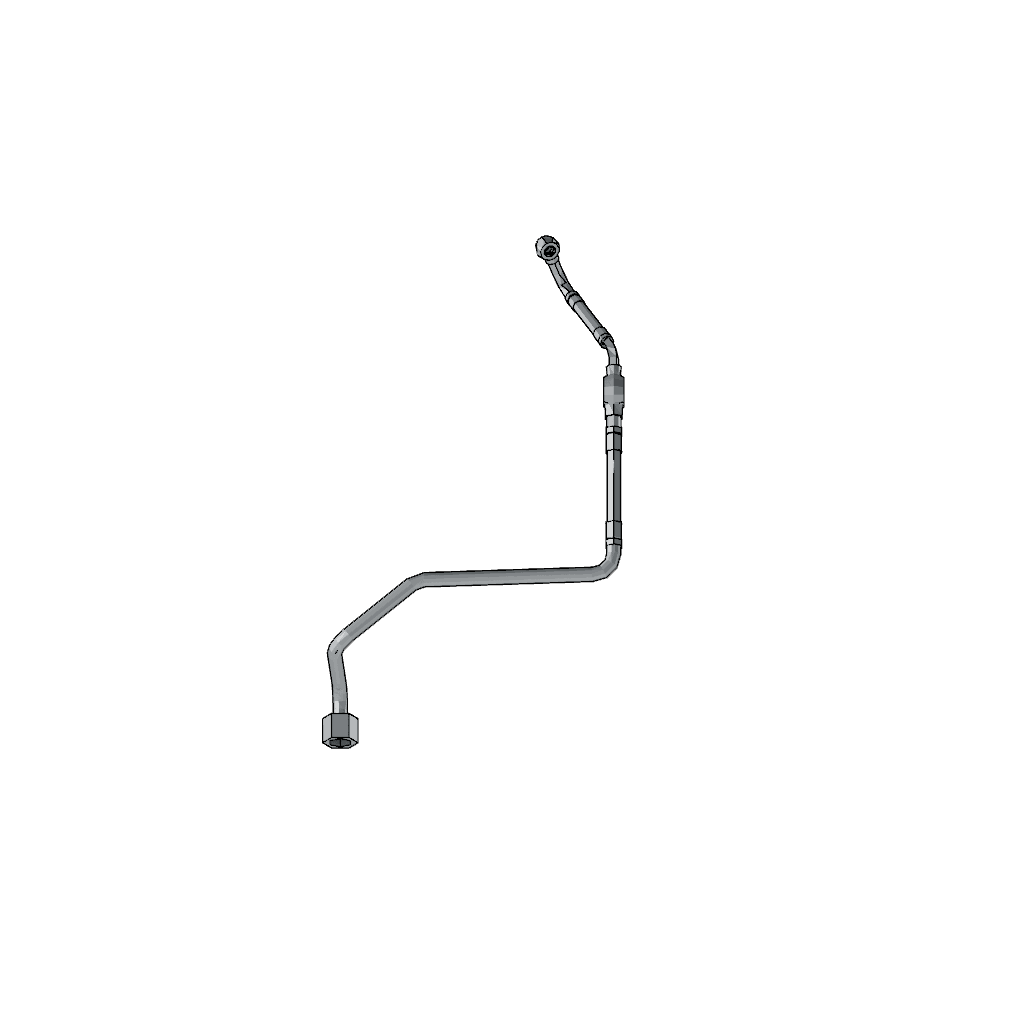

Tur Coolant Drain Tube
Cummins®

The Tur Coolant Drain Tube, identified by part number 5304504, is a component manufactured by Cummins, a well-established name in the automotive industry. This tube is designed to facilitate the draining of coolant from the cooling system of heavy-duty trucks. Its role is significant in ensuring the proper maintenance and operation of these vehicles, contributing to their reliability and performance. Cummins, known for its commitment to quality and innovation, produces this part as part of its extensive range of automotive components ¹.

Basic Concepts and Functionality

Coolant systems in heavy-duty trucks are designed to regulate engine temperature, ensuring optimal performance and longevity. The coolant circulates through the engine, absorbing heat, and then passes through the radiator where it releases this heat into the atmosphere. The Tur Coolant Drain Tube operates within this system by providing a means to drain the coolant from the system. This is particularly useful during maintenance procedures, such as when the coolant needs to be replaced or when the system requires a thorough cleaning ².

Purpose of the Tur Coolant Drain Tube

The Tur Coolant Drain Tube plays a specific role in the truck’s cooling system by allowing for the efficient draining of coolant. This process is vital for maintaining optimal engine temperature and preventing overheating, which can lead to engine damage. By facilitating the removal of old or contaminated coolant, the tube aids in ensuring that the cooling system operates efficiently, contributing to the overall performance and longevity of the engine ³.

Key Features

The design and construction of the Tur Coolant Drain Tube are tailored to meet the demanding requirements of heavy-duty truck applications. It is made from durable materials that can withstand the high temperatures and pressures within the cooling system. The tube is engineered to be robust and reliable, ensuring it can perform its function effectively over the vehicle’s lifespan. Its design also includes features that make it easy to use, such as a secure fitting that prevents leaks during operation.

Benefits

Using the Tur Coolant Drain Tube offers several advantages in truck maintenance. It contributes to improved engine longevity by ensuring that the cooling system is free from contaminants and operates efficiently. The tube also simplifies the process of draining coolant, making maintenance procedures quicker and more straightforward. Additionally, by facilitating efficient coolant management, it helps in maintaining the optimal performance of the engine.

Installation and Usage

Proper installation of the Tur Coolant Drain Tube is crucial for its effective operation. The installation process involves securing the tube to the designated fitting within the cooling system, ensuring a tight and leak-free connection. When using the tube to drain coolant, it is important to follow the manufacturer’s guidelines to ensure safety and efficiency. This may include ensuring the engine is cool before beginning the process and properly disposing of the drained coolant.

Troubleshooting and Maintenance

Common issues with the Tur Coolant Drain Tube may include leaks or difficulties in draining the coolant. Troubleshooting steps may involve checking the connection for tightness and ensuring there are no obstructions within the tube. Regular maintenance, such as inspecting the tube for signs of wear or damage, can help ensure its longevity and effectiveness. It is also important to follow the manufacturer’s recommendations for maintenance intervals and procedures.

Safety Considerations

When working with the Tur Coolant Drain Tube, it is important to observe several safety practices. This includes ensuring the engine is cool before attempting to drain the coolant to avoid burns from hot coolant or steam. Additionally, proper disposal of the drained coolant is necessary to avoid environmental contamination. It is also advisable to wear protective gloves and eyewear when handling the tube and coolant to prevent injury.

Cummins: Manufacturer Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes a wide range of power solutions, including engines, filtration, and aftermarket parts. With a history spanning over a century, Cummins is renowned for its commitment to quality, innovation, and customer satisfaction. The company’s extensive product range and reputation in the automotive industry underscore its dedication to providing reliable and high-performance components, such as the Tur Coolant Drain Tube, to meet the needs of heavy-duty truck operators.

Cummins Engine Part 5304504: Tur Coolant Drain Tube

The Tur Coolant Drain Tube, part number 5304504, manufactured by Cummins, is a critical component in the cooling system of certain Cummins engines. This part is designed to facilitate the drainage of coolant from the engine’s cooling system, ensuring efficient operation and preventing potential coolant leaks.

Application in Cummins Engines

The Tur Coolant Drain Tube is compatible with the following Cummins engines:

• QSL9 CM2250
• QSL9 CM2350 L102

QSL9 CM2250

In the QSL9 CM2250 engine, the Tur Coolant Drain Tube is integral to the engine’s cooling system. It ensures that coolant is properly drained from the engine block, which is essential for maintaining optimal engine temperature and preventing overheating.

QSL9 CM2350 L102

Similarly, in the QSL9 CM2350 L102 engine, the Tur Coolant Drain Tube plays a crucial role in the cooling system. This part ensures that coolant is efficiently drained, contributing to the engine’s overall performance and longevity.

The Tur Coolant Drain Tube is engineered to fit seamlessly into the cooling system architecture of these engines, providing a reliable and effective solution for coolant drainage. Its design ensures that it can withstand the operational stresses and conditions within the engine, contributing to the engine’s durability and efficiency.

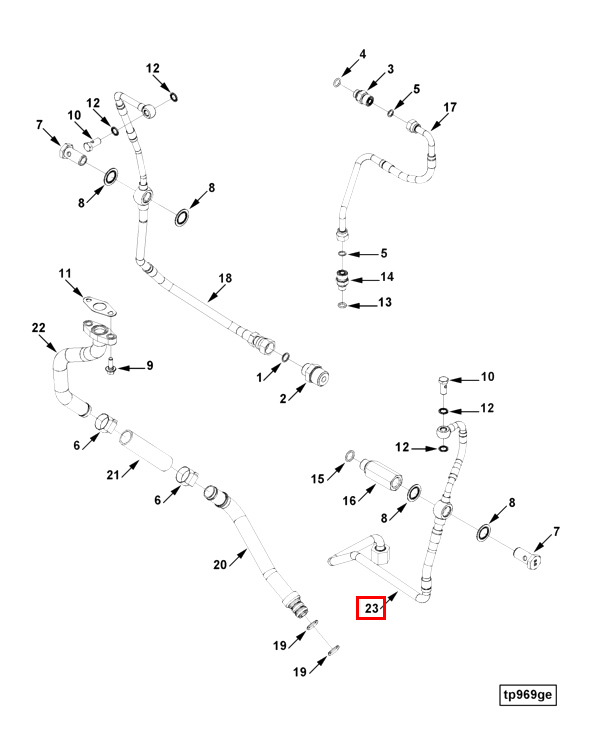

Role of Part 5304504 Tur Coolant Drain Tube in Turbocharger Plumbing

The Tur Coolant Drain Tube is an essential component in the turbocharger plumbing system, facilitating the efficient management of coolant within the turbocharger. This tube is strategically positioned to allow for the drainage of coolant that has circulated through the turbocharger, ensuring that any excess coolant is effectively removed from the system.

In the turbocharger plumbing, the Tur Coolant Drain Tube works in conjunction with the coolant supply lines, return lines, and the turbocharger heat exchanger. As coolant is pumped into the turbocharger to regulate its temperature, the drain tube provides a pathway for the coolant to exit the system once it has absorbed heat. This process helps maintain optimal operating temperatures for the turbocharger, enhancing its performance and longevity.

Additionally, the Tur Coolant Drain Tube interacts with the engine’s cooling system, ensuring that the drained coolant is properly routed back into the system for recirculation or disposal, depending on the vehicle’s design. This integration is vital for maintaining the overall efficiency of the engine’s cooling mechanism, preventing overheating, and ensuring consistent turbocharger performance under varying operating conditions.

Conclusion

The Tur Coolant Drain Tube, part number 5304504, is a vital component in the maintenance and operation of heavy-duty trucks. Manufactured by Cummins, this part ensures efficient coolant drainage, contributing to the reliability and performance of the vehicle’s engine. Its robust design, ease of use, and integration into the turbocharger plumbing system make it an indispensable part of the cooling system. Regular maintenance and proper usage of this part are essential for ensuring the longevity and optimal performance of the engine.
