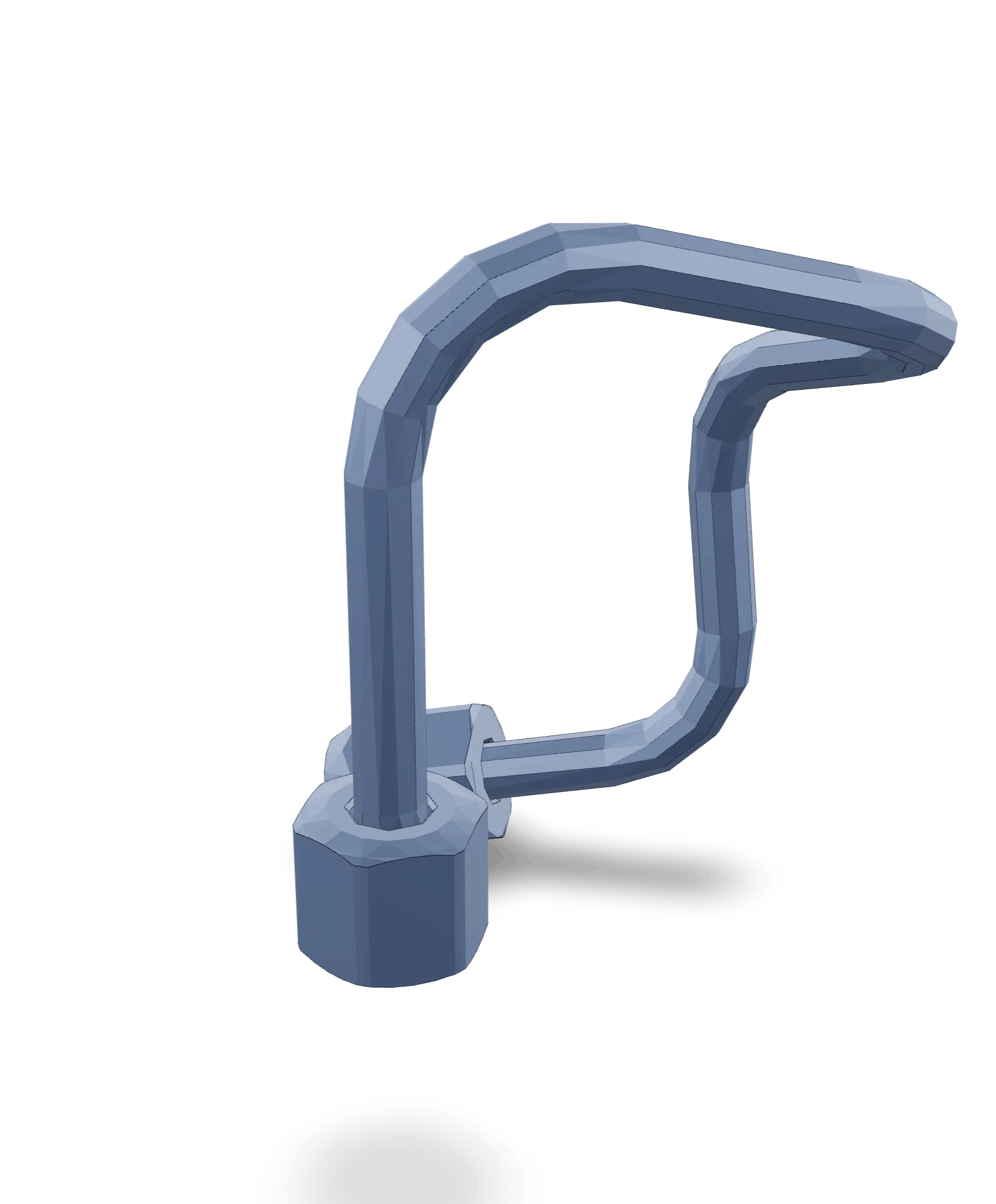

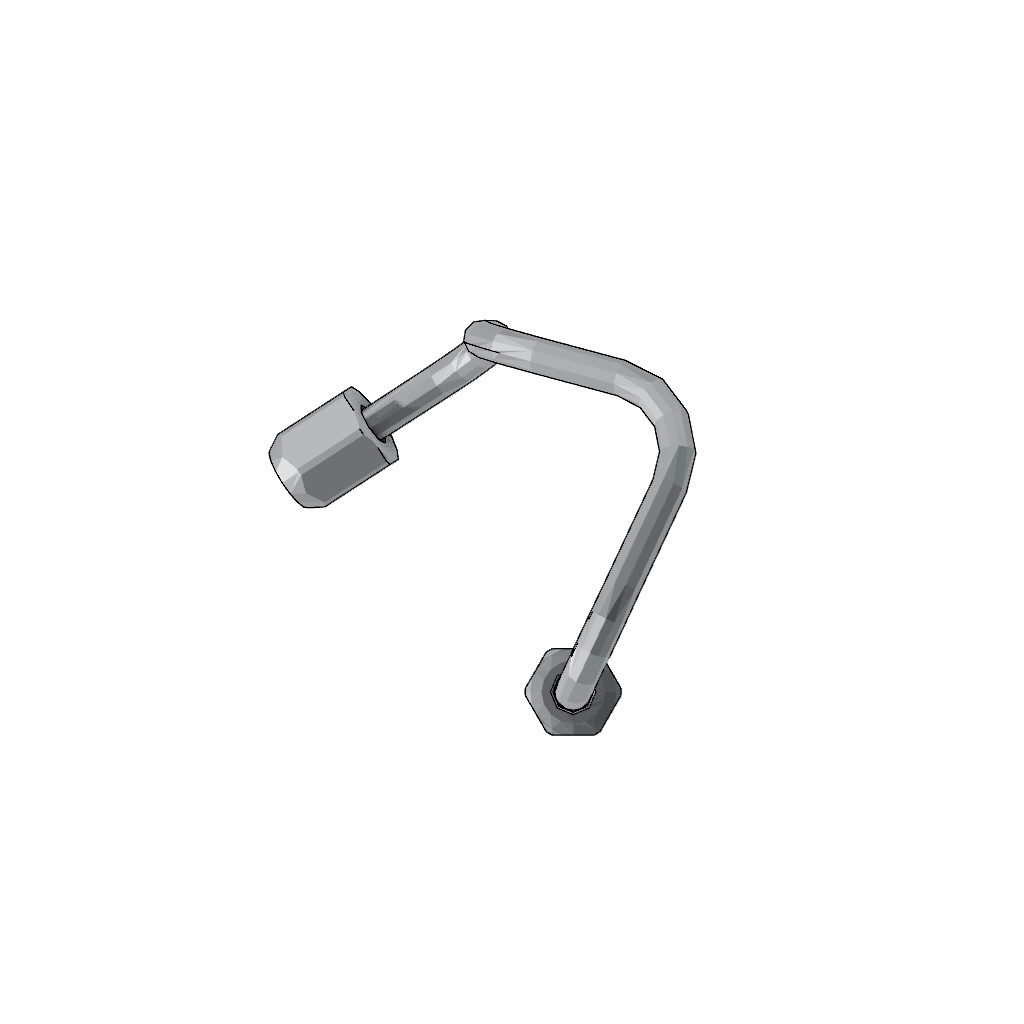

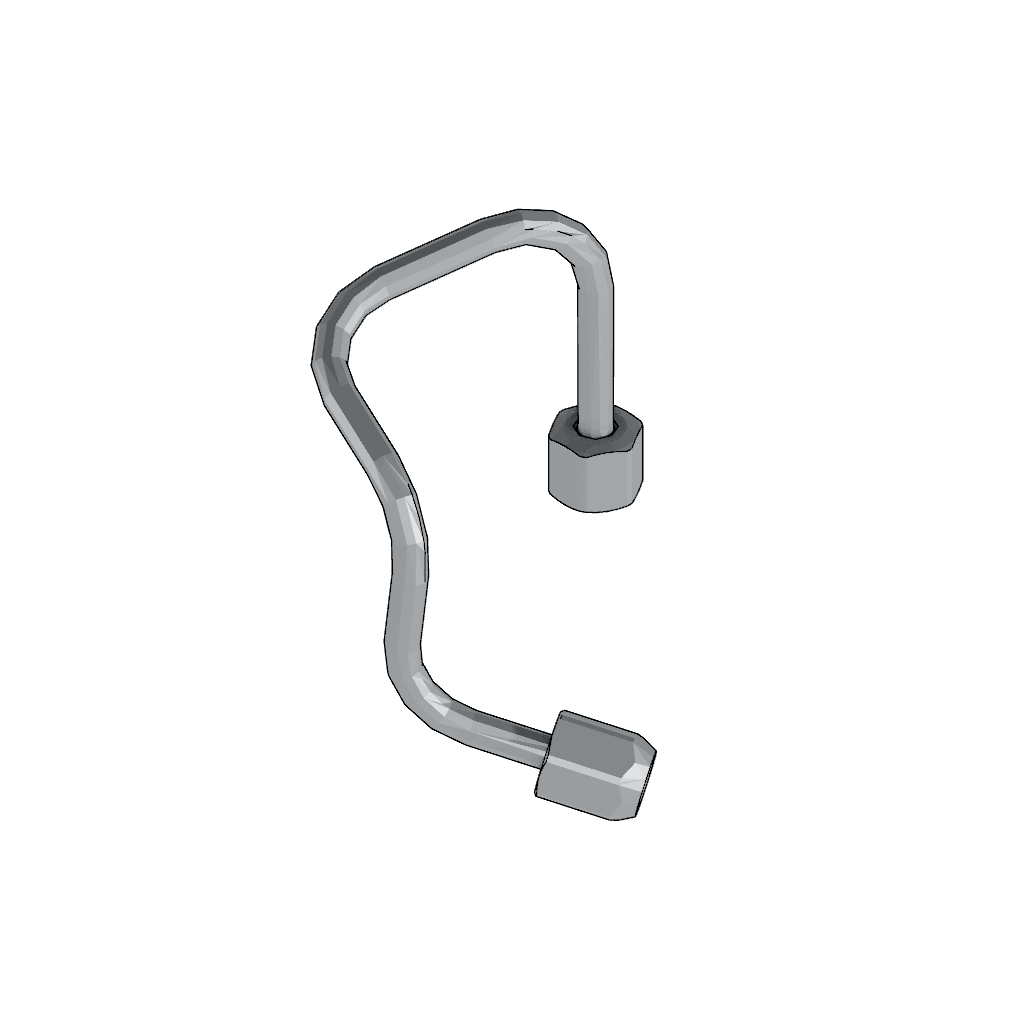

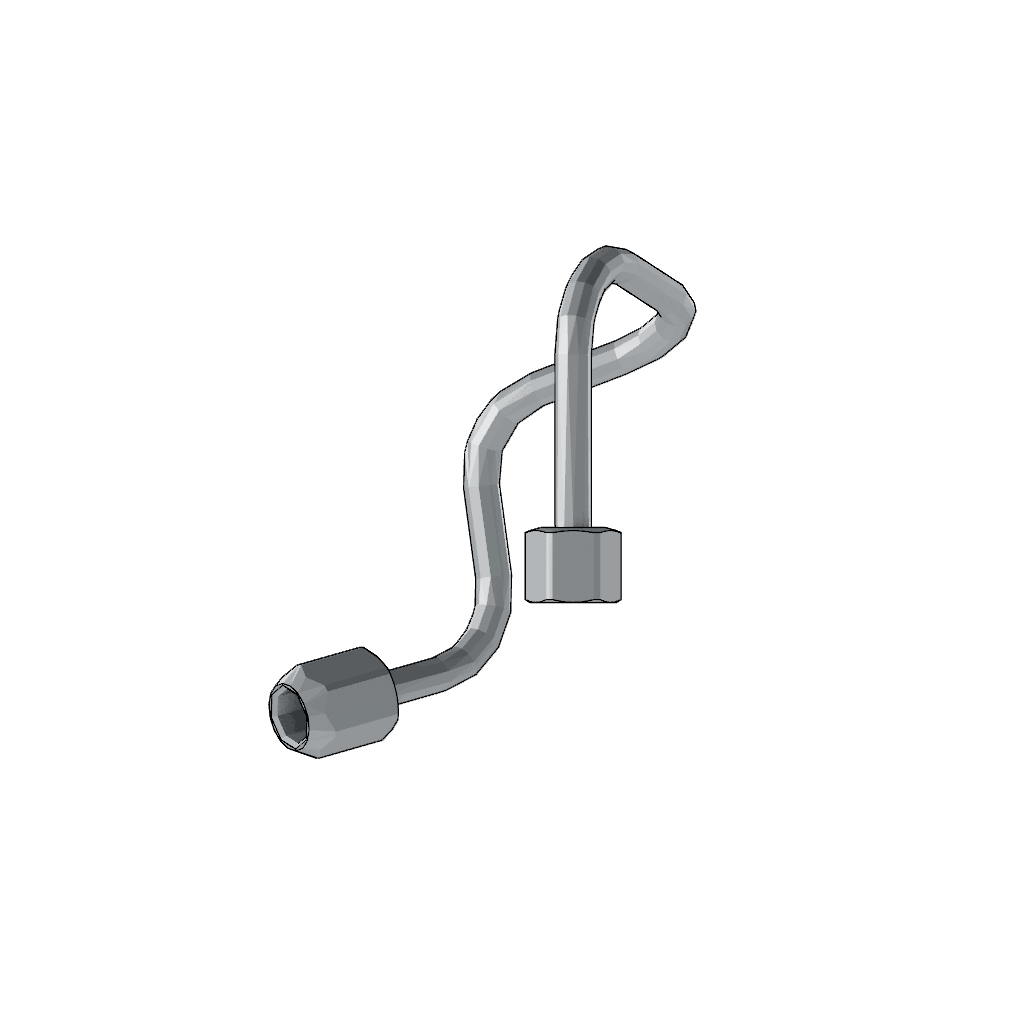

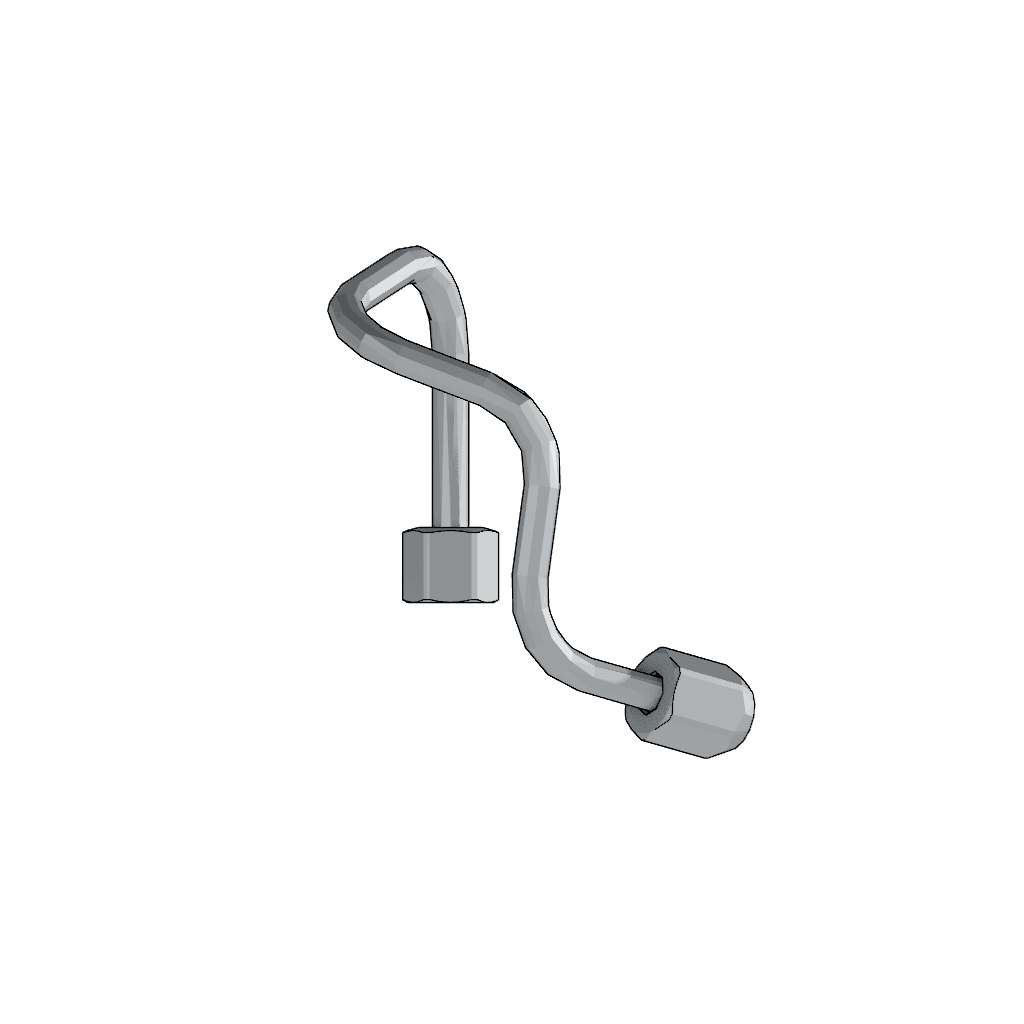

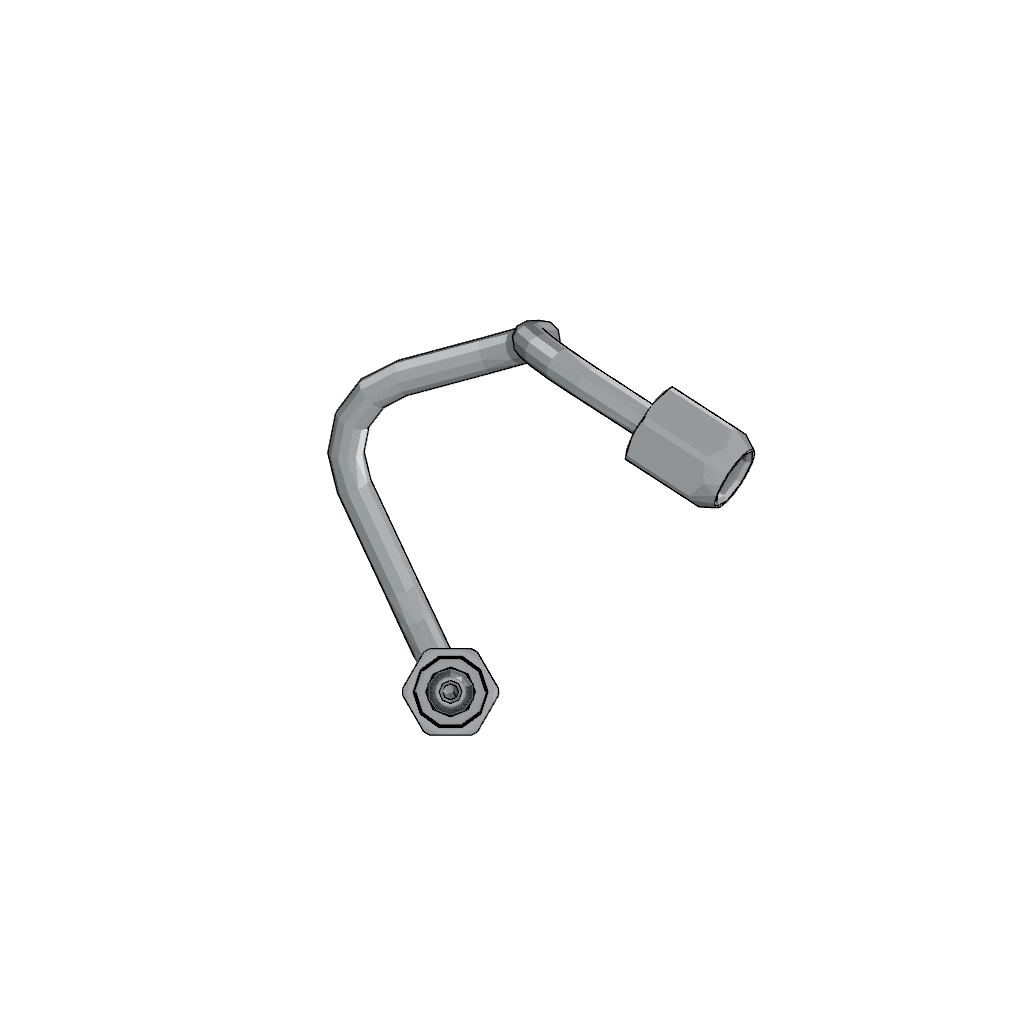

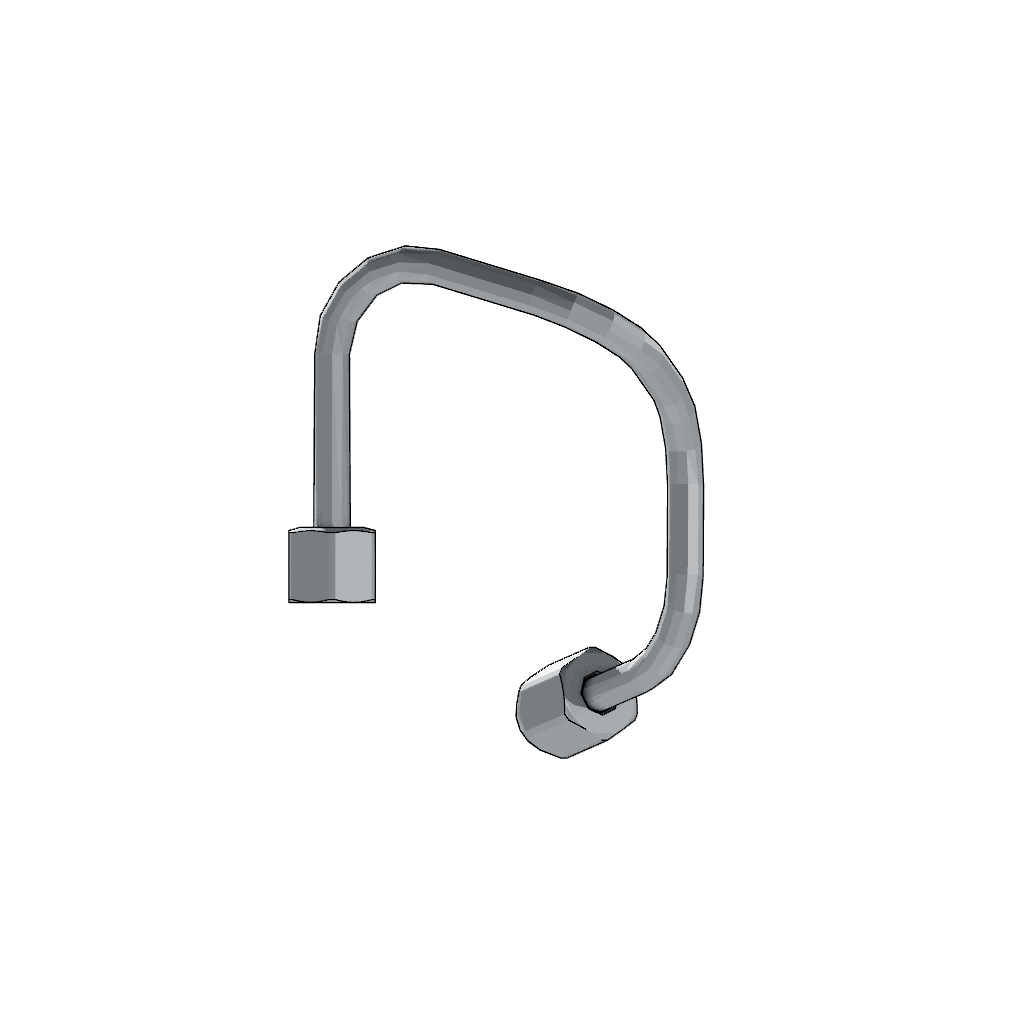

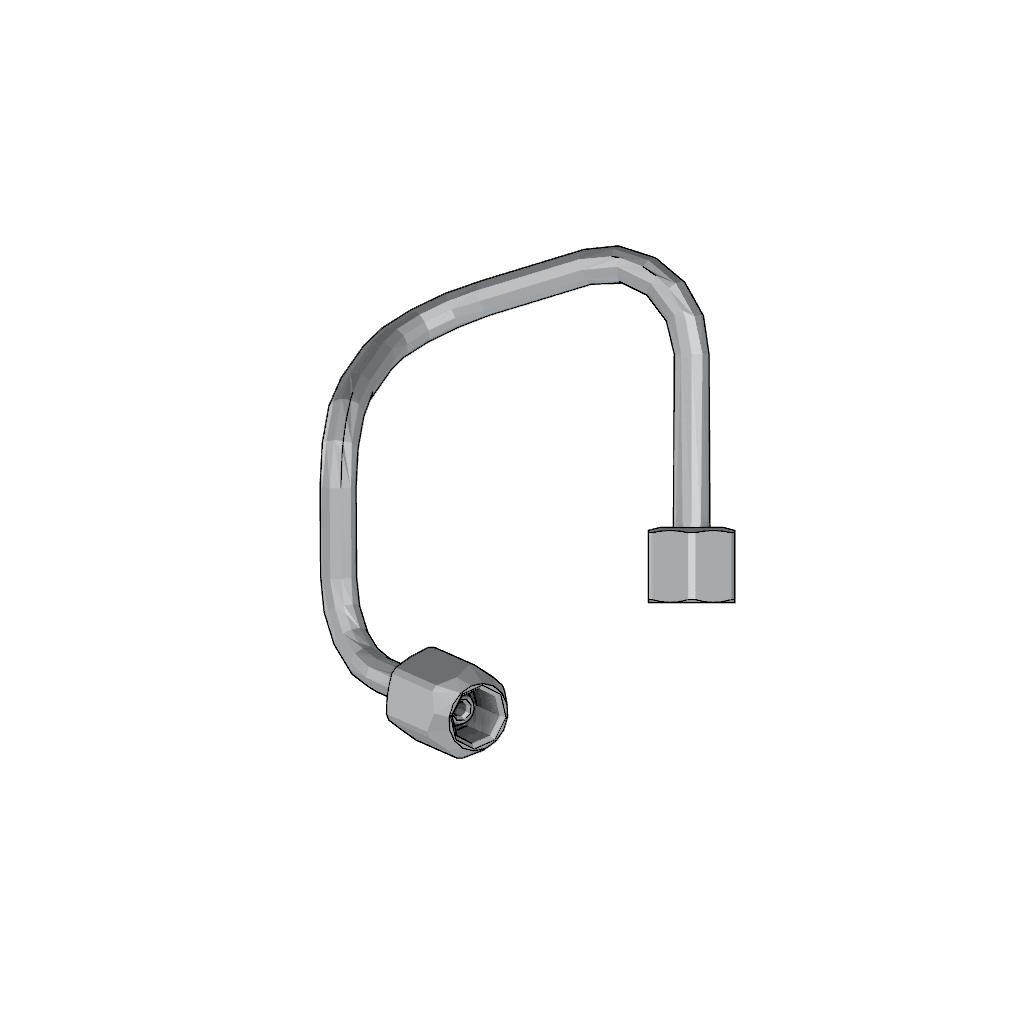

5306263
Injector Fuel Supply Tube
Cummins®

Introduction

The Fuel Injector Supply Tube (5306263) manufactured by Cummins is a component designed to facilitate the delivery of fuel to the injectors in heavy-duty trucks. Its purpose is to ensure a consistent and precise supply of fuel, which is vital for the efficient operation of the engine. This Cummins part plays a significant role in maintaining the performance and reliability of heavy-duty trucks by supporting the fuel delivery system.

Basic Concepts of Fuel Injector Supply Tubes

Fuel injector supply tubes are integral to the fuel delivery system of an engine. They function by transporting fuel from the fuel rail to the injectors, ensuring that each injector receives the correct amount of fuel at the right pressure. This precise delivery contributes to the overall performance of the engine by enabling optimal combustion, which in turn enhances power output and fuel efficiency ¹.

Role of the 5306263 Fuel Injector Supply Tube in Truck Operation

The 5306263 Fuel Injector Supply Tube specifically interfaces with the fuel rail and the injectors in a truck’s engine. It plays a role in the fuel delivery process by providing a direct pathway for fuel to travel from the rail to the injectors. This ensures that the injectors receive a steady and accurate supply of fuel, which is crucial for maintaining engine efficiency and performance. The tube’s design allows it to withstand the high pressures and temperatures within the fuel system, contributing to the overall reliability of the engine ².

Key Features of the 5306263 Fuel Injector Supply Tube

The 5306263 Fuel Injector Supply Tube is characterized by several key features that enhance its performance and durability. It is constructed from high-quality materials that are resistant to corrosion and wear, ensuring longevity in demanding environments. The design of the tube includes precise engineering to maintain fuel pressure and flow, which is critical for the accurate operation of the injectors. Additionally, the tube is designed to be compatible with Cummins engines, ensuring seamless integration into the fuel system.

Benefits of Using the 5306263 Fuel Injector Supply Tube

Utilizing the 5306263 Fuel Injector Supply Tube offers several advantages. It contributes to improved fuel delivery precision, which enhances engine performance by ensuring that each injector receives the correct amount of fuel. This precise fuel delivery can lead to better fuel efficiency and reduced emissions. Over time, the durability and reliability of the tube can result in potential cost savings by minimizing the need for frequent replacements or repairs.

Troubleshooting Common Issues with Fuel Injector Supply Tubes

Common issues with fuel injector supply tubes may include leaks, blockages, or wear and tear. Symptoms to watch for include engine misfires, reduced power, or irregular idling. Diagnostic procedures may involve inspecting the tube for visible damage, checking fuel pressure, and testing the injectors for proper operation. Recommended solutions can range from cleaning the tube and injectors to replacing the tube if it is damaged or worn ³.

Maintenance Tips for Fuel Injector Supply Tubes

To ensure optimal performance and longevity of fuel injector supply tubes, regular maintenance is recommended. This includes inspecting the tube for signs of wear, corrosion, or leaks during routine engine checks. Cleaning the tube and injectors can help prevent blockages and ensure smooth fuel flow. Replacement guidelines suggest that the tube should be inspected and potentially replaced during major engine overhauls or if signs of significant wear are detected.

Cummins: A Brief Overview

Cummins Inc. is a well-established company in the automotive industry, known for its high-quality components for heavy-duty trucks. With a history of innovation and commitment to excellence, Cummins has built a reputation for producing reliable and durable parts. The company’s dedication to quality is evident in its wide range of products, including the 5306263 Fuel Injector Supply Tube, which is designed to meet the demanding requirements of heavy-duty applications.

Cummins Fuel Injector Supply Tube (Part 5306263) Compatibility

The Cummins Fuel Injector Supply Tube, part number 5306263, is a critical component in the fuel delivery system of certain Cummins engines. This part is designed to ensure efficient and reliable fuel flow from the fuel pump to the fuel injectors. Below is a detailed description of its compatibility with specific Cummins engines.

QSB6.7 CM2350 B105 Engines

The Cummins QSB6.7 CM2350 B105 engine is a robust and high-performance engine often used in various industrial and commercial applications. The Fuel Injector Supply Tube (5306263) is integral to this engine’s operation, facilitating the precise delivery of fuel to the injectors. This ensures optimal combustion efficiency and power output, which are critical for the engine’s performance in demanding environments.

Grouping of Compatible Engines

While the primary focus here is on the QSB6.7 CM2350 B105 engine, it is important to note that the Cummins Fuel Injector Supply Tube (5306263) may also be compatible with other engines within the same engine family or similar configurations. This part is engineered to meet the stringent requirements of Cummins engines, ensuring a seamless fit and reliable performance across various models.

For users of other Cummins engines, it is advisable to consult the engine’s specific service manual or a Cummins authorized dealer to confirm compatibility and ensure proper installation.

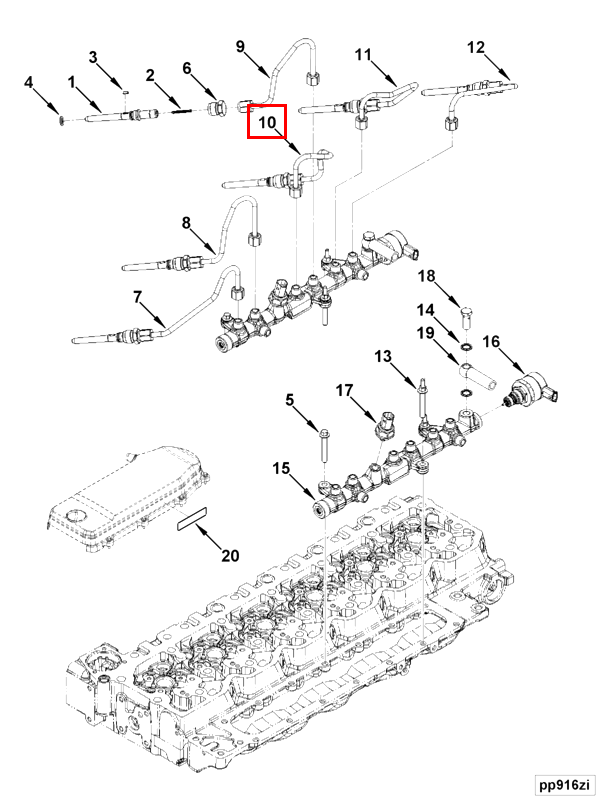

Role of Part 5306263 Fuel Injector Supply Tube in Engine Systems

The 5306263 Fuel Injector Supply Tube is an essential component in the fuel delivery system of an engine. It serves as a conduit that transports fuel from the fuel rail to the individual fuel injectors. This part ensures a consistent and regulated flow of fuel, which is vital for the performance and efficiency of the engine.

Integration with Engine Components

1. Fuel Rail: The supply tube is directly connected to the fuel rail, which distributes fuel to each injector. The tube’s precise fit and sealing properties prevent fuel leaks and maintain system pressure.

2. Fuel Injectors: Each injector is supplied with fuel through the tube, ensuring that each cylinder receives the correct amount of fuel for combustion. This balanced fuel delivery is key to maintaining engine performance and reducing emissions.

3. Plumbing System: The tube is part of the overall plumbing system that includes hoses, connectors, and filters. Its role is to provide a secure and leak-free pathway for fuel, contributing to the reliability of the fuel system.

4. Engine Performance: By ensuring a steady supply of fuel to the injectors, the supply tube directly influences engine performance. It helps in achieving the desired air-fuel ratio, which is essential for optimal combustion and power output.

5. System Pressure: The tube helps maintain the necessary pressure within the fuel system. Consistent pressure is required for the injectors to operate correctly, affecting both the engine’s efficiency and its emissions output.

Conclusion

In summary, the 5306263 Fuel Injector Supply Tube plays a significant role in the fuel delivery process, interacting closely with the fuel rail, injectors, and the overall plumbing system to ensure the engine operates smoothly and efficiently. Regular maintenance and proper troubleshooting can help maintain the performance and longevity of this critical component.
