4020123

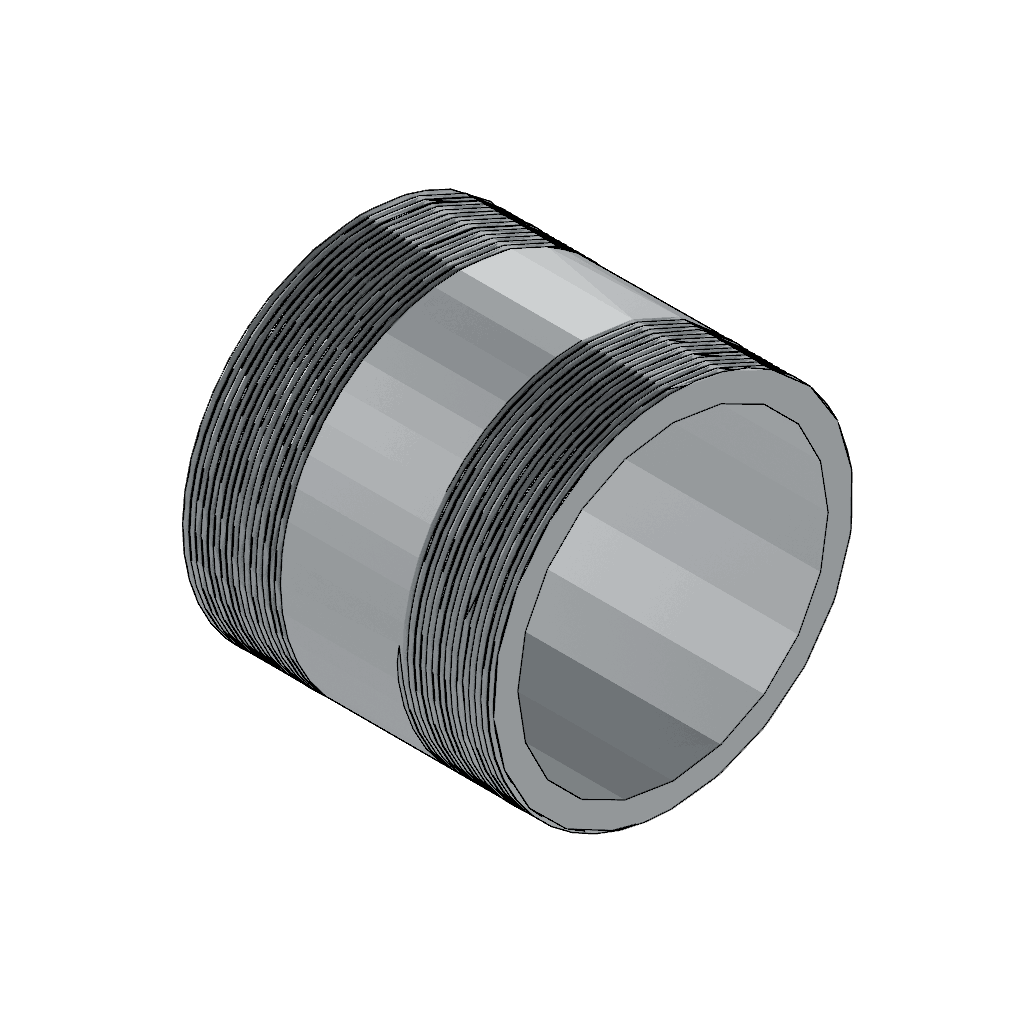

Plain Pipe Nipple
Cummins®

Introduction

The Cummins 4020123 Plain Pipe Nipple is a component designed for use in commercial truck systems. It serves as a connector in various fluid systems, facilitating the transfer of fluids such as fuel, coolant, and hydraulic fluid. Its role is to provide a secure and leak-free connection between different sections of the piping system, ensuring the efficient operation of the truck ¹.

Basic Concepts of Plain Pipe Nipples

A Plain Pipe Nipple is a short length of pipe with male threads on both ends. It is used to connect two female-threaded components, such as fittings or valves, in a fluid system. The primary function of a Plain Pipe Nipple is to extend the connection between these components, allowing for adjustments in the layout of the piping system. It operates by providing a threaded interface that can be tightened to create a seal, preventing fluid leakage ².

Purpose of the Cummins 4020123 Plain Pipe Nipple

The Cummins 4020123 Plain Pipe Nipple is specifically designed to play a role in the fluid systems of commercial trucks. It is used in applications where a short extension is needed between two components. This part is commonly found in fuel systems, where it connects fuel lines to filters or injectors, in hydraulic systems for brake or steering components, and in coolant systems to link radiator components. Its application ensures that fluids are transferred efficiently and without leaks, contributing to the overall performance and reliability of the truck ³.

Key Features

The Cummins 4020123 Plain Pipe Nipple is constructed from high-quality materials, typically steel or stainless steel, which provide durability and resistance to corrosion. Its design specifications include precise threading to ensure a secure fit and leak-proof connection. Additionally, it may feature a galvanized or coated surface to enhance its resistance to environmental factors, further improving its functionality in demanding commercial truck applications.

Benefits

The use of the Cummins 4020123 Plain Pipe Nipple offers several benefits. It contributes to improved system performance by ensuring a secure and leak-free connection between components. Its durable construction enhances the longevity of the fluid system, reducing the need for frequent replacements. Furthermore, its design allows for ease of installation, enabling technicians to quickly and efficiently connect or adjust piping layouts as needed.

Installation Process

Installing the Cummins 4020123 Plain Pipe Nipple involves several steps. First, ensure that the components to be connected are clean and free of debris. Apply a compatible thread sealant to the threads of the nipple to enhance the seal. Then, screw the nipple into the female-threaded components, tightening it securely with a wrench. It is important to avoid over-tightening, which can damage the threads. Finally, check the connection for leaks by pressurizing the system and inspecting the joint.

Common Applications

The Cummins 4020123 Plain Pipe Nipple is commonly used in various systems within commercial trucks. In fuel systems, it connects fuel lines to filters or injectors. In hydraulic systems, it links components of the brake or steering systems. Additionally, it is used in coolant systems to connect radiator components, ensuring efficient heat transfer and engine cooling.

Troubleshooting and Maintenance

To troubleshoot issues related to the Cummins 4020123 Plain Pipe Nipple, first, check for signs of leakage around the connection. If a leak is detected, ensure that the nipple is properly tightened and that the thread sealant is applied correctly. Regular maintenance includes inspecting the nipple for signs of wear or corrosion and replacing it if necessary to prevent system failures. Monitoring the condition of the nipple and addressing any issues promptly can help ensure the longevity and reliability of the truck’s fluid systems.

Safety Considerations

When installing or maintaining the Cummins 4020123 Plain Pipe Nipple, it is important to follow safety guidelines to protect personnel and ensure the proper functioning of the truck. Use appropriate personal protective equipment, such as gloves and safety glasses, to prevent injury. Ensure that the system is depressurized before making any connections to avoid accidents. Additionally, follow the manufacturer’s instructions for torque specifications when tightening the nipple to prevent damage to the threads or components.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins has established a reputation for quality, reliability, and innovation in the commercial truck industry. The company offers a wide range of products designed to meet the diverse needs of its customers, from heavy-duty trucks to off-highway equipment. Cummins’ commitment to excellence and customer satisfaction has made it a trusted name in the industry.

Cummins Part 4020123: Plain Pipe Nipple Compatibility

The Cummins part 4020123, a Plain Pipe Nipple, is designed to fit seamlessly with a range of Cummins engines. This part is integral for ensuring proper fluid and gas flow within the engine’s system. Below is a detailed look at how this component integrates with various Cummins engines:

K38, K50 Engines

The Plain Pipe Nipple 4020123 is compatible with the K38 and K50 engines. These engines are known for their robust design and reliability, often used in heavy-duty applications. The part ensures that the fluid pathways remain unobstructed, maintaining the engine’s efficiency and longevity.

QSK50 CM2150, QSK50 CM2150 MCRS Engines

For the QSK50 CM2150 and QSK50 CM2150 MCRS engines, the Plain Pipe Nipple 4020123 is a critical component. These engines are typically found in on-highway and vocational applications, where durability and performance are paramount. The nipple’s precise fit guarantees that the engine’s cooling and exhaust systems operate without leaks or blockages.

QSK60 CM850 MCRS Engine

The QSK60 CM850 MCRS engine also benefits from the Plain Pipe Nipple 4020123. This engine is designed for heavy-duty applications, providing high power output and efficiency. The nipple’s role in this engine is to maintain the integrity of the fluid and gas pathways, ensuring optimal performance and reducing the risk of system failures.

By ensuring a proper fit and function, the Plain Pipe Nipple 4020123 plays a vital role in the overall performance and reliability of these Cummins engines.

Role of Part 4020123 Plain Pipe Nipple in Engine Systems

In marine and industrial engine systems, the 4020123 Plain Pipe Nipple is a fundamental component that facilitates the secure and efficient connection of various parts. Its primary function is to link the raw water inlet to the pump, ensuring a steady flow of raw water, typically seawater, into the system.

When integrating the 4020123 Plain Pipe Nipple into the engine system, it acts as a vital junction point. The raw water inlet, which draws in seawater, is connected to one end of the nipple. This connection is essential for maintaining the integrity of the water flow, preventing leaks, and ensuring that the water enters the system at the correct pressure and volume.

On the other end, the nipple connects to the pump. This connection is equally important as it allows the pump to draw in the raw water efficiently. The pump relies on a consistent and unimpeded water supply to function correctly, and the 4020123 Plain Pipe Nipple ensures that this supply is maintained.

Additionally, the nipple’s role extends to facilitating maintenance and repairs. Its straightforward design allows for easy disconnection and reconnection, which is beneficial during routine checks or when replacing other components in the system.

Conclusion

In summary, the Cummins 4020123 Plain Pipe Nipple plays a significant role in the engine system by ensuring a reliable and efficient connection between the raw water inlet and the pump, thereby contributing to the overall performance and longevity of the engine.
