Flexplate
Cummins®

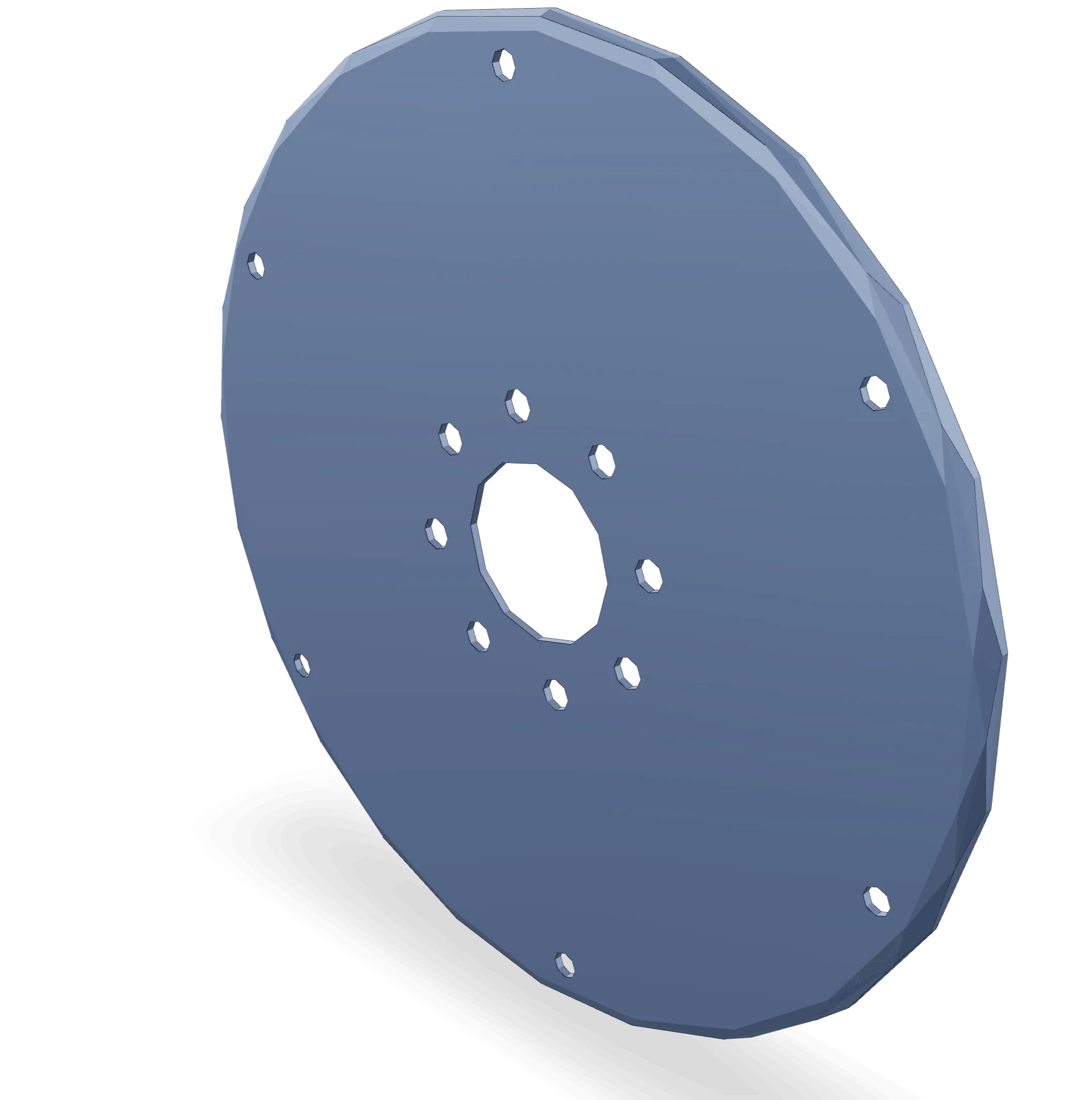

The Cummins 4993559 Flexplate is a component designed for use in heavy-duty trucks, specifically engineered to enhance the performance and reliability of the drivetrain. This part serves as a crucial link between the engine and transmission, facilitating the transfer of power and ensuring smooth operation under demanding conditions.

Basic Concepts of a Flexplate

A flexplate is a type of disc used in automatic transmissions, similar in function to a flywheel found in manual transmissions. Unlike a flywheel, which is typically made of solid metal and used in conjunction with a clutch, a flexplate is usually made from a stamped steel plate and is connected directly to the torque converter. Its primary role is to engage the starter motor during engine start-up and to transmit rotational force from the engine to the transmission ¹.

Purpose of the Cummins 4993559 Flexplate

The Cummins 4993559 Flexplate plays a significant role in the operation of a truck by interfacing with both the starter motor and the torque converter. During engine start-up, it engages with the starter motor’s pinion gear to crank the engine. Once the engine is running, the flexplate transfers rotational energy from the engine to the torque converter, which then transmits this power to the transmission and ultimately to the wheels ².

Key Features of the Cummins 4993559 Flexplate

The Cummins 4993559 Flexplate incorporates several design elements and materials that contribute to its performance and durability. It is constructed from high-strength steel, which provides the necessary rigidity and resilience under high torque conditions. The flexplate features precision-machined starter ring gear teeth and torque converter attachment points, ensuring reliable engagement and smooth power transmission. Additionally, its design includes damping features to reduce vibrations and noise, enhancing overall drivetrain smoothness ³.

Benefits of Using the Cummins 4993559 Flexplate

Utilizing the Cummins 4993559 Flexplate offers several advantages. Its robust construction and precise engineering contribute to improved efficiency and reliability in the drivetrain system. The flexplate is specifically designed to be compatible with Cummins engines, ensuring optimal performance and integration. Furthermore, its durability reduces the likelihood of premature failure, providing long-term value for heavy-duty truck operators ⁴.

Installation Considerations

Proper installation of the Cummins 4993559 Flexplate is vital to ensure optimal performance and longevity. It is recommended to follow manufacturer guidelines for torque specifications when securing the flexplate to the crankshaft. Careful alignment with the torque converter and starter motor is also crucial to prevent damage and ensure smooth operation. Utilizing the correct tools and procedures during installation will help maintain the integrity of the flexplate and the overall drivetrain system ¹.

Troubleshooting Common Issues

Flexplates can encounter issues such as cracking, warping, or damage to the starter ring gear. These problems may arise due to factors like excessive torque, improper installation, or wear over time. Regular inspection for signs of damage or wear is recommended. If issues are detected, it is advisable to replace the flexplate to prevent further complications and ensure the reliable operation of the drivetrain ².

Maintenance Tips

To prolong the life of the Cummins 4993559 Flexplate and ensure consistent performance, routine checks and maintenance procedures are advisable. Inspecting the flexplate for signs of wear, damage, or looseness during regular maintenance intervals can help identify potential issues early. Additionally, ensuring that the torque converter and starter motor are in good condition and properly aligned with the flexplate will contribute to its longevity and efficient operation ³.

Cummins Corporation Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes a wide range of power solutions, including engines, filtration, and power systems. With a history spanning over a century, Cummins is committed to innovation, quality, and customer satisfaction. The company’s product range includes engines for on-highway and off-highway applications, as well as components and technologies that enhance performance, efficiency, and reliability in various industries ⁴.

Compatibility of Cummins 4993559 Flexplate

The Cummins 4993559 Flexplate is designed to fit a variety of Cummins engines. This part is integral in the engine’s operation, serving as a connection between the engine and the transmission. Here is a breakdown of the engines that this flexplate is compatible with:

• 4B3.9
• 6B5.9
• B4.5
• B5.9 G
• B5.9 GAS PLUS CM556
• B6.7 CM2350 B135B
• ISB CM550
• ISB CM850
• ISB/ISD4.5 CM2150 B119
• ISB/ISD6.7 CM2150 SN
• ISB4.5 CM2350 B104
• ISBE CM2150
• ISBE CM800
• ISBE4 CM850
• ISF3.8 CM2220 AN
• QSB3.9 30 CM550
• QSB5.9 30 CM550
• QSB5.9 44 CM550

When considering the compatibility of the Flexplate 4993559, it is important to note that it is designed to work with engines that share similar mounting configurations and torque specifications. The flexplate’s design ensures a smooth and efficient transfer of power from the engine to the transmission, which is crucial for the overall performance and longevity of the engine.

Role of the Cummins 4993559 Flexplate in Engine Systems

The Cummins 4993559 Flexplate is an integral component in the operation of automatic transmission systems, interfacing with several key engine components to ensure smooth and efficient power transfer.

Interaction with the Flywheel

In automatic transmission setups, the Flexplate takes the place of the traditional flywheel found in manual transmission systems. The Flexplate is bolted to the rear of the engine’s crankshaft, providing a mounting surface for the torque converter. Unlike the flywheel, which engages with the starter motor’s gear teeth to crank the engine, the Flexplate features a ring gear that meshes with the starter motor, facilitating engine start-up.

Torque Converter Engagement

The Flexplate’s primary function is to connect the engine to the transmission via the torque converter. As the engine runs, the Flexplate transmits rotational force from the crankshaft to the torque converter, which then multiplies this torque and transfers it to the transmission input shaft. This process allows for the smooth delivery of power to the drivetrain, accommodating the varying load conditions and ensuring efficient operation across different driving scenarios.

Dampening Vibrations

Another significant role of the Flexplate is vibration dampening. The Flexplate is designed with flexibility to absorb and reduce the vibrations generated by the engine’s reciprocating components. This flexibility helps in maintaining a stable and consistent power transfer to the transmission, contributing to the overall smoothness and reliability of the vehicle’s operation.

Starter Motor Integration

During engine start-up, the Flexplate’s ring gear engages with the starter motor’s pinion gear. This engagement rotates the crankshaft, initiating the combustion process. The design of the Flexplate ensures that this engagement is precise and reliable, preventing damage to both the starter motor and the engine.

Summary of Component Interaction

In summary, the Cummins 4993559 Flexplate plays a vital role in the automatic transmission system by:

• Replacing the flywheel in automatic transmissions
• Providing a connection point for the torque converter
• Transmitting and multiplying engine torque
• Dampening engine vibrations for smoother operation
• Engaging with the starter motor for engine cranking

Understanding these interactions highlights the importance of the Flexplate in ensuring the efficient and reliable performance of the engine and transmission system.

Conclusion

The Cummins 4993559 Flexplate is a critical component in the drivetrain of heavy-duty trucks, designed to enhance performance and reliability. Its robust construction, precise engineering, and compatibility with a wide range of Cummins engines make it an essential part for ensuring smooth and efficient power transfer from the engine to the transmission. Proper installation, regular maintenance, and timely replacement when issues arise are key to maximizing the lifespan and performance of this part.
