3693402

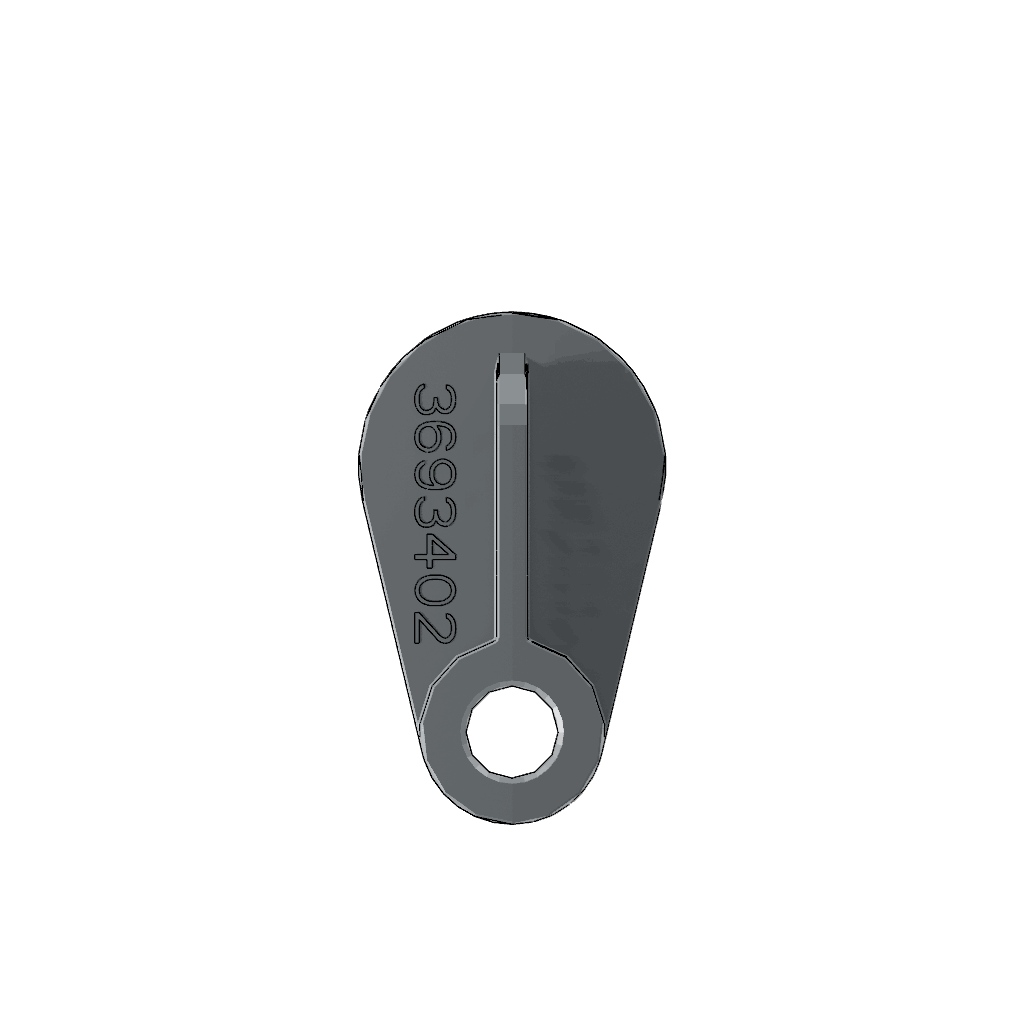

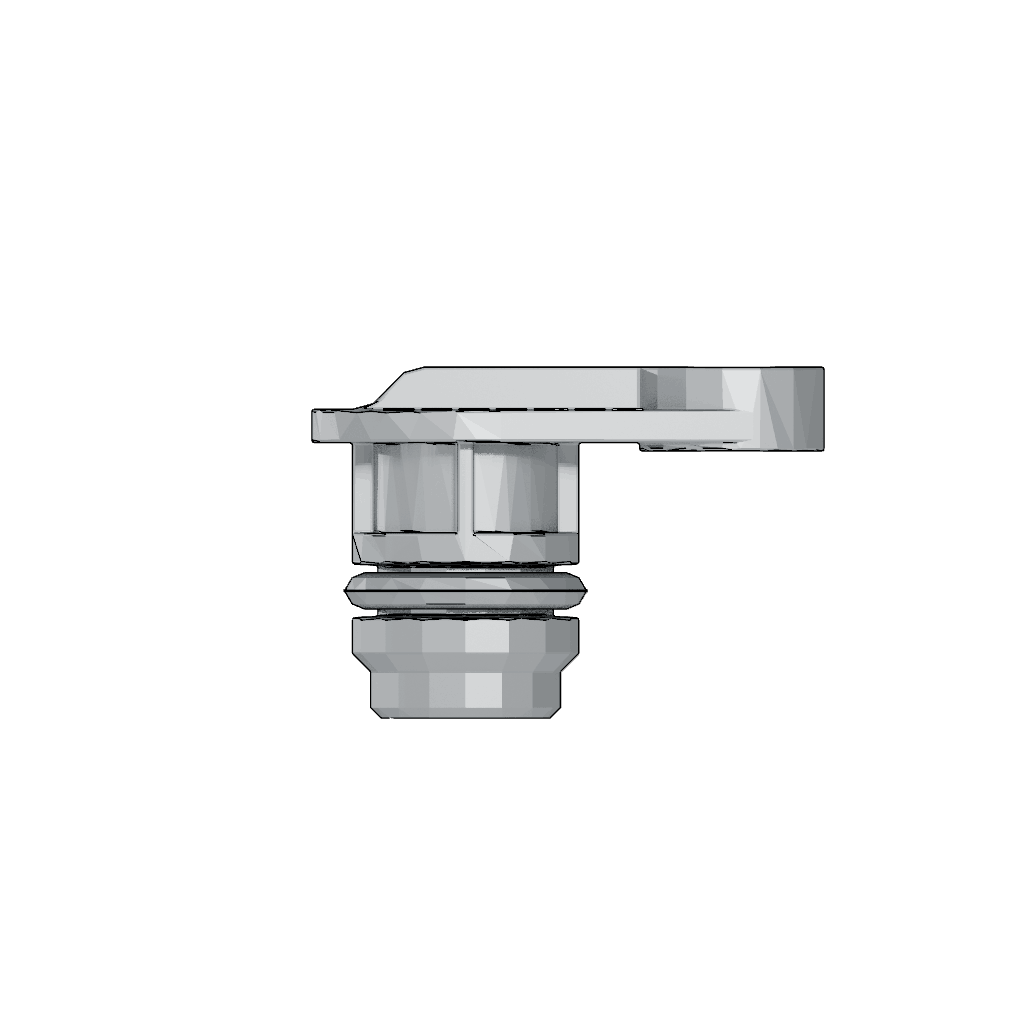

O-Ring Plug
Cummins®

The Cummins 3693402 O-Ring Plug is a critical component in commercial trucks, designed to maintain system integrity by providing a reliable seal. This part ensures the efficient operation of various truck systems, contributing to overall performance and longevity ³.

Basic Concepts of O-Ring Plugs

An O-Ring Plug is a seal that uses a circular cross-section ring to create a barrier against fluid or gas passage. It operates by being compressed between two surfaces, forming a seal that prevents leakage. In mechanical systems, O-Ring Plugs maintain pressure, prevent contamination, and ensure component functionality ⁴.

Purpose of the Cummins 3693402 O-Ring Plug

This Cummins part is used in sealing applications within a truck’s engine or other systems. It is placed in areas requiring a secure seal to prevent fluid or gas leakage, helping maintain system pressure and prevent contaminants from entering sensitive areas, contributing to the truck’s efficiency and reliability ¹.

Key Features

The Cummins 3693402 O-Ring Plug is characterized by its material composition, designed to withstand operational conditions within a truck’s engine. It is made from materials offering resistance to wear, corrosion, and temperature extremes. The design specifications ensure a snug fit in its designated location, with unique attributes enhancing sealing capabilities and durability ².

Benefits of Using the Cummins 3693402 O-Ring Plug

Utilizing this O-Ring Plug offers several advantages, including improved sealing efficiency, vital for maintaining system integrity. Its durability ensures long-term performance, reducing the need for frequent replacements. The reliable sealing it offers contributes to the overall reliability of the truck’s systems, potentially leading to fewer downtimes and maintenance issues ³.

Installation and Usage Guidelines

To install the Cummins 3693402 O-Ring Plug, follow a series of steps to ensure a proper fit. Preparatory steps may include cleaning the installation area to remove debris or old sealant. Gather necessary tools beforehand. During installation, ensure the O-Ring Plug is seated correctly without damaging the O-ring. Best practices include checking for a secure fit and ensuring no gaps are present that could lead to leaks ⁴.

Troubleshooting Common Issues

Typical problems with O-Ring Plugs may include leaks or signs of wear. If a leak is detected, inspect the O-Ring Plug for damage or improper seating. Assess wear by examining the O-ring for signs of deformation or material degradation. Suggested methods for resolving these issues include replacing the O-Ring Plug if damaged or ensuring it is correctly installed if the issue is related to seating ¹.

Maintenance Tips

Regular maintenance of the Cummins 3693402 O-Ring Plug involves periodic inspection for signs of wear or damage. Cleaning procedures may be necessary to remove any buildup that could affect the seal’s performance. Consider replacement if the O-Ring Plug shows significant wear or if leaks are present that cannot be attributed to other causes ².

Cummins Overview

Cummins Inc. is known for designing, manufacturing, and distributing diesel and natural gas engines, as well as related technologies. With a history of innovation and a strong reputation in the commercial truck industry, Cummins provides a variety of products designed to meet the demanding requirements of heavy-duty applications. The company’s commitment to quality and performance is reflected in its wide range of components, including the Cummins 3693402 O-Ring Plug ³.

Role of Part 3693402 O-Ring Plug in Engine Systems

The 3693402 O-Ring Plug is integral to maintaining the integrity and functionality of various engine systems. In a Gauge system, it ensures accurate pressure readings by preventing leaks that could distort measurements. It seals the connections between the gauge and the engine, allowing for precise monitoring of operational parameters.

When integrated with an Oil Level system, the O-Ring Plug maintains correct oil levels within the engine. It seals the oil level sensor or dipstick tube, ensuring no oil escapes and that the sensor provides accurate readings. This seal is essential for the proper lubrication of engine components, vital for the engine’s longevity and performance ⁴.

Conclusion

The Cummins 3693402 O-Ring Plug plays a significant role in the efficient operation and reliability of commercial truck systems. Its design and material composition ensure durability and effective sealing, contributing to the overall performance and longevity of the truck’s engine systems. Regular maintenance and proper installation are key to maximizing the benefits of this part.
