5272099
Twelve Point Cap Screw
Cummins®

The 5272099 Twelve-Point Cap Screw is a specialized fastener produced by Cummins, a well-established manufacturer in the automotive and heavy-duty truck industries. This component is integral to the mechanical assemblies of heavy-duty trucks, ensuring secure and reliable fastening in various applications.

Basic Concepts of Twelve-Point Cap Screws

A twelve-point cap screw is a type of fastener characterized by its hexagonal socket head, which provides a larger contact area compared to traditional hex-head screws. This design allows for more torque to be applied without rounding off the head, making it suitable for high-stress applications. Twelve-point cap screws differ from other fasteners like hex bolts and machine screws primarily in their socket design, which enhances their usability in tight spaces and under high torque conditions. They are commonly used in mechanical assemblies where strength, durability, and ease of installation are paramount ¹.

Purpose and Role in Truck Operation

This Cummins part plays a significant role in the mechanical systems of heavy-duty trucks. It is designed to secure critical components, ensuring that parts remain firmly in place under various operating conditions. This fastener contributes to the overall performance and reliability of the truck by providing a secure connection that can withstand substantial loads and vibrations. Its application is vital in maintaining the integrity of the truck’s structure and ensuring that all mechanical systems function as intended ².

Key Features

The 5272099 Twelve-Point Cap Screw boasts several key features that enhance its functionality. It is typically made from high-strength materials such as alloy steel, which provides excellent durability and resistance to wear. The screw features a precise thread pitch that ensures a secure fit and optimal load distribution. Additionally, its twelve-point design allows for greater torque application without the risk of stripping or rounding off the head, making it ideal for heavy-duty applications ³.

Benefits

This part offers numerous benefits that make it a preferred choice for heavy-duty truck applications. Its design allows for improved torque application, ensuring that components are securely fastened. The screw’s resistance to loosening under vibration and dynamic loads enhances the reliability of the truck’s mechanical systems. Furthermore, its durability in harsh operating conditions ensures long-term performance, reducing the need for frequent replacements and maintenance ⁴.

Installation Guidelines

Proper installation of the 5272099 Twelve-Point Cap Screw is crucial to ensure optimal performance. Begin by cleaning the mating surfaces to remove any debris or contaminants. Use a torque wrench to apply the specified torque, ensuring that the screw is tightened to the manufacturer’s recommended settings. It is important to avoid over-tightening, which can lead to thread damage or component failure. Additionally, consider using a thread locker to prevent loosening under vibration.

Troubleshooting and Maintenance

Common issues with twelve-point cap screws include loosening due to vibration, corrosion, and wear. Regular inspection and maintenance can help identify and address these problems. Look for signs of corrosion or damage to the screw and mating surfaces. If corrosion is present, clean the affected areas and apply a corrosion-resistant coating. Replace any screws that show signs of wear or damage to ensure continued reliability. Routine maintenance and timely replacements can prolong the lifespan of the fastener and maintain the integrity of the truck’s mechanical systems.

Cummins: Manufacturer Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. Founded in 1919, Cummins has built a reputation for innovation, quality, and reliability in the automotive and heavy-duty truck industries. The company offers a wide range of products, including engines, powertrains, and aftermarket parts, designed to meet the demanding requirements of various applications. Cummins’ commitment to excellence and customer satisfaction has established it as a trusted name in the industry.

Twelve-Point Cap Screw Part 5272099 in Cummins Engines

The Twelve-Point Cap Screw part number 5272099, manufactured by Cummins, is a critical component in several of their engine models. This screw is designed to provide robust fastening capabilities, ensuring secure connections in various engine assemblies.

Application in Cummins Engines

QSB3.3 CM2250 EC

In the QSB3.3 CM2250 EC engine, the 5272099 screw is utilized in several key areas. It is often employed in the engine’s head assembly, where it helps to secure the cylinder head to the engine block. This ensures that the combustion chamber is sealed properly, which is crucial for maintaining engine efficiency and performance. Additionally, the screw is used in other critical assemblies, such as the intake and exhaust manifolds, where it helps to maintain the structural integrity of these components.

Other Cummins Engines

While the QSB3.3 CM2250 EC is highlighted, the 5272099 screw is also a common component in various other Cummins engines. Its versatility and strength make it suitable for use in different engine configurations, including but not limited to:

• QSB6.7: This engine model uses the 5272099 screw in similar applications as the QSB3.3, ensuring secure fastening in the head assembly and other critical areas.
• QSC: The 5272099 screw is also found in the QSC series, where it plays a role in maintaining the structural integrity of the engine’s various components.

The consistent use of the 5272099 screw across different Cummins engine models underscores its importance in ensuring reliable and efficient engine operation. Its design and material properties make it a reliable choice for securing various engine parts, contributing to the overall durability and performance of the engines.

Part 5272099 Twelve-Point Cap Screw Component Usage

The part 5272099 Twelve-Point Cap Screw is instrumental in ensuring the secure assembly and reliable operation of various engine components.

Cylinder Head

In the cylinder head assembly, the Twelve-Point Cap Screw plays a significant role in fastening components such as the valve cover, intake manifold, and exhaust manifold. Its design allows for precise torque application, which is essential for maintaining the correct compression and sealing integrity. The screw’s twelve-point geometry provides enhanced grip, reducing the risk of cam-out during installation and removal, thus facilitating easier and more efficient maintenance procedures.

Injector Kit

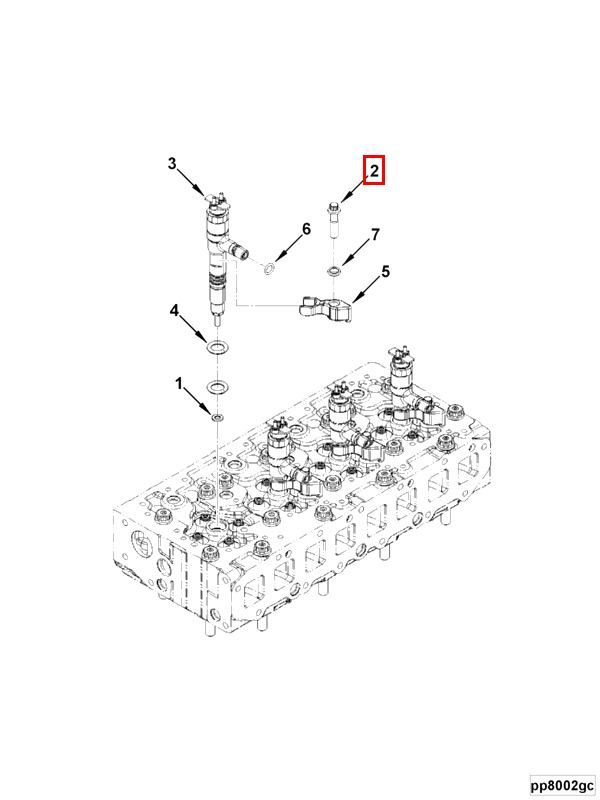

Within the injector kit, the Twelve-Point Cap Screw is used to secure the fuel injectors to the cylinder head. This ensures that the injectors are held firmly in place, which is vital for consistent fuel delivery and combustion efficiency. The screw’s robust construction withstands the high pressures and temperatures within the engine, contributing to the longevity and performance of the injector system. Additionally, the precise fit and secure hold provided by the Twelve-Point Cap Screw help prevent fuel leaks, enhancing overall engine reliability.

Conclusion

The 5272099 Twelve-Point Cap Screw is a critical component in the mechanical systems of heavy-duty trucks and Cummins engines. Its design, material properties, and application ensure secure fastening, reliable performance, and long-term durability. Proper installation, regular maintenance, and timely replacements are essential to maximize the benefits of this fastener and ensure the continued reliability of the truck’s mechanical systems.
