3035022
Hexagon Head Cap Screw
Cummins®

The Cummins 3035022 Hexagon Head Cap Screw is a specialized fastener designed for use in commercial trucks. Cummins, a well-established name in the commercial truck industry, manufactures this screw to meet the demanding requirements of heavy-duty applications. This part is integral to the assembly and maintenance of various truck components, ensuring secure and reliable fastening in challenging operating conditions.

Basic Concepts of Hexagon Head Cap Screws

A Hexagon Head Cap Screw is a type of fastener characterized by its hexagonal head, which allows for efficient tightening and loosening using a wrench or socket. These screws are commonly used in fastening applications where high strength and resistance to loosening are required. Mechanically, the hexagonal head provides a larger contact area compared to other screw head types, enhancing torque application and reducing the risk of cam-out during installation ¹.

Purpose of the 3035022 Hexagon Head Cap Screw in Truck Operation

The 3035022 Hexagon Head Cap Screw plays a significant role in the assembly and maintenance of commercial trucks. It is utilized in various truck components, including engine mounts, chassis assemblies, and other critical areas where secure fastening is necessary. The screw ensures that components remain firmly attached, even under the dynamic loads and vibrations experienced during truck operation ².

Key Features

The 3035022 Hexagon Head Cap Screw is designed with several key features that enhance its performance and durability. Its hexagonal head allows for precise and efficient tightening, while the cap design covers the fastener, providing protection against contaminants and reducing the risk of corrosion. The screw is typically made from high-strength materials, such as alloy steel, which offers excellent resistance to wear and fatigue. Additionally, the screw may feature a coated surface to further improve corrosion resistance and longevity ³.

Benefits

Using the 3035022 Hexagon Head Cap Screw provides several benefits. The screw offers improved fastening security due to its hexagonal head design, which allows for greater torque application without slipping. Its high-strength material composition ensures durability and resistance to fatigue, making it suitable for heavy-duty applications. The screw’s design also provides resistance to vibration, helping to maintain secure fastening over time. Furthermore, its coated surface enhances corrosion resistance, prolonging the screw’s lifespan in harsh operating conditions ⁴.

Installation Guidelines

Proper installation of the 3035022 Hexagon Head Cap Screw is crucial for optimal performance and safety. To install the screw, use a wrench or socket that fits the hexagonal head precisely to avoid damage. Apply torque gradually to ensure even tightening. Follow the specified torque settings provided by the manufacturer to achieve the correct clamping force without over-tightening, which could lead to thread damage or component failure. It is also important to ensure that the mating surfaces are clean and free of debris to facilitate a secure and lasting connection.

Troubleshooting and Maintenance

Common issues with Hexagon Head Cap Screws include loosening due to vibration, corrosion, and wear. To identify these problems, regularly inspect the screws for signs of movement, rust, or damage. Maintenance tips to prolong the lifespan of the screw include reapplying a thread locker if necessary, ensuring proper torque during installation, and protecting the screw from environmental contaminants. If corrosion is detected, cleaning the affected area and reapplying a protective coating can help restore the screw’s performance.

Cummins: A Brief Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. Founded in 1919, Cummins has built a reputation for quality and reliability in the commercial truck industry. The company offers a wide range of products, including engines, powertrains, and aftermarket parts, designed to meet the needs of heavy-duty applications. Cummins’ commitment to innovation and customer satisfaction ensures that their products, like the 3035022 Hexagon Head Cap Screw, deliver consistent performance and durability.

Cummins Hexagon Head Cap Screw 3035022 in Engine Applications

The Cummins Hexagon Head Cap Screw, part number 3035022, is a critical component in various engine assemblies. This part is meticulously designed to ensure reliable fastening in demanding environments, providing the necessary strength and durability required for engine operations.

L10 MECHANICAL Engines

In the L10 MECHANICAL engines, the Hexagon Head Cap Screw 3035022 is integral to the assembly and maintenance of the engine. This screw is typically used in applications where it needs to secure various engine components, ensuring they remain tightly fastened under operational stresses. The robust design of the screw allows it to withstand high torque and pressure, making it suitable for critical engine mountings and structural integrity tasks.

The precision engineering of the screw ensures that it fits seamlessly into the engine’s design, providing a secure connection that is essential for the engine’s performance and longevity. Its use in the L10 MECHANICAL engines highlights Cummins’ commitment to quality and reliability in engine components.

Role of Part 3035022 Hexagon Head Cap Screw in Engine Systems

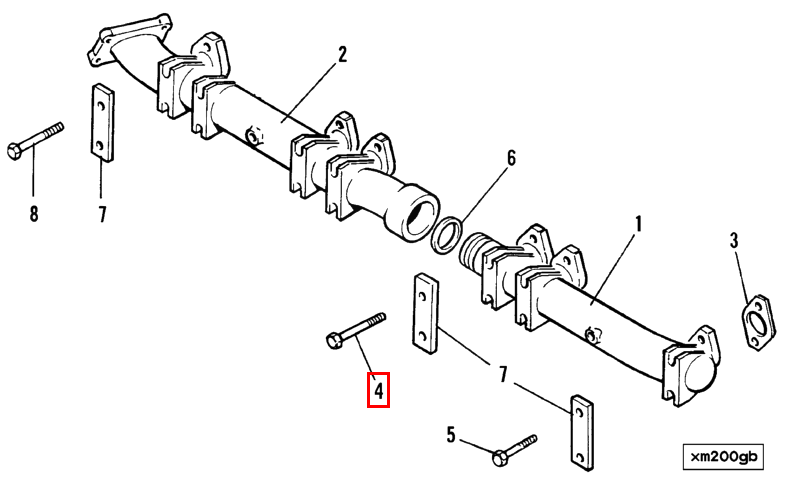

The part 3035022 Hexagon Head Cap Screw is integral to the assembly and maintenance of various engine components, particularly in the context of turbocharger arrangements and locations.

In a turbocharger arrangement, this screw is often utilized to secure the turbocharger to the engine block or the exhaust manifold. Its hexagonal head allows for efficient tightening and loosening using a socket wrench, ensuring a secure fit that can withstand the high pressures and temperatures associated with turbocharger operation. The cap feature of the screw provides a smooth surface, reducing the risk of damage to adjacent components and enhancing the overall aesthetic of the engine bay.

At the turbocharger location, the 3035022 screw plays a significant role in maintaining the structural integrity of the turbocharger assembly. It is commonly used to fasten the turbocharger housing to the turbine and compressor wheels, ensuring that these components remain aligned and operate efficiently. The screw’s design also facilitates easy access for maintenance and replacement, which is essential for the longevity and performance of the turbocharger.

Additionally, the 3035022 screw is employed in various other engine systems where secure fastening is required. For instance, it is used in the attachment of intercoolers, charge air coolers, and other ancillary components that are part of the engine’s air intake and exhaust systems. Its robust construction and reliable performance make it a preferred choice for applications where vibration and thermal cycling are common.

Conclusion

In summary, the 3035022 Hexagon Head Cap Screw is a versatile and dependable fastener that contributes to the efficient operation and maintenance of engine systems, particularly in turbocharger arrangements and locations. Its design, material composition, and features make it suitable for heavy-duty applications, ensuring secure and reliable fastening in challenging operating conditions.
