4006483

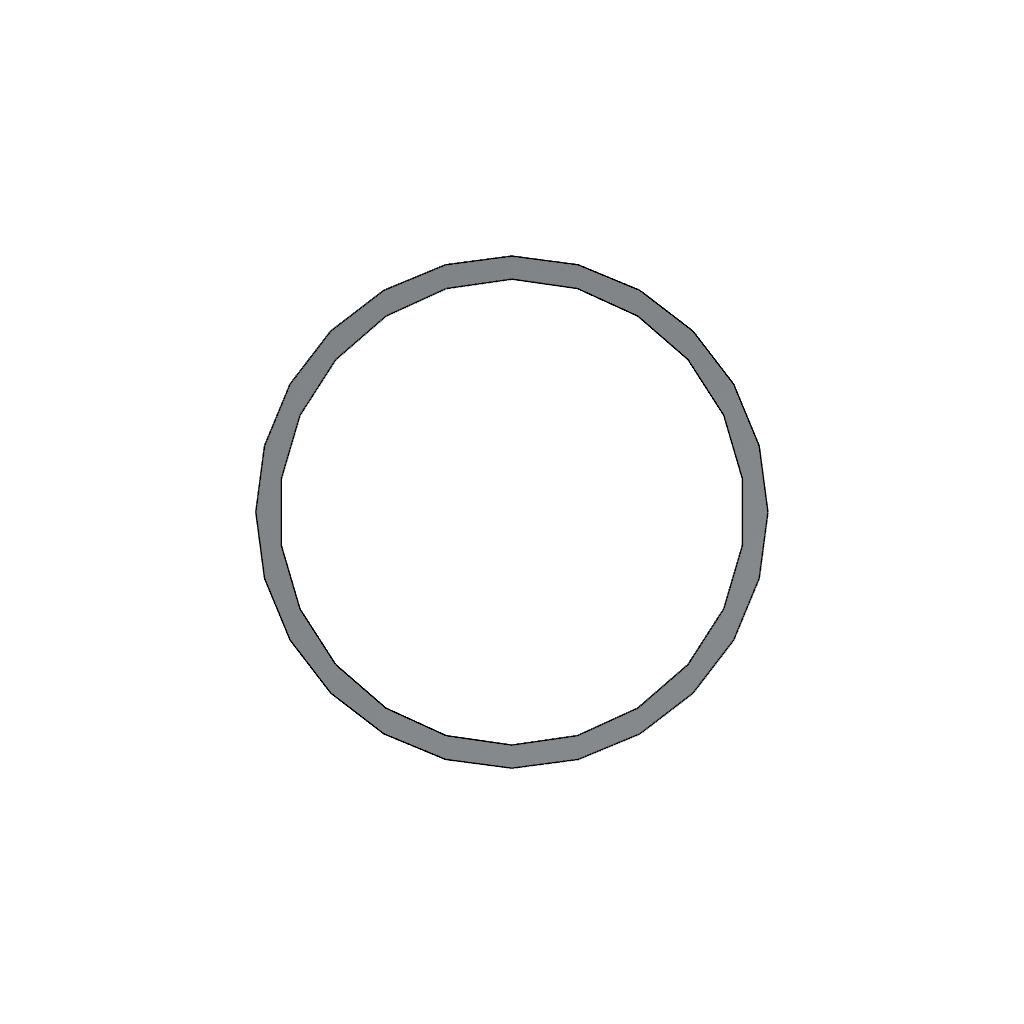

Rectangular Ring Seal
Cummins®

The Rectangular Ring Seal (Part #4006483) by Cummins is a specialized component designed to provide reliable sealing in various applications within commercial truck operations. This seal is integral to maintaining the integrity of systems where fluid or gas containment is required, ensuring optimal performance and longevity of the truck’s components.

Basic Concepts of Rectangular Ring Seals

A Rectangular Ring Seal is a type of gasket designed with a rectangular cross-section. It functions by creating a barrier that prevents the leakage of fluids or gases between mating surfaces. The design of these seals allows for a high degree of compression, which enhances their sealing capabilities. Commonly constructed from materials such as nitrile rubber, fluorocarbon, or silicone, these seals are chosen for their specific properties, including resistance to chemicals, temperature extremes, and physical wear ¹.

Purpose of the 4006483 Rectangular Ring Seal in Truck Operations

The 4006483 Rectangular Ring Seal plays a role in the operation of commercial trucks by ensuring the integrity of seals in various systems, such as fuel lines, hydraulic systems, and engine compartments. By providing a reliable seal, it contributes to the efficiency and reliability of these systems, preventing leaks that could lead to performance issues or safety hazards.

Key Features of the 4006483 Rectangular Ring Seal

The 4006483 Rectangular Ring Seal is characterized by its rectangular cross-section, which allows for a greater contact area and improved sealing performance. It is typically made from high-quality materials that offer durability and resistance to the harsh conditions found in commercial truck operations. Unique attributes of this seal include its ability to withstand high pressures and temperatures, making it suitable for demanding applications.

Benefits of Using the 4006483 Rectangular Ring Seal

Incorporating the 4006483 Rectangular Ring Seal into truck systems offers several advantages. These include improved sealing efficiency, which reduces the risk of leaks and enhances system performance. The seal’s durability and resistance to various operating conditions contribute to its longevity, reducing the need for frequent replacements. Additionally, its design allows for easy installation and compatibility with a wide range of applications.

Installation Guidelines

To ensure optimal performance and longevity of the 4006483 Rectangular Ring Seal, proper installation is crucial. Begin by cleaning the sealing surface to remove any debris or contaminants that could compromise the seal. Carefully place the seal into the groove, ensuring it is seated correctly without twisting or damage. Avoid over-tightening during installation to prevent damage to the seal or the mating surfaces.

Maintenance and Troubleshooting

Regular maintenance of the 4006483 Rectangular Ring Seal is important to prolong its service life. Inspect the seal during routine maintenance checks for signs of wear, damage, or deformation. Common issues with rectangular ring seals include leaks, which may indicate a faulty seal or improper installation. Addressing these issues promptly can prevent more significant problems and ensure the continued reliability of the truck’s systems.

Cummins: A Brief Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes a wide range of power solutions, including engines, filtration, and emission solutions. With a history of innovation and commitment to quality, Cummins plays a significant role in the automotive industry, providing high-quality components for commercial trucks. Their product range is designed to meet the demanding requirements of commercial vehicle operations, ensuring reliability, performance, and efficiency.

Cummins Rectangular Ring Seal Part 4006483 Compatibility

The Cummins Rectangular Ring Seal part number 4006483 is designed to fit seamlessly with several engine models, ensuring optimal performance and reliability. This part is integral to maintaining the integrity of the engine’s sealing system, which is crucial for preventing leaks and maintaining pressure within the engine’s components.

Compatible Engines

• QSK60 CM850 MCRS
• QSK60 G CM2358 K110
• QSK60G
• QSK78 CM500

Engine Groupings

The Cummins Rectangular Ring Seal part 4006483 is compatible with the following engine groupings:

• QSK60 Series: This includes the QSK60 CM850 MCRS and QSK60G engines. These engines are known for their robust design and high performance, often used in heavy-duty applications.
• QSK60 G CM2358 K110: This specific engine model benefits from the precise fit and durability of the part 4006483, ensuring efficient sealing and longevity.
• QSK78 CM500: This engine model also relies on the sealing capabilities of the part 4006483 to maintain operational efficiency and prevent any potential leakage issues.

By ensuring that the Cummins Rectangular Ring Seal part 4006483 is correctly installed, engine operators can maintain the performance and reliability of their engines, minimizing the risk of downtime and costly repairs.

Role of Part 4006483 Rectangular Ring Seal in Engine Systems

The 4006483 Rectangular Ring Seal is an essential component in maintaining the integrity and efficiency of various engine systems. Its primary function is to provide a secure and leak-proof seal in areas where different components interface.

Integration with Oil Pan Gasket Kit and Set

When installing an oil pan gasket kit or set, the 4006483 Rectangular Ring Seal plays a significant role in ensuring that the oil pan is properly sealed to the engine block. This seal prevents oil leaks, which can lead to oil loss and potential engine damage. The ring seal fits snugly into the grooves designed for it, creating a barrier that keeps lubricating oil contained within the pan.

Application in Pan and Oil Systems

In the context of the oil pan, the rectangular ring seal is often used at the junction where the pan meets the engine block. This ensures that the oil remains within the pan and is available for circulation through the engine. Proper sealing is vital for maintaining oil pressure and ensuring that all moving parts are adequately lubricated.

Usage in Tube and Lubricating Oil Suction Components

The 4006483 Rectangular Ring Seal is also employed in tube connections within the lubricating oil suction system. Here, it ensures that the oil flow from the pan to the engine’s lubrication points is uninterrupted and leak-free. The seal fits into the tube connectors, providing a tight fit that prevents oil from escaping and contaminants from entering the system.

Ensuring System Integrity

By fitting into these critical junctions, the 4006483 Rectangular Ring Seal helps maintain the overall integrity of the engine’s lubrication system. It ensures that oil is efficiently circulated, pressures are maintained, and the engine operates smoothly without the risk of oil leaks or contamination.

Conclusion

The 4006483 Rectangular Ring Seal by Cummins is a critical component for maintaining the efficiency and reliability of commercial truck engines. Its design and material properties ensure durability and resistance to harsh operating conditions, contributing to the longevity and performance of the engine systems it serves. Proper installation and maintenance of this seal are essential for preventing leaks and ensuring the smooth operation of the truck’s components.
