Rectangular Ring Seal
Cummins®

Introduction

The Cummins 4900390 Rectangular Ring Seal is a specialized component designed for use in commercial truck maintenance and operation. This seal plays a significant role in ensuring the efficient and reliable performance of truck engines and transmissions. Understanding its purpose and function is vital for maintaining the integrity and performance of commercial vehicles.

Basic Concepts of Rectangular Ring Seals

Rectangular ring seals are mechanical components used to create a seal between two surfaces. They function by deforming under pressure to fill the gaps between mating surfaces, thereby preventing fluid or gas leakage. These seals are commonly employed in various mechanical systems, including engines, transmissions, and hydraulic systems, due to their ability to withstand high pressures and temperatures ¹.

Purpose of the 4900390 Rectangular Ring Seal

The 4900390 Rectangular Ring Seal is specifically designed to operate within the engine or transmission system of commercial trucks. Its primary function is to provide a reliable seal that prevents the leakage of fluids, such as oil or coolant, which are essential for the lubrication and cooling of engine components. By maintaining these seals, the part contributes to the overall efficiency and longevity of the truck’s powertrain ².

Key Features

The 4900390 Rectangular Ring Seal is characterized by several key features that enhance its performance. It is typically made from high-quality materials such as nitrile rubber, which offers excellent resistance to oils, fuels, and various chemicals. The design of the seal includes precise dimensions and a rectangular cross-section that allows it to conform to irregular surfaces, ensuring a tight seal under varying conditions. Additionally, the seal may feature anti-extrusion elements to prevent material from being forced out of the sealing area under high pressure.

Benefits

Utilizing the 4900390 Rectangular Ring Seal offers several advantages. The seal provides improved sealing efficiency, which helps in maintaining the integrity of the engine or transmission system. Its durable construction ensures long-lasting performance, reducing the frequency of replacements and associated downtime. Furthermore, the reliable sealing performance can lead to potential cost savings for fleet operators by minimizing the risk of leaks and subsequent repairs.

Installation Process

Proper installation of the 4900390 Rectangular Ring Seal is crucial for its effective performance. The installation process involves several steps:

1. Inspecting the sealing surfaces for any damage or contaminants.
2. Lubricating the seal with a compatible lubricant to facilitate installation and reduce friction.
3. Carefully placing the seal into the groove, ensuring it is seated correctly without twists or folds.
4. Reassemble the components and ensure that all parts are properly aligned. Following these best practices helps avoid common pitfalls such as improper seating, which can lead to leaks or seal failure.

Troubleshooting Common Issues

Typical problems associated with rectangular ring seals include leaks and wear. Leaks may occur due to improper installation, damage to the seal, or degradation of the seal material over time. Wear can result from excessive pressure, temperature fluctuations, or incompatible fluids. To diagnose these issues, inspect the seal for signs of damage, check the sealing surfaces for irregularities, and ensure that the seal is correctly installed. Replacement of the seal may be necessary if significant wear or damage is detected.

Maintenance Tips

Regular maintenance practices are essential to ensure the longevity and effectiveness of the 4900390 Rectangular Ring Seal. This includes periodic inspection of the seal during routine maintenance checks, looking for signs of wear, damage, or leaks. Replacement guidelines should be followed based on the manufacturer’s recommendations or when signs of degradation are observed. Keeping the sealing surfaces clean and free of contaminants also contributes to the seal’s performance.

Compatibility and Applications

The 4900390 Rectangular Ring Seal is commonly used in specific commercial truck models and engine types. It is important to refer to the manufacturer’s specifications to ensure compatibility with the particular application. Variations or special considerations may apply depending on the truck model and engine configuration.

Cummins Corporation Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes a wide range of power solutions, including engines, filtration, and related technologies. With a strong reputation in the commercial truck industry, Cummins is known for its commitment to quality and reliability. The company’s extensive product range and innovative technologies contribute to the performance and efficiency of commercial vehicles, making Cummins a trusted name in the industry.

Role of Part 4900390 Rectangular Ring Seal in Engine Systems

The 4900390 Rectangular Ring Seal is an essential component in ensuring the integrity and efficiency of various engine systems. Its primary function is to create a secure seal, preventing leaks and maintaining pressure within the system.

Integration with the Filler Cap

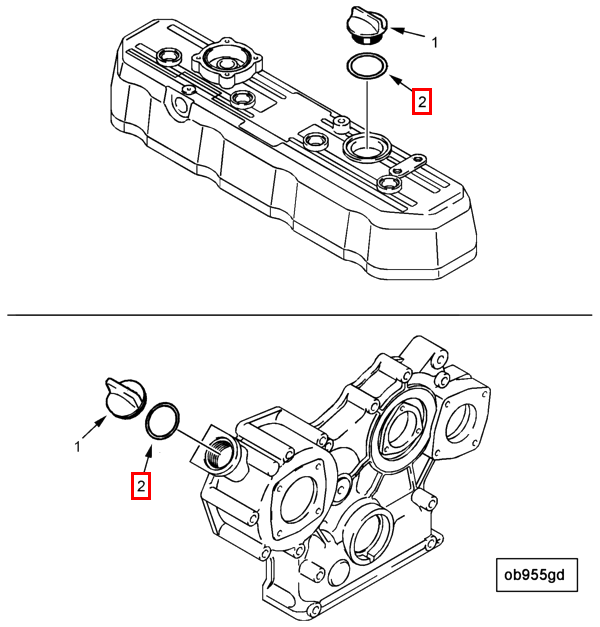

When integrated with the filler cap, the 4900390 Rectangular Ring Seal ensures a tight fit between the cap and the engine block. This seal is vital for maintaining the correct oil level within the engine by preventing any oil from escaping when the filler cap is in place. It also helps in keeping contaminants out, ensuring that only clean oil is introduced into the engine.

Functionality within the Gasket Set

In a gasket set, the 4900390 Rectangular Ring Seal plays a significant role in sealing various mating surfaces. It is often used in conjunction with other gaskets to ensure that fluids and gases remain within their designated pathways. This is particularly important in high-pressure areas where even the smallest leak can lead to significant performance issues.

Importance in the Oil Filler Arrangement

The oil filler arrangement relies on the 4900390 Rectangular Ring Seal to maintain a consistent and secure seal around the oil filler neck. This ensures that oil is properly funneled into the engine without any spillage or leakage. The seal also helps in maintaining the structural integrity of the oil filler arrangement, preventing any potential damage from oil exposure.

Conclusion

In summary, the 4900390 Rectangular Ring Seal is a fundamental component in various engine systems, ensuring that seals are maintained, pressures are kept consistent, and contaminants are kept out. Its reliable performance is key to the overall efficiency and longevity of the engine.
