3101574
O Ring Seal
Cummins®

Introduction

The Cummins 3101574 O Ring Seal is a component designed for use in commercial truck operations. Its primary role is to provide a reliable seal in various applications within the truck’s systems, ensuring the integrity of fluid systems and preventing leaks. This part is integral to maintaining the efficiency and reliability of the truck’s operations.

Basic Concepts of O Ring Seals

O Ring Seals are circular rings, typically made from elastomers, that create a seal when compressed within a groove. They function by deforming under pressure to fill the space between mating surfaces, thereby preventing the passage of fluids or gases. O Ring Seals are widely used in mechanical systems due to their simplicity, effectiveness, and versatility in various applications, including hydraulic, pneumatic, and fuel systems ¹.

Purpose of the Cummins 3101574 O Ring Seal

The Cummins 3101574 O Ring Seal plays a specific role in the operation of a truck by ensuring the sealing of connections in fluid systems. It is typically placed in grooves where two components meet, such as in fuel injectors or hydraulic fittings. The seal’s function is to maintain system pressure, prevent leaks, and ensure the proper flow of fluids, which is vital for the truck’s performance and longevity.

Key Features

This Cummins part is characterized by several key features that enhance its performance. It is made from high-quality elastomer materials, which provide excellent resistance to wear and environmental factors. The design specifications of this O Ring Seal include precise dimensions to ensure a proper fit and effective sealing. Additionally, it may possess unique characteristics such as enhanced flexibility or specific durometer ratings to meet the demands of its application.

Benefits of Using the Cummins 3101574 O Ring Seal

Using the Cummins 3101574 O Ring Seal offers several advantages. It provides improved sealing efficiency, which helps maintain system integrity and performance. The seal’s durability ensures long-term reliability, reducing the need for frequent replacements. Furthermore, its resistance to various operating conditions, including temperature extremes and exposure to chemicals, makes it suitable for the demanding environments encountered in commercial truck operations ².

Installation and Maintenance

Proper installation of the Cummins 3101574 O Ring Seal is crucial for its effectiveness. It should be installed in a clean, undamaged groove to ensure a proper seal. During maintenance, it is important to inspect the O Ring Seal for signs of wear or damage and replace it as necessary to prevent leaks and maintain system efficiency. Regular checks and timely replacements contribute to the longevity and optimal performance of the truck’s systems.

Troubleshooting Common Issues

Common problems associated with O Ring Seals include leaks, which can be caused by improper installation, wear, or exposure to incompatible fluids. To address these issues, it is recommended to inspect the seal and its groove for damage, ensure correct installation procedures are followed, and use seals compatible with the system’s fluids and operating conditions. In cases where leaks persist, replacement of the O Ring Seal may be necessary.

Cummins Corporation Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins has established a strong reputation in the commercial truck industry for producing reliable and high-performance components. The company’s extensive product range and commitment to innovation and quality have made it a preferred choice for commercial vehicle manufacturers and operators worldwide ³.

Role of Part 3101574 O Ring Seal in Engine Systems

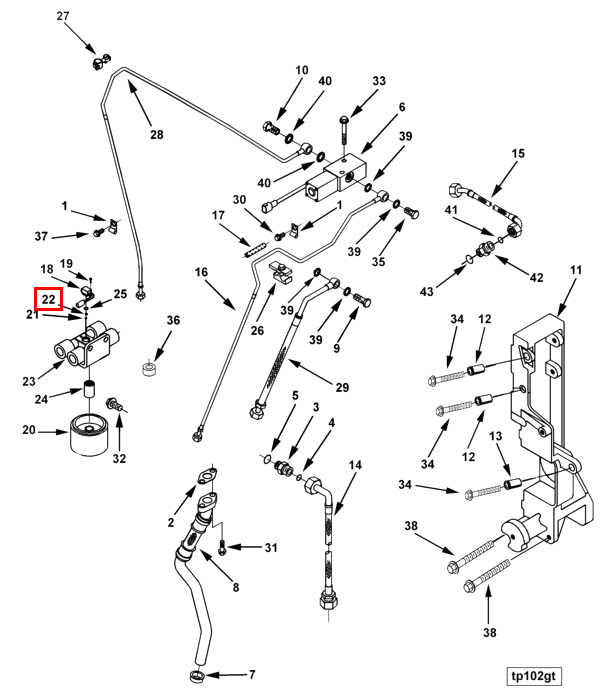

The O Ring Seal, identified by part number 3101574, is integral to the functionality and efficiency of various engine components. In the context of an Air Shutoff Valve Kit, the O Ring Seal ensures a tight and reliable seal between the valve and its housing. This seal is essential for preventing air leaks, which can lead to inefficient engine performance and potential damage over time.

When the Air Shutoff Valve is activated, the O Ring Seal maintains the integrity of the seal, allowing the valve to effectively control the airflow into the engine. This control is vital for maintaining optimal engine operation, especially under varying load conditions. The seal also protects against the ingress of contaminants, which can cause wear and reduce the lifespan of the valve and other connected components.

Furthermore, the O Ring Seal plays a significant role in the overall durability and reliability of the engine system. By ensuring a consistent seal, it helps in maintaining the pressure differentials necessary for efficient engine function. This, in turn, contributes to stable engine performance and reduces the likelihood of unexpected failures.

Conclusion

In summary, the integration of Part 3101574 O Ring Seal within the Air Shutoff Valve Kit is a testament to its importance in enhancing the engine’s operational efficiency and longevity. Its role in maintaining system integrity, preventing leaks, and ensuring optimal engine performance underscores the critical nature of this component in commercial truck operations.
