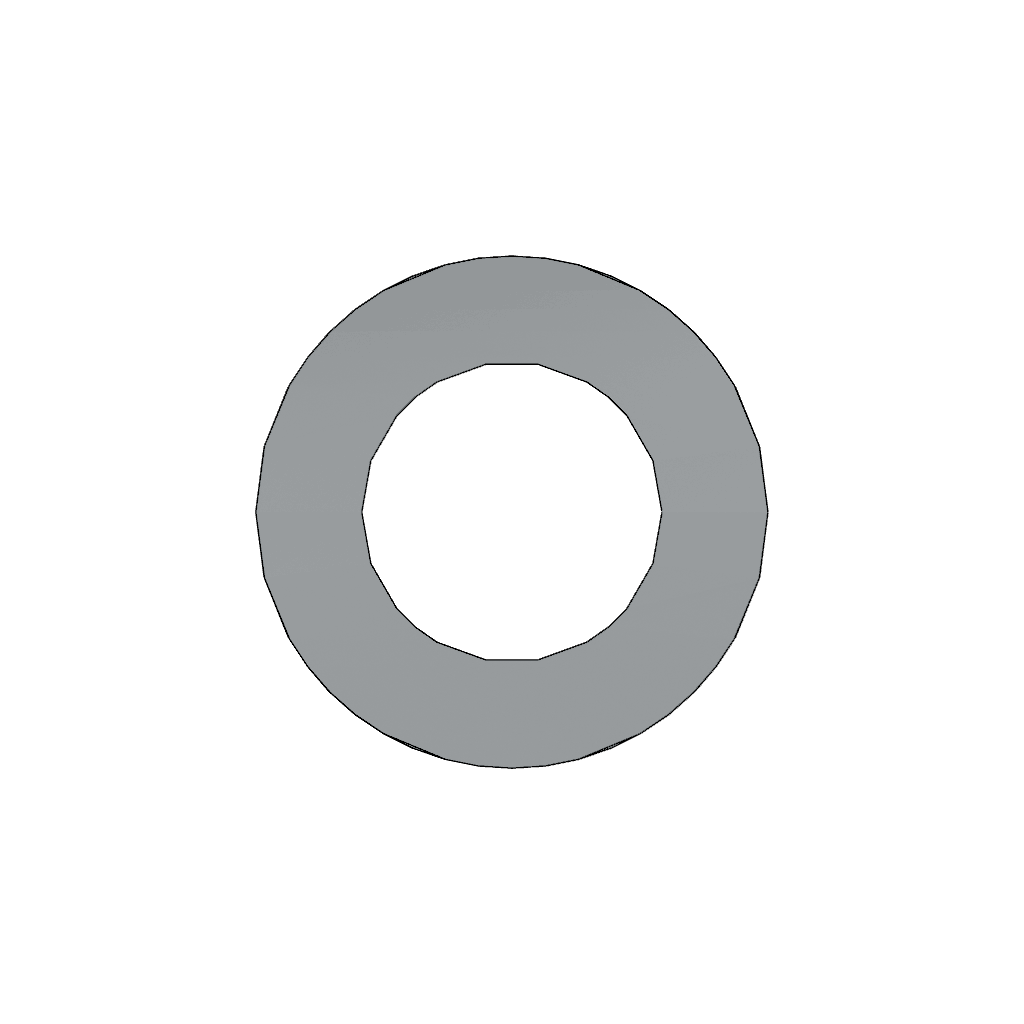

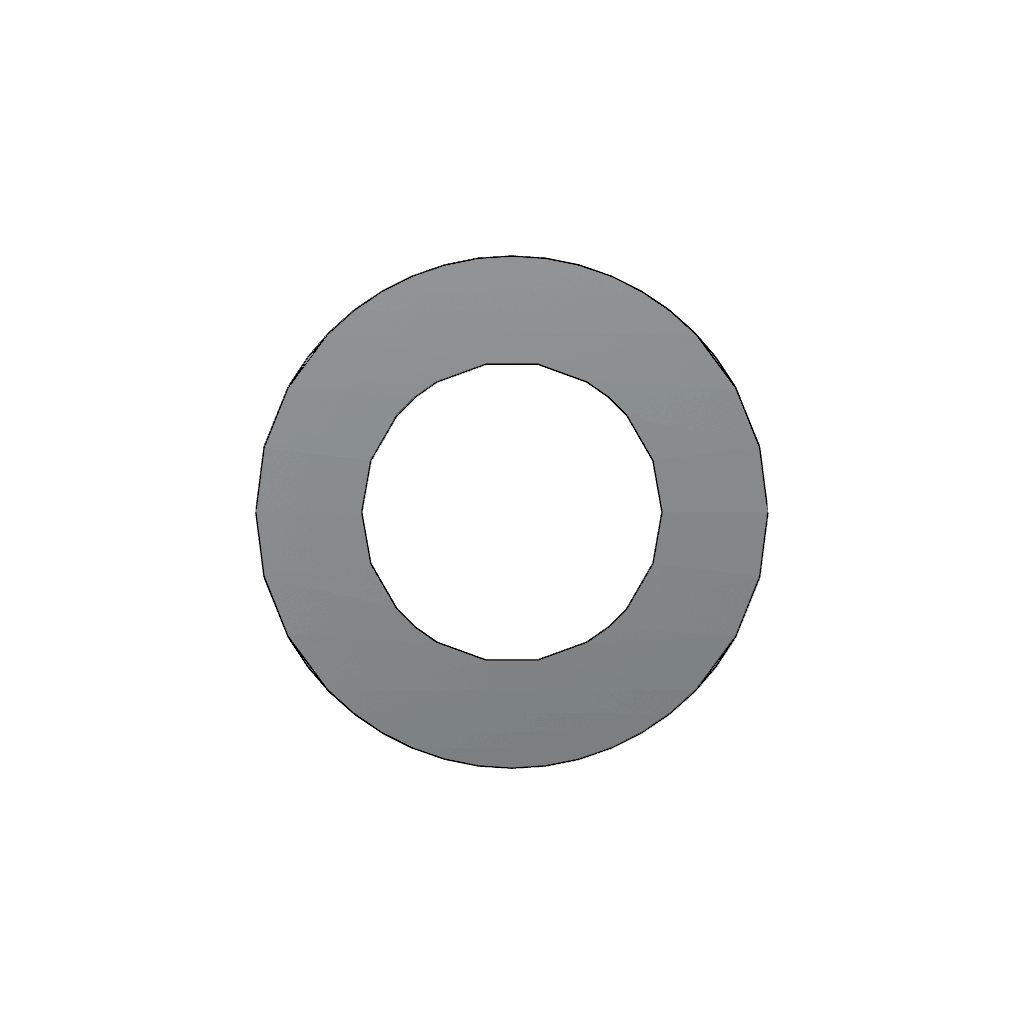

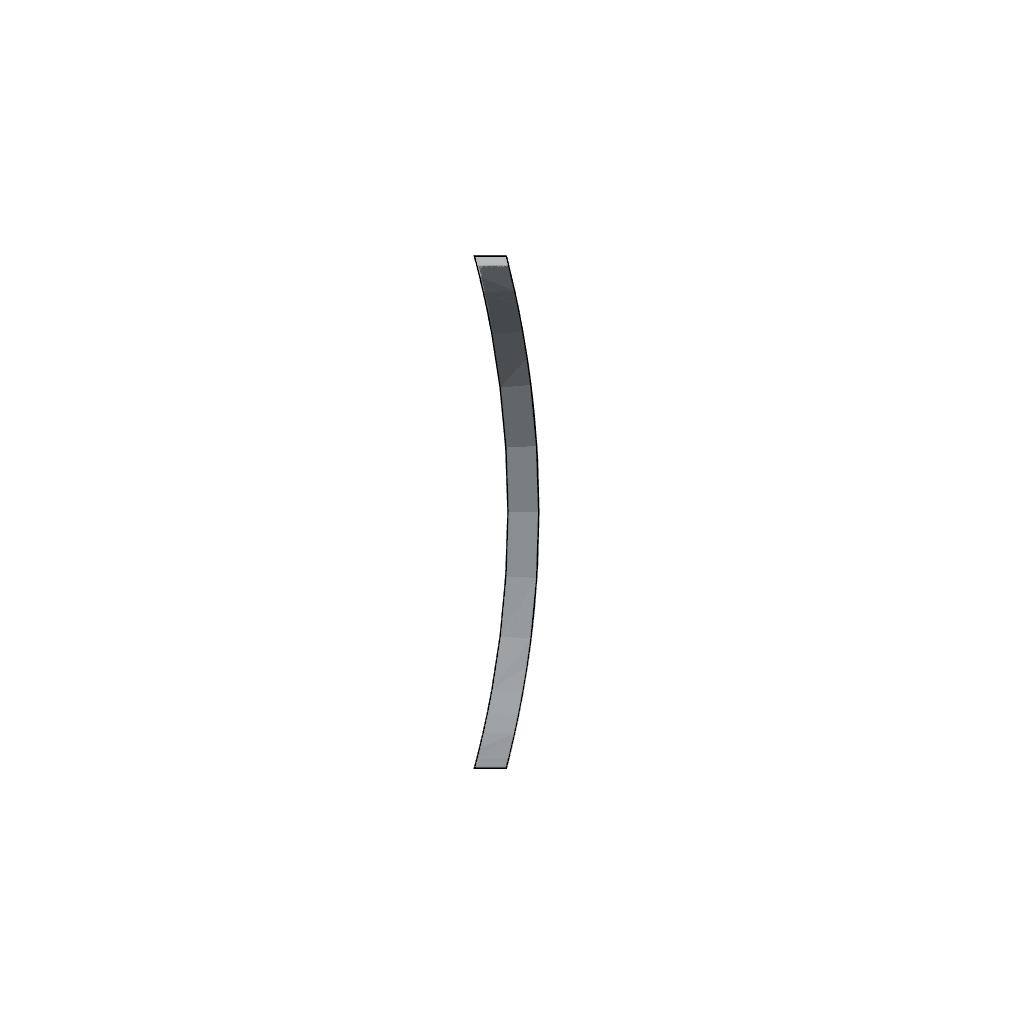

3638730
Spring Washer
Cummins®

The Cummins 3638730 Spring Washer is a specialized component designed for use in commercial truck maintenance. This washer plays a role in ensuring the integrity and reliability of bolted connections within truck systems. Understanding its purpose and functionality is key to maintaining the performance and safety of commercial vehicles.

Basic Concepts of Spring Washers

Spring washers, also known as lock washers, are mechanical devices used to prevent fastening elements, such as bolts and nuts, from loosening due to vibration or other dynamic forces. They function by exerting a spring force that keeps the fastener tightened, thereby enhancing the stability and security of the connection. Spring washers find applications across various mechanical systems, providing a simple yet effective solution to a common problem in fastening technology ¹.

Purpose of the Cummins 3638730 Spring Washer

This Cummins part is specifically designed to maintain bolt tension and prevent loosening in commercial truck applications. It achieves this by providing a constant spring force that counters the effects of vibration and dynamic loads, which are common in truck operations. This ensures that bolted connections remain secure, contributing to the overall reliability and safety of the vehicle ².

Key Features

This part is characterized by several distinctive features that enhance its performance. It is typically made from high-strength materials, ensuring durability under demanding conditions. The design of the washer includes a split or helical shape, which allows it to exert the necessary spring force. Additionally, it may feature unique attributes such as a corrosion-resistant coating, which extends its service life in harsh environments ³.

Benefits of Using Spring Washers

Incorporating spring washers like the Cummins 3638730 into truck assemblies offers several advantages. These include improved reliability of bolted connections, enhanced durability under dynamic loads, and reduced maintenance requirements. By preventing loosening, spring washers contribute to the longevity and performance of truck components, ultimately leading to cost savings and increased operational efficiency.

Installation Guidelines

Proper installation of this Cummins part is crucial for its effective performance. The installation process involves placing the washer under the bolt head or nut, ensuring it is correctly oriented to exert the spring force. It is important to follow manufacturer guidelines to avoid common pitfalls such as over-tightening or incorrect orientation, which can compromise the washer’s function.

Troubleshooting and Maintenance

Identifying issues related to spring washers, such as wear and tear or improper installation, is important for maintaining optimal performance. Regular inspections should be conducted to ensure the washers are functioning correctly. Maintenance procedures may include replacing worn washers and ensuring that all bolted connections are properly tightened. This proactive approach helps prevent unexpected failures and ensures the continued reliability of truck systems.

Common Applications

This part is typically used in various applications within commercial truck systems. These include securing engine components, transmission parts, and chassis elements. Its versatility and importance in maintaining secure bolted connections make it a vital component in the operation and maintenance of commercial vehicles.

Manufacturer Information - Cummins

Cummins is a renowned manufacturer in the automotive and heavy-duty truck industry, known for its commitment to quality and innovation. The company offers a wide range of products designed to enhance the performance, reliability, and efficiency of commercial vehicles. Cummins’ reputation is built on its dedication to producing high-quality components that meet the demanding requirements of the industry.

Spring Washer 3638730 in Cummins Engines

The Spring Washer 3638730, manufactured by Cummins, is a component in several of their engine models. This part is integral to the assembly and functionality of the engines, ensuring proper mechanical engagement and stability.

QSK60 CM850 MCRS and QSK95 CM2350 Engines

The Spring Washer 3638730 is utilized in both the QSK60 CM850 MCRS and the QSK95 CM2350 engines. In these engines, the spring washer plays a role in maintaining the integrity of connections between various components. Its design allows it to absorb vibrations and provide a consistent clamping force, which is essential for the longevity and reliability of the engine.

QSK95 CM2350 K111 and QSK95 CM2350 K113 Engines

Similarly, in the QSK95 CM2350 K111 and QSK95 CM2350 K113 engines, the Spring Washer 3638730 is employed to ensure that fasteners and connections are secure. This washer’s spring action helps in preventing loosening due to operational stresses and thermal cycling, thereby contributing to the overall performance and durability of the engine.

Each of these engines benefits from the precision engineering of the Spring Washer 3638730, which is designed to meet the stringent demands of high-performance industrial and marine engines.

Role of Part 3638730 Spring Washer in Engine Systems

In the context of engine systems, particularly those involving pumps and water circulation components, the 3638730 Spring Washer serves a significant function. When integrated into a Water Pump assembly, this spring washer is positioned between the pump housing and the impeller. Its primary role is to maintain consistent pressure and ensure a secure fit, which is essential for the efficient operation of the water pump.

Within a Water Pump Kit, the 3638730 Spring Washer is often included to facilitate the reassembly process post-maintenance or repair. It ensures that all components are correctly aligned and pressurized, which is vital for the pump’s performance. The spring washer helps in absorbing any minor misalignments or vibrations that may occur during the pump’s operation, thereby enhancing the longevity and reliability of the water pump.

Conclusion

In summary, the 3638730 Spring Washer is a component in maintaining the structural integrity and operational efficiency of water pumps and related kits. Its application ensures that the pump components remain securely in place, facilitating smooth and consistent water circulation throughout the engine system.
