5294162

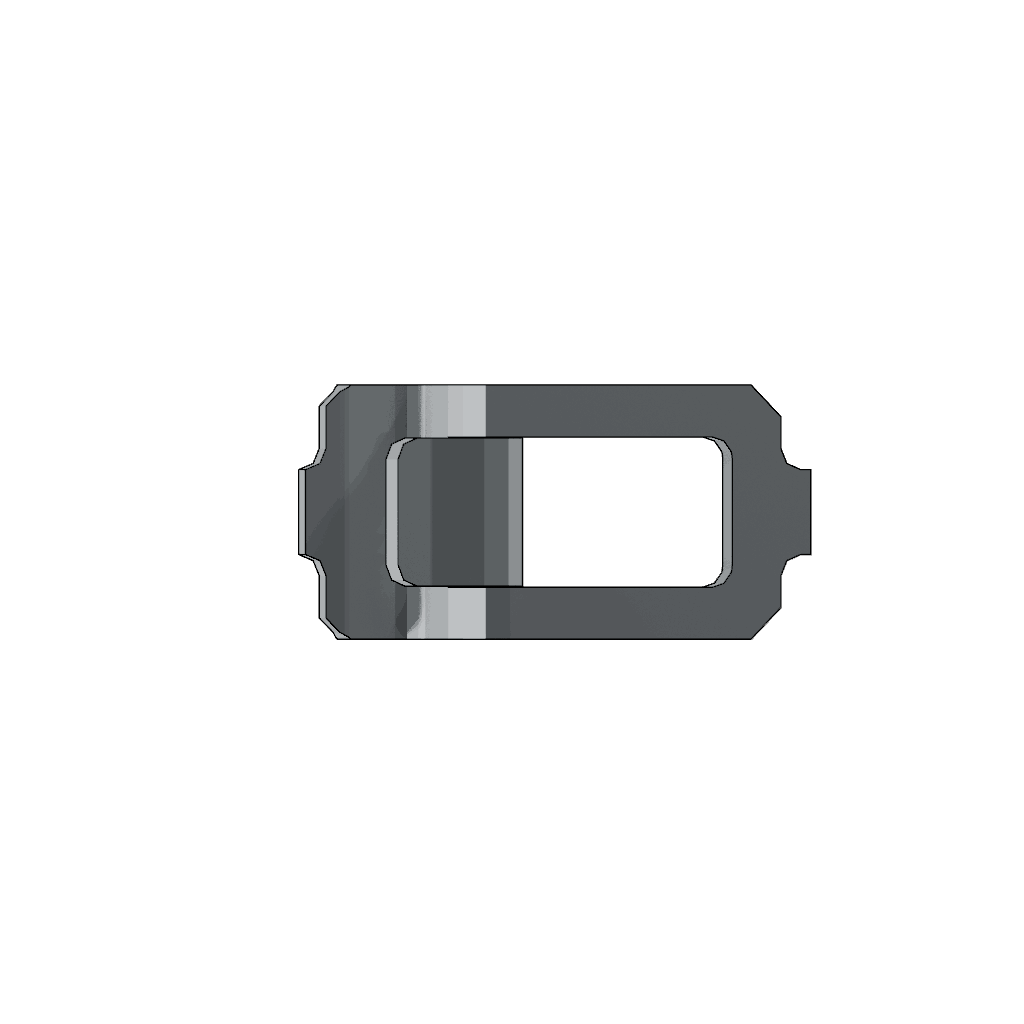

Spring Hose Clamp
Cummins®

The Spring Hose Clamp (Part #5294162) manufactured by Cummins is a vital component in the maintenance of commercial trucks. It ensures the integrity of hose connections across various systems, playing a role in the efficiency and safety of truck operations.

Basic Concepts and Functionality

A spring hose clamp is a device used to secure hoses to fittings, ensuring a tight and reliable connection. It operates on the principle of spring tension, which allows the clamp to exert consistent pressure on the hose, preventing leaks and disconnections. Typically, these clamps are constructed from materials such as stainless steel or spring steel, chosen for their durability, flexibility, and resistance to corrosion ¹.

Purpose and Role in Truck Operation

In commercial trucks, the Spring Hose Clamp serves to securely attach hoses within various systems, including fuel, coolant, and pneumatic systems. By maintaining a tight seal, it ensures that fluids and gases are efficiently transported without leakage, which is important for the operation and safety of the vehicle ².

Key Features

The Cummins Spring Hose Clamp is characterized by several key features that enhance its performance and durability. Its spring mechanism allows for easy adjustment to fit a range of hose sizes, while the adjustable band ensures a snug fit around the hose. Additionally, the use of corrosion-resistant materials prolongs the clamp’s lifespan, even in harsh operating environments ³.

Benefits

Utilizing the Cummins Spring Hose Clamp offers several advantages. It provides improved security for hose connections, reducing the risk of leaks. The design of the clamp also facilitates ease of installation and removal, making maintenance tasks more straightforward. Furthermore, its durable construction ensures long-term reliability, contributing to the overall efficiency of the truck’s systems.

Troubleshooting and Maintenance

Common issues with spring hose clamps may include leaks or corrosion. To address these problems, it is advisable to inspect the clamp regularly for signs of wear or damage. If corrosion is detected, cleaning the clamp and applying a protective coating can help. For leaks, ensuring the clamp is properly tightened and the hose is in good condition is crucial. Regular maintenance, including checking for proper fit and tension, can help ensure the clamp’s optimal performance and longevity.

Installation Guidelines

Proper installation of the Spring Hose Clamp is vital for system integrity. Begin by preparing the hose and clamp, ensuring both are clean and free of debris. Position the clamp around the hose and fitting, then use the appropriate tool to tighten it until a secure fit is achieved. It is important to avoid over-tightening, as this can damage the hose. Correct installation ensures that the clamp functions as intended, providing a secure and leak-free connection.

Cummins Overview

Cummins Inc. is a global leader in the design, manufacture, and distribution of engines and related technologies. With a history of innovation and a commitment to quality, Cummins has established a reputation for excellence in the automotive and heavy-duty truck industry. The company’s dedication to producing reliable and efficient components is evident in its wide range of products, including the Spring Hose Clamp.

Cummins Engine Compatibility with Spring Hose Clamp Part 5294162

The Spring Hose Clamp part number 5294162, manufactured by Cummins, is a versatile component designed to fit a variety of Cummins engines. This part is essential for securing hoses and ensuring a tight seal, which is crucial for maintaining engine performance and preventing leaks.

B4.5 CM2350 Series

The Spring Hose Clamp part 5294162 is compatible with the B4.5 CM2350 engines, including the B129B and B104 variants. These engines are known for their reliability and efficiency, making them suitable for various applications. The clamp ensures that hoses remain securely attached, which is vital for the proper functioning of these engines.

ISF2.8 CM2220 Series

For the ISF2.8 CM2220 engines, the part 5294162 fits the F117, F129, and F103 variants. These engines are designed for heavy-duty applications and require robust components to maintain performance under demanding conditions. The spring hose clamp provides the necessary grip to keep hoses in place, ensuring optimal engine operation.

ISF3.8 CM2220 Series

The ISF3.8 CM2220 F103 engine also benefits from the use of the Spring Hose Clamp part 5294162. This engine is engineered for high-performance applications, and the clamp’s secure fit is essential for maintaining the integrity of the engine’s hose connections.

QSF2.8 CM2880 Series

The QSF2.8 CM2880 engines, including the F105 and F114 variants, are compatible with the Spring Hose Clamp part 5294162. These engines are designed for demanding industrial applications, and the clamp’s reliable performance is crucial for ensuring the engine’s hoses remain securely attached.

R2.8 CM2220 Series

The R2.8 CM2220 R101B engine is another application for the Spring Hose Clamp part 5294162. This engine is known for its durability and efficiency, and the clamp’s secure fit helps maintain the engine’s performance by preventing hose leaks.

X12N CMMDG1 Series

Lastly, the X12N CMMDG1 X143B engine is also compatible with the Spring Hose Clamp part 5294162. This engine is designed for specific applications that require high performance and reliability, and the clamp’s secure fit is essential for maintaining the engine’s hose connections.

Role of Part 5294162 Spring Hose Clamp in Engine Systems

The part 5294162 Spring Hose Clamp is instrumental in ensuring secure and reliable connections within various engine systems. Its application spans across multiple components, enhancing the overall efficiency and safety of the engine operation.

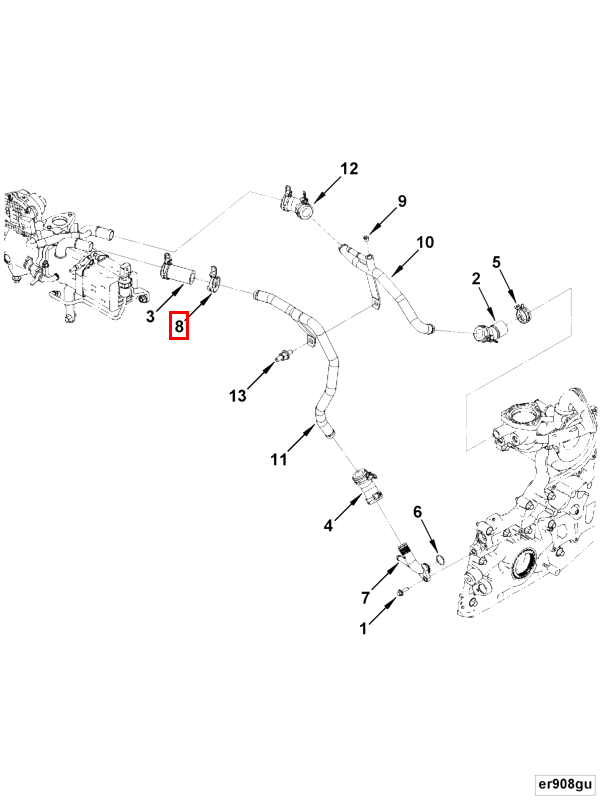

Exhaust Cooler Water Inlet Tube

In the exhaust cooler water inlet tube system, the Spring Hose Clamp is used to maintain a tight seal between the tube and the connecting hoses. This ensures that the water flow is consistent and unimpeded, which is essential for cooling the exhaust gases effectively. The clamp’s ability to provide a robust connection helps prevent leaks, which could otherwise lead to inefficient cooling and potential engine damage.

Exhaust Gas Recirculation (EGR) Module

Within the EGR module, the Spring Hose Clamp plays a significant role in securing the connections between the molded hoses and the module itself. This is vital for the recirculation of exhaust gases back into the intake manifold, which helps in reducing nitrogen oxides (NOx) emissions. A secure connection ensures that the recirculated gases are metered accurately, contributing to better emission control and engine performance.

Plumbing and Exhaust Recirculation Water

In the plumbing systems associated with exhaust recirculation water, the Spring Hose Clamp is employed to ensure that the water lines remain intact under varying pressure conditions. This is particularly important in systems where water is used to cool the recirculated exhaust gases before they enter the intake manifold. The clamp’s design allows it to adapt to the hose’s diameter, providing a leak-proof seal that withstands the dynamic environment of the engine compartment.

Oil Cooler Water Plumbing

The oil cooler water plumbing system benefits from the Spring Hose Clamp by ensuring that the connections between the water lines and the oil cooler remain secure. This is essential for maintaining the optimal temperature of the engine oil, which directly impacts the lubrication and overall health of the engine components. The clamp’s reliability in high-temperature environments makes it an ideal choice for this application.

Conclusion

The part 5294162 Spring Hose Clamp is a versatile component that enhances the functionality and reliability of various engine systems by providing secure and durable connections. Its role in maintaining the integrity of hose connections across different systems is crucial for the efficient and safe operation of commercial trucks.
