5296283
Spring Hose Clamp
Cummins®

Introduction

The Spring Hose Clamp 5296283, manufactured by Cummins, is designed for use in commercial trucks. It ensures the integrity of hose connections, facilitating the smooth operation of various fluid systems within the truck ².

Basic Concepts of Spring Hose Clamps

Spring hose clamps are mechanical devices used to secure hoses to fittings. They consist of a metal band with a built-in spring that provides constant tension, ensuring a tight seal around the hose. These clamps are essential for maintaining the efficiency of fluid transfer systems, including coolant, fuel, and hydraulic lines ¹.

Purpose of the 5296283 Spring Hose Clamp in Truck Operation

The 5296283 Spring Hose Clamp secures hoses and ensures proper fluid flow in trucks. It is designed to withstand vibrations and harsh conditions typical of commercial truck environments. By maintaining a secure connection, the clamp helps prevent leaks and ensures efficient operation of fluid systems ².

Key Features

The 5296283 Spring Hose Clamp is constructed from high-quality materials, ensuring durability and resistance to corrosion. Its design includes a stainless steel band, which provides strength and flexibility, and a spring mechanism that offers consistent clamping force. This clamp features ease of installation with a screwdriver slot for precise adjustment and can accommodate a range of hose diameters ².

Benefits of Using the 5296283 Spring Hose Clamp

Utilizing the 5296283 Spring Hose Clamp offers several advantages. Its reliable construction ensures long-term performance, reducing the need for frequent replacements. The clamp’s durability is enhanced by its corrosion-resistant materials, which are particularly beneficial in environments where exposure to moisture and chemicals is common. Additionally, the ease of installation simplifies maintenance tasks, allowing for quick adjustments or replacements when necessary ².

Installation Process

Installing the 5296283 Spring Hose Clamp involves aligning the hose with the fitting, positioning the clamp around the hose and fitting, and tightening it with a screwdriver until the desired tension is achieved. It is important to avoid over-tightening, which can damage the hose or fitting. Following these steps ensures that the clamp provides a reliable seal ².

Troubleshooting Common Issues

Common issues with spring hose clamps may include leaks or improper clamping. If a leak is detected, ensure that the clamp is properly tightened. If the problem persists, inspect the clamp or hose for damage. In cases of improper clamping, check the alignment of the hose and fitting, as well as the condition of the clamp. Replacing damaged components is often the solution to these problems ².

Maintenance Tips

To ensure the long-term performance of the 5296283 Spring Hose Clamp, regular maintenance is recommended. This includes periodic inspections for signs of wear or corrosion, especially in areas exposed to harsh conditions. If any damage is detected, replace the clamp to prevent potential leaks or failures. Additionally, ensure that the clamp remains properly tightened during routine checks to maintain the integrity of the hose connections ².

Cummins: A Brief Overview

Cummins is a renowned manufacturer in the automotive and heavy-duty truck industry, known for its commitment to quality and innovation. With a rich history of producing reliable and high-performance components, Cummins has established a strong reputation among professionals and enthusiasts alike. Their dedication to advancing technology and meeting the demanding needs of commercial applications underscores their position as a leader in the industry ².

Spring Hose Clamp 5296283 Compatibility with Cummins Engines

The Spring Hose Clamp part number 5296283, manufactured by Cummins, is designed to fit a variety of their engine models. This clamp is essential for securing hoses in various applications, ensuring a tight and reliable connection. Here is an overview of its compatibility with specific Cummins engine series:

F4.5 CM2620 F141C, ISB4.5 CM2350 B104, ISF3.8 CM2220 F103

The Spring Hose Clamp 5296283 is suitable for use with the following engines:

• F4.5 CM2620 F141C
• ISB4.5 CM2350 B104
• ISF3.8 CM2220 F103

These engines are part of the Cummins lineup and are known for their reliability and performance in various applications. The clamp ensures that hoses remain securely fastened, preventing leaks and maintaining system integrity ².

QSF2.8 CM2880 F105, QSF2.8 CM2880 F114, QSF3.8 CM2350 F107

The Spring Hose Clamp 5296283 also fits the following engines:

• QSF2.8 CM2880 F105
• QSF2.8 CM2880 F114
• QSF3.8 CM2350 F107

These engines are designed for specific applications, often requiring robust and reliable hose connections. The clamp provides the necessary tension to keep hoses in place, ensuring optimal performance and safety ².

By using the Spring Hose Clamp 5296283, technicians and operators can ensure that their Cummins engines maintain secure and efficient hose connections, contributing to the overall reliability and longevity of the equipment ².

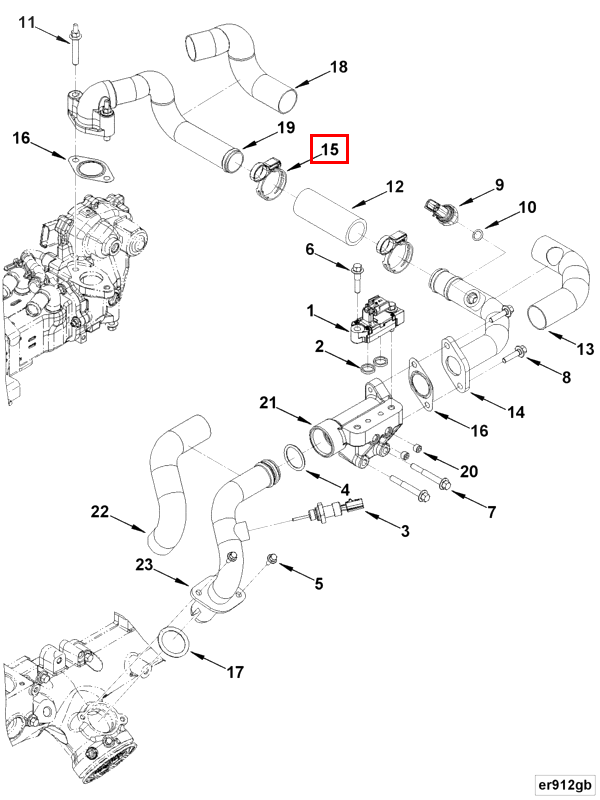

Role of Part 5296283 Spring Hose Clamp in Plumbing and Exhaust Recirculation Air Systems

In engine systems, the 5296283 Spring Hose Clamp is instrumental in ensuring the integrity and efficiency of various components. Specifically, within plumbing and exhaust recirculation air (ERA) systems, this clamp plays a significant role.

Plumbing Systems

In plumbing systems, the 5296283 Spring Hose Clamp is utilized to secure hoses that transport fluids such as coolant, fuel, or hydraulic fluid. Its primary function is to create a tight, leak-proof seal between the hose and the fitting. This ensures that the fluid flow remains consistent and unimpeded, which is essential for the proper operation of the engine. The clamp’s design allows for easy installation and removal, facilitating maintenance and repairs without the need for specialized tools ².

Exhaust Recirculation Air (ERA) Systems

In ERA systems, the 5296283 Spring Hose Clamp is employed to maintain the seal on hoses that recirculate exhaust gases back into the intake manifold. This process helps reduce nitrogen oxide emissions and improve fuel efficiency. The clamp ensures that the hose connections remain secure under varying temperatures and pressures, which are common in exhaust systems. Its resilience to heat and corrosion further enhances its suitability for this application ².

By securing hoses in both plumbing and ERA systems, the 5296283 Spring Hose Clamp contributes to the overall reliability and performance of the engine, ensuring that fluid and gas flows are managed effectively ².

Conclusion

The 5296283 Spring Hose Clamp by Cummins is a vital component in maintaining the integrity and efficiency of hose connections in commercial trucks. Its high-quality construction, ease of installation, and compatibility with various Cummins engine models make it an essential part for ensuring reliable fluid and gas flow in both plumbing and ERA systems. Regular maintenance and proper installation are key to maximizing the performance and longevity of this clamp ².
