3000528
Spring Nut
Cummins®

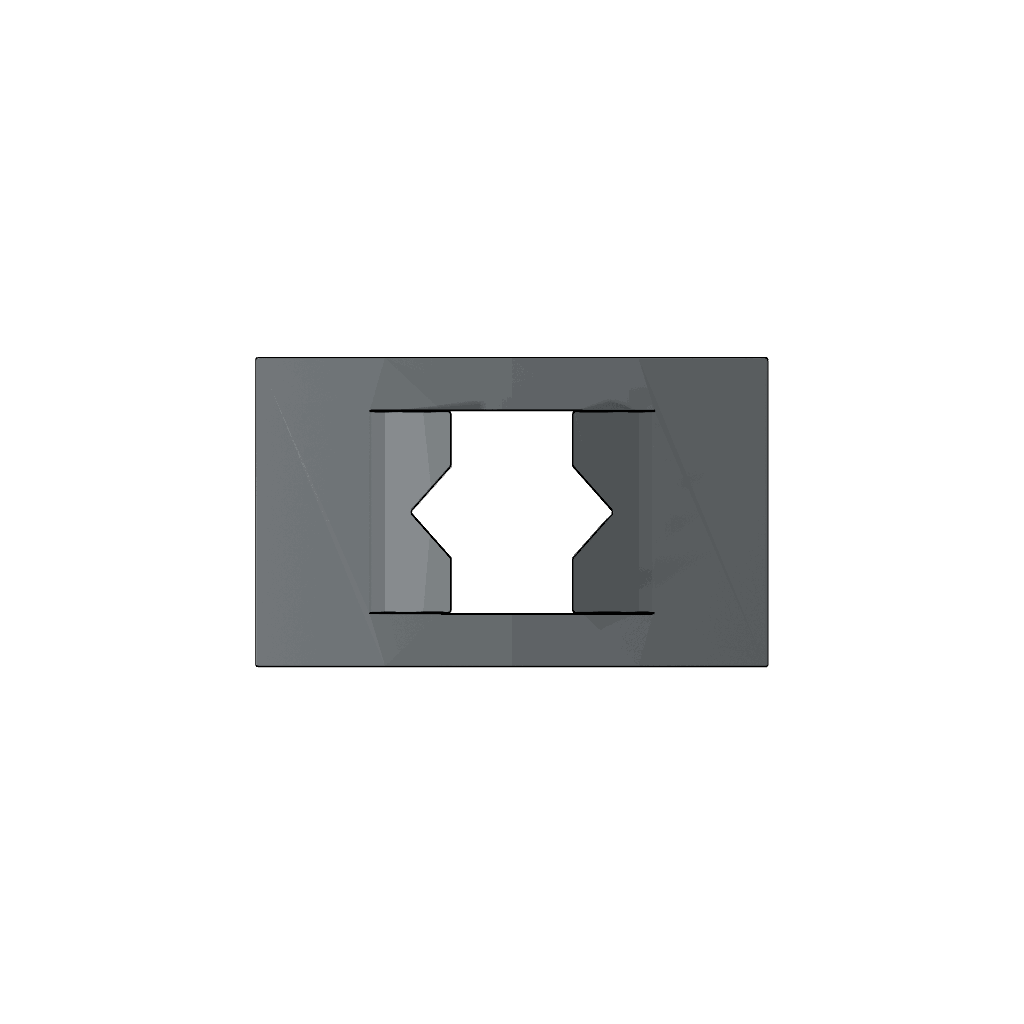

The Cummins 3000528 Spring Nut is a specialized fastener designed for use in commercial trucks. Its primary role is to secure components within the truck’s engine and chassis systems, ensuring stability and reliability under various operating conditions.

Basic Concepts of Spring Nuts

Spring nuts, also known as self-locking nuts, are designed with an integrated spring feature that provides a locking mechanism. This mechanism prevents the nut from loosening due to vibrations or other dynamic forces commonly encountered in mechanical systems. Spring nuts are widely used in applications where consistent tension and secure fastening are required ¹.

Purpose of the 3000528 Spring Nut

This Cummins part plays a role in the operation of a truck by providing a reliable fastening solution for critical components. It is particularly important in applications where vibrations are prevalent, such as in the engine compartment or on the chassis. By maintaining a secure connection, the spring nut helps ensure the integrity and performance of the truck’s mechanical systems.

Key Features

The 3000528 Spring Nut is constructed from high-strength materials, typically steel, to withstand the rigors of commercial truck operations. Its design includes a spring element that locks into the threads of a bolt, providing additional resistance to loosening. This nut also features a hexagonal shape for easy installation and removal using standard tools.

Benefits

Using the 3000528 Spring Nut offers several advantages. Its self-locking feature enhances the security of fastened components, reducing the risk of loosening over time. This can lead to improved performance and durability of the truck’s mechanical systems. Additionally, the robust construction of the spring nut contributes to its longevity, potentially offering cost-effectiveness compared to standard nuts that may require more frequent replacement or re-tightening ².

Installation Process

To install the 3000528 Spring Nut, begin by ensuring the mating threads are clean and free of debris. Use a socket wrench to screw the nut onto the bolt until it reaches the desired tension. It is important to avoid over-tightening, as this can damage the threads or the component being fastened. Following the manufacturer’s torque specifications ensures a secure yet safe installation.

Troubleshooting and Maintenance

Common issues with spring nuts include corrosion and wear, which can compromise their locking mechanism. Regular inspection for signs of damage or loosening is recommended. Maintenance tips include keeping the threads clean and applying an appropriate thread locker if additional security is required. Replacing worn or damaged spring nuts promptly helps maintain the reliability of the truck’s fastening systems ³.

Compatibility and Applications

The 3000528 Spring Nut is designed for use in specific models of commercial trucks, particularly those manufactured by Cummins. It is commonly applied in engine and chassis components where secure fastening is critical. Compatibility with other components should be verified to ensure proper function and safety.

Safety Considerations

When installing or maintaining the 3000528 Spring Nut, it is important to follow safety guidelines. This includes wearing appropriate personal protective equipment, such as gloves and safety glasses, to prevent injury. Ensuring the work area is clean and free of hazards also contributes to a safe working environment for mechanics and truck operators.

Cummins Corporation Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a strong reputation in the commercial truck industry, Cummins is known for its innovative solutions and commitment to quality. The company’s product range includes a variety of components designed to enhance the performance, efficiency, and reliability of commercial vehicles.

Cummins Spring Nut 3000528 in Engine Applications

The Cummins Spring Nut 3000528 is a critical component utilized across various Cummins engine models, ensuring the secure fastening of springs and other mechanical elements. This part is integral to the operational integrity of the engines, maintaining the necessary tension and alignment of components.

K19 Engines

In the K19 engine series, the Spring Nut 3000528 is employed to secure the valve springs. This ensures that the valves operate smoothly and efficiently, preventing any potential valve float or failure. The precision of this component is crucial in maintaining the high performance and reliability expected from Cummins engines.

QSK19 Engines

For the QSK19 engines, the Spring Nut 3000528 plays a similar role, securing the valve springs. Given the robust nature of these engines, the Spring Nut must withstand significant stress and pressure, ensuring that the engine can operate under demanding conditions without failure.

CM500 Engines

In the CM500 engine series, the Spring Nut 3000528 is used to maintain the tension of various internal components. This engine, known for its versatility and power, relies on the Spring Nut to ensure that all parts are correctly aligned and secured, contributing to the engine’s overall efficiency and longevity.

Grouping of Engines

The Spring Nut 3000528 is a versatile component that finds application across different Cummins engine models, including the K19, QSK19, and CM500 series. Its role in securing valve springs and other components is critical in maintaining the operational integrity of these engines. The consistent use of this part across various models highlights its importance in the Cummins engine ecosystem.

Role of Part 3000528 Spring Nut in Engine Systems

This part is integral to the secure assembly and operation of various engine components. It ensures that the components remain firmly in place, allowing the engine to function smoothly and efficiently.

In the arrangement of the engine, the Spring Nut plays a key role in maintaining the structural integrity of the assembly. It is used to fasten components together, ensuring that they do not shift or become misaligned during operation.

For the crankcase breather system, the Spring Nut is employed to secure the breather components to the crankcase. This helps in managing the pressure within the crankcase by allowing gases to escape, thus preventing buildup that could lead to engine damage.

In the breather and valve cover assembly, the Spring Nut is utilized to attach the valve cover to the engine block. This ensures a sealed environment, preventing oil leaks and maintaining the proper lubrication of engine components.

When retrofitting with a CCV (Crankcase Ventilation) system retrofit kit, the Spring Nut is essential for attaching the new components to the existing engine structure. This upgrade helps in reducing emissions and improving engine performance by efficiently managing crankcase gases.

In the rocker arm housing cover and rocker cover assembly, the Spring Nut secures the cover to the engine, protecting the rocker arms and other internal components from debris and contaminants.

For the PDC (Positive Deck Clearance) system, the Spring Nut is used to fasten the PDC components, ensuring that the deck surface remains clear of interference, which is vital for the proper functioning of the engine.

Overall, the part 3000528 Spring Nut is a fundamental component in the secure attachment and efficient operation of various engine systems, contributing to the overall reliability and performance of the engine.

Conclusion

The Cummins 3000528 Spring Nut is a vital component in the maintenance and operation of commercial truck engines. Its design and features ensure secure fastening of critical components, contributing to the overall performance and reliability of the vehicle. Proper installation, maintenance, and understanding of its applications are essential for maximizing the benefits of this part.
