4955196
hx35 wastega Turbocharger
Cummins®

The HX35 Wastegate Turbocharger, manufactured by Cummins, is a significant component in the commercial trucking industry. This turbocharger is designed to enhance engine performance, providing increased power and efficiency for heavy-duty applications. Cummins, a well-established name in engine manufacturing, has developed the HX35 to meet the demanding requirements of commercial trucking, ensuring reliable and robust performance under various operating conditions ¹.

Basic Concepts of Turbocharging

Turbocharging technology involves using exhaust gases to drive a turbine, which in turn compresses intake air before it enters the engine. This process increases the density of the air, allowing more oxygen to enter the combustion chamber. As a result, the engine can burn more fuel per cycle, leading to enhanced performance. The HX35 Wastegate Turbocharger plays a role in this process by regulating the boost pressure, ensuring optimal engine performance and protection ².

Purpose and Role in Truck Operation

The HX35 Wastegate Turbocharger is integral to a truck’s engine system, primarily by increasing power output and efficiency. It achieves this by compressing the intake air, which results in more efficient combustion and greater power. The wastegate, a key component of the HX35, manages the turbocharger’s boost pressure, preventing it from exceeding safe levels and ensuring the engine operates within its designed parameters ³.

Key Features

The HX35 Wastegate Turbocharger boasts several features that enhance its performance and durability. Its wastegate design allows for precise control of boost pressure, ensuring the engine operates efficiently under various conditions. The turbocharger is constructed from high-quality materials, providing resistance to heat and wear. Additionally, its engineering specifications are tailored to meet the rigorous demands of commercial trucking, ensuring long-lasting performance ⁴.

Benefits of Using HX35 Wastegate Turbocharger

Incorporating the HX35 Wastegate Turbocharger into commercial trucks offers several advantages. It contributes to improved fuel efficiency by optimizing the combustion process, allowing engines to operate more efficiently. The enhanced power output provided by the turbocharger enables trucks to handle heavier loads and achieve better performance. Furthermore, the reliability of the HX35 ensures that trucks can maintain high levels of operation with reduced downtime ¹.

Installation and Integration

Proper installation and integration of the HX35 Wastegate Turbocharger within a truck’s engine system are crucial for optimal performance. Compatibility considerations should be taken into account to ensure the turbocharger works seamlessly with the engine. Necessary modifications may be required to accommodate the turbocharger, including adjustments to the intake and exhaust systems. Following manufacturer guidelines during installation will help achieve the best results ².

Maintenance and Troubleshooting

Regular maintenance of the HX35 Wastegate Turbocharger is essential to ensure optimal performance. This includes routine inspections to check for signs of wear or damage, such as leaks or unusual noises. Common issues may arise from improper installation or lack of maintenance, leading to reduced efficiency or failure. Troubleshooting tips include verifying the wastegate’s operation and ensuring the turbocharger is securely mounted and properly lubricated ³.

Performance Enhancements

The HX35 Wastegate Turbocharger can be part of a broader strategy for performance enhancements in commercial trucks. Tuning the engine to work in harmony with the turbocharger can unlock additional power and efficiency gains. Upgrades to the fuel system or intercooler can further complement the turbocharger’s capabilities, allowing for even greater performance improvements ⁴.

Cummins: A Brief Overview

Cummins Inc. is a leading manufacturer in the commercial trucking and engine industry, with a rich history of innovation and quality. The company offers a wide range of products, including engines, filtration systems, and turbochargers, designed to meet the needs of various industries. Cummins’ reputation for reliability and performance has made it a preferred choice for commercial trucking applications, ensuring that their products, like the HX35 Wastegate Turbocharger, deliver exceptional value and durability ¹.

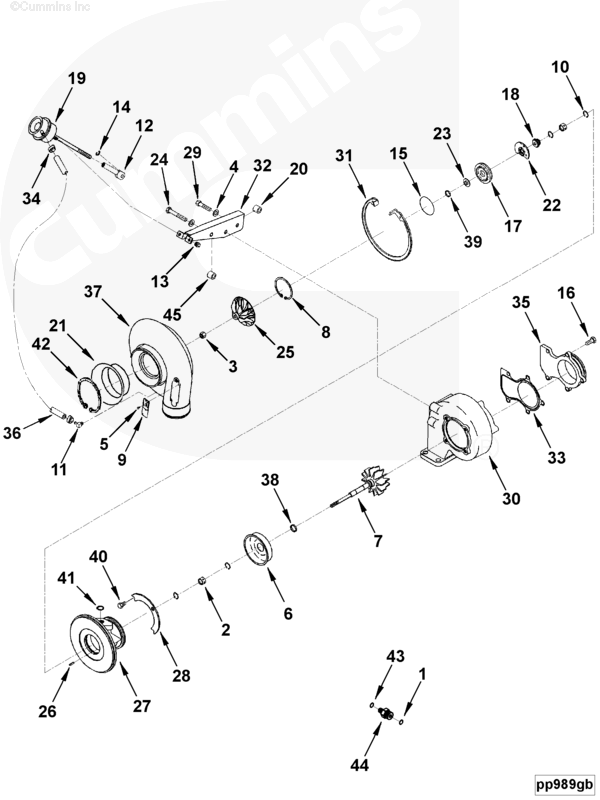

Components of Cummins 4955196 HX35 Wastegate Turbocharger Kit

Turbocharger Gasket Kit (4032547)

The Turbocharger Gasket Kit is an essential component of the 4955196 HX35 Wastegate Turbocharger kit. This kit includes various gaskets that are critical for sealing different parts of the turbocharger to the engine. Proper sealing is vital to ensure that the turbocharger operates efficiently by preventing air leaks, which can reduce performance and lead to increased wear on the turbocharger components. The gaskets included in this kit are specifically designed to fit the HX35 turbocharger model, ensuring a precise fit and optimal performance ².

Turbocharger (4043247)

The Turbocharger itself (4043247) is the core component of the 4955196 kit. This part is responsible for increasing the efficiency and power output of the engine by compressing the intake air before it enters the combustion chamber. The HX35 model is known for its robust construction and high-performance capabilities, making it a popular choice for both stock and performance applications. The turbocharger includes the compressor wheel, turbine wheel, and the center housing, all of which work together to boost engine performance ³.

Wastegate Actuator

Though not explicitly listed, the wastegate actuator is a critical component in the 4955196 HX35 Wastegate Turbocharger kit. The wastegate actuator controls the wastegate valve, which regulates the amount of exhaust gas that bypasses the turbine. This regulation is essential for maintaining safe boost levels and preventing over-boosting, which can damage the engine. The actuator responds to signals from the engine control unit (ECU) to open or close the wastegate, ensuring that the turbocharger operates within safe parameters ⁴.

Turbocharger Mounts

Turbocharger mounts, although not individually listed, are included in the kit to secure the turbocharger to the engine. These mounts are designed to absorb vibrations and reduce stress on the turbocharger and engine components. Proper mounting is crucial for the longevity and performance of the turbocharger, as it ensures that the unit remains stable during operation ¹.

Turbocharger Hoses and Clamps

The kit also includes turbocharger hoses and clamps, which are necessary for connecting the turbocharger to the intake and exhaust systems. These hoses must be heat-resistant and durable to withstand the high temperatures and pressures involved in turbocharger operation. The clamps ensure a secure connection, preventing leaks and maintaining efficient airflow ².

Oil Feed and Return Lines

Oil feed and return lines are critical for lubricating the turbocharger’s moving parts. These lines ensure that the turbocharger receives a consistent supply of oil, which is essential for reducing friction and wear. Proper lubrication is vital for the turbocharger’s longevity and performance, making these lines a key component of the kit ³.

Turbocharger Heat Shield

A turbocharger heat shield is often included in the kit to protect nearby engine components from the high temperatures generated by the turbocharger. This shield helps to manage heat distribution and prevent damage to sensitive parts, ensuring the overall reliability and safety of the engine setup ⁴.

Conclusion

The HX35 Wastegate Turbocharger by Cummins is a robust and efficient component designed to enhance the performance and efficiency of commercial trucks. Its integration into a truck’s engine system offers significant benefits, including improved fuel efficiency, enhanced power output, and reliable operation. Proper installation, maintenance, and understanding of its components are crucial for maximizing the performance and longevity of this Cummins part. With its high-quality construction and precise engineering, the HX35 continues to be a preferred choice for demanding commercial trucking applications.
