3417558
Valve Stem Guide
Cummins®

Introduction

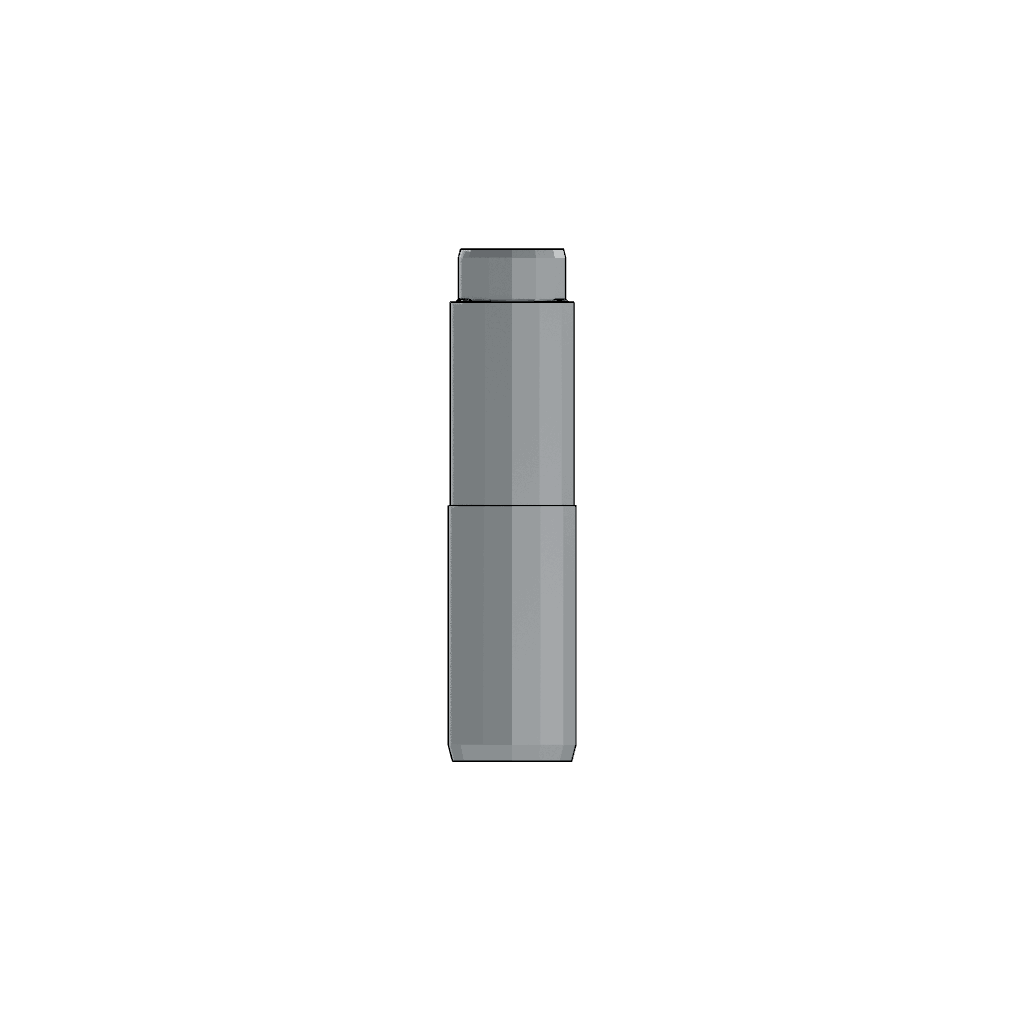

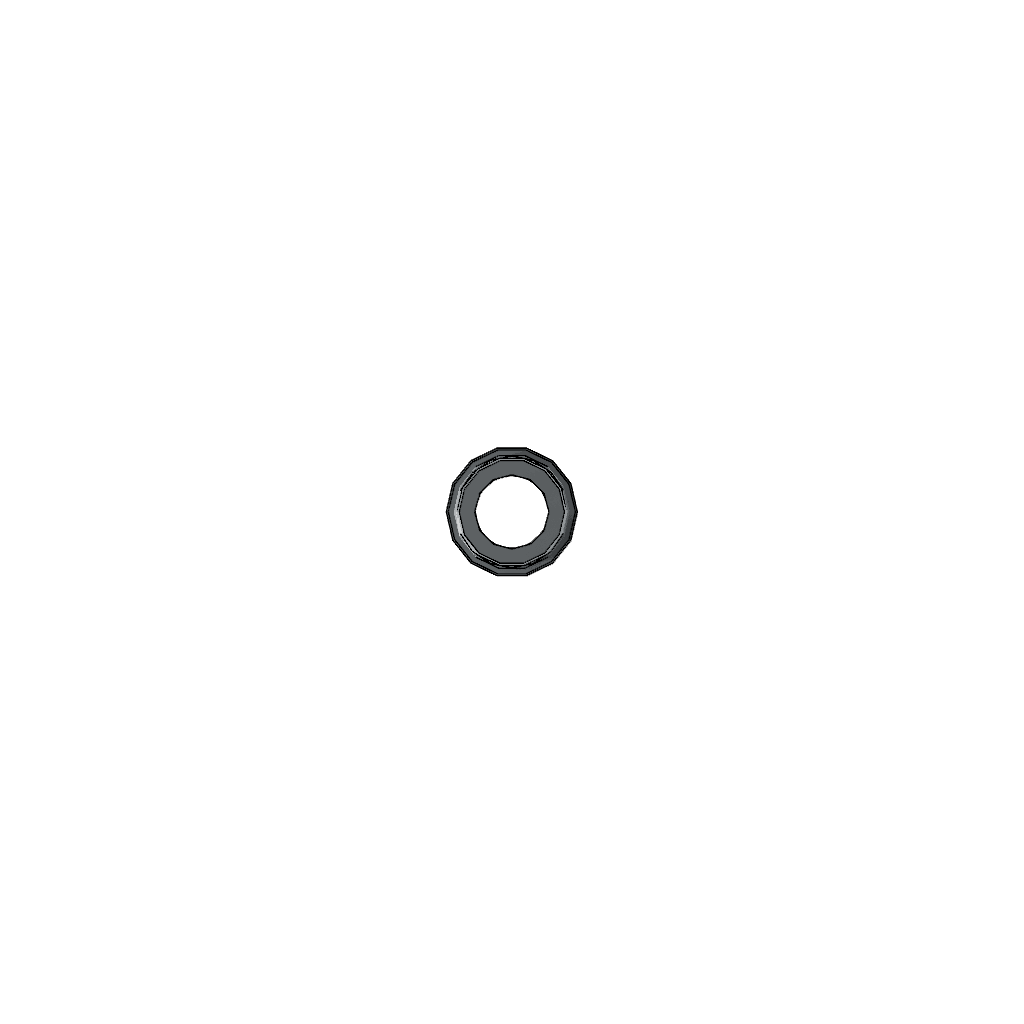

The Valve Stem Guide 3417558, produced by Cummins, is designed for use in heavy-duty truck engines. It facilitates the smooth operation of the engine’s valve mechanism by providing a precise pathway for the valve stem, contributing to the engine’s performance and longevity.

Basic Concepts of Valve Stem Guides

A Valve Stem Guide is a cylindrical component that supports and directs the movement of the valve stem within the engine. It maintains the alignment and stability of the valve as it opens and closes, which is essential for proper sealing against the cylinder head and optimal combustion efficiency. The guide also aids in dissipating heat away from the valve stem, enhancing engine performance and durability ¹.

Purpose of the 3417558 Valve Stem Guide

The 3417558 Valve Stem Guide is engineered to enhance the operation of the engine’s valve system. It provides a low-friction path for the valve stem, ensuring precise timing and operation of the valve. This contributes to engine efficiency by maintaining correct valve intervals, which is important for engine performance and fuel efficiency. Additionally, it reduces wear on the valve and seat, leading to a longer engine lifespan ².

Key Features

The 3417558 Valve Stem Guide is characterized by its high-quality material composition, typically made from durable metals or composites that can withstand high temperatures and pressures within an engine. Its design includes precise dimensions to ensure a snug fit within the cylinder head, minimizing the risk of valve misalignment. The guide may feature a coated surface to reduce friction or enhanced heat dissipation properties, further enhancing its performance ³.

Benefits

The use of the 3417558 Valve Stem Guide offers several benefits, including improved engine performance due to its role in maintaining precise valve operation. Its durable construction contributes to the engine’s reliability and longevity, reducing the likelihood of valve-related issues. Furthermore, by ensuring efficient valve operation, this guide plays a part in enhancing fuel efficiency and reducing emissions, aligning with the goals of modern heavy-duty truck engines ⁴.

Installation Process

Installing the 3417558 Valve Stem Guide requires careful attention to detail to ensure proper placement and function. The process involves cleaning the cylinder head to remove any debris, followed by the insertion of the guide into its designated location. It is important to use the correct tools to avoid damaging the guide or the cylinder head. Once installed, the guide should be checked for proper alignment and fit to ensure optimal performance.

Common Issues and Troubleshooting

Common problems associated with Valve Stem Guides include wear, misalignment, and damage due to high temperatures or debris. These issues can lead to poor valve operation, reduced engine performance, and increased wear on engine components. Troubleshooting steps may involve inspecting the guide for signs of wear or damage, cleaning the cylinder head to remove debris, and ensuring the guide is properly aligned and fitted. In some cases, replacement of the guide may be necessary to restore engine performance.

Maintenance Tips

To ensure the longevity and optimal performance of the 3417558 Valve Stem Guide, regular maintenance is recommended. This includes periodic inspection for signs of wear or damage, cleaning the cylinder head to prevent debris accumulation, and ensuring the guide remains properly aligned. Following the manufacturer’s guidelines for maintenance and inspection intervals can help in identifying potential issues early, allowing for timely repairs or replacements.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins has established a reputation for quality, reliability, and innovation in the commercial truck industry. Its product range includes a variety of engines and components designed to meet the demanding requirements of heavy-duty applications, ensuring optimal performance, efficiency, and durability.

Conclusion

The 3417558 Valve Stem Guide by Cummins plays a significant role in the efficient and reliable operation of heavy-duty truck engines. Its design and features contribute to enhanced engine performance, fuel efficiency, and longevity. Regular maintenance and proper installation are crucial for maximizing the benefits of this Cummins part.
