3943297
Water Outlet Connection
Cummins®

Introduction

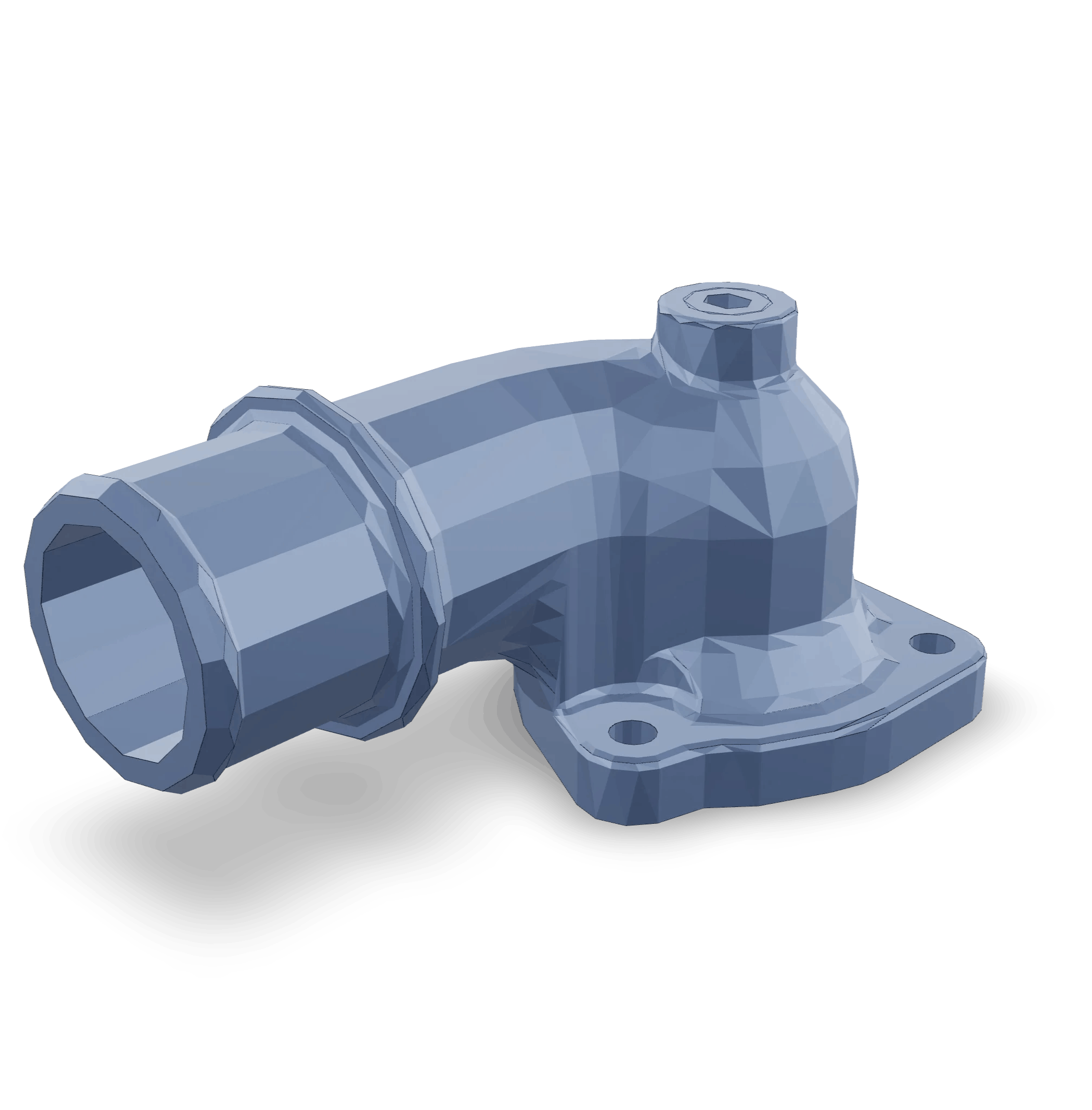

The Cummins 3943297 Water Outlet Connection is a critical component in commercial truck engine cooling systems. It facilitates the efficient transfer of coolant from the engine to the radiator, ensuring optimal engine temperature during operation. This part is essential for maintaining engine performance and longevity in commercial trucks, where reliable cooling systems are paramount.

Basic Concepts of Water Outlet Connection

Water outlet connections in engine cooling systems direct coolant flow from the engine to the radiator. These connections are vital for maintaining the engine’s operating temperature within a specified range, which is crucial for engine efficiency and durability. The coolant absorbs heat from the engine and transfers it to the radiator, where it is dissipated into the air. The effectiveness of this process is influenced by the design and condition of the water outlet connection ¹.

Purpose of the Cummins 3943297 Water Outlet Connection

The Cummins 3943297 Water Outlet Connection provides a secure and efficient pathway for coolant to exit the engine and enter the radiator. It ensures unobstructed coolant flow and a sealed connection to prevent leaks. Proper coolant circulation is vital for dissipating heat generated by the engine, thereby protecting engine components from overheating ².

Key Features

The Cummins 3943297 Water Outlet Connection is characterized by its robust design and durable materials. It is typically made from materials that can withstand high temperatures and pressures present in engine cooling systems. The design may include reinforced seals and precision-machined surfaces to ensure a tight fit and efficient coolant flow. These characteristics contribute to the part’s performance and reliability in demanding commercial truck applications.

Benefits

The Cummins 3943297 Water Outlet Connection offers improved coolant flow, enhancing the engine’s cooling efficiency. This leads to better engine performance and reduced risk of overheating. Additionally, the design of this part contributes to enhanced engine protection by ensuring effective coolant circulation throughout the engine. Increased reliability is another benefit, as a well-designed water outlet connection can reduce the likelihood of coolant leaks and associated engine damage.

Installation Process

Installing the Cummins 3943297 Water Outlet Connection requires careful attention to detail to ensure a proper fit and seal. The process typically involves removing the old connection, cleaning the mating surfaces, applying any necessary sealants, and then securing the new connection in place. It is important to follow manufacturer guidelines for torque specifications and to use the appropriate tools to avoid damaging the part or the engine.

Common Issues and Troubleshooting

Typical problems associated with water outlet connections include leaks and blockages. Leaks can occur due to worn seals or improper installation, while blockages may result from debris in the coolant system. Troubleshooting these issues involves inspecting the connection for signs of wear or damage, checking for proper installation, and ensuring that the coolant system is clean and free of obstructions.

Maintenance Tips

Regular maintenance practices can help ensure the longevity and efficiency of the Cummins 3943297 Water Outlet Connection. This includes periodic inspection for signs of wear or damage, ensuring that all connections are tight and secure, and keeping the coolant system clean. Following the manufacturer’s recommended maintenance schedule can help prevent issues and ensure optimal performance.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins has established a reputation for quality and innovation in the commercial truck industry. The company’s product range includes a variety of engines and components designed to meet the demanding requirements of commercial applications.

Water Outlet Connection Part 3943297 for Cummins Engines

The Water Outlet Connection part 3943297 is designed to fit a variety of Cummins engines, ensuring efficient coolant flow and thermal management. This part is integral to the engine’s cooling system, facilitating the transfer of coolant from the engine block to the radiator or heater core.

ISB Series Engines

• ISB CM2150
• ISB CM550
• ISB CM850
• ISB/ISD4.5 CM2150 B119
• ISB6.7 CM2250
• ISB6.7 CM2350 B101

The ISB series engines are designed for a range of applications from light-duty to heavy-duty use. The Water Outlet Connection part 3943297 is compatible with these engines, ensuring that coolant is effectively routed to maintain optimal engine temperature.

ISBE Series Engines

• ISBE CM800
• ISBE4 CM850

The ISBE series engines are engineered for high-performance applications. The Water Outlet Connection part 3943297 is specifically designed to fit these engines, providing a reliable and durable solution for coolant management.

QSB Series Engines

• QSB6.7 CM2250

The QSB6.7 CM2250 engine is known for its robust performance and reliability. The Water Outlet Connection part 3943297 is engineered to fit this engine, ensuring efficient coolant flow and maintaining the engine’s operational temperature within the desired range.

Each of these engines benefits from the Water Outlet Connection part 3943297, which is crafted to meet the stringent requirements of Cummins’ high-performance engines. This part is essential for maintaining the engine’s cooling system integrity, ensuring longevity and performance.

Role of Part 3943297 Water Outlet Connection in Engine Systems

The water outlet connection, identified by part number 3943297, is integral to the efficient operation of engine systems. It serves as a pivotal junction point where the coolant flow is directed from the engine block to various components requiring temperature regulation.

Integration with the Long Block

When installed on a long block, the water outlet connection facilitates the distribution of coolant to critical areas such as the cylinder head and other auxiliary components. This ensures uniform temperature management across the engine, which is essential for optimal performance and longevity of the engine components.

Function within the Water Outlet System

In the broader context of the water outlet system, part 3943297 acts as a conduit that links the engine’s water pump to the radiator and other cooling system components. Its precise fitting and sealing properties are designed to prevent coolant leaks, maintaining the integrity of the cooling system.

Connection to Other Components

The water outlet connection also interfaces with thermostat housing and potentially with the heater core, depending on the engine’s design. This connection ensures that the coolant is effectively circulated through the engine, absorbing heat and transferring it away to maintain stable operating temperatures.

Conclusion

The Cummins 3943297 Water Outlet Connection is a fundamental component in the engine’s cooling system, ensuring that all connected parts receive the necessary coolant flow for efficient temperature management. Its robust design, durable materials, and precise fitting contribute to the reliability and performance of Cummins engines in commercial truck applications.
