4330745

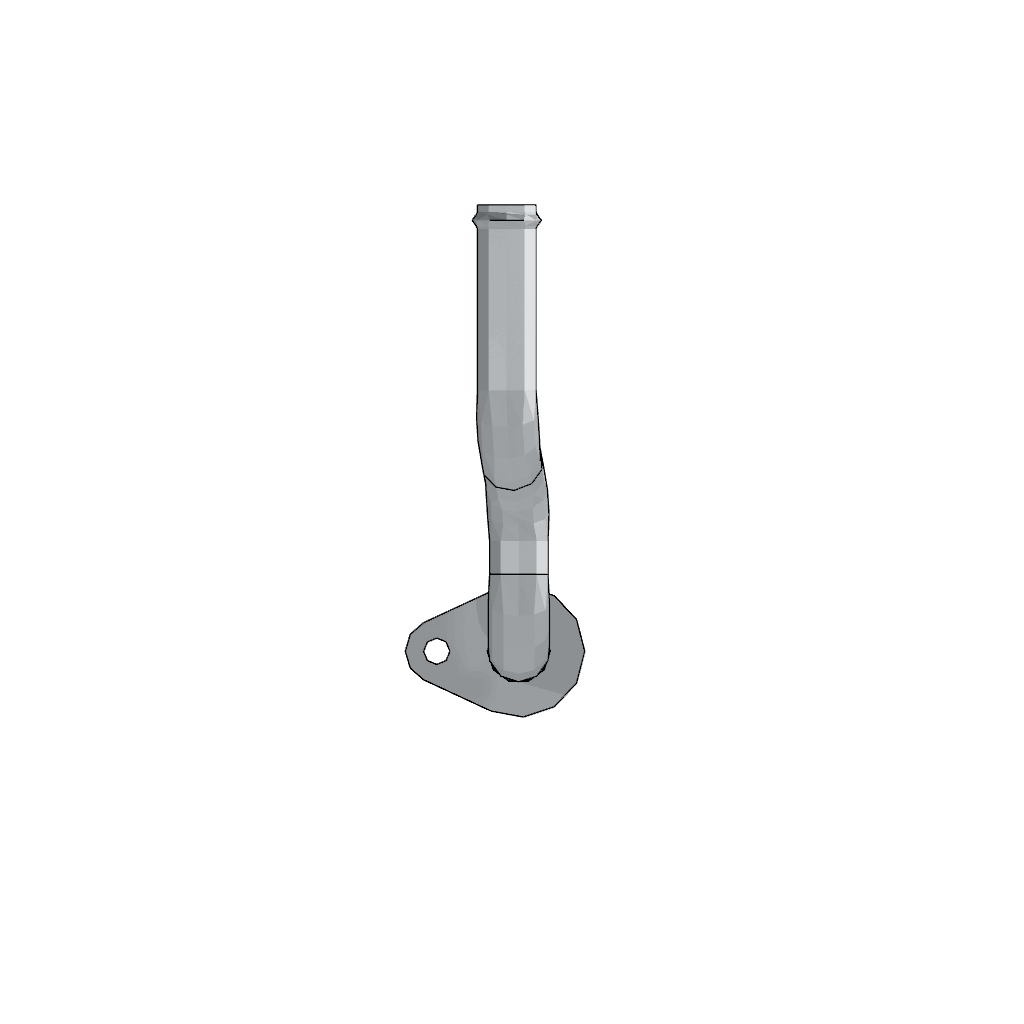

Water Outlet Connection
Cummins®

Introduction

The Cummins 4330745 Water Outlet Connection is a critical component in the engine cooling system of commercial trucks. It ensures the engine operates within optimal temperature ranges by facilitating proper coolant circulation. This part is essential for maintaining the efficiency and reliability of the truck’s engine.

Basic Concepts of Water Outlet Connection

A Water Outlet Connection directs the flow of coolant from the engine to the radiator, ensuring that coolant, after absorbing heat from the engine, is efficiently transported away to be cooled before returning to the engine. This process is vital for maintaining engine temperature and preventing overheating ¹.

Purpose of the 4330745 Water Outlet Connection

This Cummins part ensures that coolant is effectively circulated through the engine, maintaining engine temperature and contributing to the overall reliability and efficiency of the truck’s engine.

Key Features

The 4330745 Water Outlet Connection is characterized by its robust design and the use of high-quality materials, enhancing its performance and durability under demanding conditions. Its design provides a secure connection, minimizing the risk of leaks and ensuring consistent coolant flow.

Benefits

Using this part is associated with improved engine performance due to optimal temperature management, increased reliability of the cooling system, and enhanced longevity of the engine. The component’s design and materials contribute to these benefits by ensuring efficient coolant circulation and durability under demanding conditions.

Installation Process

Installing the 4330745 Water Outlet Connection requires careful attention to ensure a secure and leak-free connection. The process involves preparing the engine area, aligning the connection with the outlet port, and securing it in place using the appropriate tools. It is important to follow manufacturer guidelines to ensure proper installation and functionality.

Troubleshooting Common Issues

Common issues with the Water Outlet Connection may include leaks or blockages. Troubleshooting these problems involves inspecting the connection for signs of wear or damage, ensuring it is properly aligned and secured, and checking for any obstructions in the coolant flow. Addressing these issues promptly can help maintain the efficiency of the engine cooling system.

Maintenance Tips

Regular maintenance of the 4330745 Water Outlet Connection is important for ensuring its longevity and optimal performance. This includes periodic inspections for signs of wear or damage, ensuring all connections are secure, and checking for any leaks. Maintaining the cooling system as a whole, including the coolant level and condition, is also important for the overall health of the engine.

About Cummins

Cummins Inc. is a leader in the manufacturing of diesel engines and related technologies. With a strong reputation in the industry, Cummins is known for its commitment to quality and innovation. The company’s focus on developing reliable and efficient components, like the 4330745 Water Outlet Connection, underscores its dedication to enhancing the performance and reliability of commercial vehicles.

Compatibility with Cummins Engines

The Water Outlet Connection part 4330745 is designed to fit seamlessly with a variety of Cummins engines, ensuring the cooling system operates efficiently and preventing overheating.

ISX Series Engines

• ISX CM570
• ISX CM871
• ISX15 CM2250
• ISX15 CM2350 X101

QSX Series Engines

• QSX15 CM2250 ECF
• QSX15 CM2350 X105

X15 Series Engines

• X15 CM2350 X116B

Role in Engine Systems

The 4330745 Water Outlet Connection is integral to the efficient operation of several engine systems, particularly when interfacing with components such as the cooler and the torque converter oil system.

Interaction with the Cooler

In engine systems equipped with a cooler, the Water Outlet Connection facilitates the regulated flow of coolant, ensuring that the coolant, after absorbing heat from the engine, is directed towards the cooler. This cyclical process is vital for maintaining optimal engine temperature, preventing overheating, and ensuring consistent engine performance.

Integration with Torque Converter Oil System

The torque converter, a fluid coupling device, relies on oil to transmit power from the engine to the transmission. The Water Outlet Connection plays a supportive role in this system by helping to manage the temperature of the torque converter oil. Efficient coolant flow through the Water Outlet Connection aids in dissipating excess heat generated during power transmission. This temperature regulation is essential for the longevity and reliability of the torque converter, as overheating can lead to oil breakdown, reduced efficiency, and potential failure of the torque converter components.

Conclusion

The 4330745 Water Outlet Connection is a key component in maintaining the thermal balance of engine systems, particularly when integrated with coolers and torque converter oil systems. Its role in facilitating the smooth and regulated flow of coolant contributes significantly to the overall efficiency and durability of the engine.
