3013305
Water Transfer Tube
Cummins®

Introduction

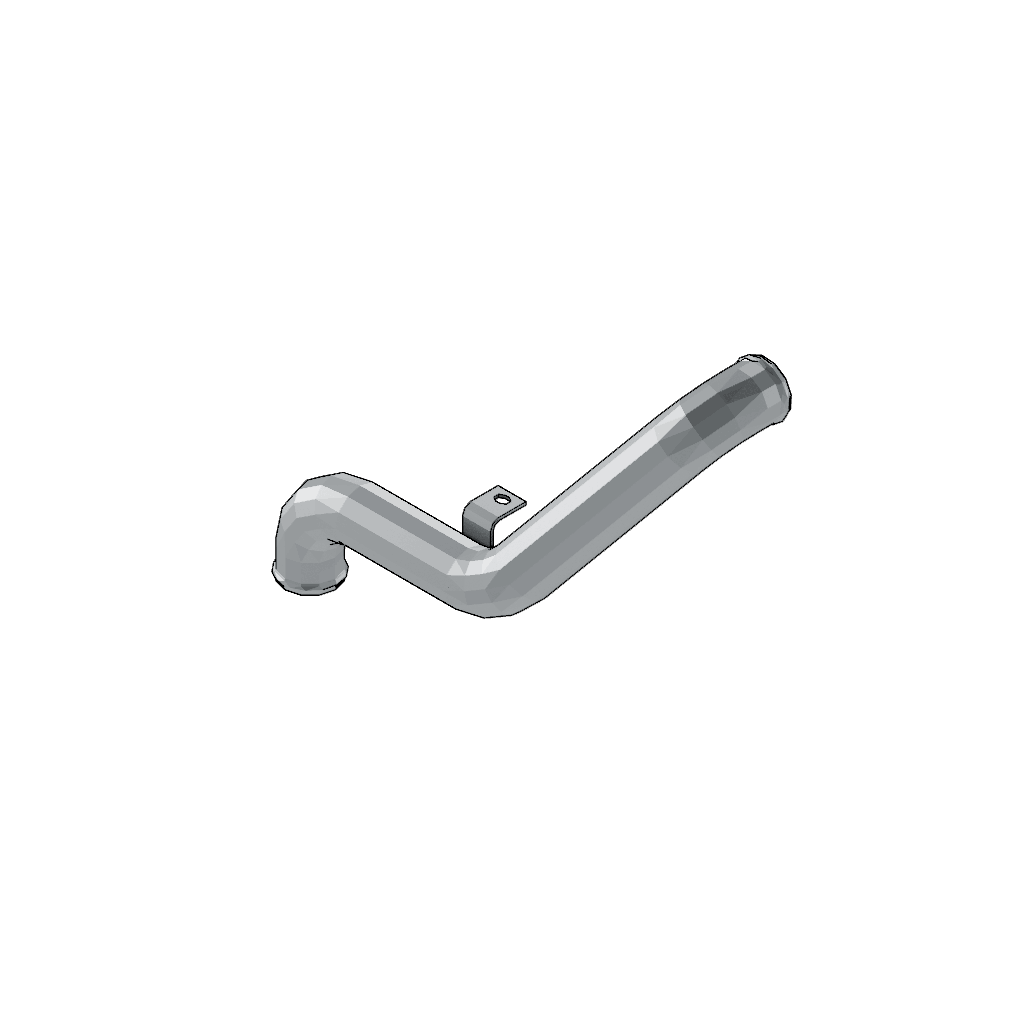

The Cummins 3013305 Water Transfer Tube is designed to facilitate the efficient transfer of coolant within the cooling system of commercial trucks. It plays a significant role in maintaining optimal engine temperature, which is vital for performance and longevity. This part ensures that coolant is effectively circulated between the engine and the radiator, contributing to the overall efficiency and reliability of the truck’s cooling system.

Basic Concepts of Water Transfer Tubes

A Water Transfer Tube is a conduit within the cooling system that allows coolant to flow between different components, primarily the engine and the radiator. Its function is to maintain a consistent temperature within the engine by transferring heat away from the engine block and into the radiator, where it can be dissipated. The tube operates as part of a closed-loop system, ensuring that coolant is continuously recirculated to manage engine temperature effectively.

Purpose of the Cummins 3013305 Water Transfer Tube

The Cummins 3013305 Water Transfer Tube is integral to the truck’s cooling system. It plays a role in transferring coolant between the engine and radiator, ensuring that the engine remains within its optimal operating temperature range. This component helps in dissipating heat generated by the engine, preventing overheating and potential damage to engine components.

Key Features

The Cummins 3013305 Water Transfer Tube is constructed from durable materials that resist corrosion and withstand high temperatures. Its design includes precise fittings and connections to ensure a secure and leak-free installation. Additionally, the tube may feature reinforced sections to enhance durability under the stress of continuous coolant flow and thermal cycling.

Benefits

The Cummins 3013305 Water Transfer Tube offers several advantages. It provides improved coolant flow, which enhances the efficiency of the cooling system. This results in better engine protection against overheating, especially under heavy-duty conditions. The tube’s robust construction and design contribute to increased reliability, ensuring consistent performance over time.

Installation Process

Installing the Cummins 3013305 Water Transfer Tube involves several steps. Begin by ensuring the engine is cool and the cooling system is drained. Remove the old tube, taking care to note the orientation and connections. Install the new tube, ensuring all connections are secure and properly aligned. Refill the cooling system with the appropriate coolant and check for leaks before starting the engine.

Common Issues and Troubleshooting

Typical problems with Water Transfer Tubes include leaks and blockages. Leaks can often be traced to loose connections or damaged fittings, while blockages may result from debris within the cooling system. To address these issues, inspect all connections for tightness and cleanliness, and flush the cooling system to remove any contaminants that could cause blockages.

Maintenance Tips

Regular maintenance of the Cummins 3013305 Water Transfer Tube is important for its longevity and performance. Inspect the tube and its connections periodically for signs of wear or leaks. Clean the tube and surrounding components to prevent buildup that could impede coolant flow. Follow the manufacturer’s recommendations for coolant change intervals to ensure the cooling system remains efficient.

Compatibility with Cummins Engines

The Water Transfer Tube, part number 3013305, is compatible with various Cummins engines, including the N14 Mechanical engine and the NH/NT 855 engines. In these engines, the tube ensures efficient coolant flow, contributing to the overall reliability and performance of the engines.

N14 Mechanical Engine

In the N14 Mechanical engine, the Water Transfer Tube (3013305) ensures optimal coolant flow, which is essential for the engine’s longevity and performance.

NH/NT 855 Engines

The NH/NT 855 engines utilize the Water Transfer Tube (3013305) to manage coolant flow effectively, maintaining the engine’s temperature within safe limits.

Role in Engine Systems

The Cummins 3013305 Water Transfer Tube is an integral component within the engine cooling system, facilitating the efficient transfer of coolant between various critical components. Its primary function is to ensure a consistent flow of coolant to maintain optimal engine temperature.

In the context of the heat exchanger, the Water Transfer Tube connects to the heat exchanger inlet tube. This connection allows for the coolant to be directed into the heat exchanger, where it absorbs excess heat from the engine. The efficient transfer of coolant through this tube is essential for the heat exchanger to perform its role effectively.

Furthermore, the Water Transfer Tube interacts with the exchanger heat system, ensuring that the coolant, after absorbing heat, is circulated back into the engine cooling system. This continuous cycle is vital for dissipating heat and preventing engine overheating.

Conclusion

The Cummins 3013305 Water Transfer Tube plays a significant role in maintaining the integrity and efficiency of the engine cooling system by ensuring seamless coolant flow between the heat exchanger and other connected components. Regular maintenance and proper installation are crucial for the longevity and performance of this part.
