2613513C91
KIT BEARING FORWARD REAR
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$599.95
$719.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
KIT BEARING FORWARD REAR
Weight
29.63 lbs

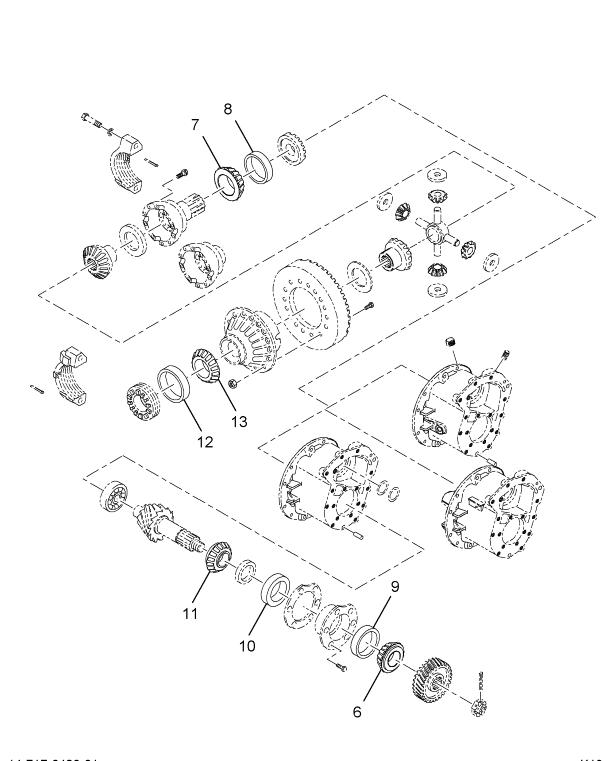

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CONE, BEARING INPUT OUTER | 1 | 2613515C1 |
| CUP, BEARING PINION INNER | 1 | 2613522C1 |
| CONE, BEARING PINION INNER | 1 | 2613523C1 |
| CUP BEARING MAIN DIFFERENTIAL | 2 | 2613524C1 |
| CONE BEARING MAIN DIFFERENTIAL | 2 | 2613525C1 |
| SEAL, OIL INPUT SHAFT | 1 | 2502761C1 |
| CUP, BEARING INPUT OUTER | 1 | 2613514C1 |
| CONE, BEARING PINION OUTER | 1 | 2613569C1 |
| CONE, BEARING PINION OUTER | 1 | 2613520C1 |
| CONE, BEARING INPUT SIDE GEAR | 1 | 2613518C1 |
| CUP, BEARING INPUT SIDE GEAR | 1 | 2613519C1 |
| BEARING, THRUST INPUT SHAFT | 1 | A1228S2255 |
| BEARING, THRUST INPUT SHAFT | 1 | 2613517C1 |
| BEARING, NEEDLE INPUT SHAFT | 2 | 2613516C1 |
| CUP, BEARING PINION OUTER | 1 | 2613530C1 |
| CUP, BEARING PINION OUTER | 1 | 2613521C1 |
CROSS REFERENCES
- MERITOR KIT 4841
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
