2506072C91
Kit, Maintenance
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$349.95
$419.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
Navistar Group Code
5
VMRS
013-010-051
OEM Description

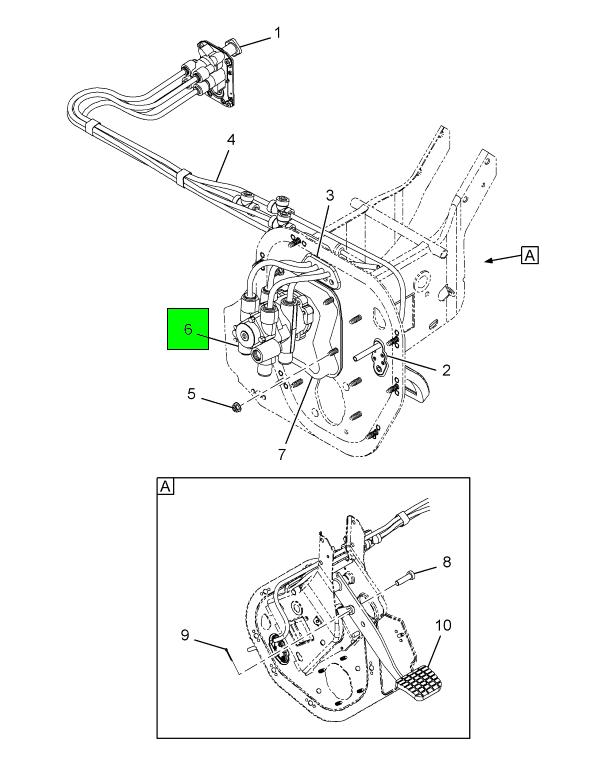

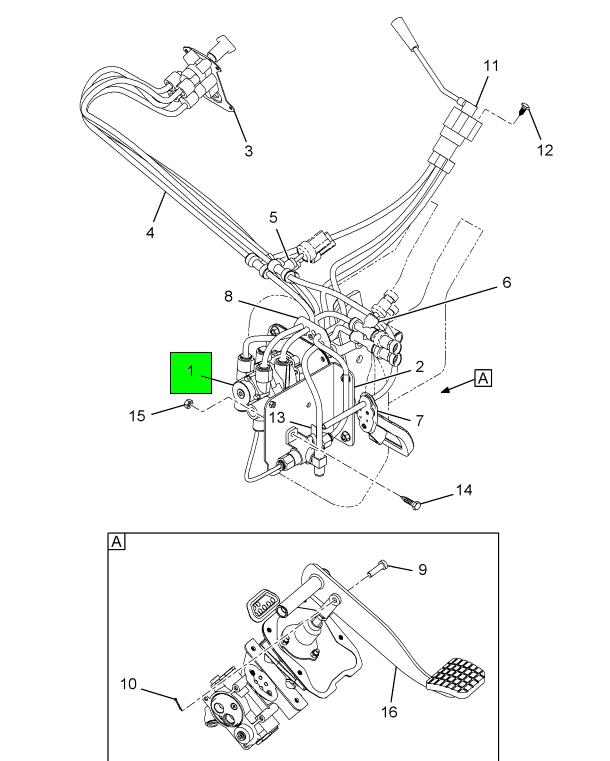

VALVE, BRAKE CONTROL W/MOUNTING HARDWARE
Package Dimensions
11.0 x 9.35 x 10.45 in
Weight
6.36 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| NUT, LOCK 5/16" | 3 | ZAC230402 |
| GASKET VALVE | 1 | 2505852C1 |
| NUT FLANGE 8MM | 4 | 2505842C1 |
| GASKET BRAKE VALVE ADAPTER | 1 | 2505853C1 |
| GUIDE ASSEMBLY BRAKE VALVE PISTON | 1 | 2505854C91 |
| VALVE, BRAKE E-8P FOOT | 1 | 2506077C91 |
CROSS REFERENCES
- NSN 4930-01-535-5748
- NSN 4930-01-535-5748
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
