3614706C95

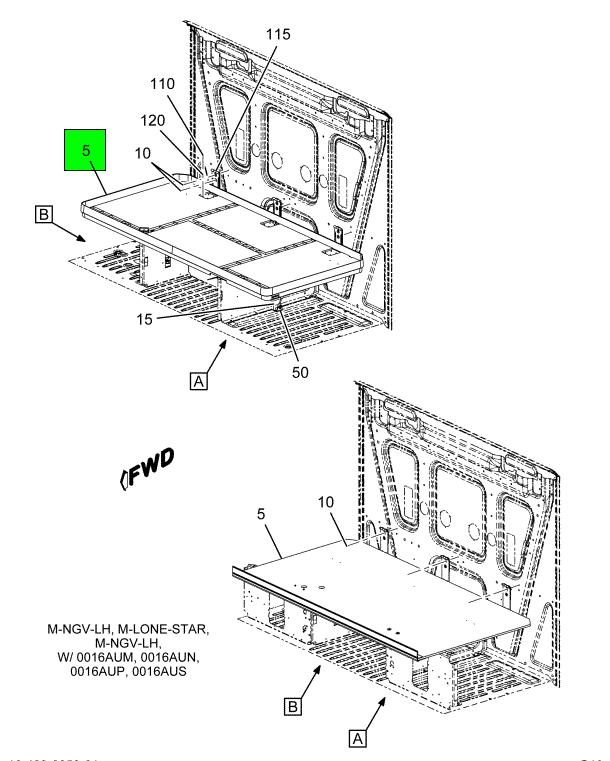

BASE, MATTRESS LOWER BUNK ASSEMBLY * 36"
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$769.95
$923.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
BASE, MATTRESS LOWER BUNK ASSEMBLY * 36"
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BASE, MATTRESS LOWER BUNK 36 | 1 | 3614702C4 |
| WASHER, FLAT .281" X 1.000" X .042" | 2 | 21871R1 |
| RAIL, BUNK FR LOWER BUNK FRONT | 1 | 3614705C3 |
| CLIP, PLASTIC 8MM | 2 | 3616016C1 |
| NUT "T" TYPE PRONG M4 | 12 | 3810553C1 |
| SCREW, SEMS M4 X 16MM | 12 | 3811145C1 |
| FASTENER, BALL STUD M6 X 12 | 1 | 3811263C1 |
| NUT "T" TYPE 4 PRONG M6 X 1 | 1 | 3811345C1 |
| STRIP, TRIM VELCRO LOOP 25.4MM | 1 | 3803291C1 |
| WASHER, FLAT HARDENED | 1 | 25552R1 |
| LIGHT, LIFT UP BUNK COMPARTMENT | 2 | 3571914C91 |
| SPACER LOWER BUNK | 1 | 3823394C1 |
| HINGE LOWER BUNK | 3 | 3571920C2 |
| LATCH, ACCESS DOOR ROTARY | 1 | 3598943C2 |
| SUPPORT, LIFT UP BUNK | 2 | 3813492C1 |
| BOLT, STAINLESS M5 X 0.8 X 35MM | 2 | 3601544C1 |
| SCREW TYPE A THREAD #8-18 X .75 | 4 | 3614700C1 |
| SCREW TYPE A THREAD #8-18 X .50 | 11 | 3614701C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
