3803786C95
BASE SEAT MOUNTING ASSEMBLY
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$759.95
$911.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
BASE SEAT MOUNTING ASSEMBLY

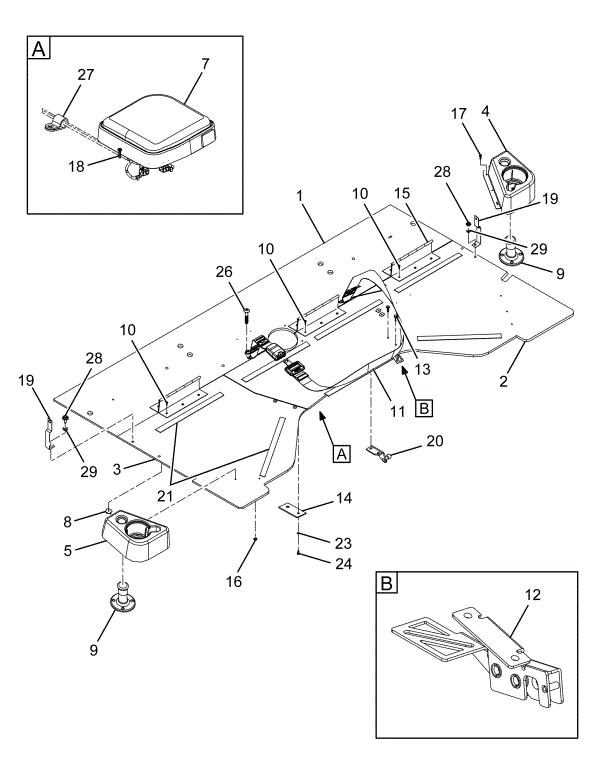

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BASE, SEAT MOUNTING PLYWOOD | 1 | 3807982C2 |
| SCREW, SEMS M4 X 16MM | 28 | 3811145C1 |
| BELT, SAFETY, LAP,COUCH | 1 | 3937870C91 |
| LATCH COUCH | 1 | 3814301C2 |
| BOLT, SEMS M6 X 1-25MM | 2 | 3614708C1 |
| SUPPORT COUCH PLATE | 1 | 3814313C1 |
| HINGE COUCH | 3 | 3814372C1 |
| NUT, HEXAGON M12 | 2 | 3535859C1 |
| SCREW TYPE A THREAD #8-18 X .50 | 10 | 3614701C1 |
| SCREW TYPE A THREAD #8-18 X .75 | 6 | 3614700C1 |
| RETAINER STRAP | 2 | 3816592C2 |
| BASE, SEAT MOUNTING SEAT MOUNTING BASE | 1 | 3814309C3 |
| STUD, COUCH LIFT ASSIST | 1 | 3812776C1 |
| STRIP, TRIM VELCRO LOOP TOP | 7 | 3816815C1 |
| WASHER | 2 | 30289R1 |
| SCREW M4 X 14 | 2 | 30277R1 |
| BOLT SEAT BELT ANCHOR, M12 X 47 | 2 | 3680263C1 |
| CLIP, PLASTIC 8MM | 2 | 3616016C1 |
| BUTTON, FASTENER COVER | 2 | 3802845C1 |
| WASHER, LOCK | 2 | 22237R1 |
| BASE, SEAT MOUNTING SEAT MOUNTING BASE | 1 | 3814310C3 |
| HOLDER, CUP COUCH, LH | 1 | 3807991C1 |
| HOLDER, CUP COUCH RIGHT | 1 | 3807992C1 |
| LIGHT, COMPARTMENT, UNDER BUNK | 2 | 6101744C1 |
| NUT "T" TYPE PRONG M4 | 36 | 3810553C1 |
| SUPPORT BUNK FR ASSEMBLY | 2 | 3810640C92 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
