3666232C93
BOX CONSOLE DRESSER CABINET DRAWER ASSEMBLY LARGE
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$359.95
$431.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description

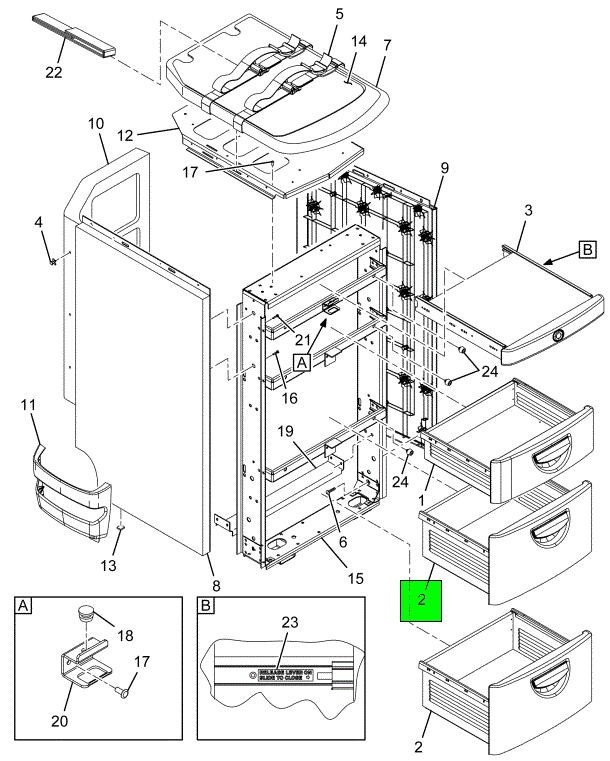

BOX CONSOLE DRESSER CABINET DRAWER ASSEMBLY LARGE
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| SCREW TYPE A THREAD #8-18 X .50 | 8 | 3614701C1 |
| SCREW PAN HEAD TORX M 4 X 14MM | 3 | 3807410C1 |
| PANEL, DRESSER CABINET DRAWER FRONT LARGE | 1 | 3802263C3 |
| " LATCH, DOOR"LUGGAGE | 1 | 3666224C1 |
| PANEL DRESSER CABINET DRAWER BOTTOM | 1 | 3802740C1 |
| PANEL DRESSER CABINET DRAWER BACK LARGE | 1 | 3802742C1 |
| SUPPORT SLIDE-150MM | 1 | 3802744C1 |
| SCREW PAN HEAD TORX BLACK M 5 X 16MM | 4 | 3805951C1 |
| SUPPORT SLIDE BRACKET LH | 1 | 3803122C1 |
| SUPPORT SLIDE BRACKET RIGHT HAND | 1 | 3803123C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
