3802537C98
BOX, CONSOLE TOWER CABINET ASSEMBLY WITH DOOR
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,099.95
$1,319.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
BOX, CONSOLE TOWER CABINET ASSEMBLY WITH DOOR
Weight
73.0004 lbs

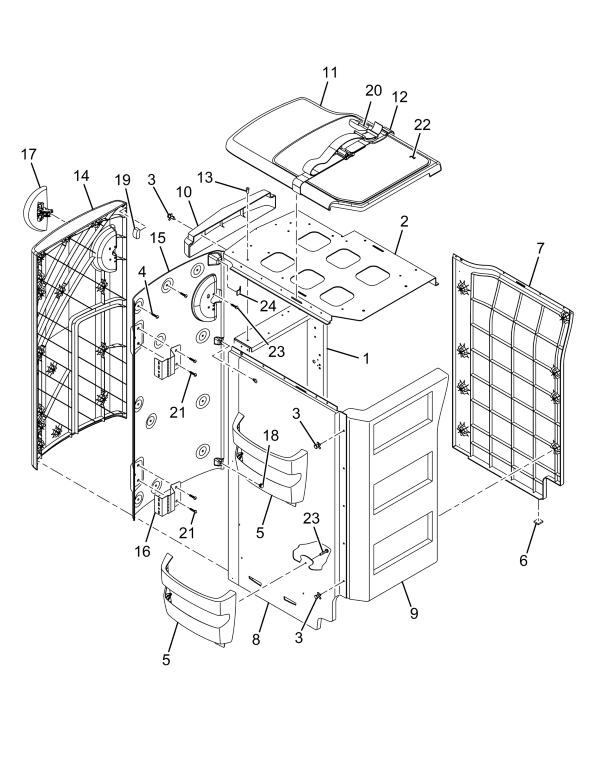

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| REINFORCEMENT, FR TOWER CABINET | 1 | 3803045C3 |
| PANEL, TOWER CABINET APPLIQUE | 1 | 3802697C1 |
| PANEL, TOWER CABINET TOP | 1 | 3802694C1 |
| STRAP, ATTACHING 74" BLACK | 1 | 3619710C1 |
| RIVET STEEL 3/16" | 6 | 3803071C1 |
| PANEL, TOWER CABINET OUTER DOOR | 1 | 3802698C1 |
| PANEL, INNER DOOR TOWER CABINET | 1 | 3802699C4 |
| HINGE, DOOR | 2 | 3802795C1 |
| LATCH, LUGGAGE DOOR ROTARY | 1 | 3802691C1 |
| SPACER RUBBER BUMPER-CABINETS | 2 | 3727899C1 |
| LIGHT, CABIN DOME | 1 | 3599188C91 |
| REINFORCEMENT TWR CABINET STEEL TOP ASSEMBLY | 1 | 3803171C2 |
| HARNESS, SLEEPER BOX CABINET JUMPER FOR TURTLE LIGHT | 1 | 3598596C93 |
| SCREW, PAN HEAD #8 X 1/2" | 6 | 27328R1 |
| MAT, CARPET CONSOLE BOX CABINET TOP | 1 | 3802735C2 |
| SCREW PAN HEAD TORX M 4 X 14MM | 11 | 3807410C1 |
| TAPE, INSULATING TOWER CABINET LIGHT | 1 | 3812585C1 |
| RIVET, BLIND 3/16" | 17 | 3808364C1 |
| SCREW PAN HEAD TORX BLACK M 5 X 16MM | 35 | 3805951C1 |
| PANEL, LOWER CABINET MAGAZINE POCKET | 2 | 3802271C3 |
| PANEL, LOWER CABINET MAGAZINE POCKET | 2 | 3802271C1 |
| TAPE, TRIM LOWER CABINET FOAM PAD | 2 | 3802315C1 |
| PANEL, TOWER CABINET SIDE REAR REAR | 1 | 3802695C3 |
| PANEL, TOWER CABINET SIDE FRONT FRONT | 1 | 3802696C2 |
| PANEL, TOWER CABINET BACK | 1 | 3802702C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
