3809142C98
BOX, CONSOLE
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$2,099.95
$2,519.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
BOX, CONSOLE

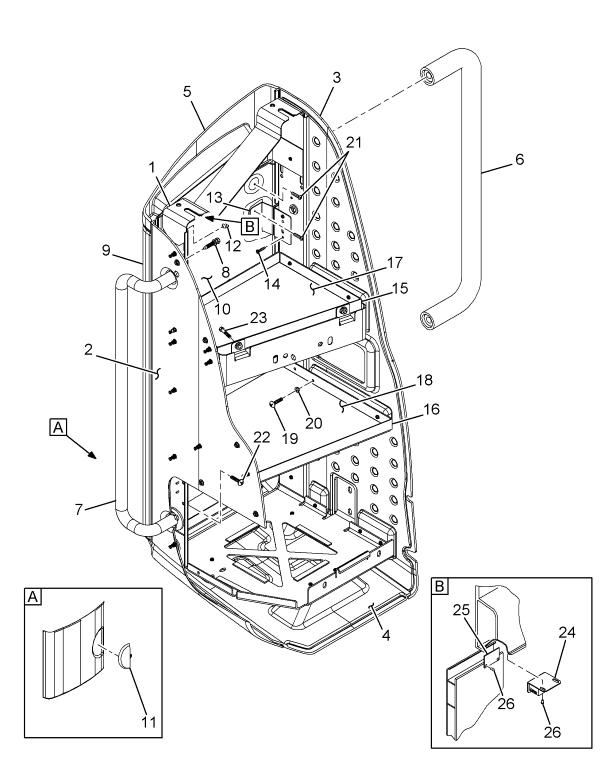

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| REINFORCEMENT TWR CABINET FR | 1 | 3668356C5 |
| PANEL, TOWER CABINET INNER DOOR TOWER CABINET | 1 | 3802699C4 |
| PANEL, TOWER CABINET INNER DOOR TOWER CABINET | 1 | 3802699C2 |
| LATCH, LUGGAGE DOOR ROTARY | 1 | 3802691C1 |
| SPACER, BUMPER RUBBER | 2 | 3802839C1 |
| HINGE, DOOR | 2 | 3802795C1 |
| SCREW, PAN HEAD #8 X 1/2" | 4 | 27328R1 |
| PANEL TOP SHELF | 1 | 3665840C3 |
| PANEL MIDDLE SHELF | 1 | 3665842C3 |
| " MAT, CARPET"CONSOLE BOX | 1 | 3667354C1 |
| " MAT, CARPET"CONSOLE BOX | 1 | 3667355C1 |
| SCREW M4, PAN HEAD, 16MM | 33 | 3667100C1 |
| PANEL, TOWER CABINET SIDE ASSEMBLY FORWARD | 1 | 3809130C6 |
| WASHER, LOCK HELICAL SPRING 1.121PP M4 | 33 | 933832R1 |
| SCREW PAN HEAD TORX BLACK M 5 X 16MM | 17 | 3805951C1 |
| SCREW PAN HEAD TORX M 4 X 14MM | 3 | 3807410C1 |
| BOLT, SEMS ALL M6 X 16 MM | 2 | 3536738C1 |
| CATCH, DOOR LOCK | 1 | 3826465C91 |
| CATCH, DOOR LOCK | 1 | 3826468C1 |
| RIVET, BLIND POP | 4 | 487159C1 |
| PANEL ASSEMBLY, SIDE TOWER CABINET | 1 | 3665762C5 |
| PANEL ASSEMBLY, BOTTOM TOWER CABINET | 1 | 3809132C3 |
| PANEL, TOWER CABINET FRONT | 1 | 3826723C2 |
| HANDLE ASSEMBLY, GRAB | 1 | 3809134C3 |
| HANDLE ASSEMBLY, GRAB | 1 | 3809136C1 |
| BOLT, LOCK W/PATCH 8MM | 4 | 3532083C1 |
| PANEL, TOWER CABINET OUTER DOOR | 1 | 3802698C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
