4063240C91
BOX CONSOLE UPPER ASSEMBLY WITH DOOR L
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,249.95
$1,499.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
BOX CONSOLE UPPER ASSEMBLY WITH DOOR L
Package Dimensions
47.0 x 33.0 x 23.0 in
Weight
47 lbs

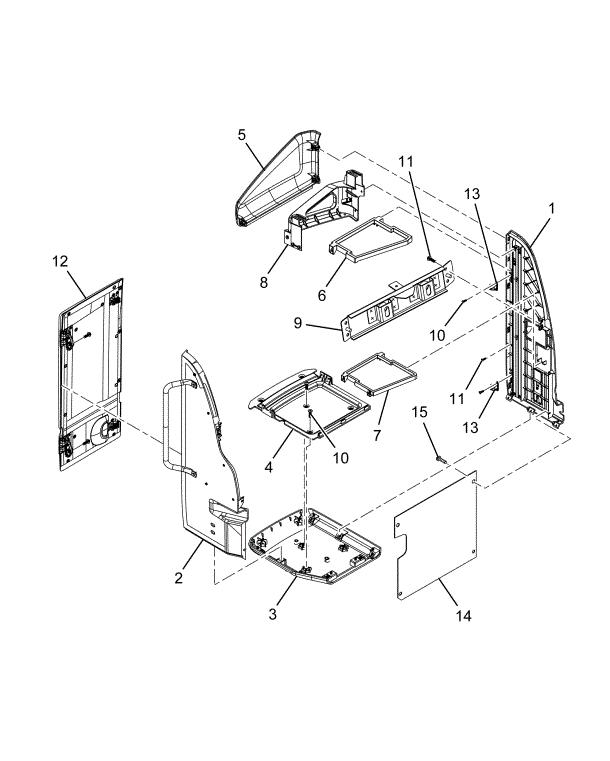

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL UPPER SIDE REAR ASSEMBLY L | 1 | 4063217C1 |
| SCREW, M5 X 14MM BOSSCREW THREAD | 15 | 4033278C1 |
| BOLT, SEMS ALL TORX M6 X 1.0-19.5 MM | 28 | 3571282C1 |
| PANEL DOOR ASSEMBLY N/STEP L | 1 | 3748134C6 |
| STRIKER, CABINET LATCH | 1 | 3932370C2 |
| PANEL, UPPER BACK CLOSEOUT, L | 1 | 3932984C2 |
| FASTENER, TRIM CHRISTMAS TREE BLACK | 4 | 4027091C1 |
| PANEL UPPER SIDE FORWARD ASSEMBLY L | 1 | 4063160C1 |
| PANEL UPPER BOTTOM ASSEMBLY L | 1 | 3747762C3 |
| PANEL, UPPER BOTTOM CLOSEOUT L | 1 | 3932979C2 |
| PANEL UPPER TOP CLOSEOUT ASSEMBLY L | 1 | 3747763C1 |
| PANEL UPPER SHELF ASSEMBLY L | 1 | 3747764C2 |
| PANEL LOWER SHELF ASSEMBLY L | 1 | 3747765C1 |
| PANEL UPPER TOP INNER ASSEMBLY L | 1 | 3981782C2 |
| SUPPORT UPPER CABINET MIDDLE BRACKET ASSEMBLY L | 1 | 6111639C2 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
