3576357C92
Hose, Air Conditioning Evaporator to Compressor
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$269.95
$323.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
Navistar Group Code
16
OEM Description
HOSE, FLEXIBLE REFRIGERANT AIR CONDITIONER EVAPORATOR TO COMPRESSOR
Package Dimensions
21.0 x 14.0 x 4.1 in
Weight
3.21 lbs

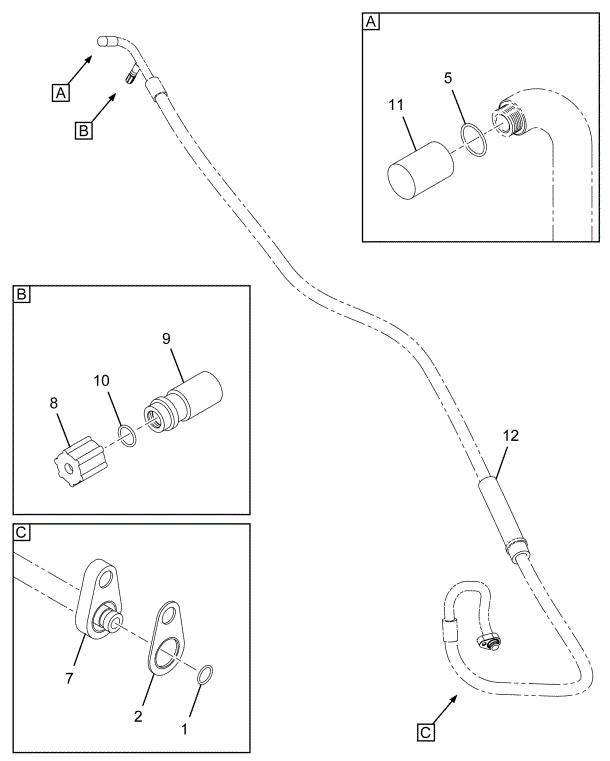

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| O-RING SEAL 15 35/64" X 2 5/8" | 1 | 3543728C1 |
| RING ,O HNBR 7.37 ID X 1.81 THK | 1 | 1693968C1 |
| CAP, REFRIGERATOR FITTING .720" I.D. | 1 | 3570522C1 |
| LOOM, HOSE INSULATOR 1.25" X 12" | 762 | 2000310C1 |
| SEAL, C- PLATE 3/4" | 1 | 3543882C1 |
| RING ,O HNBR 12.93 ID X 1.86 THK | 1 | 1693970C1 |
| CAP REFRIGERANT FITTING 3/4" MALE | 1 | 3555227C1 |
| CAP, REFRIGERANT FITTING LOW SIDE | 1 | 1693981C1 |
| FITTING, SPECIAL CHARGE PORT LOW SIDE | 1 | 1694957C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
