3619981C94
HOSE ASSEMBLY, AIR CONDITIONER COMPRESSOR TO CONDENSOR
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$149.95
$179.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
" HOSE ASSEMBLY, AIR CONDITIONER"COMPRESSOR TO CONDENSOR
VMRS
001-002-000
Package Dimensions
14.9 x 7.7 x 4.35 in
Weight
1.33 lbs

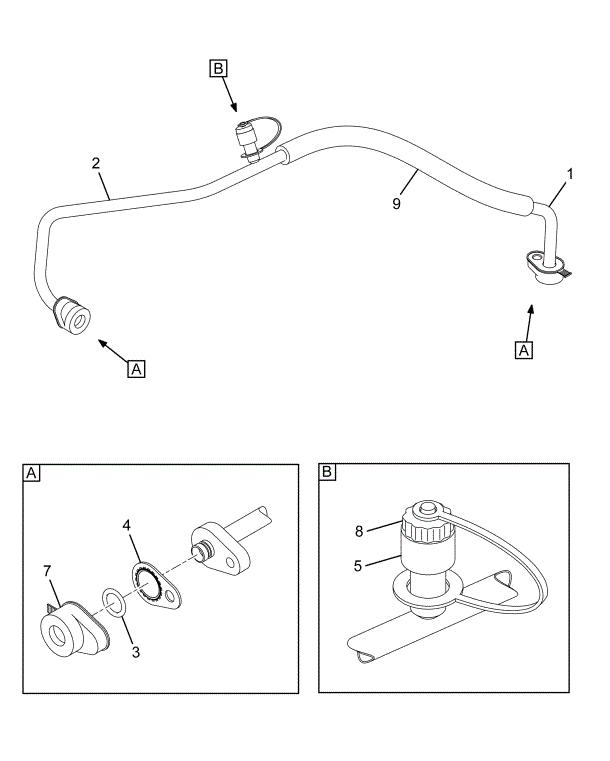

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| AC FITTING #165 COMP OUT TUBE ASM 1/2 NOM OD | 1 | 4050446C1 |
| AC FITTING #158 COND IN TUBE ASM 1/2 NOM OD | 1 | 4041933C1 |
| O-RING SEAL 10 25/32" X 2 5/8" | 2 | 3543727C1 |
| SEAL, C- PLATE 1/2" | 2 | 3543881C1 |
| CORE, VALVE | 1 | 3544706C1 |
| CAP, SHIPPING, REFRIGERANT FITTING 1/2" MALE | 2 | 3555226C1 |
| CAP, TETHERED REFRIGERATOR FITTING | 1 | 3625408C1 |
CROSS REFERENCES
- PARKER 554196
- PARKER 554196
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
