3666095C92
" HOSE ASSEMBLY, AIR CONDITIONER"CONDENSER TO EVAPORATOR SLEEPER
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$204.95
$245.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
" HOSE ASSEMBLY, AIR CONDITIONER"CONDENSER TO EVAPORATOR SLEEPER
VMRS
001-002-000
Weight
2 lbs

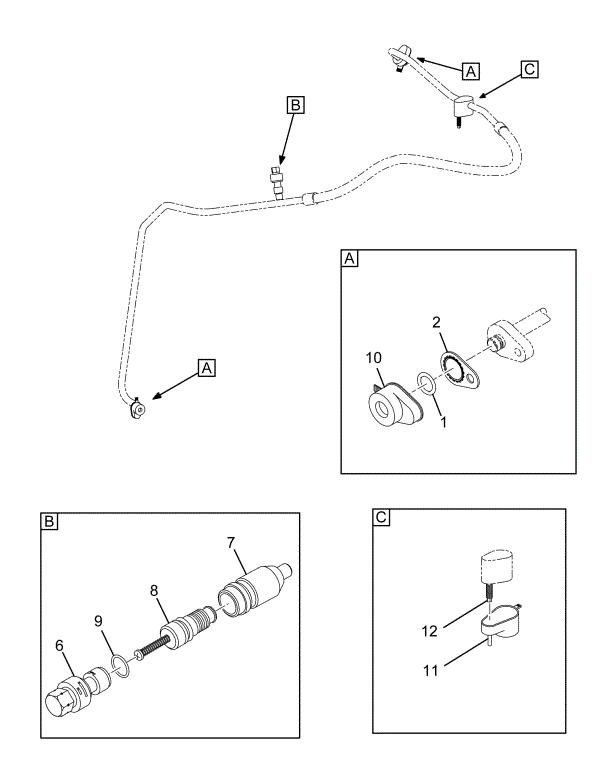

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| O-RING SEAL 10 25/32" X 2 5/8" | 2 | 3543727C1 |
| CAP, SHIPPING, REFRIGERANT FITTING 1/2" MALE | 2 | 3555226C1 |
| CAP 1/2" FEMALE | 1 | 3555228C1 |
| STUD, GROOVED RIVE | 1 | 3544699C1 |
| SEAL, C- PLATE 1/2" | 2 | 3543881C1 |
| SWITCH, AIR CONDITIONER PRESSURE | 1 | 3546241C1 |
| AIR CONDITION FITTING VALVE BODY- SWITCH PORTAL | 1 | 3544769C1 |
| CORE, VALVE AIR CONDITIONER HOSE | 1 | 2503677C1 |
| RING ,O HNBR 7.37 ID X 1.81 THK | 1 | 1693968C1 |
CROSS REFERENCES
- PARKER 554246
- PARKER 554246
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
