3866713C91
HOSE UNDERBODY ASSEMBLY-LG SLEEPER
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$279.95
$335.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-050-000
OEM Description
HOSE UNDERBODY ASSEMBLY-LG SLEEPER

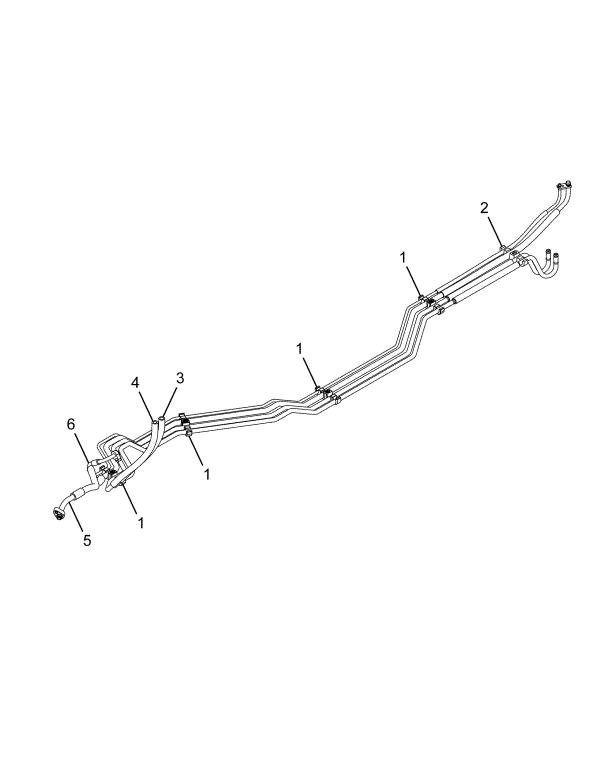

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CLIP, UNDERBODY 3/4" | 4 | 3601749C1 |
| CLIP, UNDERBODY BERGSTROM | 1 | 3829671C1 |
| HOSE, HEATER ASSEMBLY- SUPPLY LG | 1 | 3866507C91 |
| HOSE, HEATER ASSEMBLY- RETURN LG | 1 | 3866508C91 |
| HOSE, A/C ASSEMBLY-SUCTION LINE LG | 1 | 3866509C91 |
| HOSE, A/C ASSEMBLY-LIQUID LINE LG | 1 | 3866510C91 |
CROSS REFERENCES
- PARKER 722061
- PARKER 722061
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
